6C – 36   FUEL SYSTEM

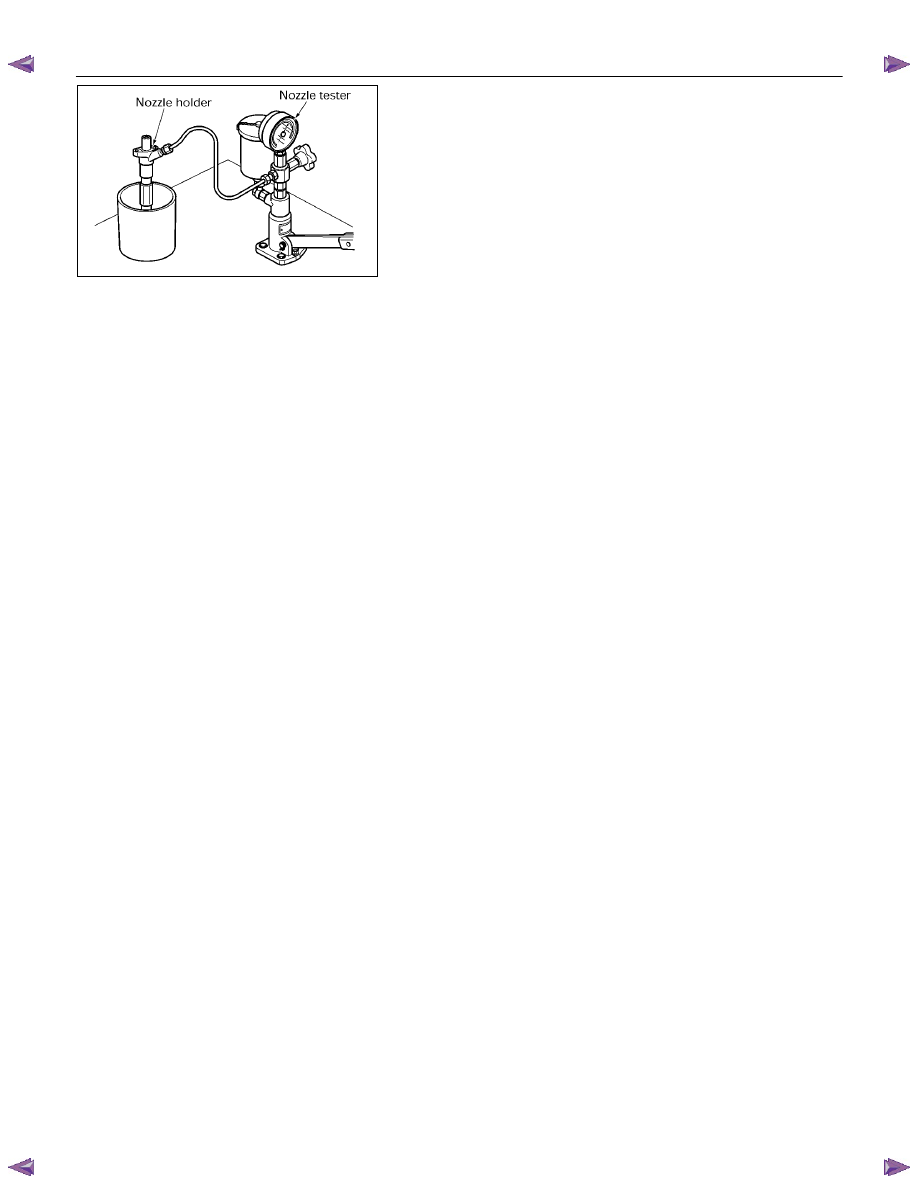

4.  Set the nozzle holder to the nozzle tester and check

first nozzle opening pressure, spray condition, seat oil
tightness and each part for oil leaks.

5.  When replacing the nozzle, replace the nozzle, lift

piece, pins and spacer as a set with the nozzle service
kit.

CAUTION:

Pre-lift will not be as specified if only the nozzle is
replaced.




040MV030.tif

FUEL SYSTEM    6C – 37

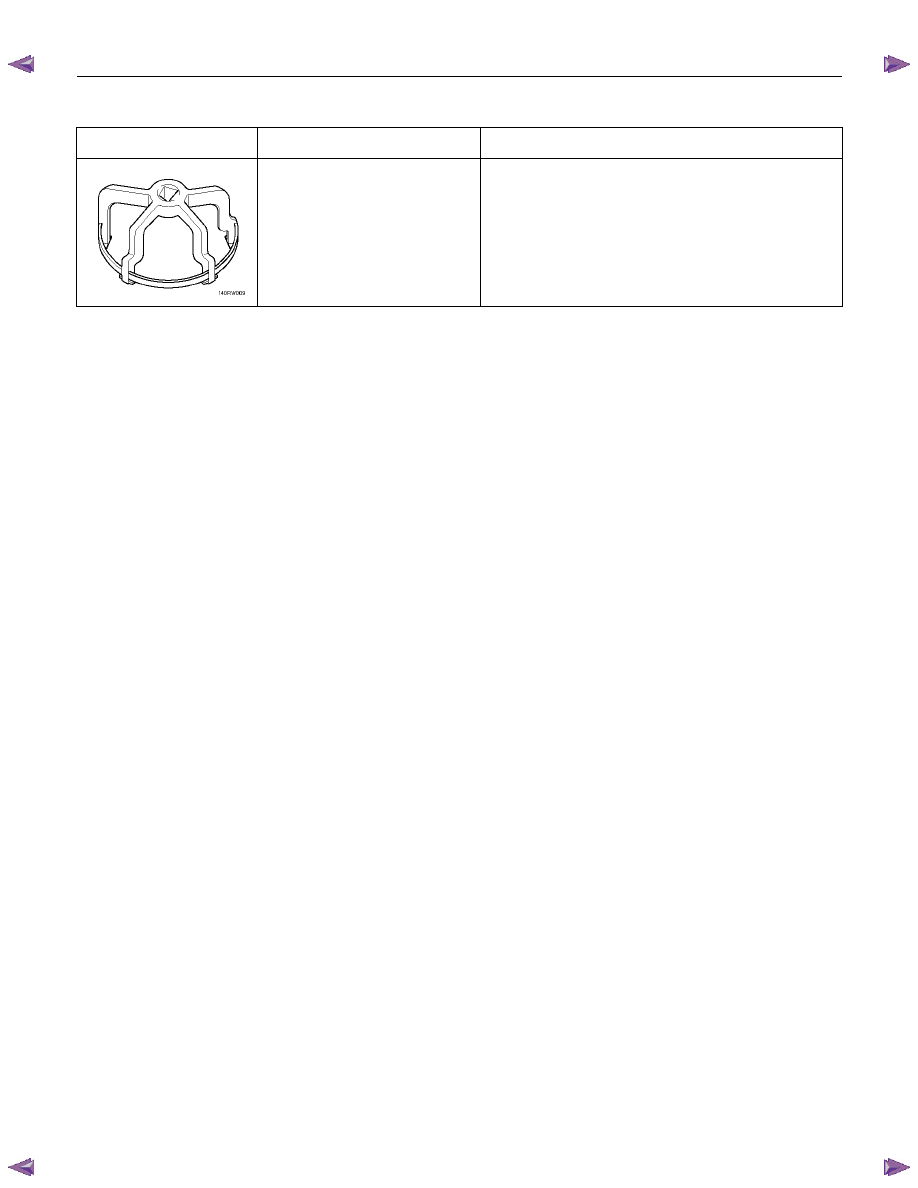

SPECIAL TOOLS

ILLUSTRATION

TOOL NUMBER

TOOL NAME



5-8840-2602-0

(J-39765)

Remover: fuel pump retainer ring






SECTION 6D

ENGINE ELECTRICAL




TABLE OF CONTENTS

PAGE

Main Data and Specifications.........................................................................................   6D -  2

General Description ........................................................................................................   6D - 3

Torque Specifications .....................................................................................................   6D - 5

Generator .........................................................................................................................  6D -  7

  Removal and Installation ............................................................................................   6D -  7

 Disassembly ................................................................................................................

6D -  9

  Inspection and Repair.................................................................................................   6D - 12

 Reassembly .................................................................................................................

6D - 18

Starter Motor ....................................................................................................................  6D - 22

  Removal and Installation ............................................................................................   6D - 22

 Disassembly ................................................................................................................

6D - 23

  Inspection and Repair.................................................................................................   6D - 26

 Reassembly .................................................................................................................

6D - 29

Pre-heating System .........................................................................................................   6D -33

  Inspection and Repair.................................................................................................   6D -33

 Glow

Relay...................................................................................................................

6D -33

 Glow

Plug..................................................................................................................... 6D -33

 EGR

System.................................................................................................................

6D -33

ENGINE ELECTRICAL   6D – 1

6D – 2  ENGINE ELECTRICAL



MAIN DATA AND SPECIFICATIONS

Description

Item

60A 80A

Generator
 Type



AC generator with IC regulator and vacuum pump



Hitachi LR160-503E

Hitachi LR180-513B

 Voltage

V

  Drive and rotation
 Ground

polarity

12

V-belt, clockwise viewed from the drive pulley

Negative

 Maximum

output

A

60

80

  Engine speed ratio

to 1

1.788

 Maximum

speed

rpm

11,000

  Weight with vacuum pump

kg(lb)

5.8(12.8)

6.4(14.1)

Vacuum Pump
 Delivery

volume

cm

3

/rev

Exhaust Characteristic





Maximum vacuum



50

-66.7 kPa (-500 mmHg) bulid up time 21 seconds or less at 1,000

rpm



7 seconds or less at 5,000 rpm

-90.7 kPa (-680 mmHg) or more

Starter Motor
 Type



Solenoid controlled

 Hitachi

S13-555

12

2.3



8.76

300

 Rated

voltage

V

 Rated

output

kW

 Load

characteristics

 Terminal

voltage

V

 Load

current

A

Weight kg(Ib)

4.7 (10.4)
