BRAKES  5C-25





Filling Master Cylinder Reservoir

CAUTION:
Use only specified brake fluid.  Do not use any fluid which
contains a petroleum base.  Do not use a container which
has been used for petroleum based fluids or a container
which is wet with water.  Petroleum based fluid will cause
swelling and distortion of rubber parts in the hydraulic
brake system. Water mixed with brake fluid lowers the
fluid boiling point.  Keep all fluid containers capped to
prevent contamination.
Always fill the master cylinder reservoir when the engine
is cold.
Never allow the brake fluid to come in contact with the
painted surfaces.
The master cylinder reservoir must be kept properly filled
to ensure adequate reserve and to prevent air and
moisture from entering the hydraulic system. However,
because of expansion due to heat absorbed from the
brakes and the engine, the reservoir must not be
overfilled.  Thoroughly clean reservoir cap before removal
to avoid getting dirt into reservoir. Add fluid as required to
bring level to the “MAX” mark on the reservoir tank. Use
“DOT 3” Hydraulic Brake Fluid.


Leakage of Brake Fluid

With engine idling, set shift lever in the neutral position and
continue to depress brake pedal at a constant pedal
application force.
Should the pedal stroke become deeper gradually, leakage
from the hydraulic pressure system is possible.
Make sure by visual check that there is no leak.










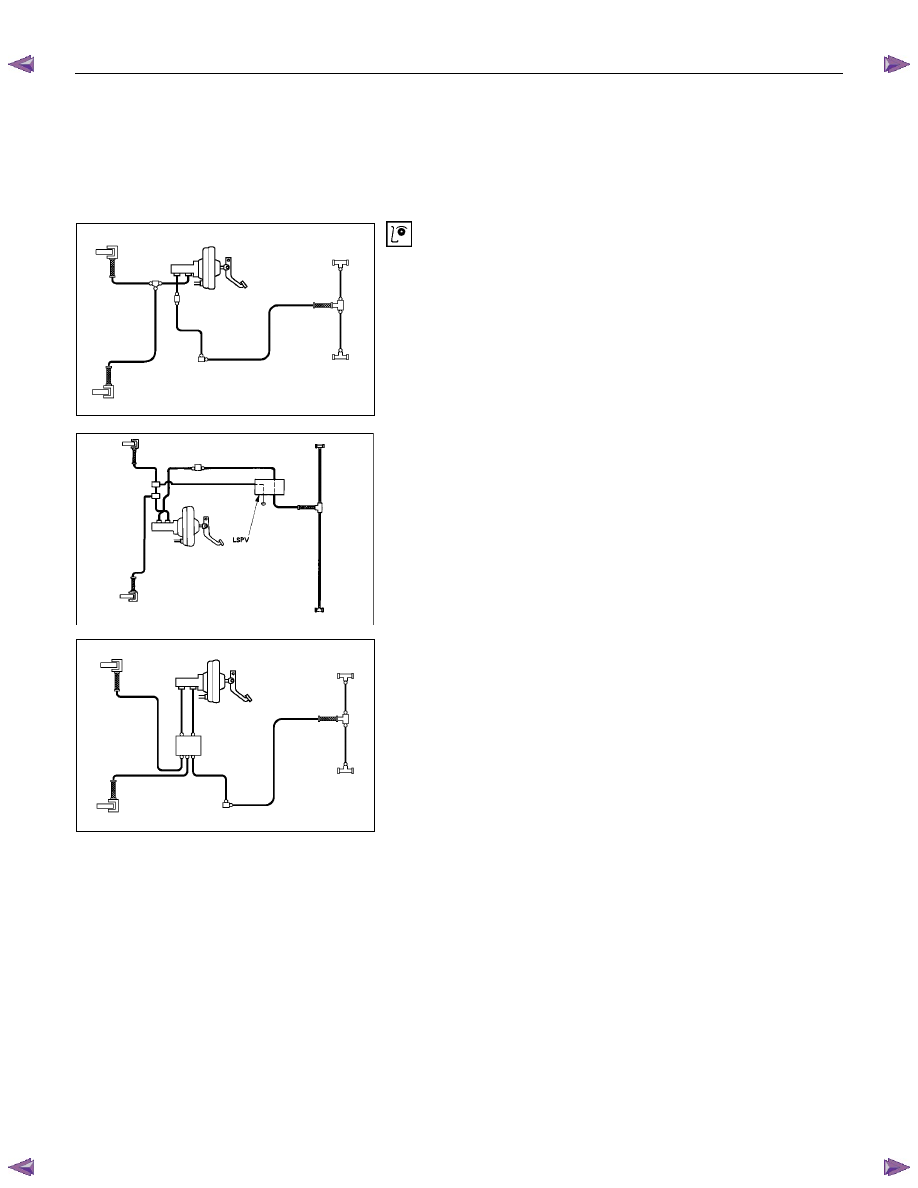

BLEEDING OF THE BRAKE HYDRAULIC

CIRCUIT

If air enters the bake lines, it will cause poor brake action.
Therefore, bleeding should be performed if the brakes have
been used with the level of brake fluid in the reservoir
excessively low or if brake pipes have been disconnected in
the course of brake servicing.
The bleeding operation calls for co-operative action of 2
persons.
•  Set the parking brake firmly while bleeding.
•  Perform bleeding operation with ENGINE RUNNING, to

prevent damage to push rod seal.



Make sure exhaust is suitably ventilated.

•  Bleed the hydraulic system with the fluid reservoir filled to

the specified level.

•  Bleed the system starting with the rear wheel cylinder

farthest from the master cylinder.



5C-26  BRAKES





A bleeding operation is necessary to remove air from the
hydraulic brake system whenever air is introduced into the
hydraulic system. It may be necessary to bleed the hydraulic
system at all four brakes if air has been introduced through a
low fluid level or by disconnecting brake pipes at the master
cylinder. If a brake pipe is disconnected at one wheel, only that
wheel cylinder/caliper needs to be bled. If the pipes are
disconnected at any fitting located between the master cylinder
and brakes, then the brake system served by the disconnected
pipe must be bled.

1.  Set the parking brake completely, then start the engine.

NOTE:
The vacuum booster will be damaged if the bleeding operation
is performed with the engine off.

2.  Remove the master cylinder reservoir cap.







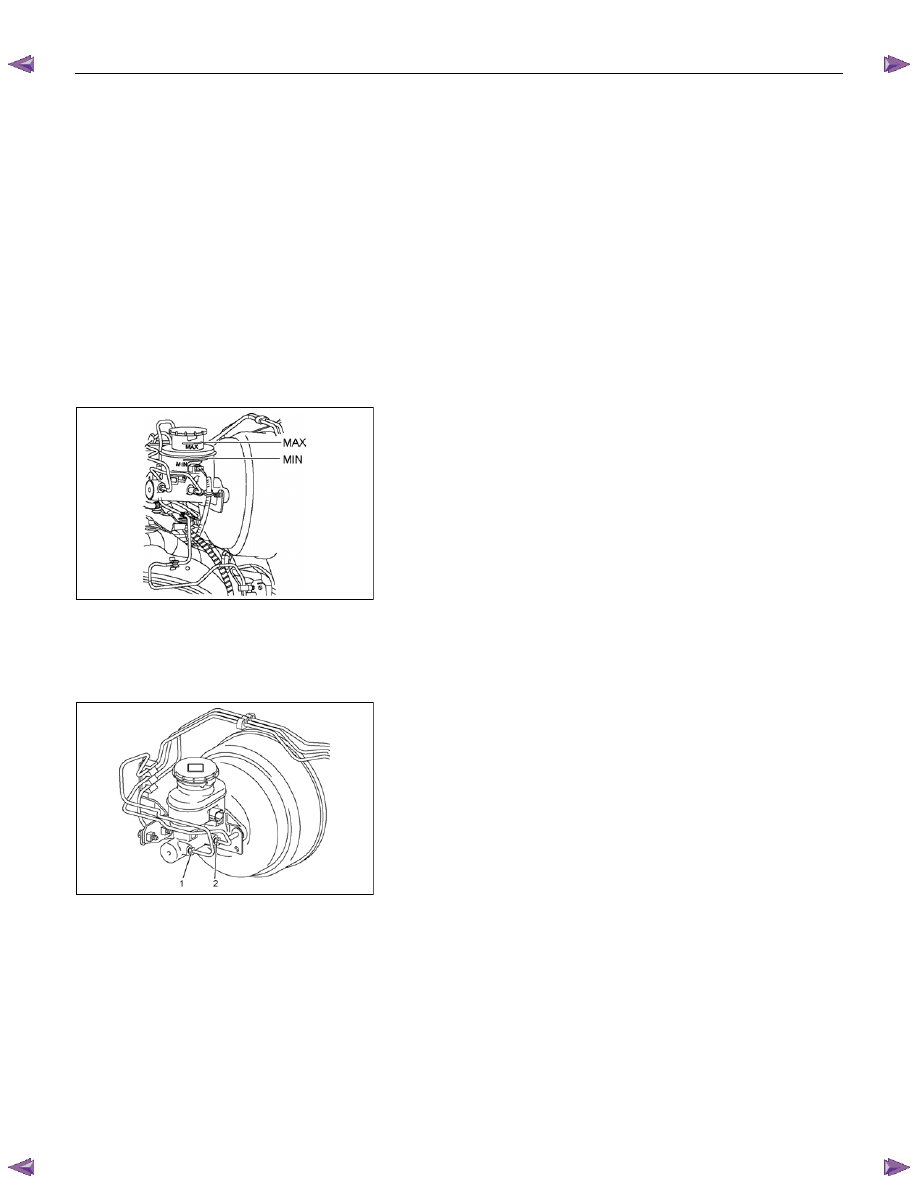

RTW75CSH001701



3.  Fill the master cylinder reservoir with brake fluid. Keep the

reservoir at least half full during the air bleeding operation.

4.  Always use new brake fluid for replenishment.

5.  In replenishing brake fluid, take care that air bubbles do not

enter the brake fluid.









When the master cylinder is replaced or overhauled, first
bleed the air from the master cylinder, then from each
wheel cylinder and caliper following the procedures
described below.









RTW75CSH001801



Bleeding the Master Cylinder

6.  Disconnect the rear wheel brake pipe (1) from the master

cylinder.

  Check the fluid level and replenish as necessary. If

replenished, leave the system for at least one minute.

7.  Depress the brake pedal slowly once and hold it depressed.

8.  Completely seal the delivery port of the master cylinder with

your finger, where the pipe was disconnected, then release

the brake pedal slowly.

9.  Release your finger from the delivery port when the brake

pedal returns completely.

10. Repeat steps 7 through 9 until the brake fluid comes out of

the delivery port during step 7.

NOTE: Do not allow the fluid level in the reservoir to go below
the half-way mark.

11. Reconnect the brake pipe (1) to the master cylinder and

tighten the pipe.

12. Depress the brake pedal slowly once and hold it depressed.

13. Loosen the rear wheel brake pipe (1) at the master cylinder.

14.

Retighten the brake pipe, then release the brake pedal

slowly.

BRAKES  5C-27





15. Repeat steps 12 through 14 until no air comes out of the

port when the brake pipe is loosened

NOTE: Be very careful not to allow the brake fluid to come in

contact with painted surfaces.









RTW75CSH001801



16. Bleed the air from the front wheel brake pipe connection (2)

by repeating steps 6 through 15.



Bleeding the Caliper

17. Bleed the air from each wheel in the order listed below:

•  Right rear wheel cylinder
•  Left rear wheel cylinder
•  Left front caliper
•  Right front caliper



Conduct air bleeding from the wheels in the above order. If

no brake fluid comes out, it suggests that air is mixed in the

master cylinder. In this case, bleed air from the master

cylinder in accordance with steps 6 through 16, and then

bleed air from the caliper or wheel cylinder.







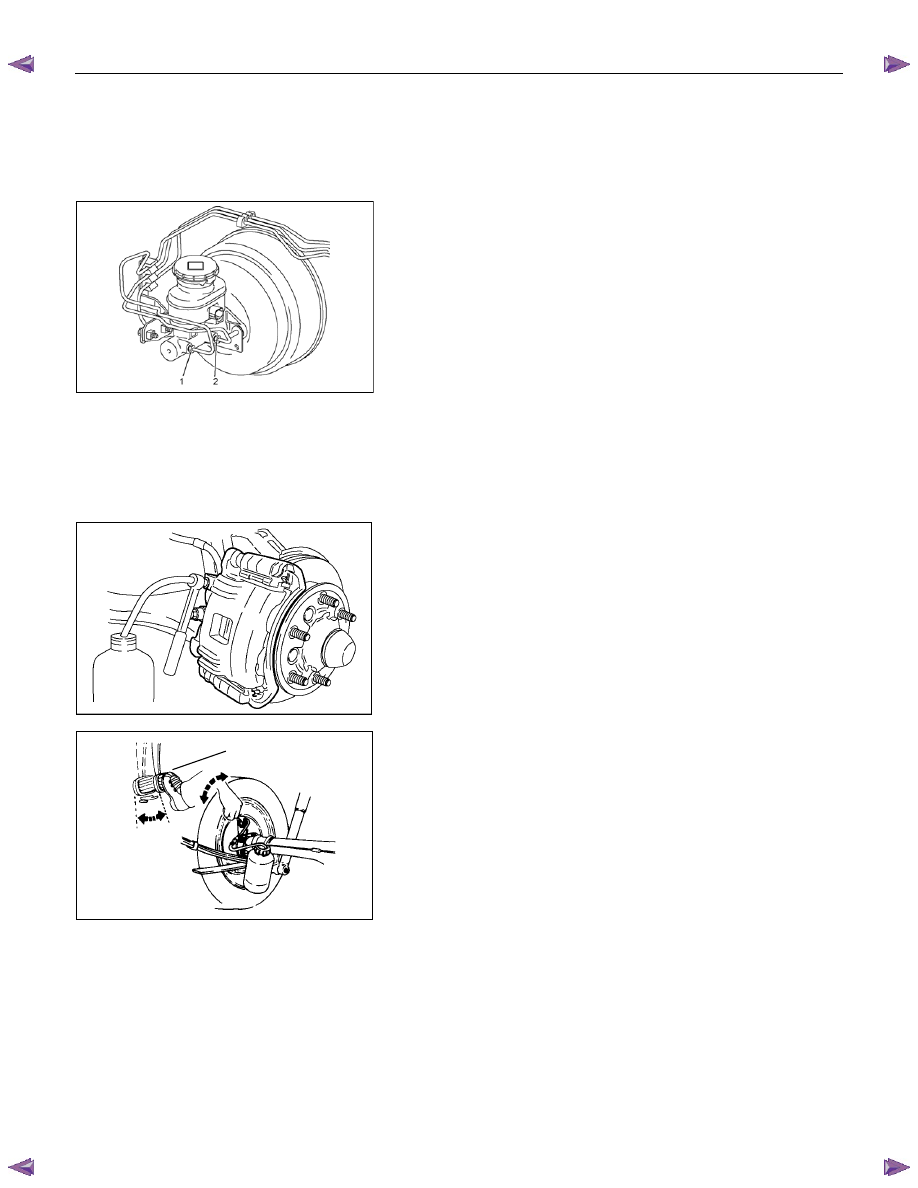

RTW35CSH000501



18.

Place the proper size box end wrench over the bleeder

screw.

19.

Cover the bleeder screw with a transparent tube, and

submerge the free end of the transparent tube in a

transparent container containing brake fluid.









3

5042



20.

Pump the brake pedal (3) slowly three times (once/sec),

then hold it depressed.

21. Loosen the bleeder screw until fluid flows through the tube.

22. Retighten the bleeder screw.

23. Release the brake pedal slowly.

24.

Repeat steps 20 through 23 until the air is completely

removed.



It may be necessary to repeat the bleeding procedure 10 or

more times for front wheels and 15 or more times for rear

wheels.

25. Go to the next wheel in the sequence after each wheel is

bled.



Be sure to monitor reservoir fluid level.

26. Depress the brake pedal to check if you feel “sponginess”

after the air has been removed from all wheel cylinders and

calipers.

  If the pedal feels “spongy” the entire bleeding procedure

must be repeated.









5C-28  BRAKES





27. After the bleeding operation is completed on each individual

wheel, check the level of the brake fluid in the reservoir and

replenish up to the “MAX" level as necessary.

28. Attach the reservoir cap.

29. Stop the engine.








05007-1



BRAKE LINE (HOSES AND PIPES)

•  Inspect all hoses and pipes for wear, bending, chafing,

cracks, dents, or any other damage.

  Make necessary correction or replace parts if these

abnormal conditions are found through inspection.

•  All hoses, pipes and joints can be damaged easily.


Do not allow the hose to become excessively twisted and

bent when working with them, and pay special attention to

all the brake lines not to damage them when repairing or

replacing other parts (axle, suspension, etc).

•  Inspection for leakage should be performed by depressing

the brake pedal fully.

  If leakage is apparent at the circumference of joints,

retighten or replace these parts.



This procedure must be performed whenever brake lines

are installed.

•  After disconnecting the hoses and pipes, cap or tape the

openings to prevent entry of foreign material.
