BRAKES 5C-9
MAIN DATA AND SPECIFICATIONS

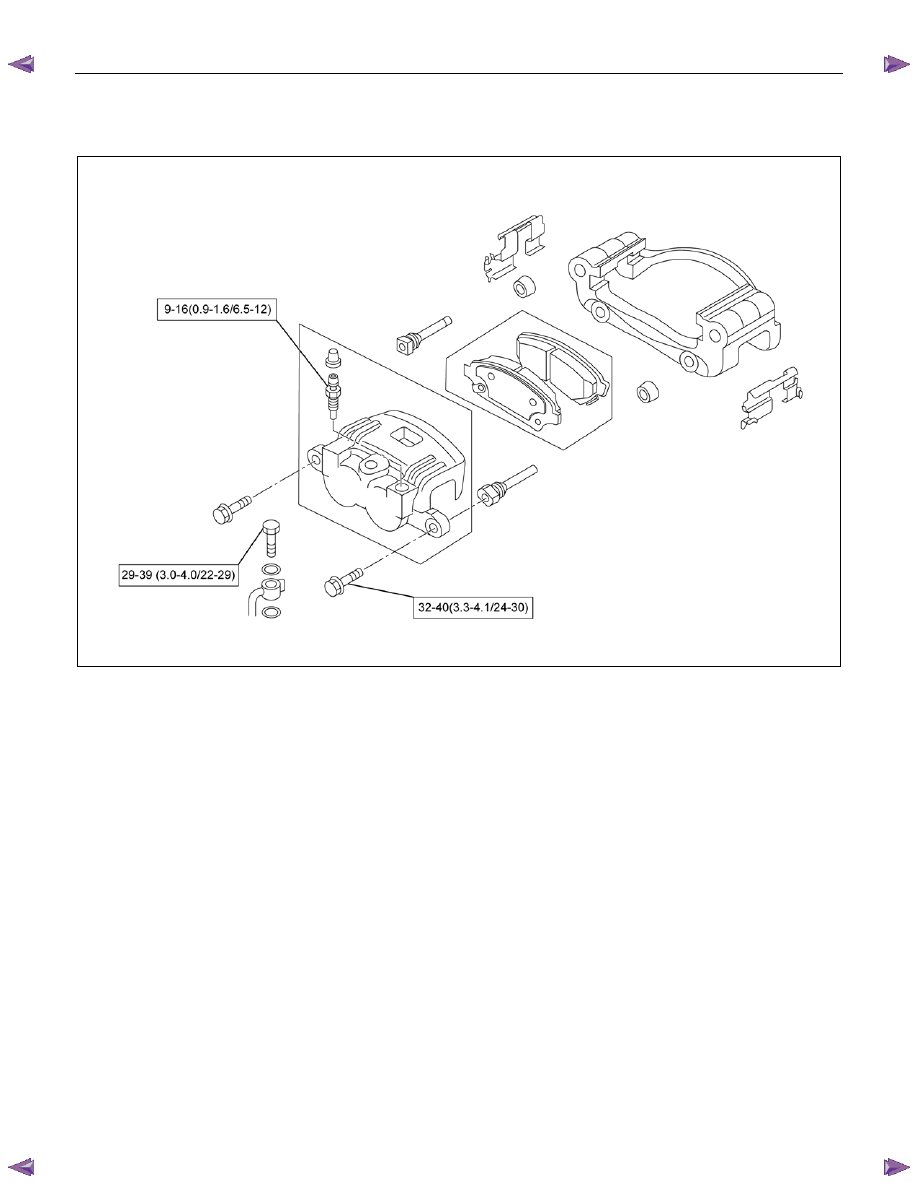

FRONT DISC BRAKE
mm (in)
4
× 2 HIGH RIDE
4
× 2
4
× 4
Caliper type
Pin slide
Disc outside diameter
256 (10.079)
280 (11.024)
Disc thickness
26 (1.024)
27 (1.063)
Piston diameter
42.8 (1.685)
× 2
45.5 (1.791)
× 2
Adjustment method
Self-adjusting

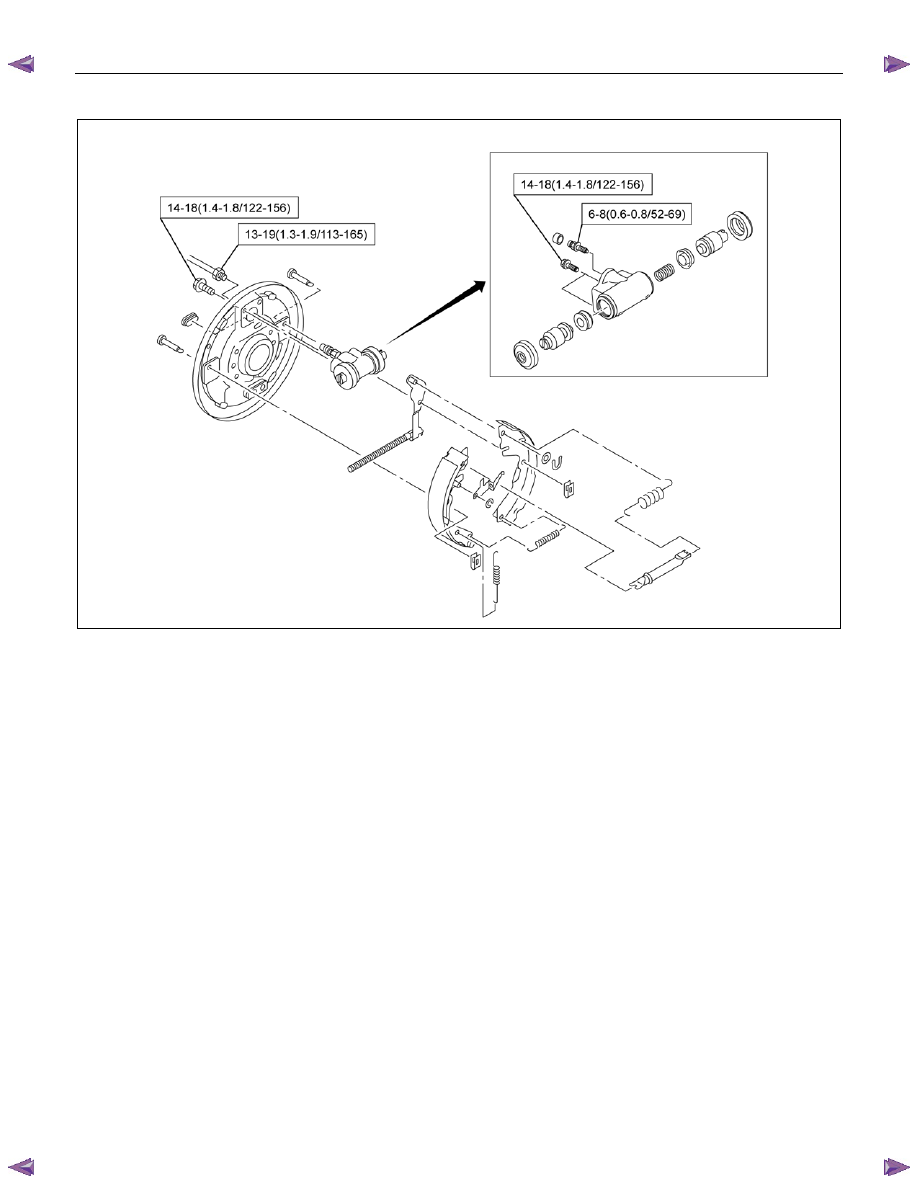

REAR DRUM BRAKE
mm (in)
4
× 2 HIGH RIDE
4
× 2
4
× 4
Type
Leading and Trailing
Drum inside diameter
254 (10.000)
295 (11.614)
Brake lining dimension
244
× 50 × 5
283
× 45 × 5
(Length
× Width × Thickness)
(9.61
× 1.97 × 0.20)
(11.14
× 1.77 × 0.20)
Adjustment method
Self-adjusting
WHEEL CYLINDER
mm (in)
Inside diameter: rear
25.4 (1.000)
23.8 (0.937)

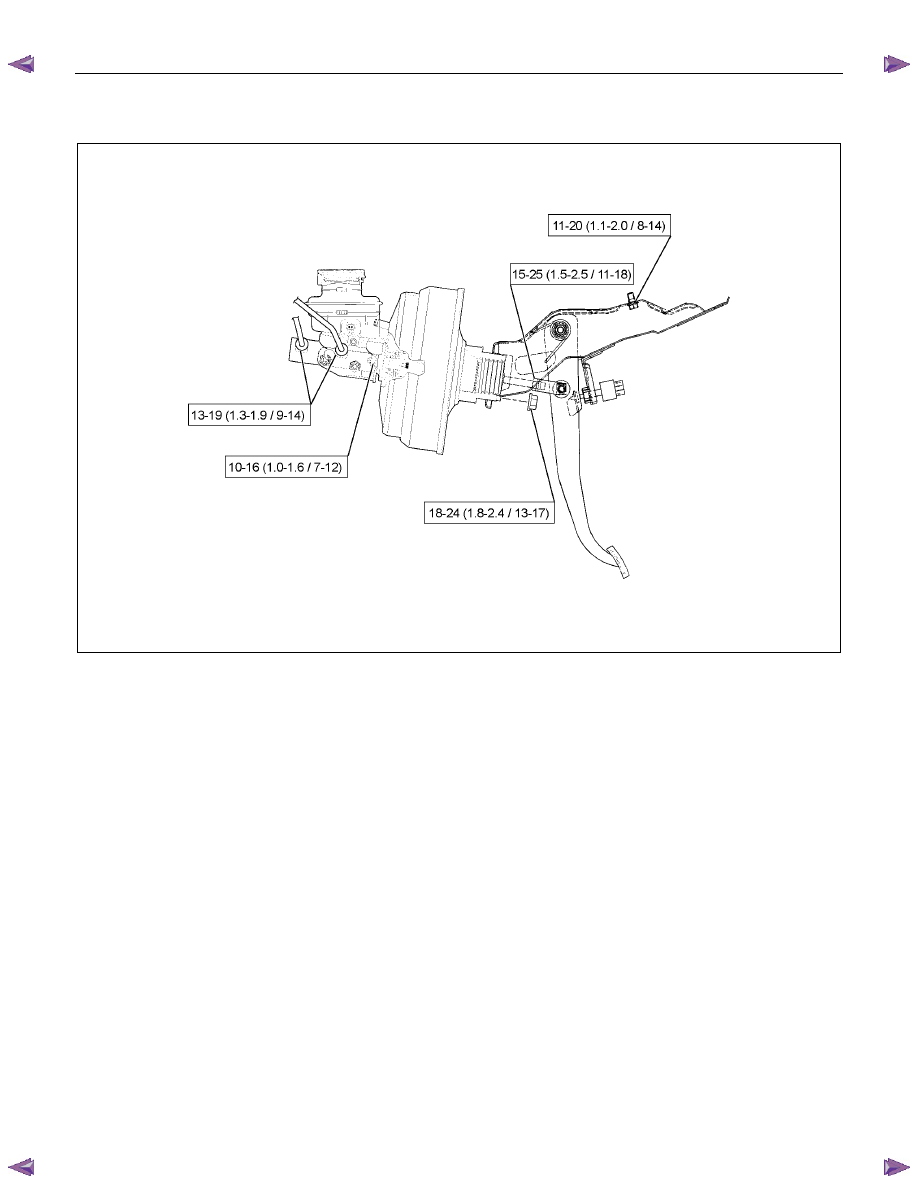

MASTER CYLINDER
mm (in)
Type
Split
Bore diameter
25.4 (1.000)
Piston stroke (Primary + Secondary)
21.8 + 12 (0.86 + 0.47)
VACUUM SERVO
mm (in)
Diaphragm diameter
205 (8.071) + 230 (9.055)
Power cylinder stroke
35 (1.378)
PEDAL RATIO
3.7
BALANCE
Type
Load sensing proportioning valve (without ABS) /
Blend proportioning valve (without ABS)/EBD (with ABS)
