BRAKE CONTROL SYSTEM   5A-39

Step Action  Value(s)

Yes

No

3

  1. Ignition “OFF”, disconnect the EHCU.

  2. Check the DLC (Data Link Connector) circuit for an

open, short to ground, or short to voltage.
Also, check the DLC ignition feed circuit for an open
or short to ground and the DLC ground circuit for an
open.

  3. If a problem is found, repair as necessary.

Was a problem found?

-

Go to Step 2

Go to Step 4

4

  1. Check the EHCU circuit for an open, short to

ground, or short to voltage. Also, check the EHCU
ignition feed circuit for an open or short to ground
and the EHCU ground circuit for an open.

  2. If a problem is found, repair as necessary.

Was a problem found?

-

Go to Step 2

Go to Step 11

5

Select “Display DTCs” with the Tech 2.

Are any DTCs stored?

-

Go to Step 6

Go to Step 10

6

Review and record for Tech 2 Failure Records data
and DTCs.

Is the action complete?

-

Go to Step 7

-

7

The DTC is then stored.

Is this DTC C0271 stored?

-

Go to

applicable
DTC table

after Go to

step 8

Go to Step 8

8

Clear the DTCs by “Clear the Information“ with Tech
2.

Did the DTCs clear?

-

Go to Step 9

-

9

Select “Display DTCs” with the Tech 2.

Are any DTCs stored?

-

Go to

applicable
DTC table

Go to Step 10

10

Review and record for Tech 2 data.

Is the action complete?

-

Go to

Symptom

Diagnosis and

Go to Basic

Inspection

Procedure -

11

Replace the EHCU.

Note: Check the EHCU type for specification, when
the EHCU is replaced.

(Specification; 2WD Model or 4WD Model)

Is the action complete?

-

Verify repair

-





5A-40   BRAKE CONTROL SYSTEM

Basic Inspection Procedure

1. Basic Inspection of Service Brake

Step Action  Value(s) Yes

No

1

Is the fluid level normal?

-

Go to Step 2

Replenish with

fluid

Go to Step 2

2

Does fluid leak?

-

Repair

Go to Step 3

Go to Step 3

3

Is the booster function normal?

-

Go to Step 4

Repair

Go to Step 4

4

Is the pad and rotor normal?

-

Go to Step 5

Repair

Go to Step 5

5

Reconnect all components. Ensure all components
are properly mounted.

Is this step finished?

-

Finished

Go to Step 5



2. Ground Inspection

Step Action  Value(s) Yes

No

1

Are ABS related ground points normal?

-

Go to Step 2

Repair

Go to Step 2

2

Reconnect all components. Ensure all component
are properly mounted.

Is this step finished?

-

Finished

Go to Step 2





BRAKE CONTROL SYSTEM   5A-41

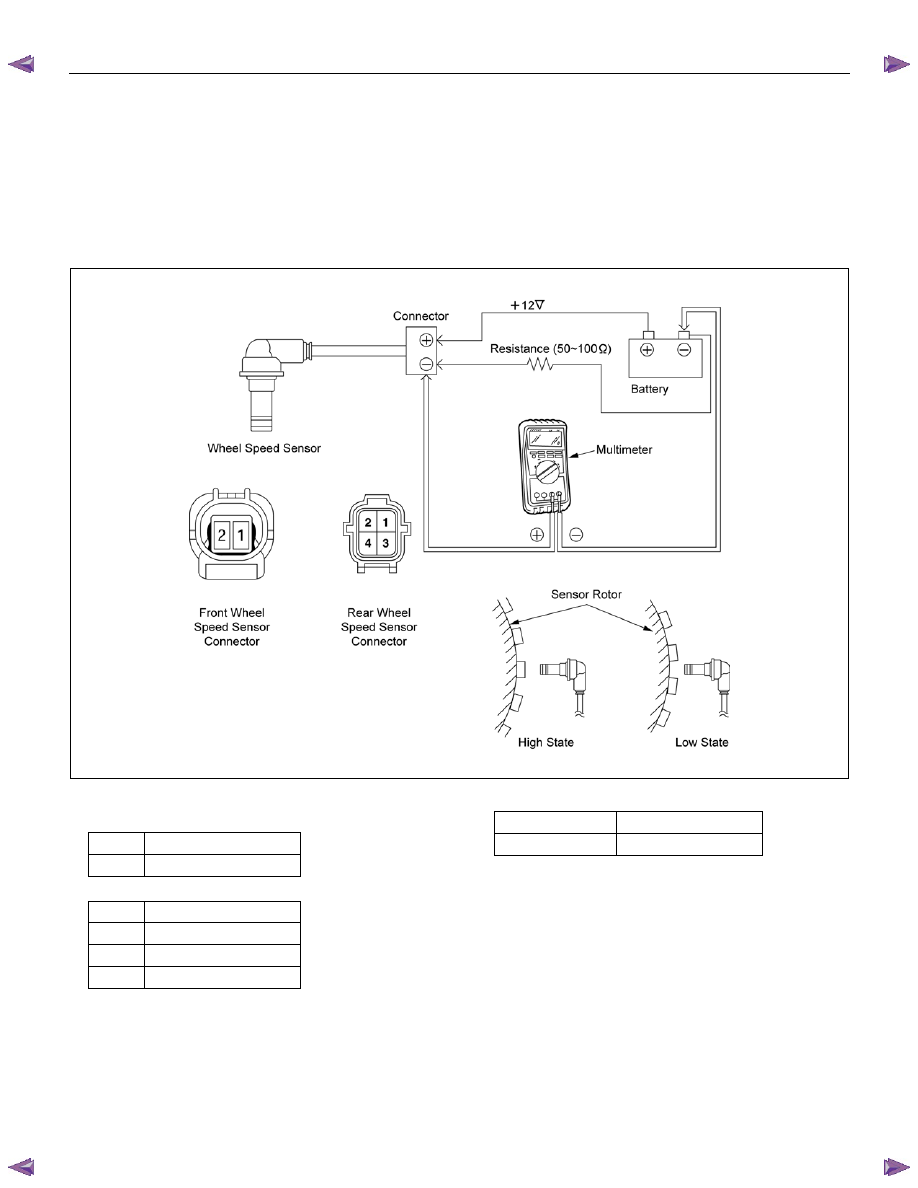

Wheel Speed Sensor Inspection Procedure

Procedure

 1.Ignition "OFF".

  2.Disconnect each of the wheel speed sensors.

  3.Connect the resistance (50

Ω~100Ω) as follows.

  4.Check the voltage at sensor harness connector.

Note: Voltage measurement is performed in the phase
where the wheel speed sensor is installed in vehicles.









RTW75AMF000701

Connector Pin-outs

  ･Front Wheel Speed Sensor

1 (+)

(+12V)

2 (-)

(signal)

  ･Rear Wheel Speed Sensor

1

LH (+) (+12V)

2

LH (-) (signal)

3 RH

(+)(+12V)

4

RH (-) (signal)















Output Value

High State

0.7~1.4V (±30%)

Low State

0.4~0.7V (±30%)





5A-42   BRAKE CONTROL SYSTEM

Symptom Diagnosis

The symptoms that cannot be indicated by warning
lamp can be divided into the following six categories:

  1. ABS works frequently but vehicle does not

decelerate.

  2. Uneven braking occurs while ABS works.

  3. The wheels are locked.





  4. Brake pedal feel is abnormal.

  5. Braking sound (from EHCU) is heard while not

braking.

  6. No ABS warning lamp

These are all attributable to problems which cannot be
detected by EHCU self-diagnosis. Use the customer
complaint and a test to determine which symptom is
present.

ABS Works Frequently But Vehicle Does Not Decelerate


Step Action  Value(s) Yes

No

1

Is braking force distribution normal between front and
rear of vehicle?

-

Go to Step 2

Repair brake

parts.

Go to Step 7

2

Are axle parts installed normally?

-

Go to Step 3

Repair axle

parts.

Go to Step 7

3

Is there play in each or any wheel speed sensor?

-

Repair wheel

speed sensor.

Go to Step 7

Go to Step 4

4

Is there damage, or powered iron sticking to each or
any wheel speed sensor/sensor rotor?

-

Replace

wheel speed

sensor or

sensor rotor.

Go to Step 7

Go to Step 5

5

Is the speed sensor of each wheel output normal?

-

Go to Step 6

Replace

wheel speed

sensor or

repair

harness.

Go to Step 7

6

Is the 4WD control system function normal?

-

2-4WD Repair

or Go to Step

7

Repair or

replace 2-

4WD control

System.

Go to Step 7

7

Reconnect all components, ensure all components
are properly mounted.

Is this step finished?

-

Repeat the

“Basic

diagnostic

flow chart”

Go to Step 7
