IMMOBILIZER CONTROL SYSTEM (4JK1/4JJ1/HFV6)   11A-37

• Stage 6 = 80 minutes (1 hour 20 minutes)

• Stage 7 = 160 minutes (2 hours 40 minutes)

• Stage 8 = 320 minutes (5 hours 20 minutes)

• Stage 9 = 640 minutes (10 hours 40 minutes)

• Stage 10 = 1280 minutes (21 hours 20 minutes)

Notice: The ignition switch must be kept at ON position
during the wait time period.

Transponder Key

Normally two or three transponder keys are provided
with a vehicle when new. Maximum five transponder
key can be provided by additional programming if
owner requests additional key(s).

Notice: During programming of the new transponder
key(s), an authentication code is programmed into the
transponder chip and it cannot be reprogrammed
again. Once this programming has been performed, the
transponder keys cannot be installed in any other
vehicle.

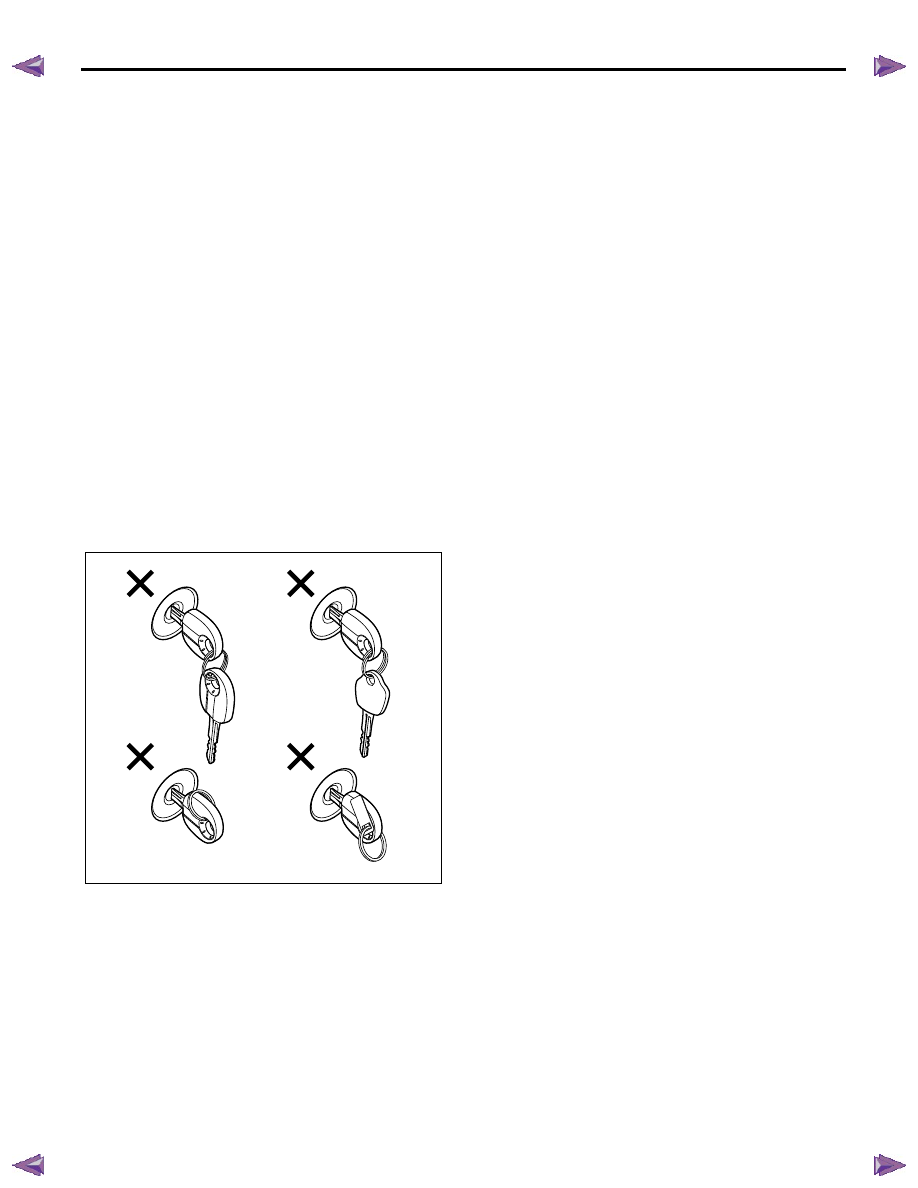

Notice: Keep away another key, another transponder
key, key number plate or other metal items from the
transponder key that is going to program. Otherwise,
transponder key(s) programming may be failed.

Transponder Key Erasing Procedure must be done
whenever the following condition is met:

• Owner lost transponder key(s)

Notice: If an owner lost transponder key, currently
programmed transponder key(s) information must be
erased from an ICU memory to avoid vehicle theft.
Because information on all key(s) is erased at the same
time by this procedure, reprogram remaining key(s)
and/or program new key(s).

Transponder Key Programming Procedure must be
done whenever any of the following conditions are met:

• Diagnostic chart instructs you to replace

transponder key(s)

• Diagnostic chart instructs you to program

transponder key(s)

• Transponder keys are erased and to do

reprogramming

• Owner requests additional key(s)

ICU Resetting Procedure must be done whenever
any of the following conditions are met:

• Diagnostic chart instructs you to replace ICU

• ICU replacement without spare parts

Notice: When an ICU has been installed into a vehicle,
it must be security linked to the ECM/ PIM using the
programming procedure. Once this linking has been
performed, the ICU cannot be installed in any other
vehicle, unless the security linking between both
modules have been reset using the resetting procedure
in an ORIGINAL vehicle before transferring (swapping)
to the complaint vehicle.

ICU Programming Procedure must be done
whenever any of the following conditions are met:

• Diagnostic chart instructs you to program ICU

• New ICU is installed

• ICU is reused that was reset in an original vehicle

ECM Resetting Procedure must be done whenever
any of the following conditions are met:

• Diagnostic chart instructs you to replace ECM

• ECM replacement without spare parts

Notice: When an ECM has been installed into a
vehicle, it must be security linked to the ICU/ PIM using
the programming procedure. Once this linking has
been performed, the ECM cannot be installed in any
other vehicle, unless the security linking between both
modules have been reset using the resetting procedure
in an ORIGINAL vehicle before transferring (swapping)
to the complaint vehicle.

ECM Programming Procedure must be done
whenever any of the following conditions are met:

• Diagnostic chart instructs you to program ECM

• New ECM is installed

• ECM is reused that was reset in an original vehicle

PIM Resetting Procedure must be done whenever
any of the following conditions are met:

• Diagnostic chart instructs you to replace PIM

• PIM replacement without spare parts

Notice: When a PIM has been installed into a vehicle, it
must be security linked to the ICU/ ECM using the
programming procedure. Once this linking has been
performed, the PIM cannot be installed in any other
vehicle, unless the security linking between both
modules have been reset using the resetting procedure
in an ORIGINAL vehicle before transferring (swapping)
to the complaint vehicle.

RTW7BBSH000101

11A-38   IMMOBILIZER CONTROL SYSTEM (4JK1/4JJ1/HFV6)

PIM Programming Procedure must be done
whenever any of the following condtions are met:

• Diagnostic chart instructs you to program PIM

• New PIM is installed

• PIM is reused that was rest in an original vehicle

ICU & PIM Programming Procedure must be done
whenever any of the following condition is met:

• New or resued ICU and PIM are installed at the

same time

ECM & PIM Programming Procedure must be done
whenever any of the following condition is met:

• New or reused ECM and PIM are installed at the

same time

ICU & ECM Programming Procedure must be done
whenever any of the following condition is met:

• New or reused ICU and ECM are installed at the

same time (transponder key(s) also replaced)

ICU, ECM & PIM Programming Procdure must be
done whenever any of the following condition is met:

• New or reused ICU, ECM and PIM are installed at

the same time (transponder key(s) also replaced)

Notice: During programming of the new transponder
key(s), an authentication code is programmed into the
transponder chip and it cannot be reprogrammed
again. When replacing both ICU and ECM at the same
time, a new authentication code to be programmed into
the newly installed ECM is based on information of
newly installed ICU. However, the transponder keys
cannot be reprogrammed therefore it must be replaced.
Do not replace the ICU and the ECM at the same time
to avoid needless transponder key(s) replacement
simultaneously unless complete damaging was
encountered (e.g. both modules cannot be
communicated with a scan tool).

Transponder Key Erasing Procedure

1. Install a scan tool.

2. Turn ON the ignition, with the engine OFF.

3. Select Diagnostics > Appropriate vehicle

identification > Body > Immobilizer > Additional
Functions > Erase Transponder Keys.

4. The on-screen displays a message "See Checking

Procedure Before Programming!", then press
Confirm.

5. Input four digits of correct security code that

belongs to this vehicle and follow the on-screen
instructions.

Notice: An incorrect security code input causes a
security wait time.

6. The on-screen displays a message "Caution All

Transponder Keys Will Be Erased!", then press
Confirm.

7. Operate the ignition switch by following the on-

screen instructions.

8. The on-screen displays a message "Erase

Transponder Keys Erasing Completed
Successfully!" if transponder erasing has been
completed, then press Confirm.

9. Turn OFF the ignition for 30 seconds.

10. Verify the engine fails to run using all transponder

key(s).

Transponder Key Programming Procedure

1. Install a scan tool.

2. Turn ON the ignition, with the engine OFF.

3. Select Diagnostics > Appropriate vehicle

identification > Body > Immobilizer > Programming
> Program Transponder Keys.

4. In order to get a programming approval, the on-

screen displays a message to user. Get
programming approval from the TIS 2000 using
the following procedure:

a. Connect a scan tool to the terminal that

installed TIS 2000 with the latest software and
the hardware key is plugged into port.

b. Turn ON the scan tool and keep at title screen.

c. Launch the TIS application.

d. Select the Security Access at the main screen.

e. Highlight "Tech 2" on the Diagnostic Tool

Selection screen and click "Next".

f. Click "Close" on the Security Access Enabled

screen.

g. Turn OFF the scan tool.

h. Disconnect the scan tool from the terminal.

5. Reinstall a scan tool to the vehicle.

6. Turn ON the ignition, with the engine OFF.

7. Select Diagnostics > Appropriate vehicle

identification > Body > Immobilizer > Programming
> Program Transponder Keys.

8. The on-screen displays a message "See Checking

Procedure Before Programming!", then press
Confirm.

9. Input four digits of correct security code that

belongs to this vehicle and follow the on-screen
instructions.

Notice: An incorrect security code input causes a
security wait time.

10. Operate the ignition switch by following the on-

screen instructions.

IMMOBILIZER CONTROL SYSTEM (4JK1/4JJ1/HFV6)   11A-39

Notice: Keep away another key, another transponder
key, key number plate or other metal items from the
transponder key that is going to program.

11. The on-screen displays a message "Program more

Transponder Keys?"  If all transponder key(s) has
been programmed, press No and go to next step. If
more transponder key(s) need to be programmed,
press Yes and repeat from previous step.

12. The on-screen displays a message "Program

Transponder Keys Programming Completed
Successfully!" if all transponder key(s)
programming has been completed, then press
Confirm.

13. Turn OFF the ignition for 30 seconds.

14. Verify the engine starts using all programmed

transponder key(s).

ICU Resetting Procedure

1. Install a scan tool.

2. Turn ON the ignition, with the engine OFF.

3. Select Diagnostics > Appropriate vehicle

identification > Body > Immobilizer > Additional
Functions > Reset Immobilizer.

4. The on-screen displays a message "See Checking

Procedure Before Programming!", then press
Confirm.

5. Input four digits of correct security code that

belongs to this vehicle and follow the on-screen
instructions.

Notice: An incorrect security code input causes a
security wait time.

6. The on-screen displays a message "Warning

Engine will not start after Reset!", then press
Confirm.

7. The on-screen displays a message "Reset

Immobilizer Reset Completed Successfully!" if ICU
resetting has been completed, then press Confirm.

8. Turn OFF the ignition for 30 seconds.

9. Verify the engine fails to run using all transponder

key(s).

ICU Programming Procedure

1. Install a scan tool.

2. Turn ON the ignition, with the engine OFF.

3. Select Diagnostics > Appropriate vehicle

identification > Body > Immobilizer > Programming
> Program Immobilizer Function or Immobilizer
Link To ECM/ PIM.

4. In order to get a programming approval, the on-

screen displays a message to user. Get
programming approval from the TIS 2000 using
the following procedure:

a. Connect a scan tool to the terminal that

installed TIS 2000 with the latest software and
the hardware key is plugged into port.

b. Turn ON the scan tool and keep at title screen.

c. Launch the TIS application.

d. Select the Security Access at the main screen.

e. Highlight "Tech 2" on the Diagnostic Tool

Selection screen and click "Next".

f. Click "Close" on the Security Access Enabled

screen.

g. Turn OFF the scan tool.

h. Disconnect the scan tool from the terminal.

5. Reinstall a scan tool to the vehicle.

6. Turn ON the ignition, with the engine OFF.

7. Select Diagnostics > Appropriate vehicle

identification > Body > Immobilizer > Programming
> Program Immobilizer Function or Immobilizer
Link To ECM/ PIM.

8. The on-screen displays a message "See Checking

Procedure Before Programming!", then press
Confirm.

9. Select "Immobilizer Installed" or select "Imoobilizer

Replaced" Yes.

10. Select "PIM or ECM Replaced" No, if displayed.

11. Input four digits of correct security code that

belongs to this vehicle and follow the on-screen
instructions. The on-screen instruction may repeat
twice.

Notice: An incorrect security code input causes a
security wait time.

12. Input 17 digits of correct VIN that is based on

stamped VIN or affixed VIN plate on this vehicle.

13. Operate the ignition switch by following the on-

screen instructions.

Notice: Keep away another key, another transponder
key, key number plate or other metal items from the
transponder key that is going to program.

14. The on-screen displays a message "Program more

Transponder Keys?"  If all transponder key(s) has
been programmed, press No and go to next step. If
more transponder key(s) need to be programmed,
press Yes and repeat from previous step.

15. The on-screen displays a message "Programming

Successfully!" if ICU and all transponder key(s)
programming has been completed, then press
Confirm.

16. Turn OFF the ignition for 30 seconds.

17. Verify the engine starts using all programmed

transponder key(s).

ECM Resetting Procedure

1. Install a scan tool.

2. Turn ON the ignition, with the engine OFF.

11A-40   IMMOBILIZER CONTROL SYSTEM (4JK1/4JJ1/HFV6)

3. Select Diagnostics > Appropriate vehicle

identification > Body > Immobilizer > Additional
Functions > Reset Engine Control Module. (4JK1/
4JJ1)
Select Diagnostics > Appropriate vehicle
identification > Engine > V6 Engine >
Programming > Reset ECU. (HFV6)

4. The on-screen may display a message "See

Checking Procedure Before Programming!", then
press Confirm.

5. Input four digits of correct security code that

belongs to this vehicle and follow the on-screen
instructions.

Notice: An incorrect security code input causes a
security wait time.

6. The on-screen displays a message "Warning!

Engine will not start after Reset!", then press
Reset.

7. The on-screen displays a message "Reset

Successfully!" if ECM resetting has been
completed, then press Confirm.

8. Turn OFF the ignition for 30 seconds.

9. Verify the engine fails to run using all transponder

key(s).

ECM Programming Procedure

1. Install a scan tool.

2. Turn ON the ignition, with the engine OFF.

3. Select Diagnostics > Appropriate vehicle

identification > Body > Immobilizer > Programming
> Program Immobilizer Function or Immobilizer
Link To ECM/ PIM.

4. In order to get a programming approval, the on-

screen displays a message to user. Get
programming approval from the TIS 2000 using
the following procedure:

a. Connect a scan tool to the terminal that

installed TIS 2000 with the latest software and
the hardware key is plugged into port.

b. Turn ON the scan tool and keep at title screen.

c. Launch the TIS application.

d. Select the Security Access at the main screen.

e. Highlight "Tech 2" on the Diagnostic Tool

Selection screen and click "Next".

f. Click "Close" on the Security Access Enabled

screen.

g. Turn OFF the scan tool.

h. Disconnect the scan tool from the terminal.

5. Reinstall a scan tool to the vehicle.

6. Turn ON the ignition, with the engine OFF.

7. Select Diagnostics > Appropriate vehicle

identification > Body > Immobilizer > Programming
> Program Immobilizer Function or Immobilizer
Link To ECM/ PIM.

8. The on-screen may display a message "See

Checking Procedure Before Programming!", then
press Confirm.

9. Select "Imoobilizer Replaced" No and select "PIM

or ECM Replaced" Yes, if displayed.

10. Input four digits of correct security code that

belongs to this vehicle and follow the on-screen
instructions. The on-screen instruction may repeat
twice.

Notice: An incorrect security code input causes a
security wait time.

11. Select "Engine Controller Installed" or select "ECM

Replaced".

12. Operate the ignition switch by following the on-

screen instructions.

13. The on-screen displays a message "Programming

Successfully!" if ECM programming has been
completed, then press Confirm.

14. Turn OFF the ignition for 30 seconds.

15. Verify the engine starts using all transponder

key(s).

PIM Resetting Procedure

1. Install a scan tool.

2. Turn ON the ignition, with the engine OFF.

3. Select Diagnostics > Appropriate vehicle

identification > Body > Powertrain Interface
Module > Security > Reset PIM.

4. Input four digits of correct security code that

belongs to this vehicle and follow the on-screen
instructions.

Notice:  An incorrect security code input causes a
security wait time.

5. The on-screen displays a message "Warning!

Engine will not start after Reset!", then press
Reset.

6. The on-screen displays a message "Reset

Completed Successfully!" if PIM resetting has
been completed, then press Confirm.

7. Turn OFF the ignition for 30 seconds.

PIM Programming Procedure

1. Install a scan tool.

2. Turn ON the ignition, with the engine OFF.

3. Select Diagnostics > Appropriate vehicle

identification > Body > Immobilizer > Programming
> Immobilizer Link To ECM/ PIM.

4. In order to get a programming approval, the

onscreen displays a message to user. Get
programming approval from the TIS 2000 using
the following procedure:
