10-90  CAB

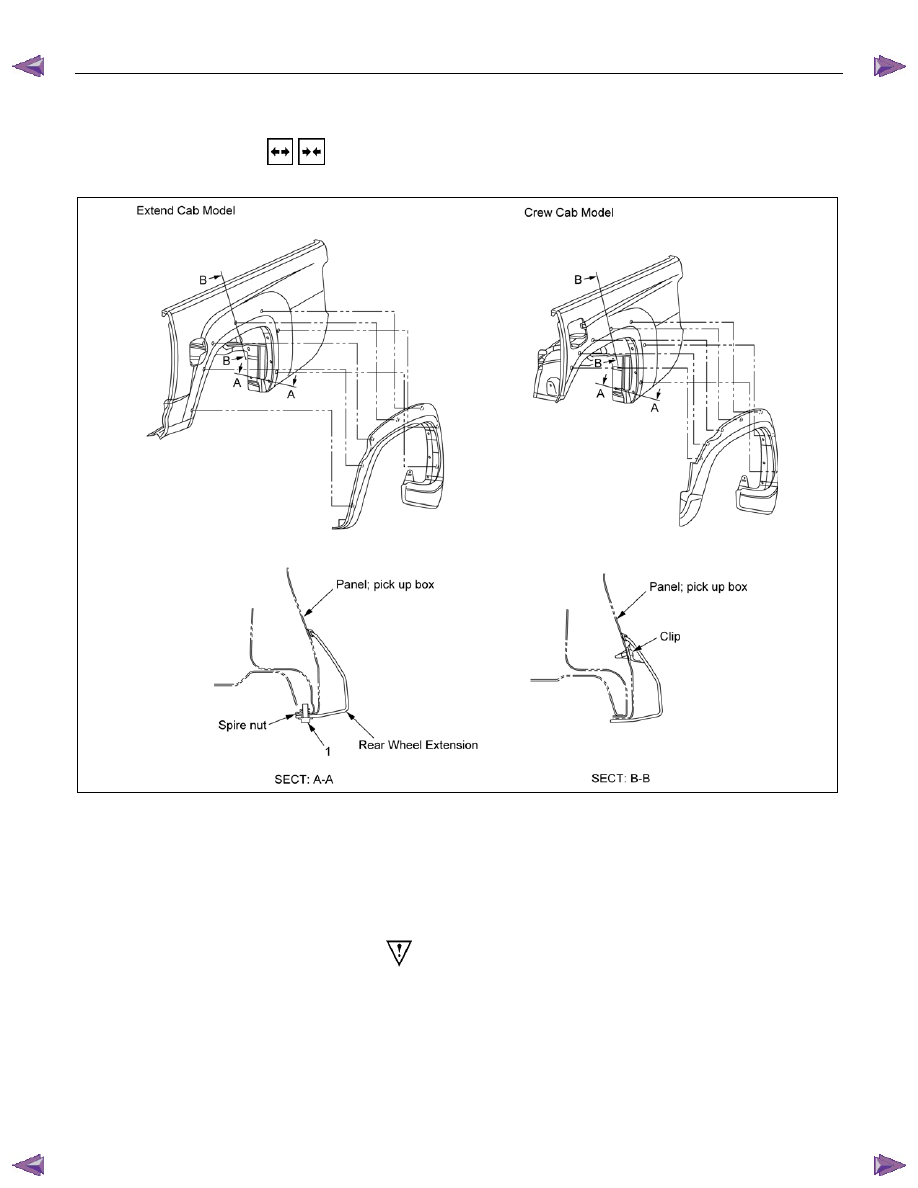

REAR WHEEL EXTENSION (B TYPE)



  REMOVAL AND INSTALLATION







RTW5A0LF000501



Removal Steps

 1.

Screw

▲  2. Rear wheel extension




Installation Steps



2. Rear wheel extension

 1.

Screw












Important Operation - Removal

2.  Rear Wheel Extension

•  Pull out the 7 clip positions





CAB  10-91

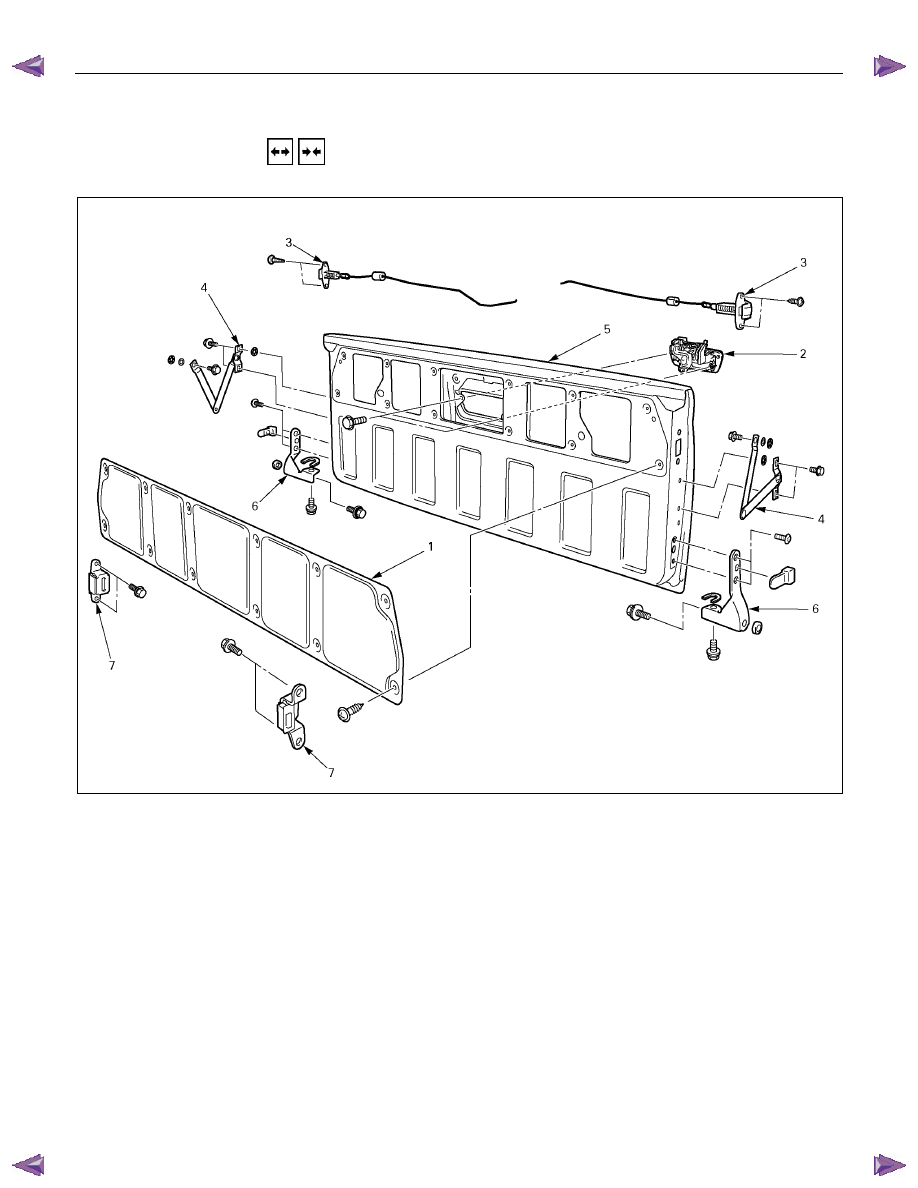

TAIL GATE ASSEMBLY



  REMOVAL AND INSTALLATION








Center Pull Handle Model

Removal Steps



1. Hole cover plate

▲  2. Outside handle assembly


3. Tail gate lock assembly



4. Tail gate link

▲  5. Tail gate


6. Tail gate hinge



7. Tail gate lock striker







Installation Steps

▲  7. Tail gate lock striker
▲  6. Tail gate hinge
▲  5. Tail gate


4. Tail gate link

▲  3. Tail gate lock assembly
▲  2. Outside handle assembly


1. Hole cover plate






10-92  CAB





Important Operations - Removal

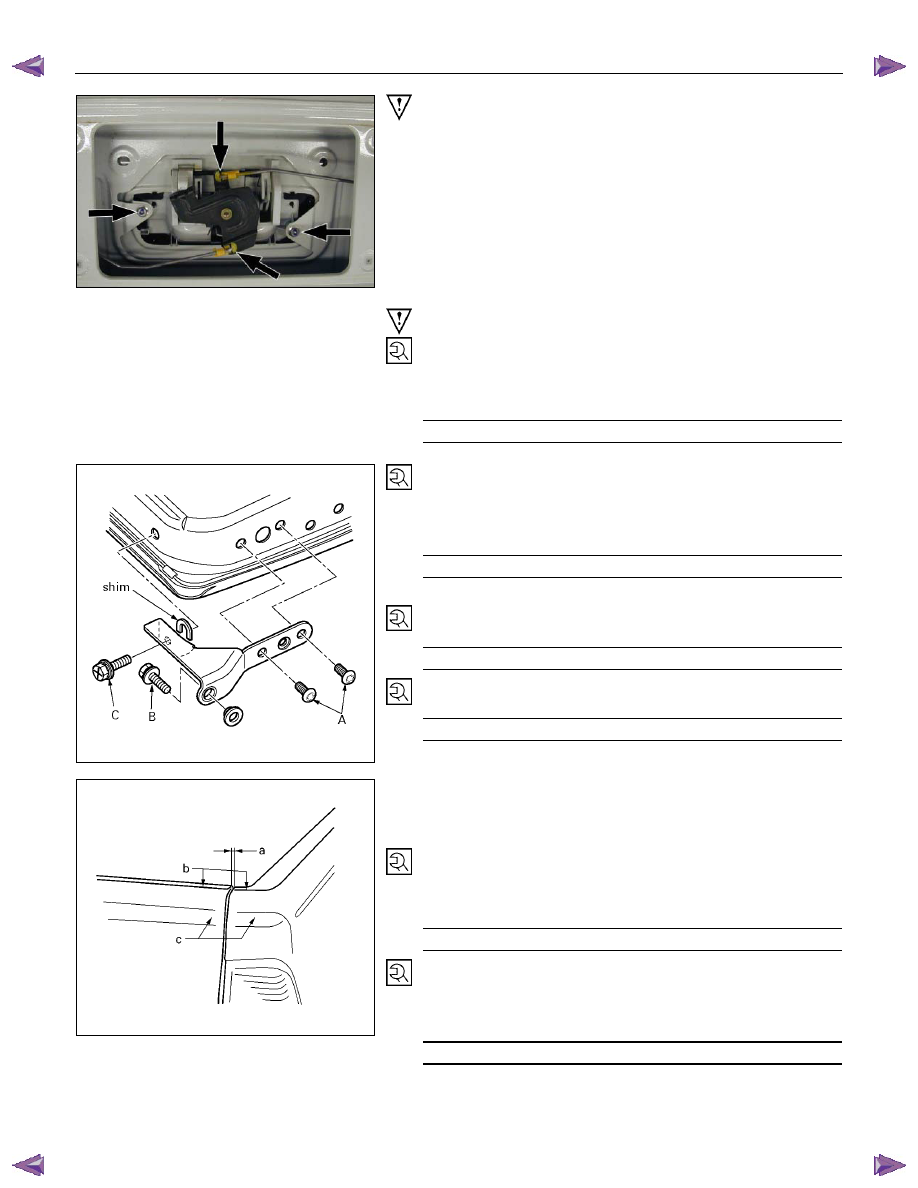

2.  Outside handle assembly

•  Disconnect the lock link and remove the 2 fixing bolts.

5. Tail Gate

1)  Removing the tailgate assembly may require two people.

2)  Remove the tailgate hinge fixing bolts.





Important Operations - Installation

7.  Tail Gate Lock Striker

•  Tighten the lock striker fixing bolts to the specified

torque.

Torque N

⋅m(kgf⋅m/lb⋅ft)

15 (1.5 / 11)




















6. Tail Gate Hinge

•  Tighten the hinge fixing bolts to the specified torque.

 C:

Bolt

Torque N

⋅m(kgf⋅m/lb⋅ft)

40 (4.1 / 30)

5. Tail Gate

1) A: Bolts

Torque N

⋅m(kgf⋅m/lb⋅in)

13 (1.3 / 113)

2) B: Bolt

Torque N

⋅m(kgf⋅m/lb⋅in)

13 (1.3 / 113)

3)  Check the tailgate and rear body.



a. Clearance: 5.0 mm (0.20 in.)



b. Height (Step): Flush



c. Height (Step): Flush

3. Tail Gate Lock Assembly

•  Tighten the lock assembly fixing bolts to the specified

torque.

Torque N

⋅m(kgf⋅m/lb⋅ft)

15 (1.5 / 11)

2. Outside Handle Assembly

•  Tighten the outside handle assembly fixing bolts to the

specified torque.

Torque N

⋅m(kgf⋅m/lb⋅in)

9 (0.9 / 78)
