10-74  CAB

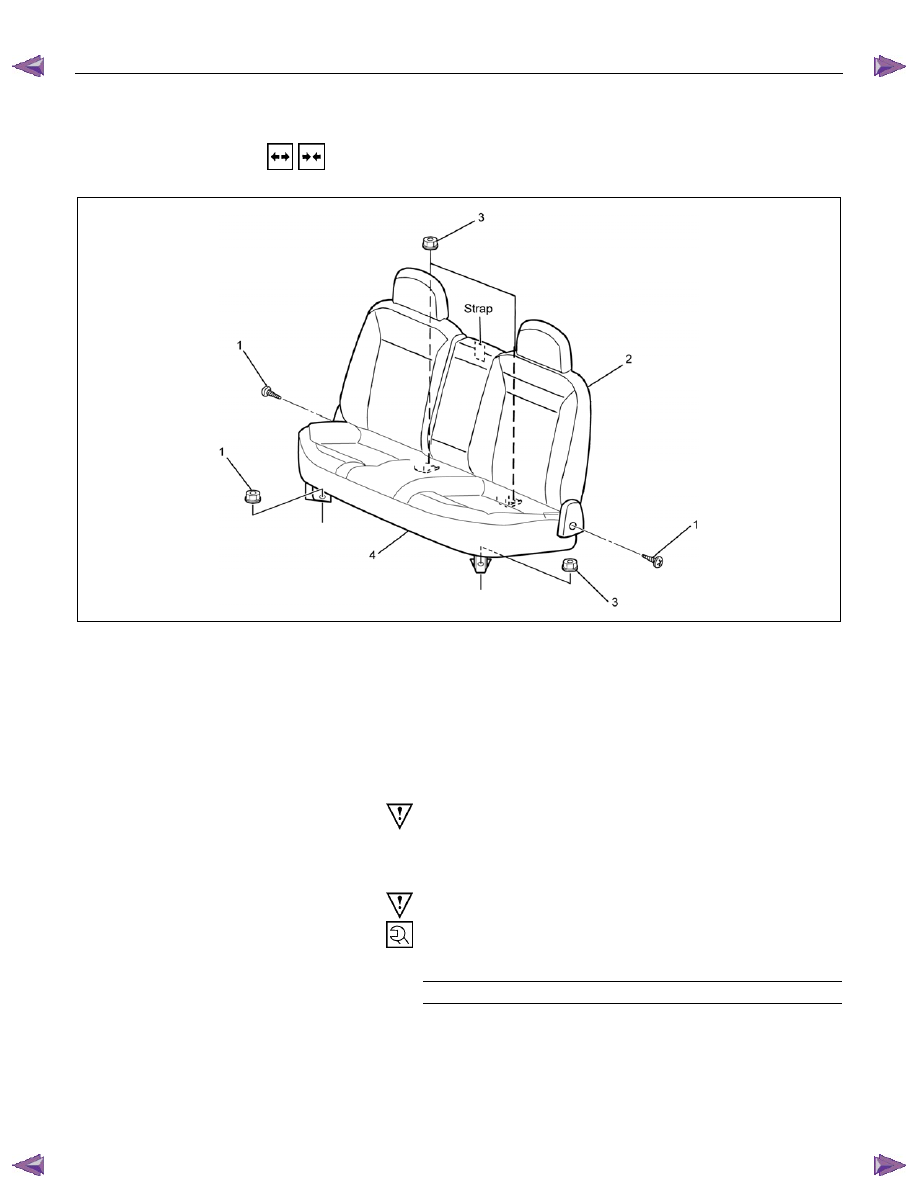

REAR SEAT (CREW CAB)



  REMOVAL AND INSTALLATION









RTW7A0MF000801





Removal Steps

 1.

Screw

▲  2. Rear seat back
 3.

Nut



4. Rear seat cushion





Installation Steps



4. Rear seat cushion

▲ 3. Nut
▲  2. Rear seat back
 1.

Screw













Important Operation - Removal

2.  Rear Seat Back

•  Pull the strap in trim cover to release the seat back from

the rear panel.

Important Operations - Installation

3. Nut



Torque N

⋅m (kgf⋅m/lb⋅ft)

40 (4.1 / 30)

2.  Rear Seat Back

•  Lock the seat back to the rear panel and insert the strap

into the trim cover.





CAB  10-75

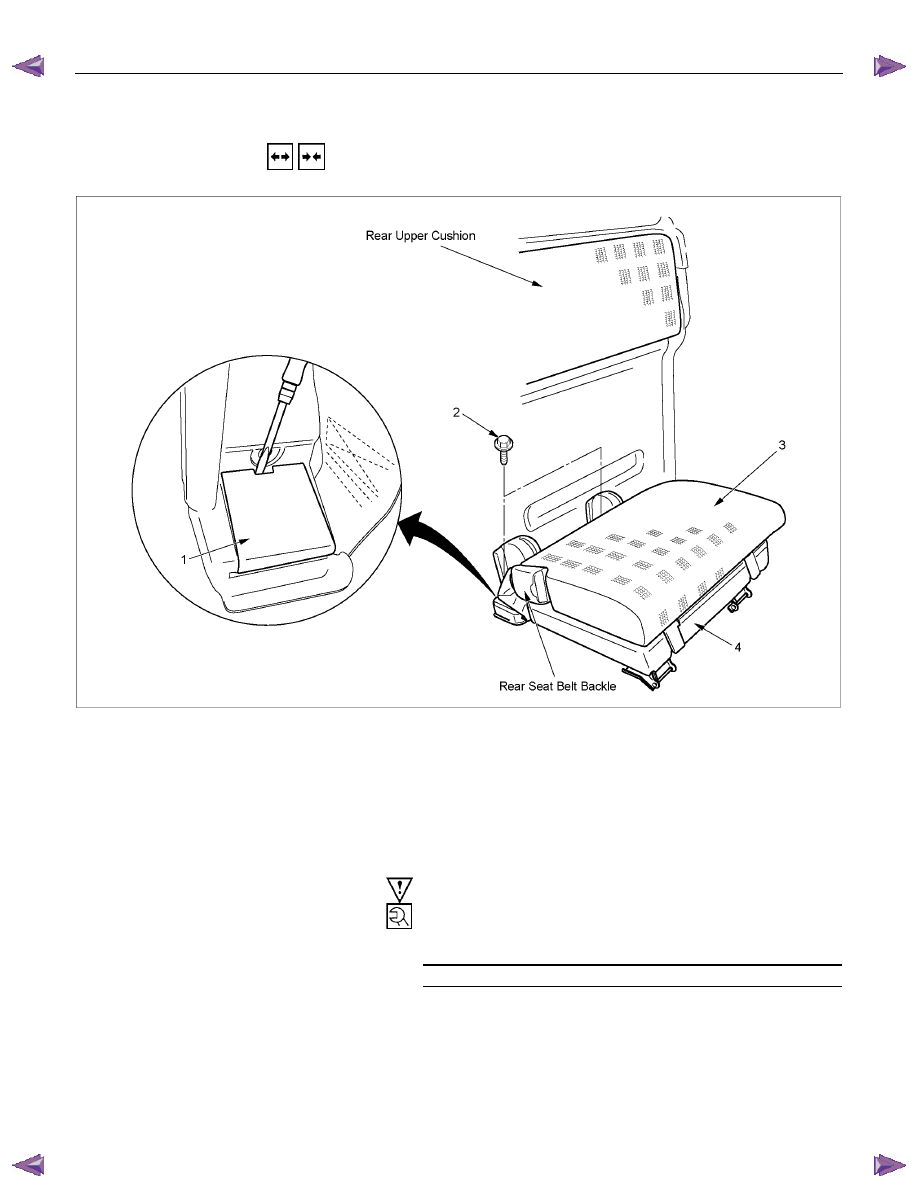

JUMP SEAT (EXTEND CAB)



  REMOVAL AND INSTALLATION





RTW3A0MF001201



Removal Steps

 1.

Cover

 2.

Bolt



3. Jump seat assembly



4. Storage box





Installation Steps



4. Storage box



3. Jump seat assembly

▲ 2. Bolt
 1.

Cover











Important Operation - Installation

2. Bolt



Bolt Torque

N

⋅m (kgf⋅m/lb⋅ft)

40 (4.1 / 30)





10-76  CAB

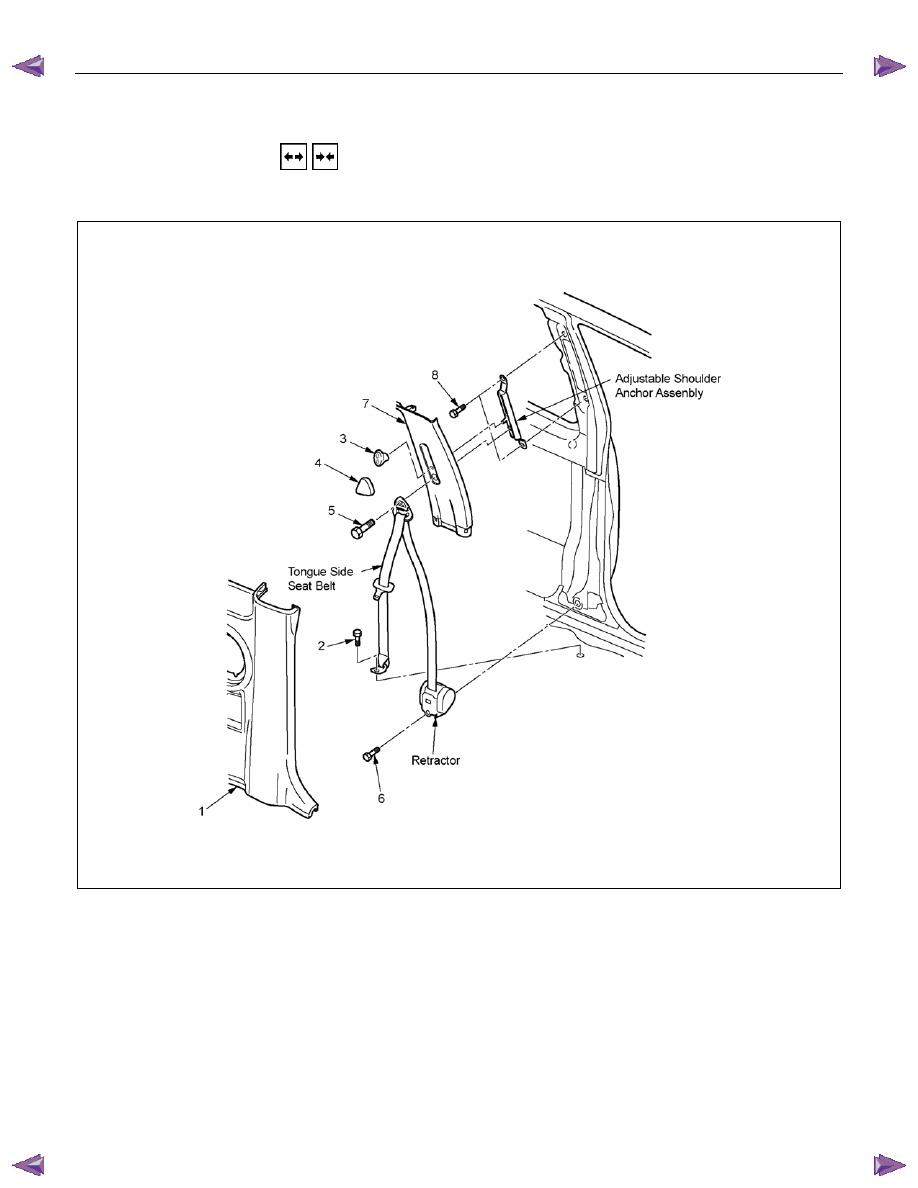

FRONT SEAT BELT



  REMOVAL AND INSTALLATION

(TONGUE SIDE SEAT BELT)

















RTW5A0LF001101



Removal Steps



1. Body side rear lower trim cover



2. Lower anchor bolt

▲ 3. Knob
▲ 4. Cover
▲  5. Upper anchor bolt


6. Retractor fixing bolt



7. Body side rear upper trim cover



8. Adjustable shoulder anchor fixing bolt





Installation Steps

▲  8. Adjustable shoulder anchor fixing bolt


7. Body side rear upper trim cover

▲  6. Retractor fixing bolt
▲  5. Upper anchor bolt
 4.

Cover

 3.

Knob

▲  2. Lower anchor bolt


1. Body side rear lower trim cover





CAB  10-77





Important Operations - Removal

3. Knob

•  Pull out the knob.





RTW5A0SH000501



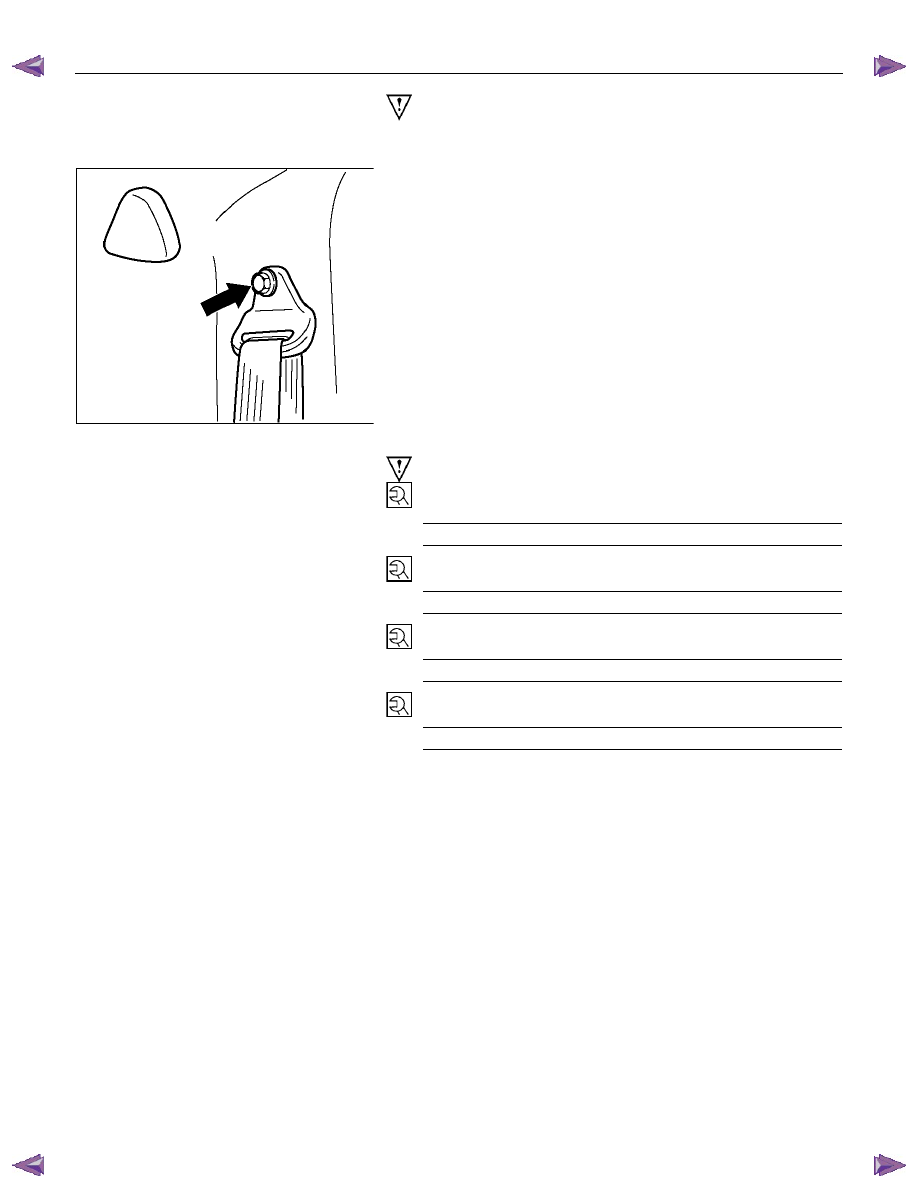

4.  Cover

5.  Upper Anchor Bolt

•  Remove the seat belt upper anchor bolt.
•  Insert the blade of an ordinary screwdriver into the gap

between the D-ring back surface and the cover.

Carefully pry the D-ring latches open. Remove the cover.






















Important Operations - Installation

8. Adjustable Shoulder Anchor Fixing Bolt

Bolt torque

N

⋅m (kgf⋅m/lb⋅ft)

40 (4.1 / 30)

6. Retractor Fixing Bolt

Bolt torque

N

⋅m (kgf⋅m/lb⋅ft)

40 (4.1 / 30)

5. Upper Anchor Bolt

Bolt torque

N

⋅m (kgf⋅m/lb⋅ft)

40 (4.1 / 30)

2. Lower Anchor Bolt

Bolt torque

N

⋅m (kgf⋅m/lb⋅ft)

40 (4.1 / 30)
