10-38  CAB



Important Operations - Removal

1.  Rear Floor Console (Bucket Seat Model Only)

1)  Open the rear console lid and remove 2 screws.

2) Pull out the front part of the rear console at the 2 clip

positions.

3.  Front Floor Console

1)  Remove the 2 screws.

2)  Pull out the rear part of the front console at the 2 clip

positions.

3)  Remove the front console by pulling it out rear ward.



CAB  10-39

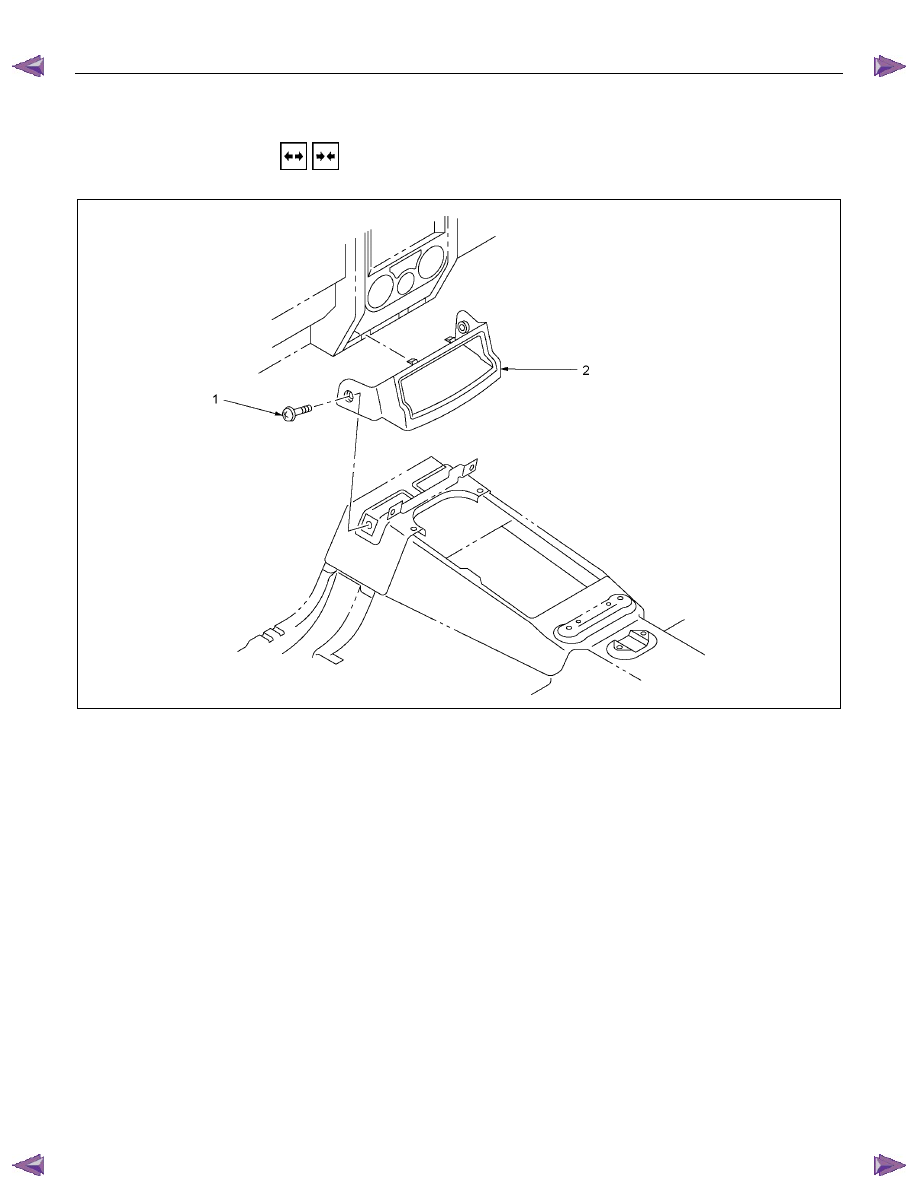

CONSOLE BOX (WITHOUT FLOOR CONSOLE)



  REMOVAL AND INSTALLATION









RTW4A0MF000201



M/T Model

Removal Steps

 1.

Screw



2. Console box







Installation Steps



2. Console box

 1.

Screw





10-40  CAB

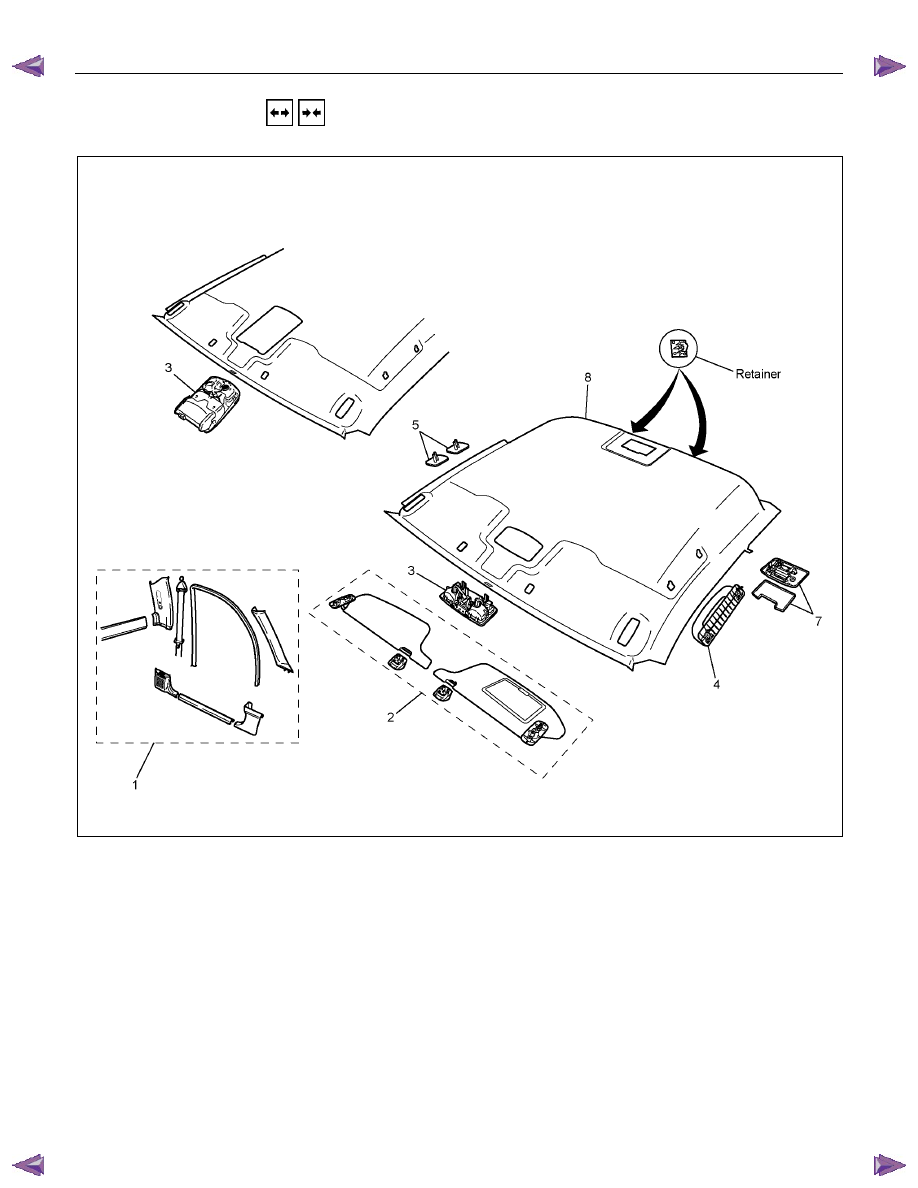

HEADLINING



  REMOVAL AND INSTALLATION








This illustration is based on RHD model



RTW6A0LF000101



Extend Cab Model

Removal Steps

▲  1. Interior trim panels
▲  2. Sun visor/Sun visor holder
▲  3. Spot light/Over head console
▲  4. Assist grip


5. Hole cover

▲  6. Coat hook
▲  7. Dome light
▲ 8. Headlining






Installation Steps

 8.

Headlining



7. Dome light



6. Coat hook



5. Hole cover



4. Assist grip



3. Spot light/Over head console



2. Sun visor/Sun visor holder



1. Interior trim panels





CAB  10-41

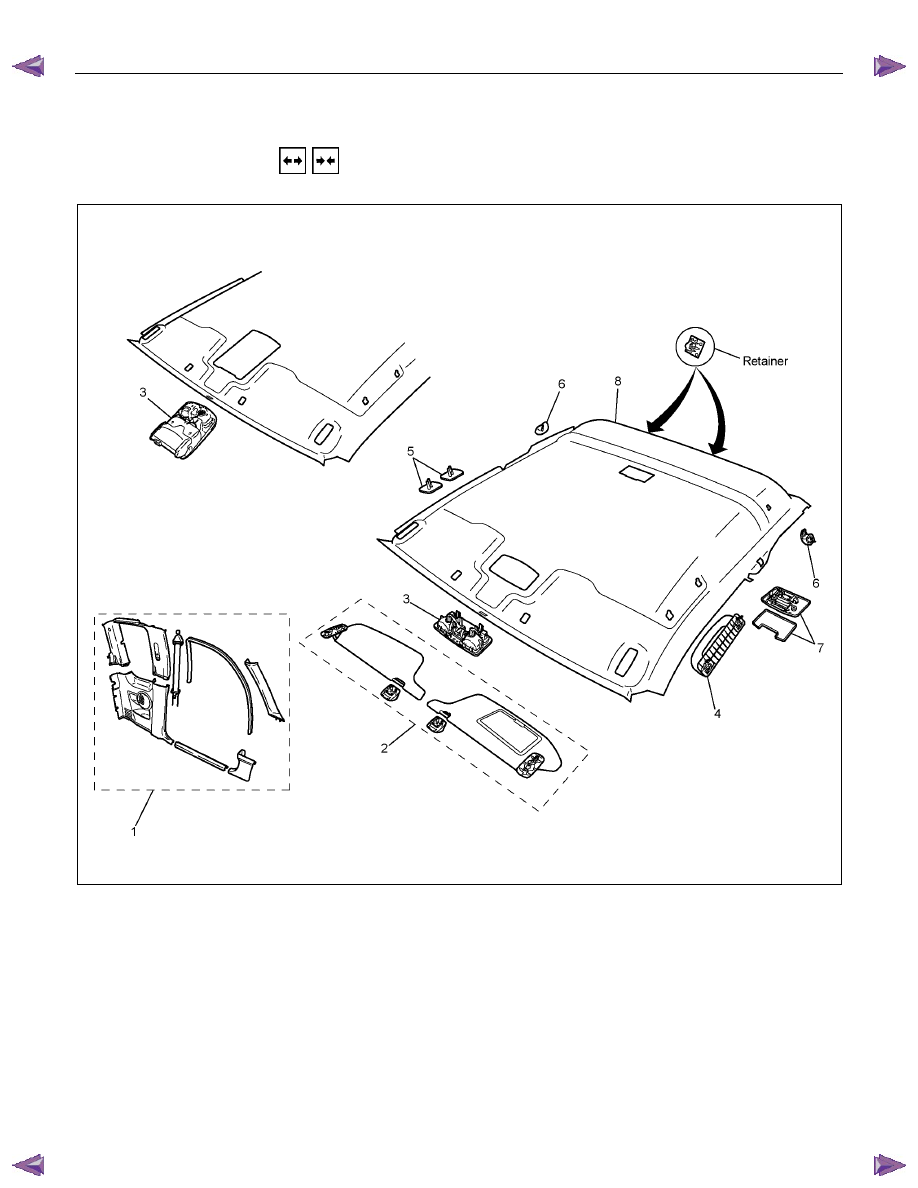

  REMOVAL AND INSTALLATION








This illustration is based on RHD model



RTW6A0LF000201



Regular Cab Model

Removal Steps

▲  1. Interior trim panels
▲  2. Sun visor/Sun visor holder
▲  3. Spot light/Over head console
▲  4. Assist grip


5. Hole cover

▲  7. Dome light
▲ 8. Headlining






Installation Steps

 8.

Headlining



7. Dome light



5. Hole cover



4. Assist grip



3. Spot light/Over head console



2. Sun visor/Sun visor holder



1. Interior trim panels
