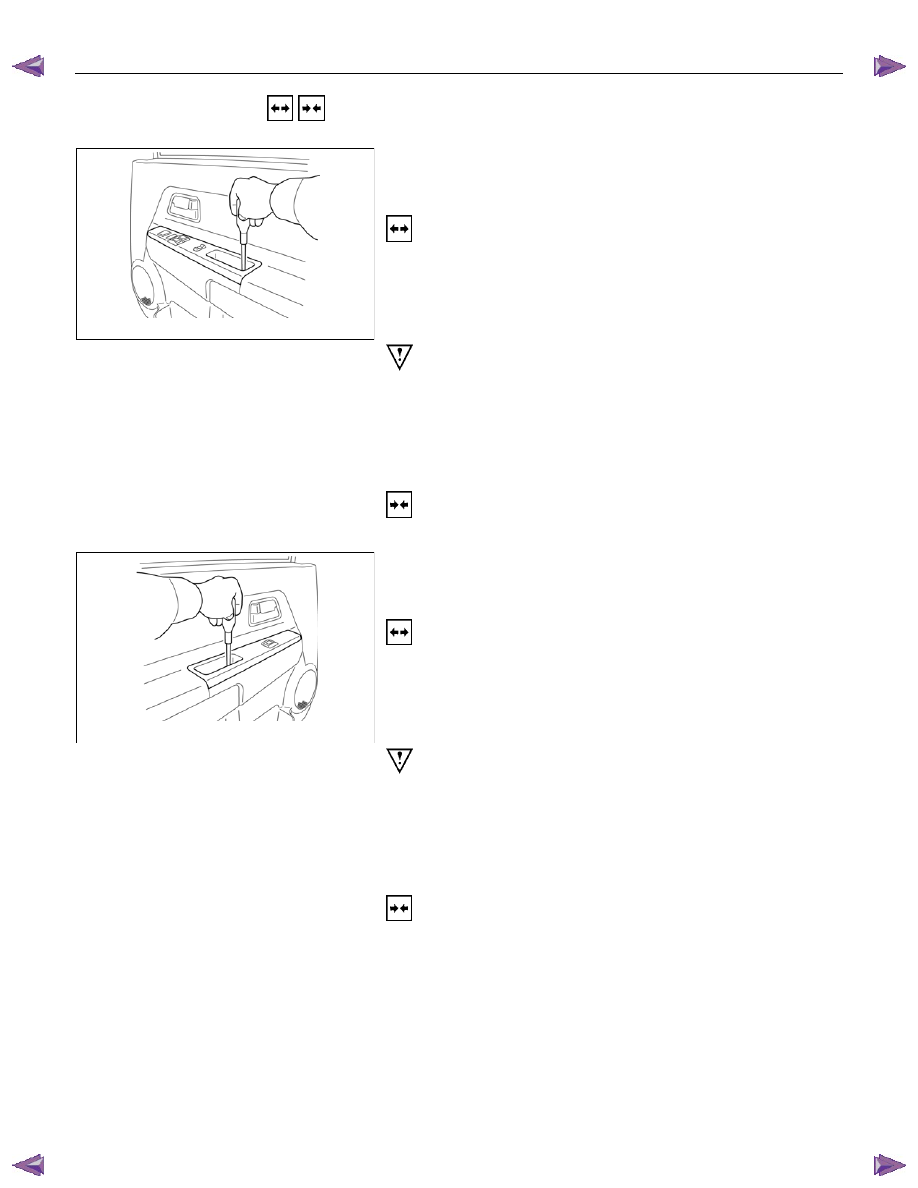

8A-430  ELECTRICAL-BODY AND CHASSIS



  REMOVAL AND INSTALLATION









This illustration is based on RHD

RTW780SH002601













DRIVER’S SIDE POWER WINDOW &

DOOR LOCK SWITCH
(2 DOOR MODELS)

Removal

1.  Disconnect the battery ground cable.

2. Remove the screw in the pull cup with the tip of a

screwdriver.

3.  Remove the switch bezel by pushing the spring with the tip

of a screwdriver.

4.  Disconnect the connector.

ATTENTION:
When removing a switch bezel lift from the front in the
bezel.
It follows the front with the screwdriver.
The clip has broken when lifting from the rear in the bezel.





Installation

To install, follow the removal steps in the reverse order.








This illustration is based on RHD

RTW780SH002701













FRONT PASSENGER’S POWER WINDOW

SWITCH
(2 DOOR MODELS)

Removal

1.  Disconnect the battery ground cable.

2. Removes the screw in the pull cup with the tip of a

screwdriver.

3.  Remove the switch bezel by pushing the spring with the tip

of a screwdriver.

4.  Disconnect the connector.

ATTENTION:
When removing a switch bezel lift from the front in the
bezel.
It follows the front with the screwdriver.
The clip has broken when lifting from the rear in the bezel.





Installation

To install, follow the removal steps in the reverse order.


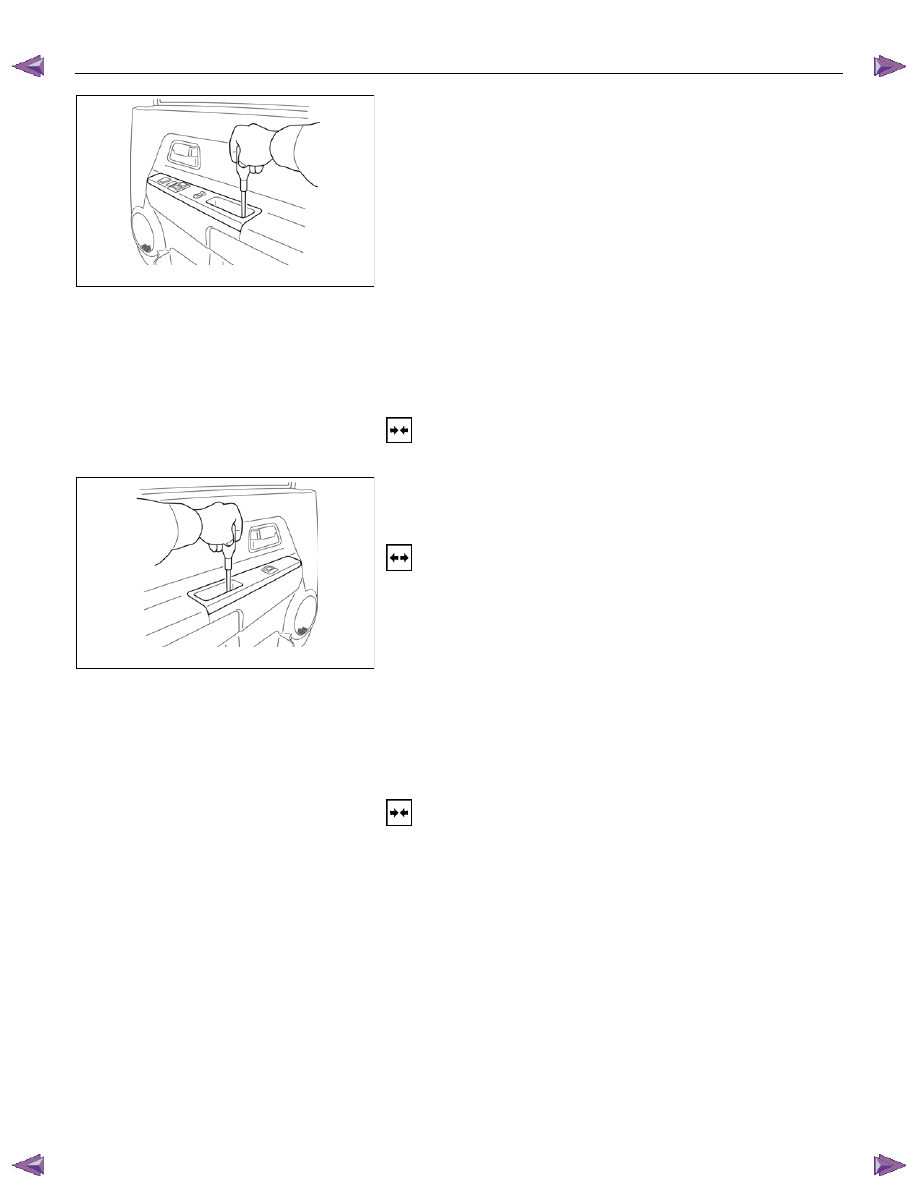

ELECTRICAL-BODY AND CHASSIS  8A-431







This illustration is based on RHD

RTW780SH002601





DRIVER’S SIDE POWER WINDOW &

DOOR LOCK SWITCH
(4 DOOR MODELS)

Removal

1.  Disconnect the battery ground cable.

2.  Removes the screw in pull cup with the tip of a screwdriver.

3.  Remove the switch bezel by pushing the spring with the tip

of a screwdriver.

4.  Disconnect the connector.

ATTENTION:
When removing a switch bezel lift from the front in the
bezel.
It follows the front with the screwdriver.
The clip has broken when lifting from the rear in the bezel.




Installation

To install, follow the removal steps in the reverse order.








This illustration is based on RHD

RTW780SH002701







FRONT PASSENGER’S POWER WINDOW

SWITCH
(4 DOOR MODELS)

Removal

1.  Disconnect the battery ground cable.

2.  Removes the screw in pull cup with the tip of a screwdriver.

3.  Remove the switch bezel by pushing the spring with the tip

of a screwdriver.

4.  Disconnect the connector.

ATTENTION:
When removing a switch bezel lift from the front in the
bezel.
It follows the front with the screwdriver.
The clip has broken when lifting from the rear in the bezel.





Installation

To install, follow the removal steps in the reverse order.


8A-432  ELECTRICAL-BODY AND CHASSIS







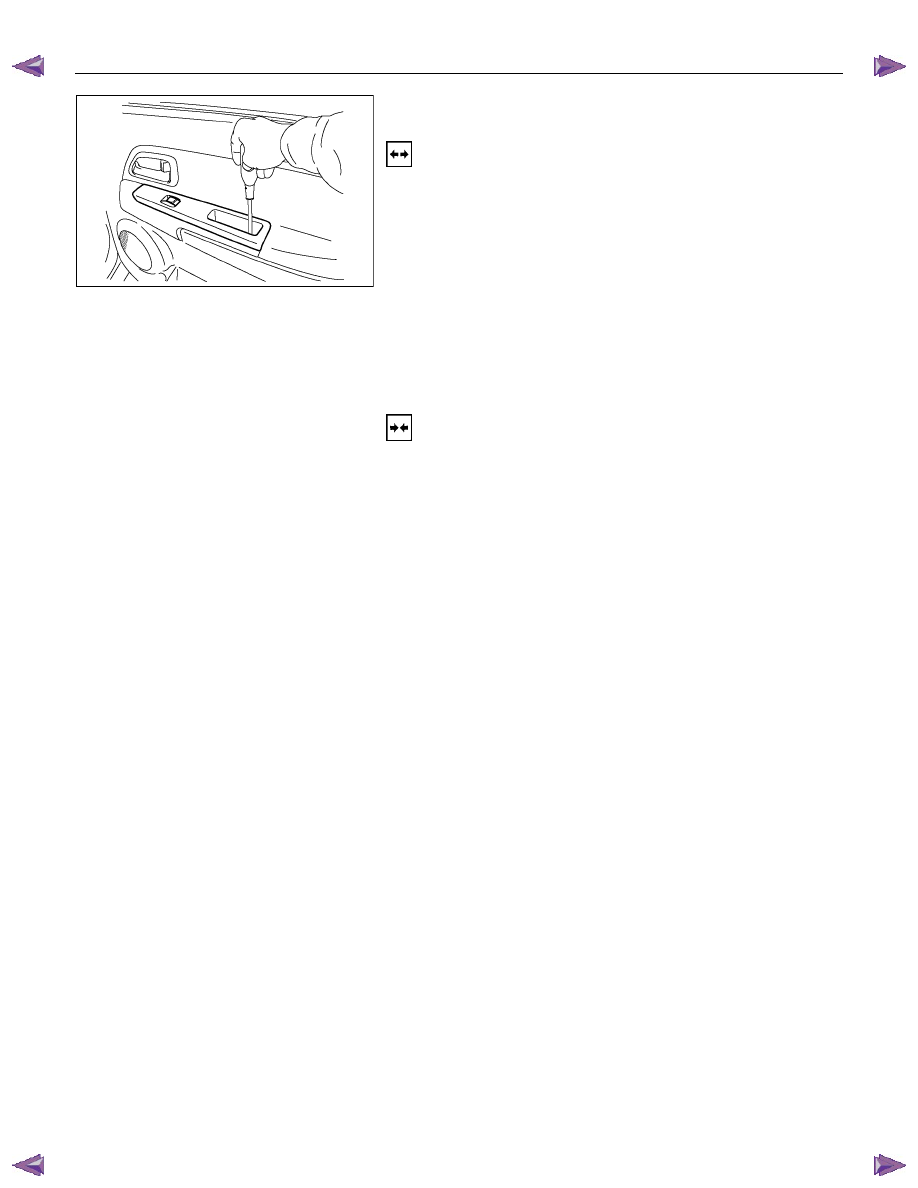

RTW780SH002801






REAR POWER WINDOW & DOOR LOCK

SWITCH-LH & RH

Removal

1.  Disconnect the battery ground cable.

2. Remove the screw in the pull cup with the tip of a

screwdriver.

3.  Remove the switch bezel by pushing the spring with the tip

of a screwdriver.

4.  Disconnect the connector.

ATTENTION:
When removing a switch bezel lift from the front in the
bezel.
It follows the front with the screwdriver.
The clip has broken when lifting from the rear in the bezel.





Installation

To install, follow the removal steps in the reverse order.



ELECTRICAL-BODY AND CHASSIS  8A-433





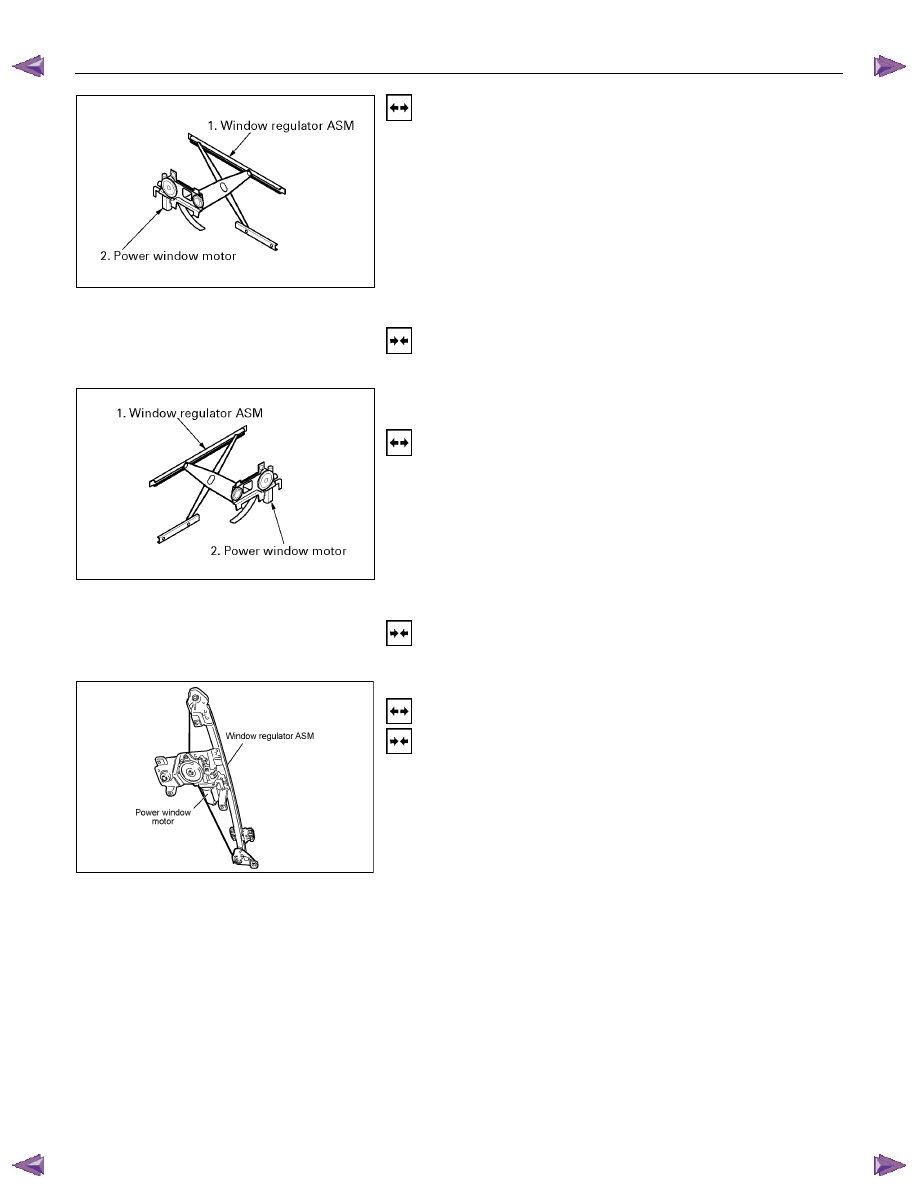

DRIVER’S SIDE POWER WINDOW

MOTOR

Removal

1.  Window Regulator ASM

• Refer to the removal steps of the WINDOW

REGULATOR/POWER WINDOW MOTOR in Section

10 “BODY”.

2.  Power Window Motor

•  Loosen the fixing bolts to remove the power window

motor from the regulator.






Installation

To install, follow the removal steps in the reverse order.







FRONT PASSENGER’S POWER WINDOW

MOTOR

Removal

1. Window Regulator ASM

• Refer to the removal steps of the WINDOW

REGULATOR/POWER WINDOW MOTOR in Section

10 “BODY”.

2. Power Window Motor

•  Loosen the fixing bolts to remove the power window

motor from the regulator.






Installation

To install, follow the removal steps in the reverse order.








RTW580SH002901







REAR POWER WINDOW MOTOR-LH &

RH

Removal and Installation

Refer to the “DRIVER’S SIDE POWER WINDOW MOTOR”
removal and installation steps in this section.
