8A-354  ELECTRICAL-BODY AND CHASSIS




Installation

To Install, follow the removal steps in the reverse order.












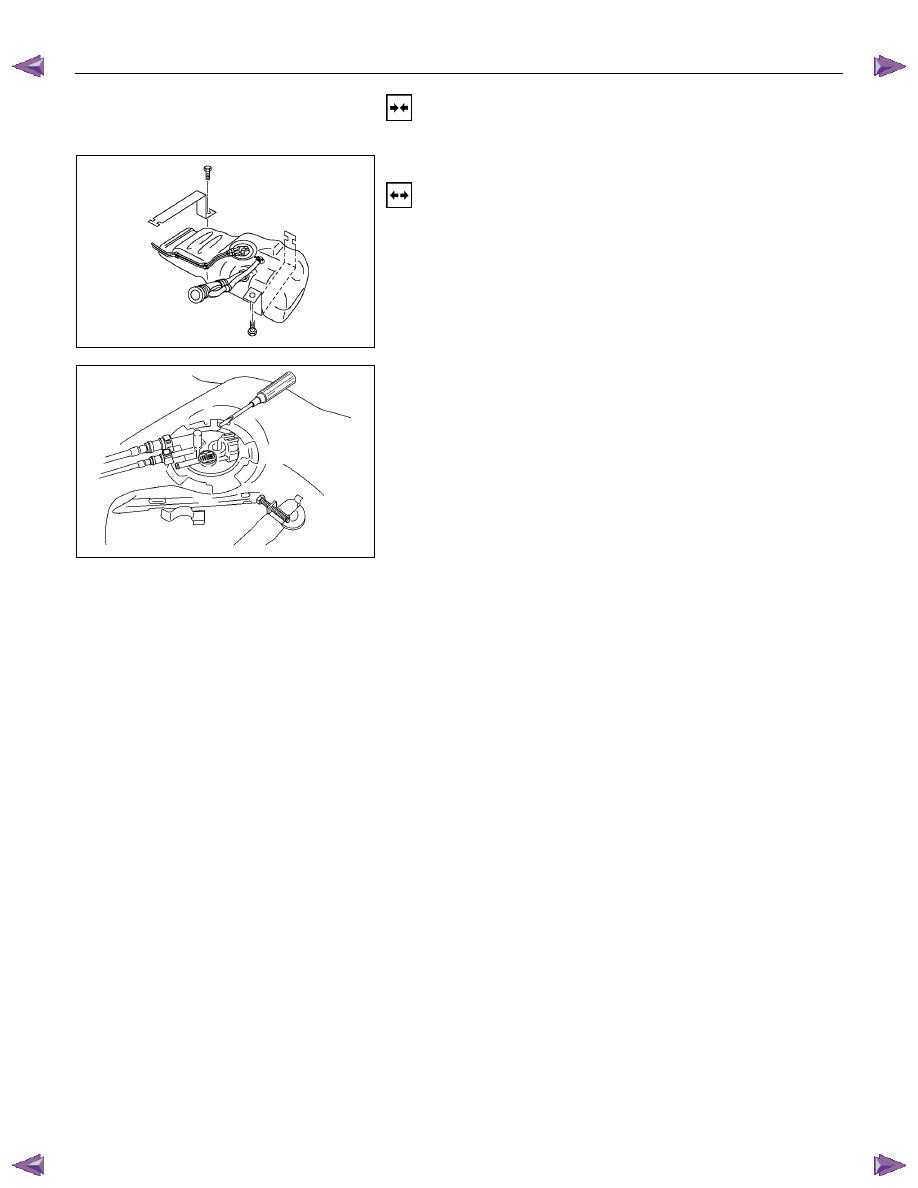

FUEL GAUGE UNIT

Removal

Dismount the fuel tank first, then remove the fuel gauge unit.
1.  Remove the rear inner liner -LH

•  Remove the clip

2.  Remove the filler neck.

•  Remove the screw

3.  Remove the ground with cable.

4.  Remove the fuel tank band.

•  Disconnect fuel line quick connectors.

5.  Remove the fuel gauge unit from the fuel tank.




ELECTRICAL-BODY AND CHASSIS  8A-355






Installation

Follow the removal procedure in the reverse order to install the
fuel gauge unit.
Pay close attention to the important points mentioned in the
following paragraphs.






Rubber Seal

Be absolutely sure that the fuel gauge unit rubber seal is
correctly seated.







Connector

Be absolutely sure that the fuel gauge unit connector is
securely connected.
This will prevent a poor contact and an open circuit.







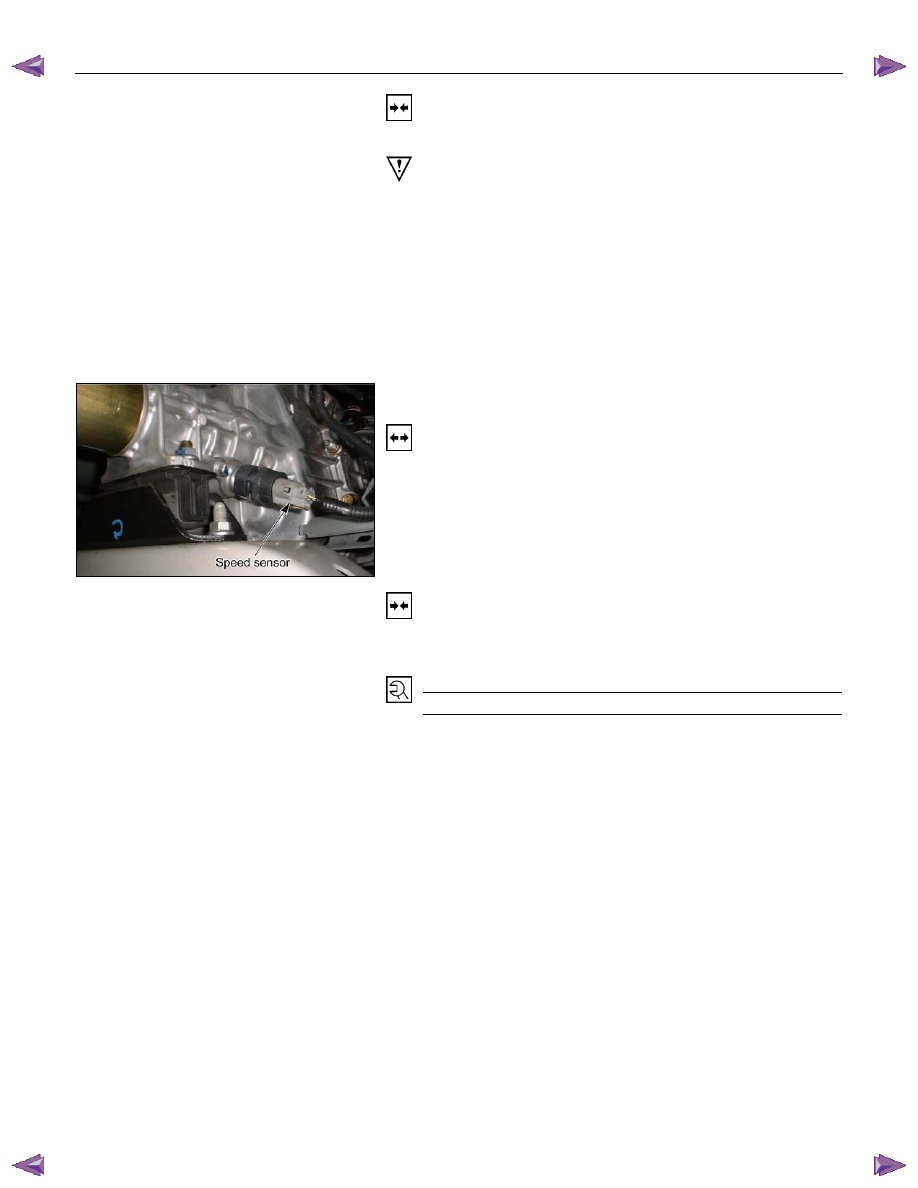

VEHICLE SPEED SENSOR (INSTALLED
ON THE TRANSMISSION)

Removal

1.  Disconnect the connector.

2.  Remove the vehicle speed sensor body by rotating it.











Installation

To Install, follow the removal steps in the reverse order, noting
the following point.
Tighten the vehicle speed sensor to the specified torque.
Vehicle Speed Sensor Tightening Torque

N

⋅m (kg⋅m/lb.ft)

25

± 4.9 (2.5 ± 0.5/18 ± 3.6)





8A-356  ELECTRICAL-BODY AND CHASSIS

  INSPECTION AND REPAIR

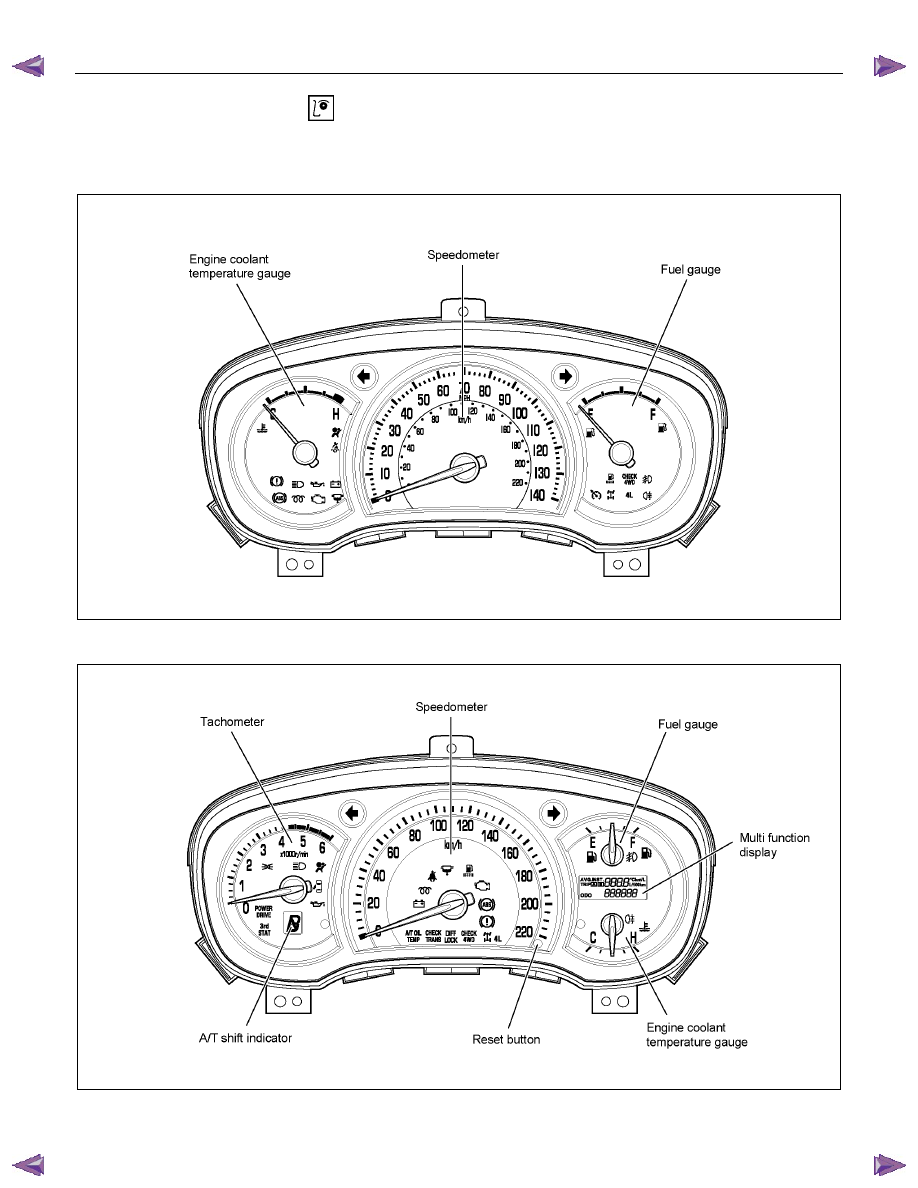

METER AND INDICATOR LIGHT LAYOUT
Without tachometer (4JJ1-TC/4JK1-TC)











RTW78AMF000501

With tachometer (4JJ1-TC/4JK1-TC)










RTW78AMF000101



ELECTRICAL-BODY AND CHASSIS  8A-357

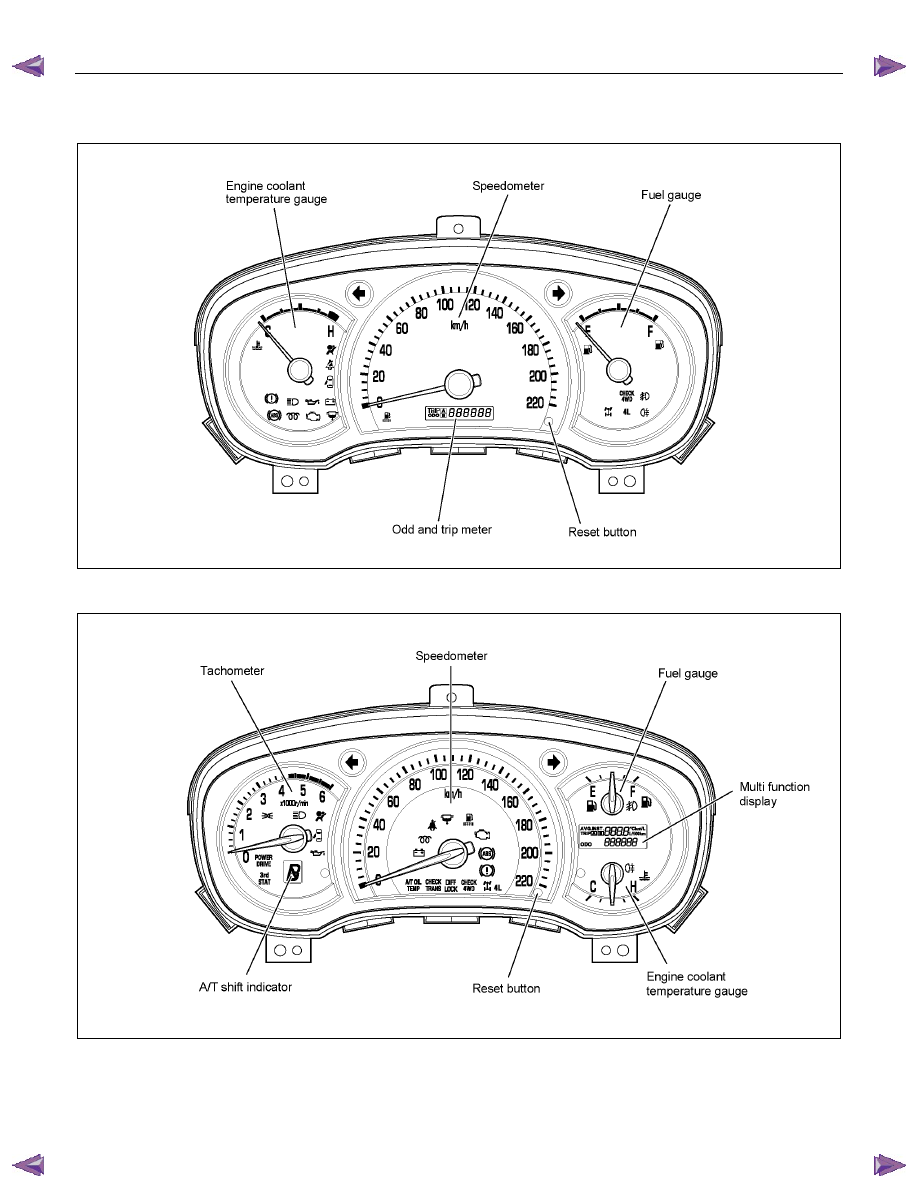

Without tachometer (4JA1T(L)/4JH1-TC)










RTW78AMF000401

With tachometer (4JA1T(L)/4JH1-TC)










RTW78AMF000201
