Isuzu KB P190. Manual - part 1299





8A-258  ELECTRICAL-BODY AND CHASSIS

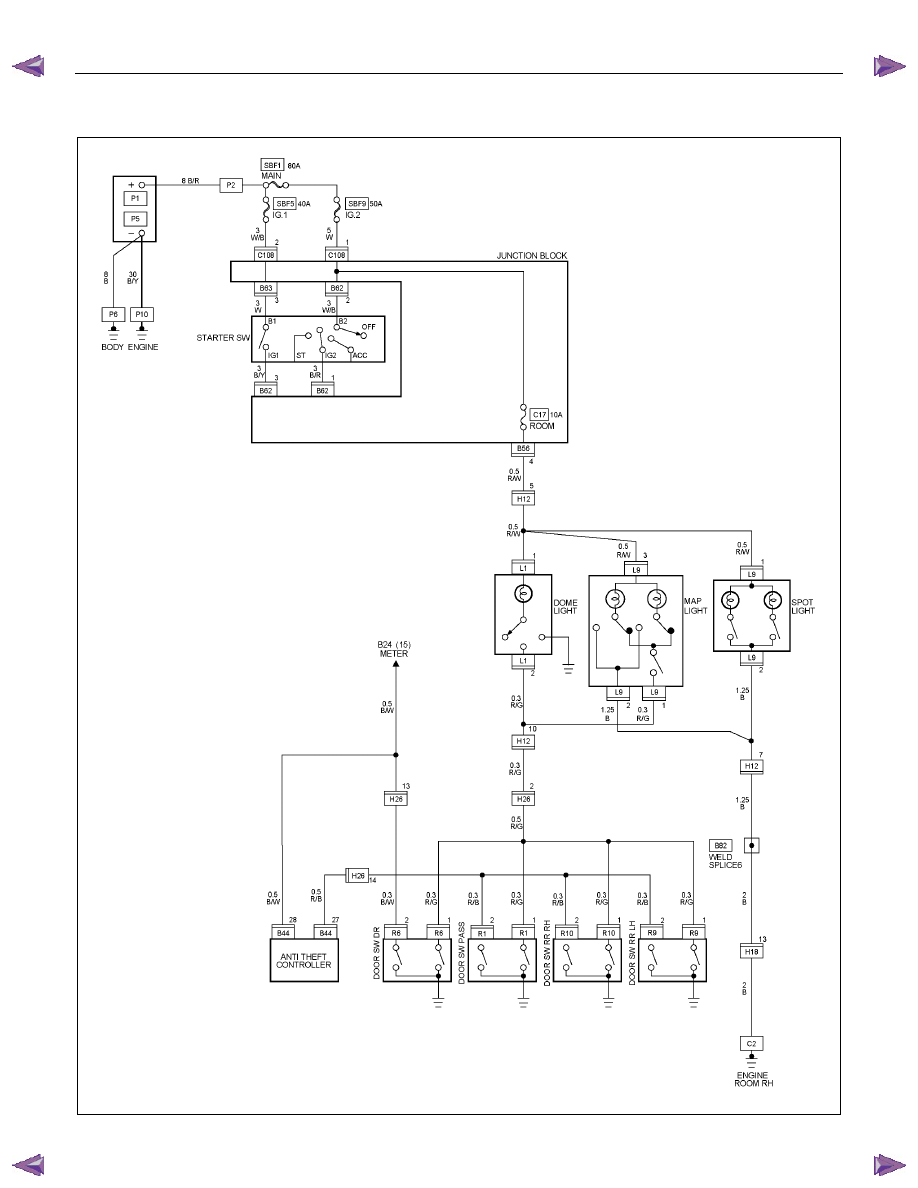

CIRCUIT DIAGRAM 4JA1T (L)









RTW78AXF005901

ELECTRICAL-BODY AND CHASSIS  8A-259

TROUBLESHOOTING

1.  Dome light dose not light


Checkpoint

Trouble

Cause



Countermeasure





Replace the dome light bulb





Burned out the bulb



NG





Repair or replace the dome

light assembly





Dome light switch function





Switch malfunction





Repair open circuit or

connector contact





Continuity between

connector 5

H12

 - 1

L1







Open circuit or poor connector

contact



NG

NG

OK

OK



Dome light bulb continuity







2.  Dome light does not go out




Repair or replace the door

switch





Switch malfunction or foreign

material switch



NG





Repair short circuit or

connector contact



Continuity between
connector 2

L1

 -ground

when shutting the door
(Should be no continuity)



Short circuit



NG

OK



Door switch function (Both

side)







8A-260  ELECTRICAL-BODY AND CHASSIS



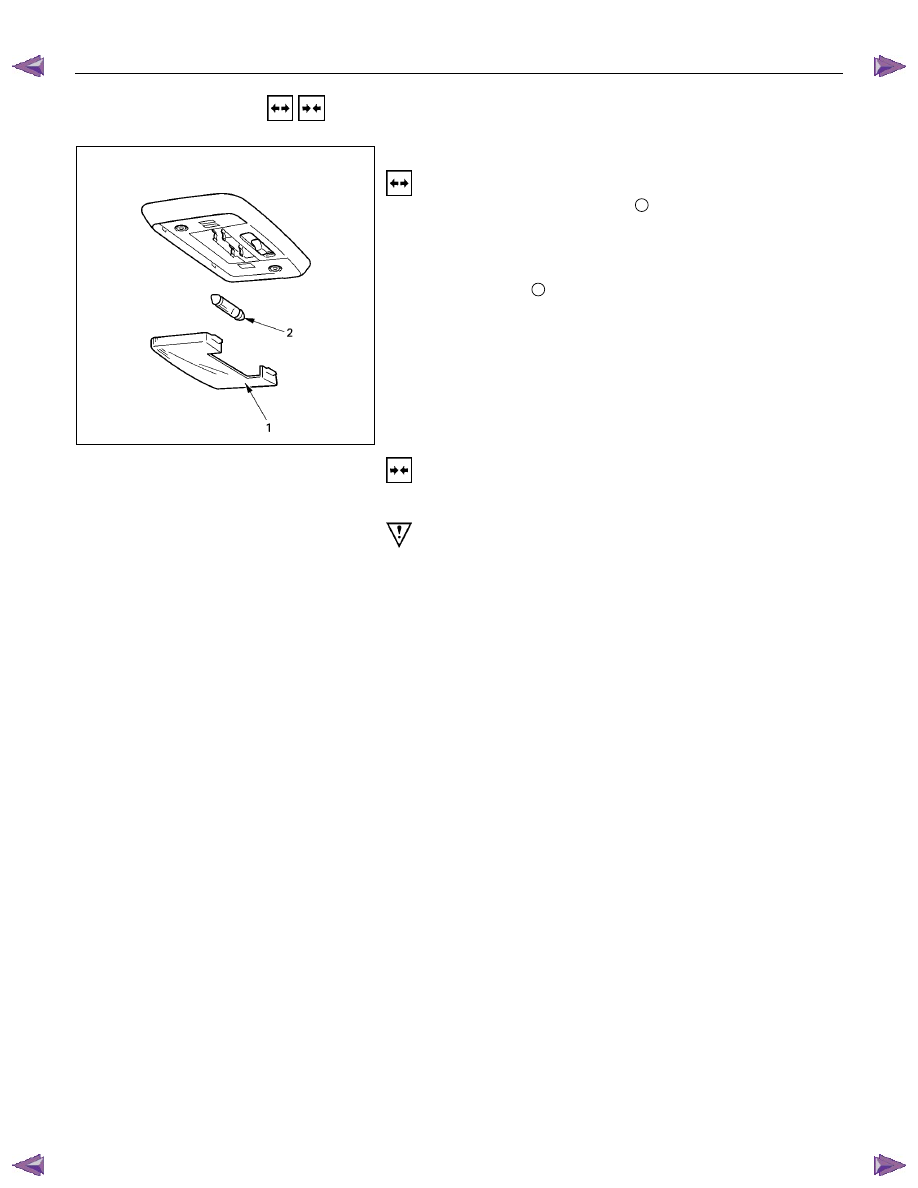

  REMOVAL AND INSTALLATION









DOME LIGHT

Removal

1.  Remove the dome light lens

1

 free.

2.  Remove two dome light fixing screws.

3.  Remove the wiring connector.

4.  Remove the dome light.

5.  Pull the bulb

2

 to remove it.












Installation

Follow the removal procedure in the reverse order to install the
dome light.
Pay close attention to the important points mentioned in the
following paragraphs.







Bulb

Be absolutely sure that the dome light bulb is correctly
installed.
This will prevent a poor contact and an open circuit.


ELECTRICAL-BODY AND CHASSIS  8A-261





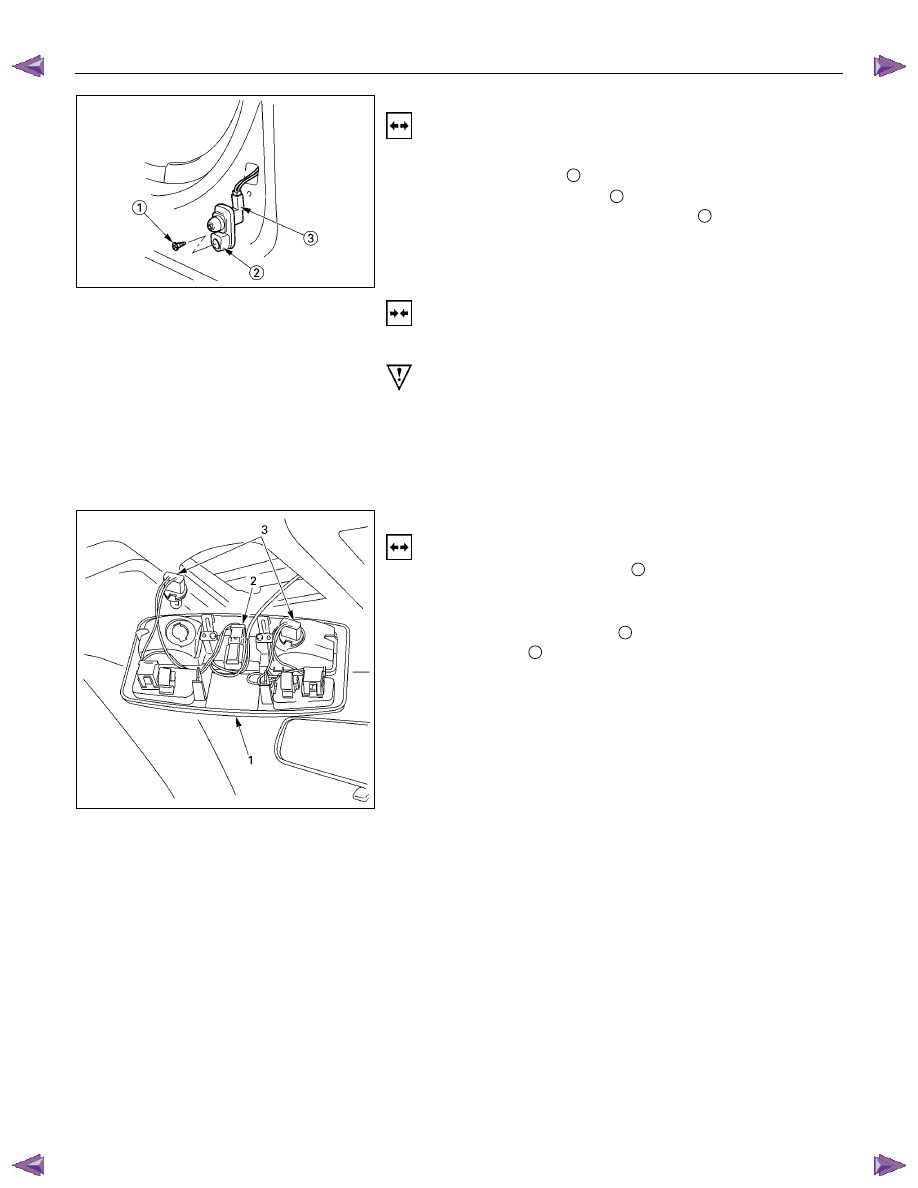

DOOR SWITCH

Removal

1.  Disconnect the battery ground cable.

2.  Loosen the screw

1

3.  Remove the door switch

2

4.  Disconnect the door switch connector

3









Installation

Follow the removal procedure in the reverse order to install the
spot light.
Pay close attention to the important points mentioned in the
following paragraphs.







Connector

Be absolutely sure that the door switch connector is securely
connected.
This will prevent a poor contact and an open circuit.






SPOTLIGHT (MAP Light)

Removal

1.  Grasp the spotlight housing

1

 with both hands.



Pull the housing straight down.



This will release the clip.

2.  Disconnect the connector

2

3. Turn socket

3

 counterclockwise to remove it.
