8A-238  ELECTRICAL-BODY AND CHASSIS






Bulb

Be absolutely sure that the side turn light bulb is correctly
installed.
This will prevent a poor contact and an open circuit.








A Type

RTW780SH002101









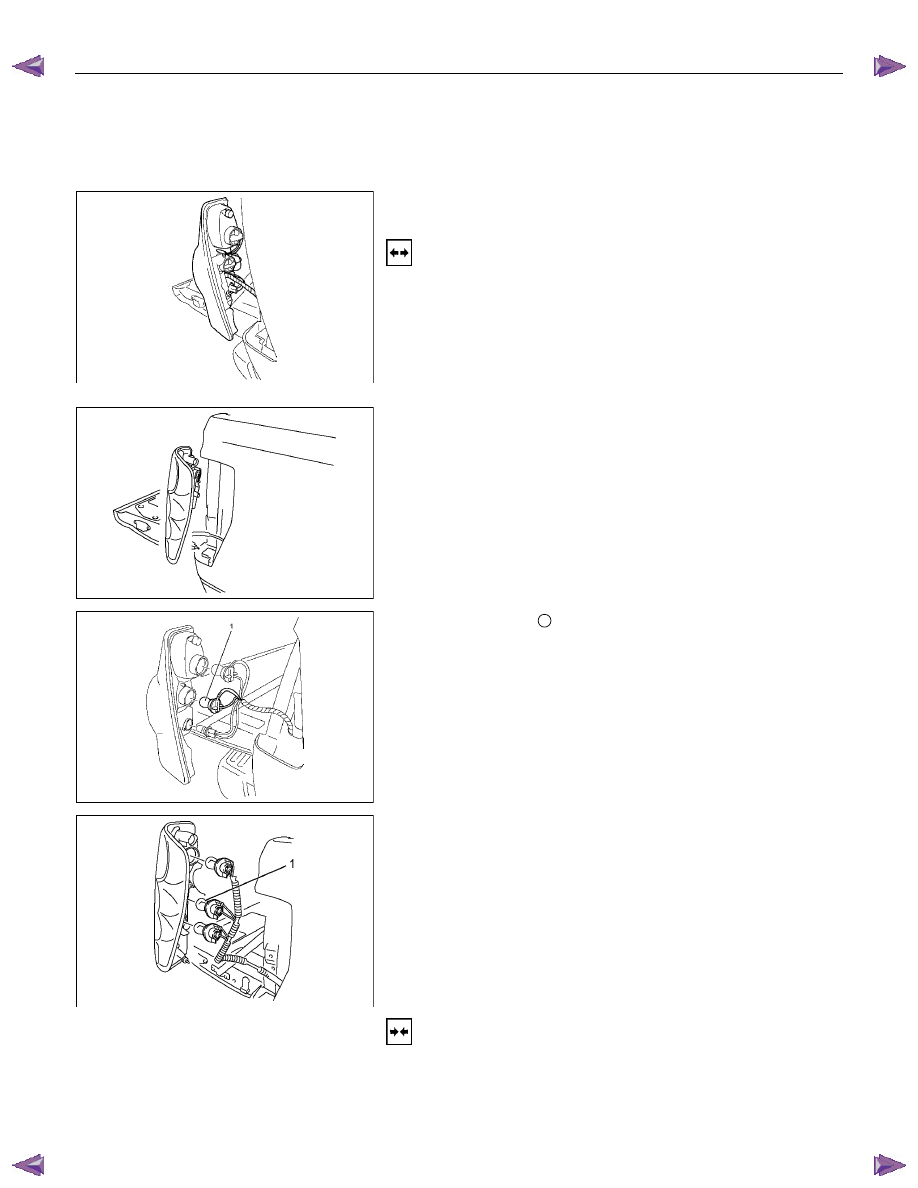

REAR COMBINATION LIGHT

Turn Signal Light
Removal

1.  Open the tail gate.

2.  Remove the screws.

3.  Remove the rear combination light assembly.







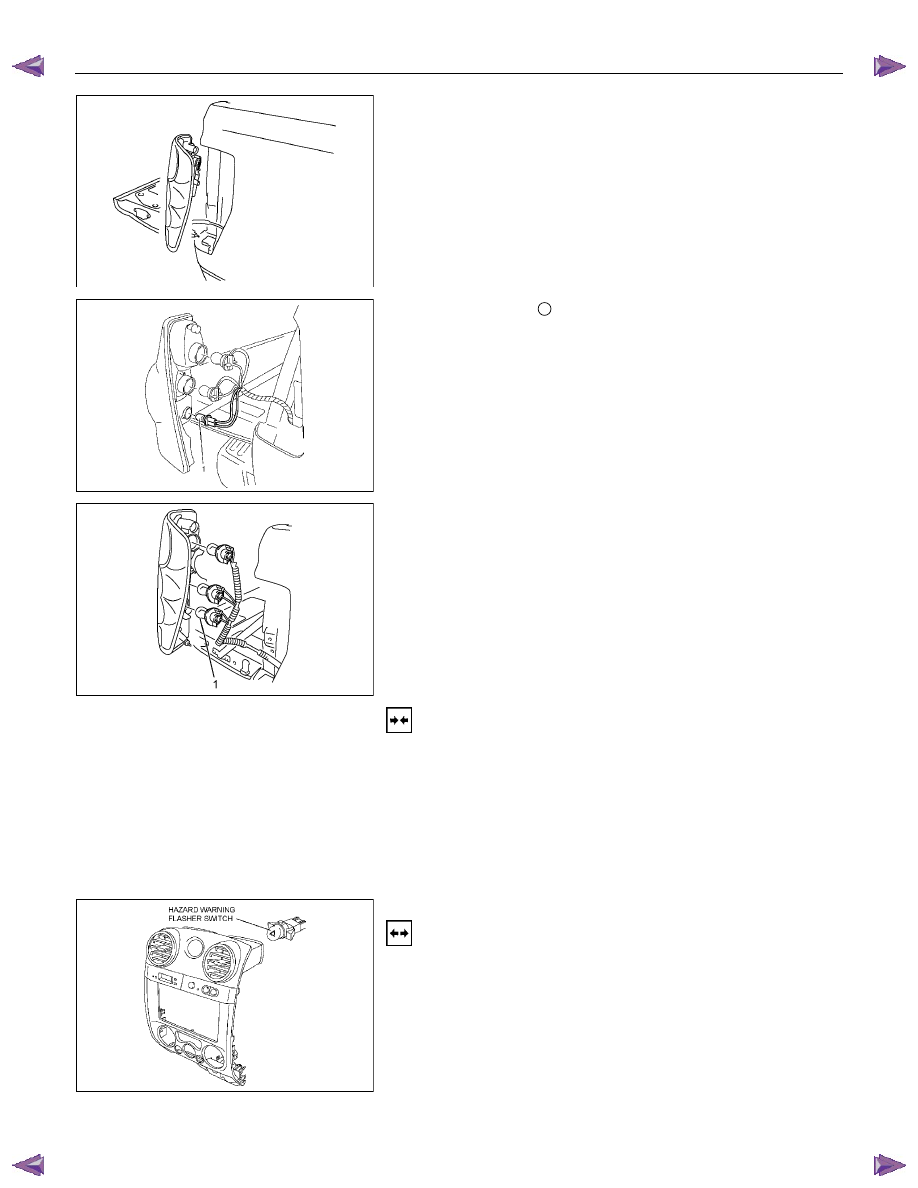

B Type

RTW580SH000401











A Type

RTW780SH001301




4.  Turn the bulb

1

 counterclockwise to remove it.









B Type

RTW78ASH002501





Installation

Follow the removal procedure in the reverse order to install the
rear combination light.
Pay close attention to the important points mentioned in the
following paragraphs.

ELECTRICAL-BODY AND CHASSIS  8A-239






Bulb

Be absolutely sure that the rear combination light bulb is
correctly installed.
This will prevent a poor contact and an open circuit.







RTW780SH000901

This illustration is based on RHD model



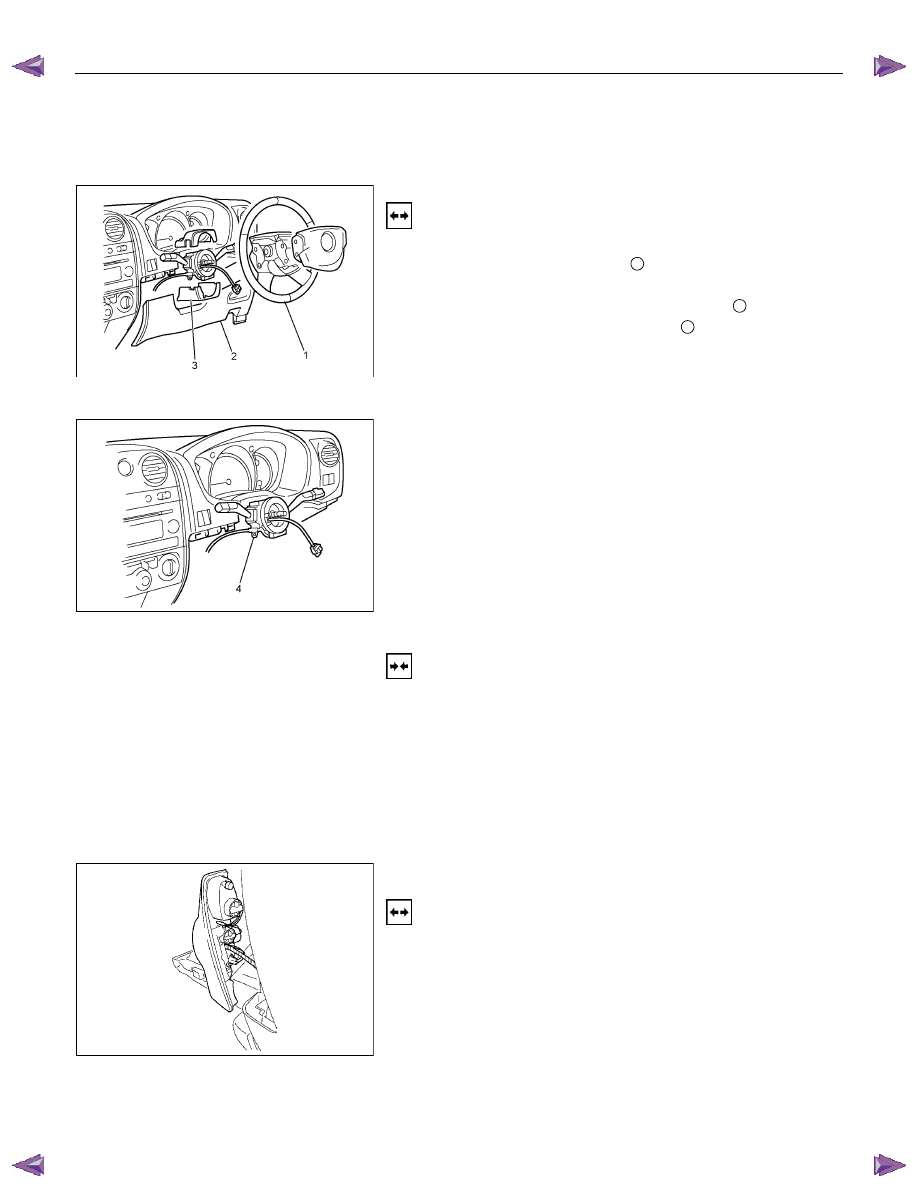

TURN SIGNAL LIGHT SWITCH

Removal

1.  Disconnect the battery ground cable.

2.  Remove the steering wheel

1

.



Refer to the “STEERING” Section of this Manual.

3.  Remove the instruments panel lower cover

2

.

4.  Remove the steering column cover

3

.










RTW780SH001001

This illustration is based on RHD model




5.  Disconnect the connector.

6.  Remove the turn signal switch from the steering shaft.







Installation

Follow the removal procedure in the reverse order to install the
turn signal switch (lever).
Pay close attention to the important points mentioned in the
following paragraphs.







Connector

Be absolutely sure that the turn signal switch connector is
securely connected.
This will prevent a poor contact and at an open circuit.








A Type

RTW780SH002101




REAR COMBINATION LIGHT

Backup Light
Removal

1.  Open the rear gate.

2.  Remove the screws.

3.  Remove the rear combination light assembly.

8A-240  ELECTRICAL-BODY AND CHASSIS







B Type

RTW580SH000401











A Type

RTW780SH001401




4.  Turn the bulb

1

 counterclockwise to remove it.









B Type

RTW78ASH002601








Installation

Follow the removal procedure in the reverse order to install the
rear combination light.
Pay close attention to the important points mentioned in the
following paragraphs.







Bulbs

Be absolutely sure that each bulb is correctly installed.
This will prevent a poor contact and an open circuit.








RTW780SH001501

This illustration is based on RHD model




HAZARD WARNING FLASHER SWITCH

Removal

1.  Disconnect the battery ground cable.

2.  Instrument Panel Cluster Assembly

•  Refer to Section 10 “BODY” for instrument panel cluster

assembly removal steps.

3.  Hazard Warning Switch

•  Disconnect the switch connector.
•  To remove the switch, push the lock from the back side

of the cluster assembly.

ELECTRICAL-BODY AND CHASSIS  8A-241




Installation

To install, follow the removal procedure in the reverse order.







Connector

Be absolutely sure that the hazard warning flasher switch
connector is securely connected.
This will prevent a poor contact and an open circuit.




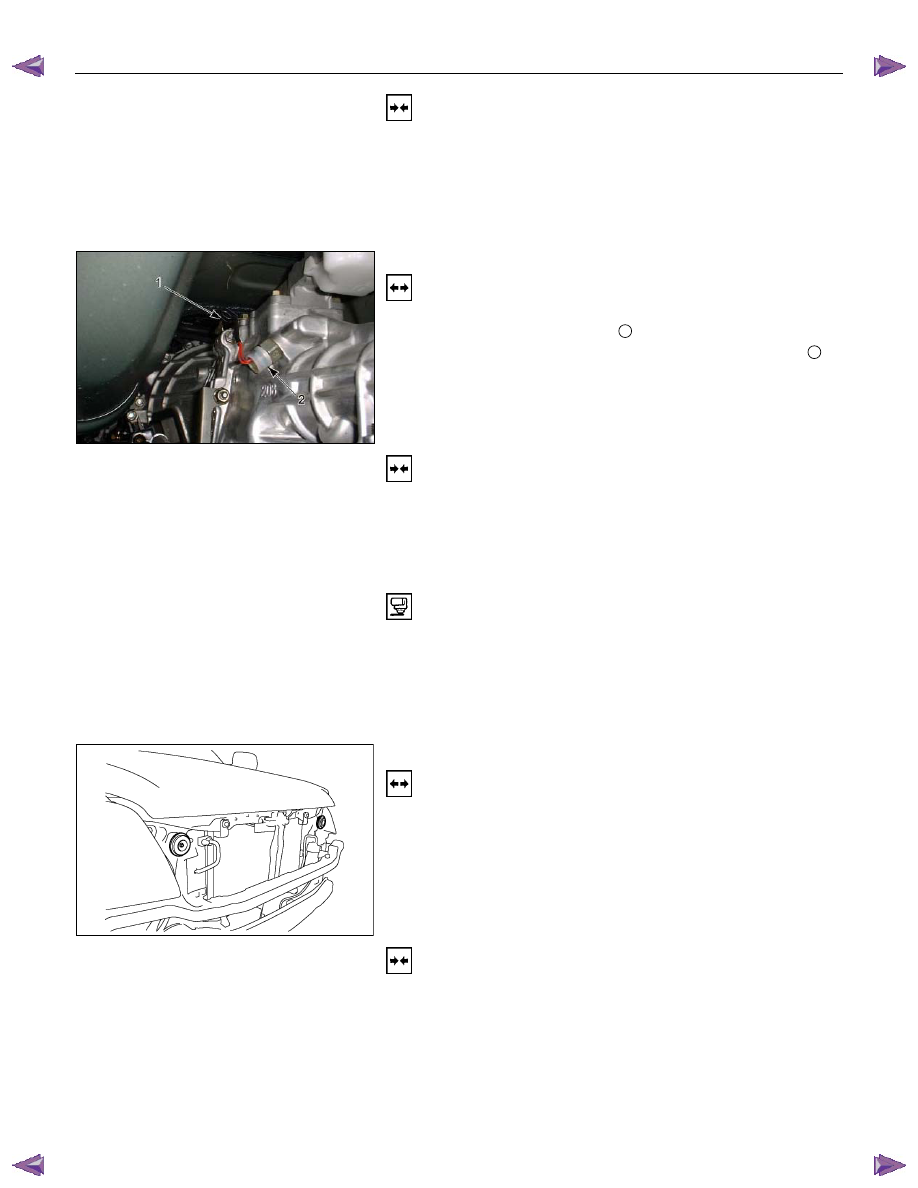

BACKUP LIGHT SWITCH

Removal

1.  Disconnect the battery ground cable.

2.  Disconnect the connector

1

.

3.  Remove the backup light switch from the transmission

2

.






Installation

Follow the removal procedure in the reverse order to install the
backup light switch.
Pay close attention to the important points mentioned in the
following paragraphs.







Backup Light Switch Threads

Apply liquid gasket to the threaded portion and install the
backup light switch.







Connector

Be absolutely sure that the backup light connector is securely
connected.
This will prevent a poor contact and an open circuit.










HORN

Removal

1.  Remove the radiator grille.



Refer to the “HEADLIGHT” removal procedure.

2.  Loosen the horn bolt.

3.  Disconnect the horn connector.




Installation

Follow the removal procedure in the reverse order to install the
horn.
Pay close attention to the important point mentioned in the
following paragraphs.







Connector

Be absolutely sure the horn connector is securely connected.
This will prevent a poor contact and open circuit.
