Isuzu KB P190. Manual - part 1253

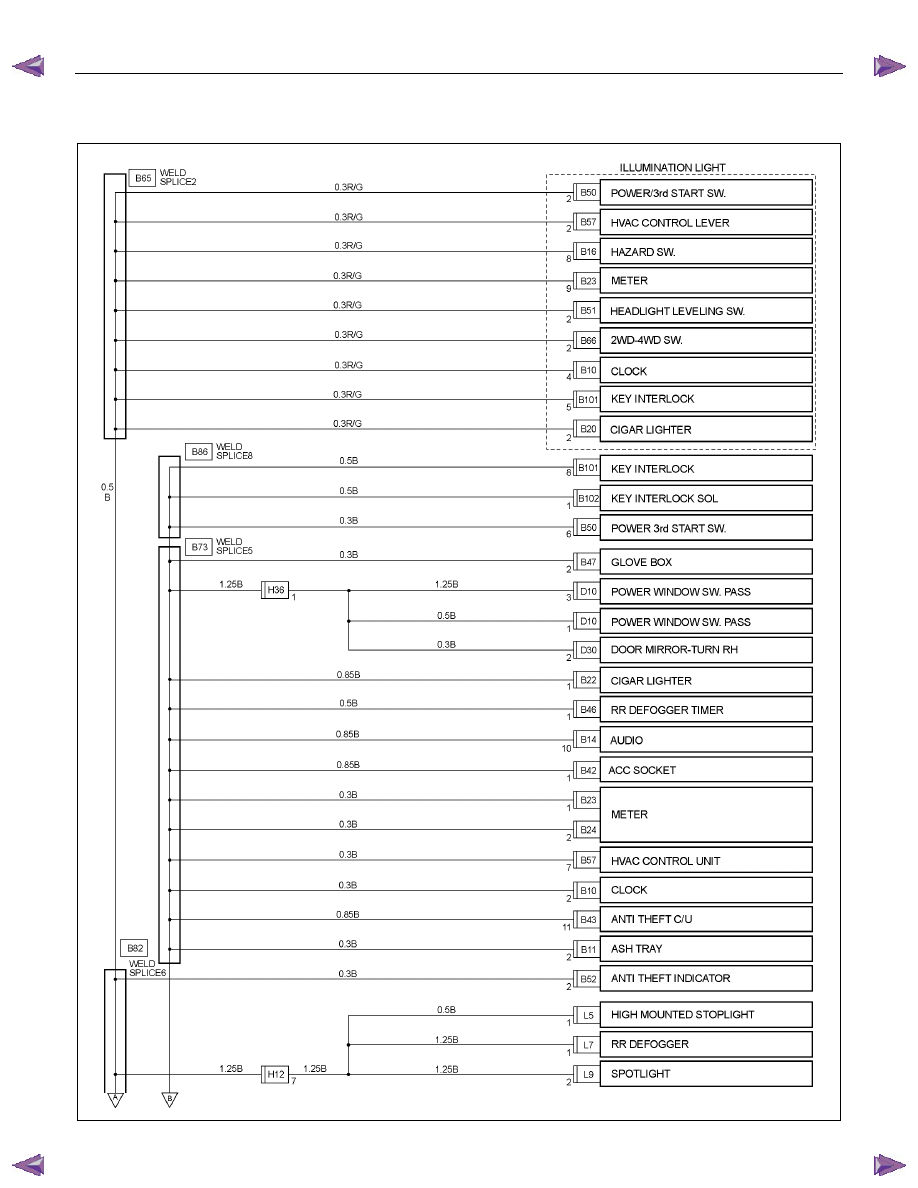

8A-74  ELECTRICAL-BODY AND CHASSIS



GROUND POINT 4JJ1-TC (RHD) EXCEPT SOUTH AFRICA

 Sheet

2/4














RTW78AXF035201

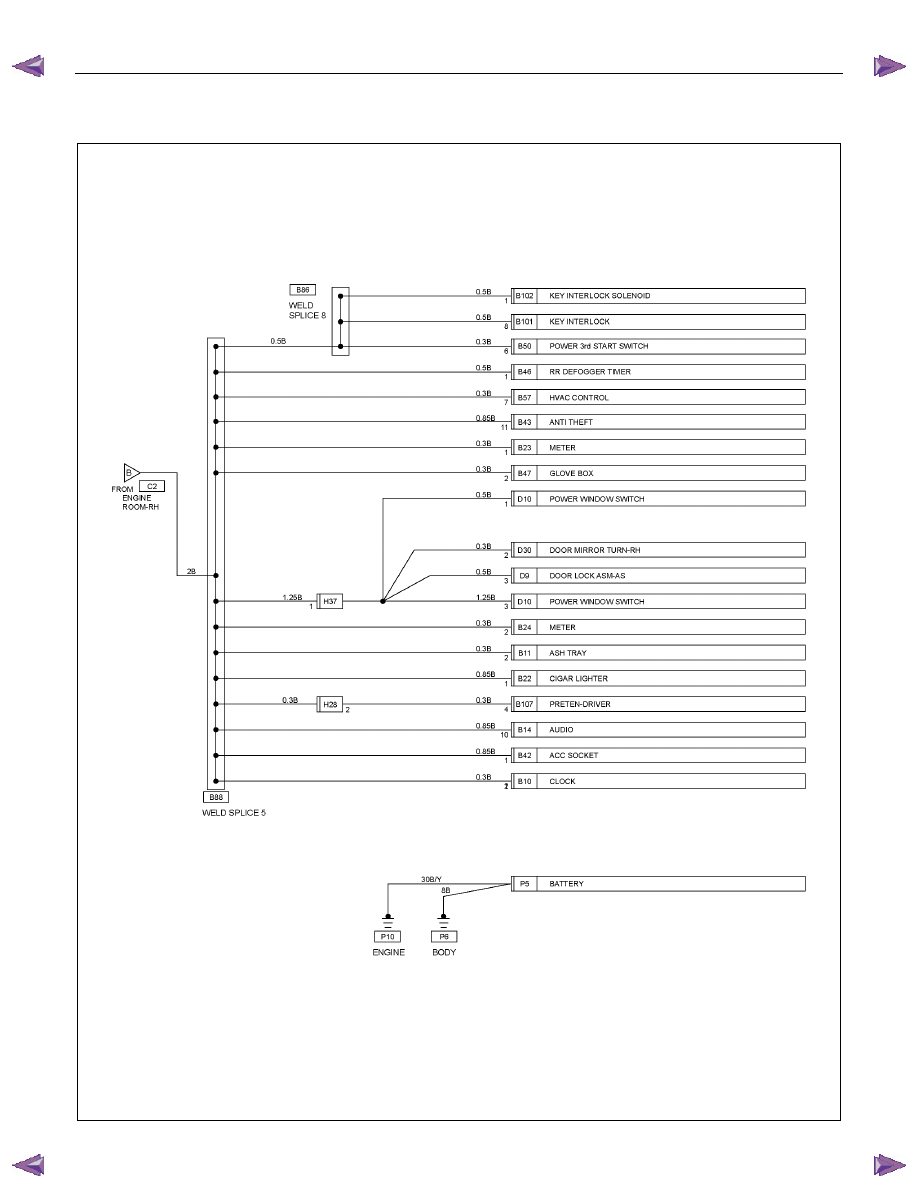

ELECTRICAL-BODY AND CHASSIS  8A-75



GROUND POINT 4JJ1-TC (RHD) EXCEPT SOUTH AFRICA

 Sheet

3/4

















RTW78AXF035301

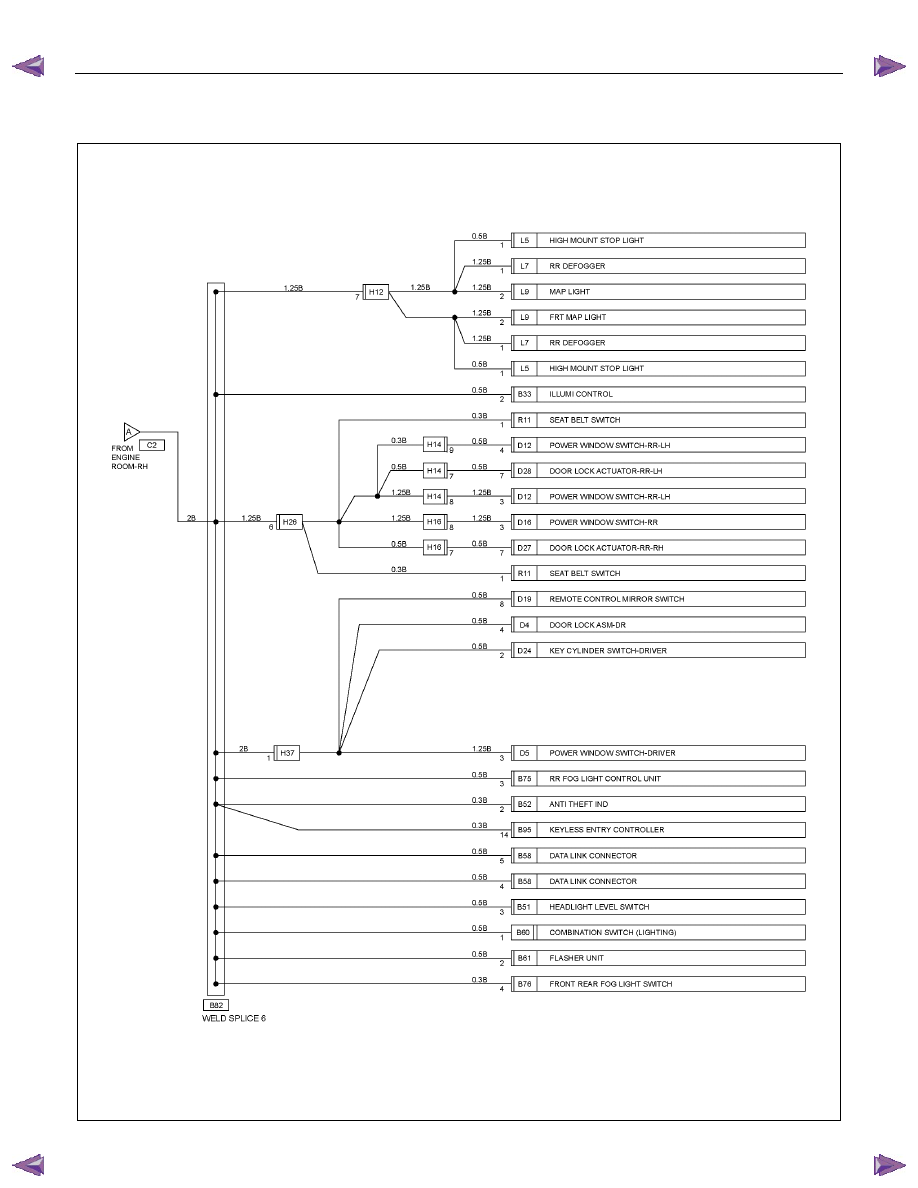

8A-76  ELECTRICAL-BODY AND CHASSIS



GROUND POINT 4JJ1-TC (RHD) EXCEPT SOUTH AFRICA

 Sheet

4/4










RTW78AXF035401

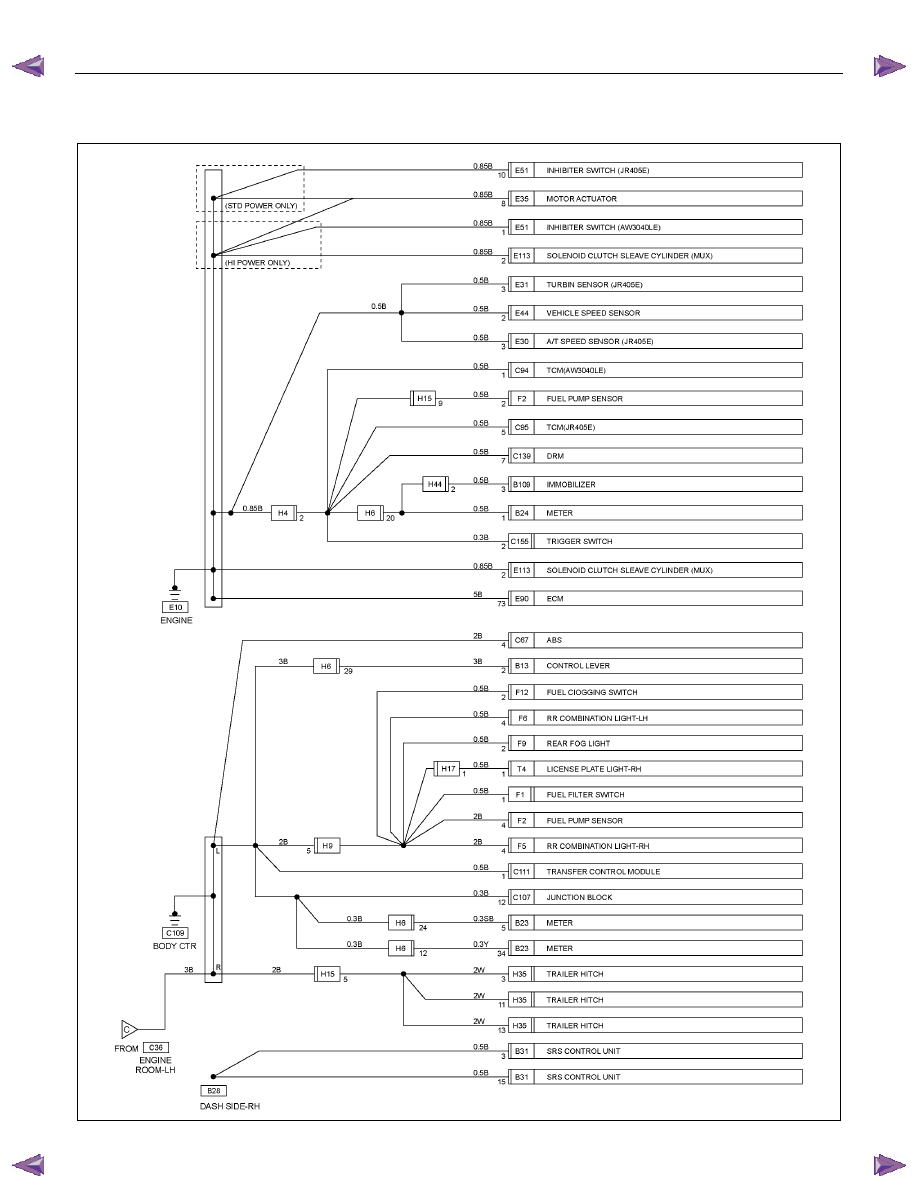

ELECTRICAL-BODY AND CHASSIS  8A-77



GROUND POINT 4JH1-TC (LHD) G.EXP

 Sheet

1/4










RTW78AXF007501
