8A-18  ELECTRICAL-BODY AND CHASSIS

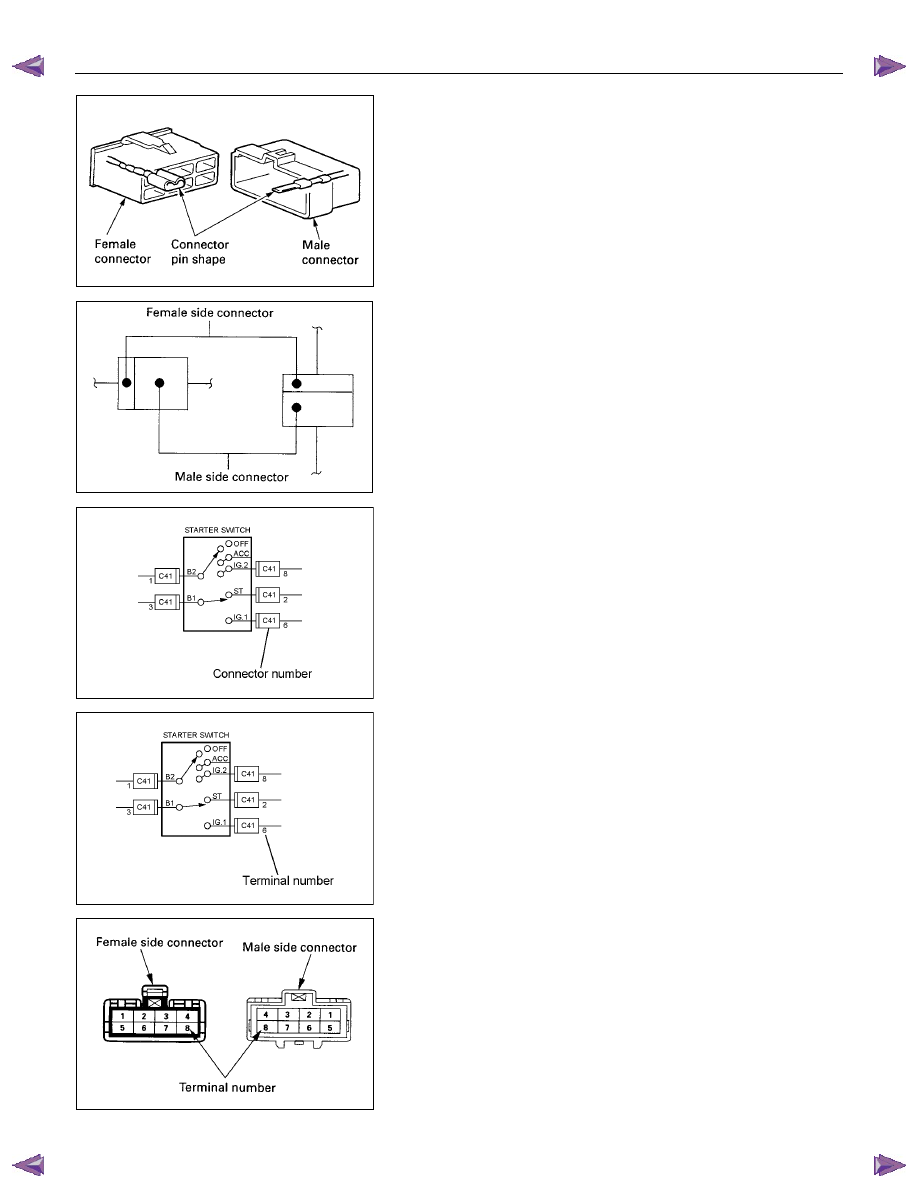

CONNECTOR

The connector pin shape determines whether the connector is
male or female.
The connector housing configuration does not determine
whether a connector is male or female.







The symbol illustrated in the figure is used as connector in the
circuit this section.








RTW78ASH003101




Connector is identified with a number.








RTW78ASH003201




The applicable terminal number is shown for each connector.







Connector terminal numbers are clearly shown.
Male side connector terminal numbers are in sequence from
upper right to lower left.
Female side connector terminal numbers are in sequence from
upper left to lower right.
NOTE:
For those connectors on which specific terminal numbers
on symbols are shown, the terminal numbers or symbols
are used in the circuit diagram, irrespective of the above
rule.


ELECTRICAL-BODY AND CHASSIS  8A-19

Battery-1




BATTERY

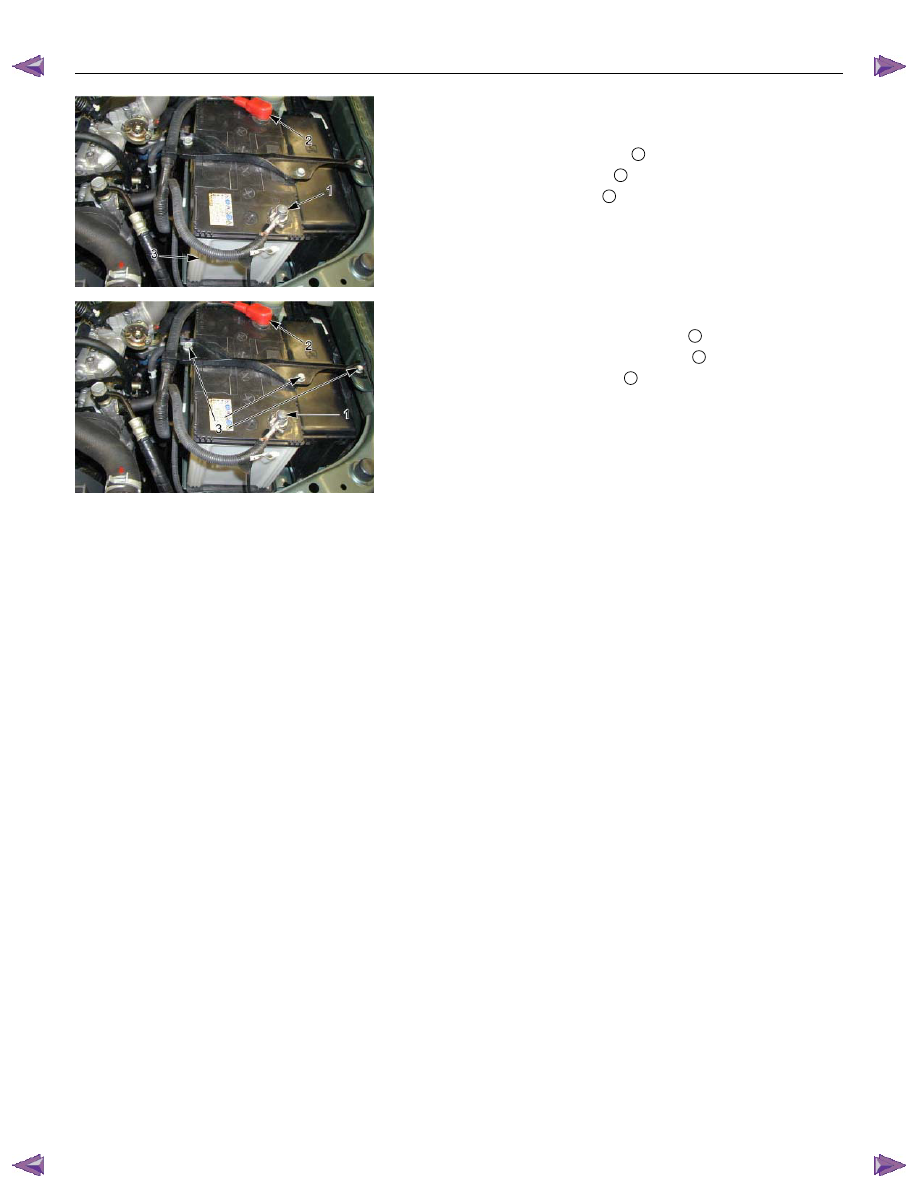

Inspection

1.  Check the battery terminals

1

 for corrosion.

2.  Check the battery cables

2

 for looseness.

3.  Check the battery case

3

 for cracks and other damage.

4. Check the battery electrolyte level.



Battery-2




Battery Replacement

1.  Disconnect the battery ground cable

1

2.  Disconnect the battery positive cable

2

3.  Remove the battery clamp

3

4.  Remove the battery

Caution:
It is important that the battery ground cable be removed
first.
Removing the battery positive cable first can result in a
short circuit.







Jump Starting the Engine with a Booster Battery

The following description assumes that you are using a booster
battery mounted on a second vehicle.
The listed steps (with some minor modifications) are also
applicable if you are using a naked booster battery or special
battery charging equipment.


8A-20  ELECTRICAL-BODY AND CHASSIS





Caution:
Never push or tow the vehicle in an attempt to start it.
Extensive damage to the emission system and other
vehicle parts will result.
(Only catalytic converter vehicle)
Treat both the discharged battery and the booster battery
with great care when using jumper cables.
Carefully follow the procedure outlined below.
Always be aware of the dangers of sparking.
Failure to follow the following procedure can result in:
a.  Serious personal injury, specially to your eyes.

b. Extensive property damage from a battery explosion,

battery acid discharge, or electrical file.

c. Extensive damage to the electronic components of

both vehicles.

Do not use a 24 volt booster battery.
Serious damage to the vehicle's electrical system and
electronic components will result.


Jump Starting Procedure

1.  Set the parking brake on both vehicles.

2. If one or both vehicles is equipped with a manual

transmission, place the gear shift in the "NEUTRAL"

position.

3.  Turn off the ignition on both vehicles.

4.  Turn off all vehicle lights and accessories.

5  Be sure that the two vehicles are not touching.



Attach the end of one jumper cable to the booster battery

positive terminal.

6  Attach the other end of the same cable to the discharged

battery positive terminal.

7.  Once again, check that the booster battery has a 12 volt

rating.

8.  Attach one end of the remaining booster cable to the

booster battery negative terminal.

9.  Attach the other end of the booster cable to a solid ground

(such as the air conditioner compressor mounting bracket

or the alternator mounting bracket) in the engine room of

the vehicle with the discharged battery.

10.Be sure that the ground connection is at least 500 mm (20

in) from the discharged battery.

ELECTRICAL-BODY AND CHASSIS  8A-21





Caution:
Do not attach the booster cable to the discharged battery
negative terminal.

11. Start the engine of the vehicle with the booster battery.



Check that all unnecessary electrical accessories are off.

12. Start the engine of the vehicle with the discharged battery.

13. Remove the jumper cables in the reverse order to which

they were attached.

Caution:
Be absolutely sure to remove the negative jumper cable
from the vehicle with the discharged battery first.
