Isuzu KB P190. Manual - part 1218

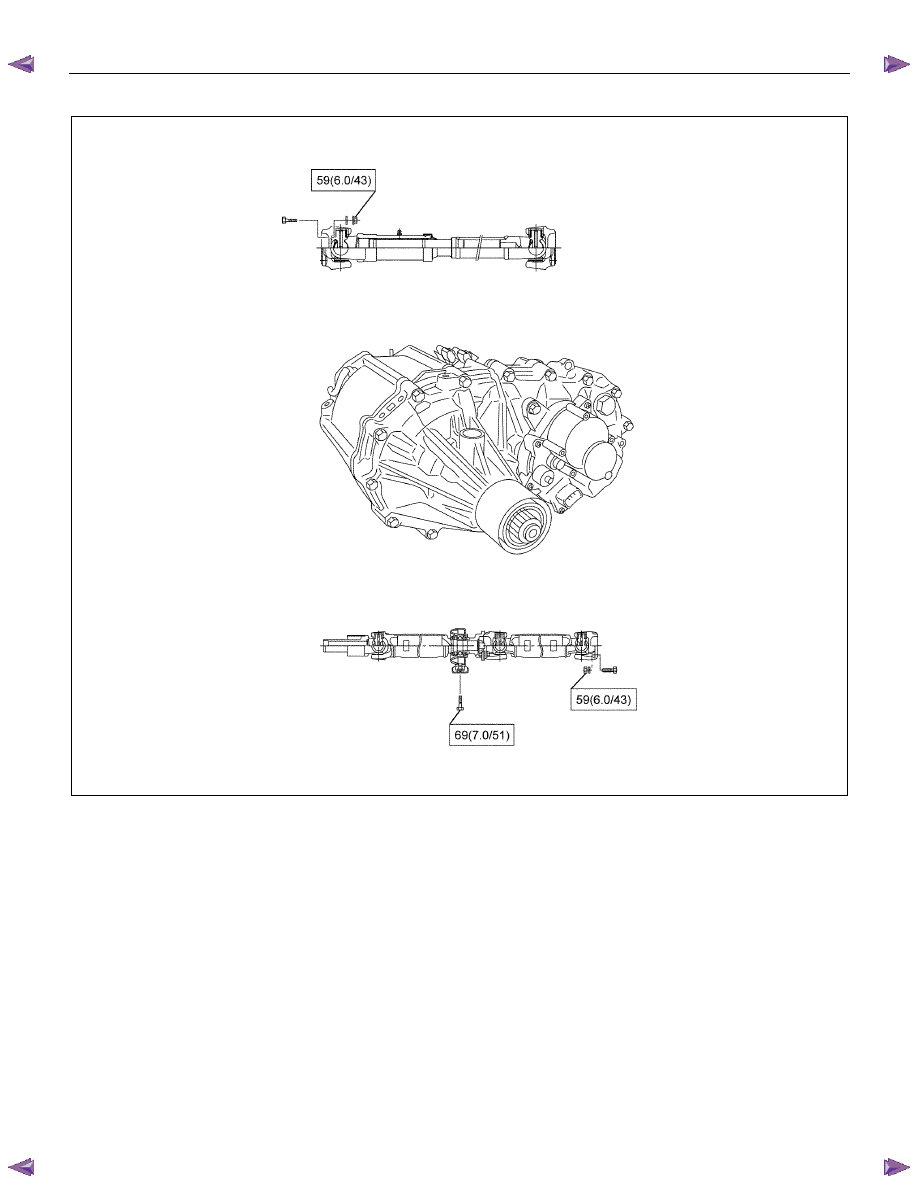

7D-42  TRANSFER CASE

N

⋅m (kgf⋅m/lb⋅ft)











RTW57DLF000301

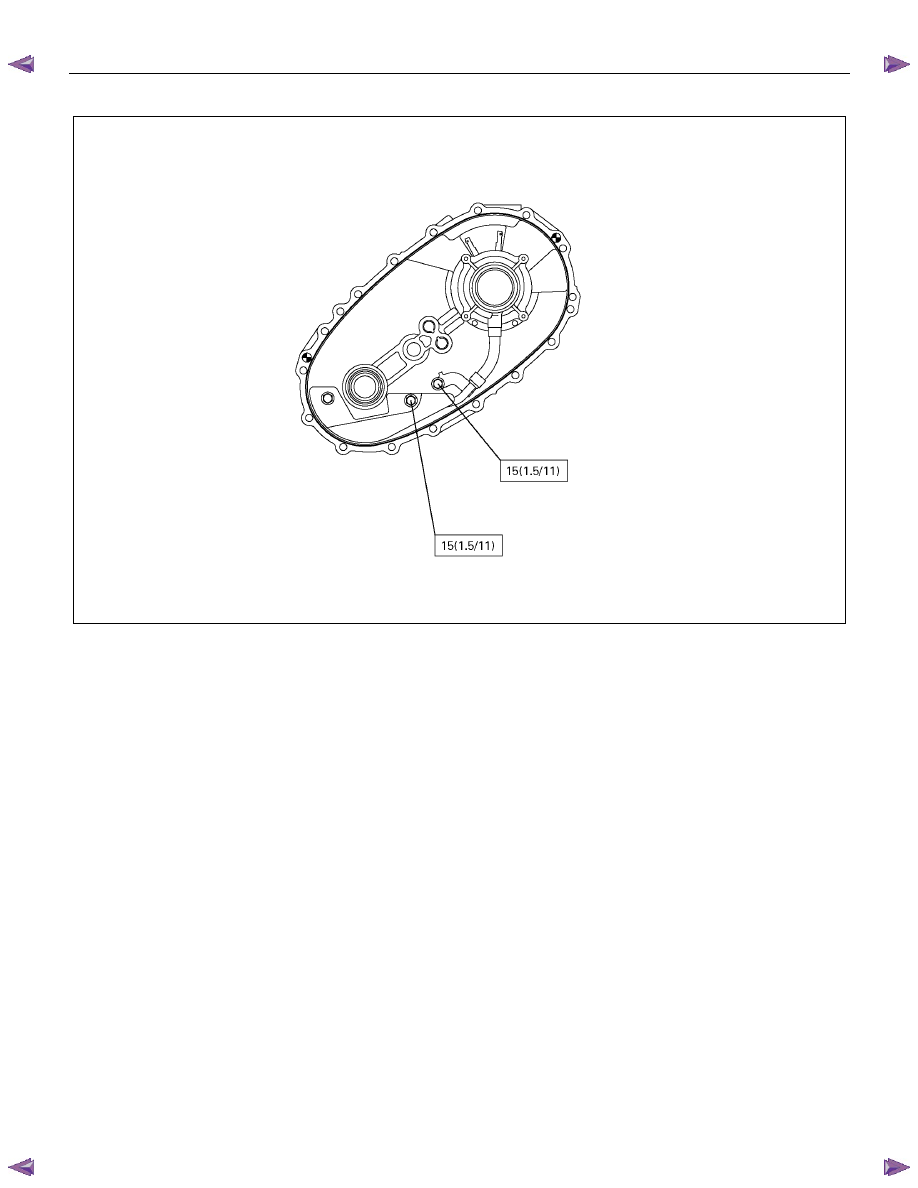

TRANSFER CASE  7D-43

N

⋅m (kgf⋅m/lb⋅ft)



E07R300008



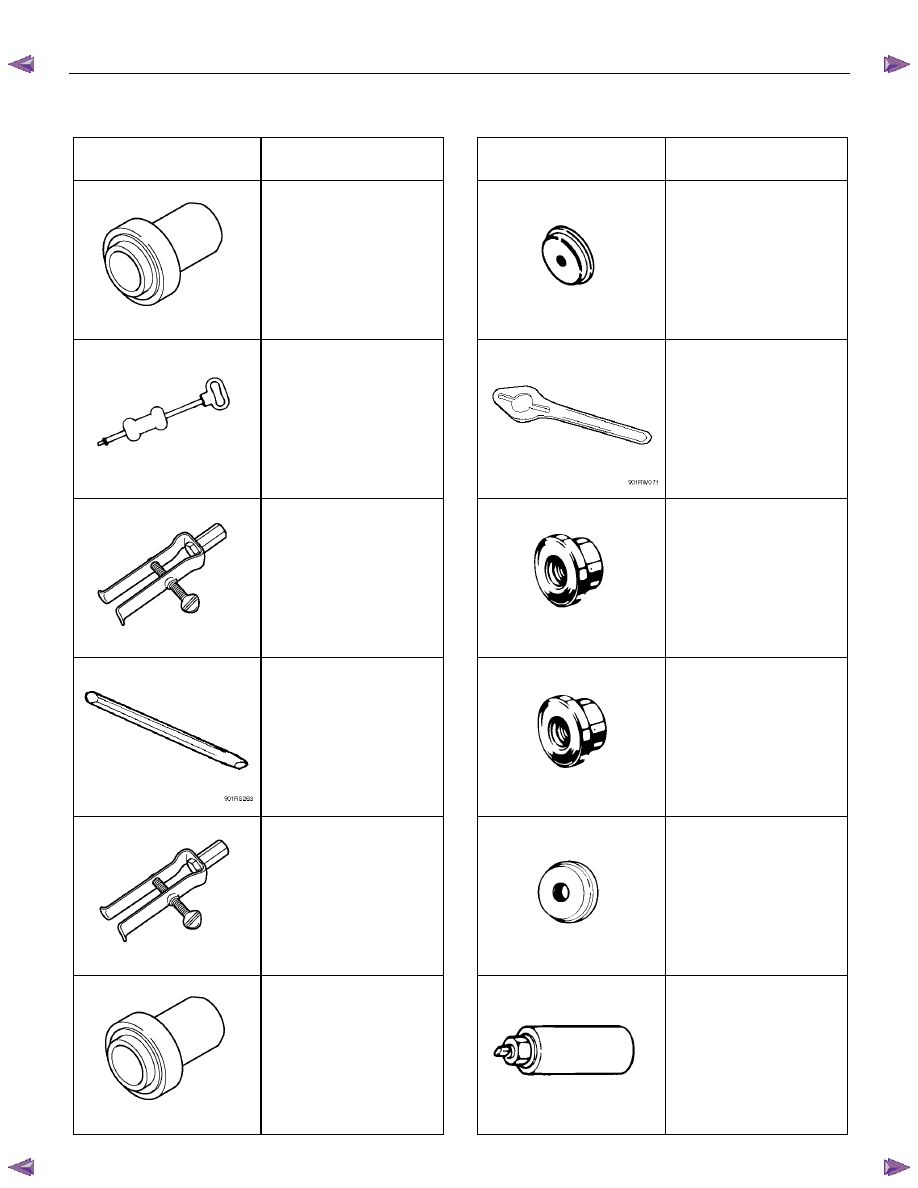

7D-44  TRANSFER CASE

Special Tools



ILLUSTRATION

PART NO.

PART NAME



ILLUSTRATION

PART NO.

PART NAME



5-8840-2786-0

(J-46202)

Transfer case oil seal

installer





5-8840-2784-0

(J-46200)

Ring gear installer



5-8840-0084-0

(J-2619-01)

Sliding hammer





5-8840-0133-0

(J-8614-01)

Flange holder



5-8840-0027-0

(J-26941)

Rear output shaft needle

bearing replacer





5-8840-2782-0

(J-46198)

Needle bearing installer



5-8840-2293-0

(J-39209)

Punch; end nut





5-8840-2783-0

(J-46199)

Needle bearing installer



5-8840-2788-0

Front output shaft needle

bearing replacer





9-8522-1268-0

Rear output shaft ball

bearing installer



5-8840-2785-0

(J-46201)

Input shaft and/or front

output shaft oil seal installer





5-8840-2787-0

(J-46203)

Snap ring installer



TRANSFER CONTROL SYSTEM  7D1-1

SECTION 7D1

TRANSFER CONTROL SYSTEM

TABLE OF CONTENTS

 PAGE

Service Precaution  .....................................................................................................  7D1 -  2

General Description  ...................................................................................................  7D1 -  3

System Components  ..................................................................................................  7D1 -   5

Parts Location .......................................................................................................  7D1 -   5

Functions of Switch and Indicator Lamp  .................................................................  7D1 -  12

Parts Location  ............................................................................................................  7D1 -  24

Circuit Diagram ...........................................................................................................  7D1 -  33

Connector List  ............................................................................................................  7D1 -  41

Diagnosis .................................................................................................................... 7D1 -  46

Before determining a trouble (Non-trouble mode)  ............................................  7D1 -  46

Memory erasing procedure  .......................................................................................  7D1 -  52

Diagnosis from symptom ...........................................................................................  7D1 -  54
