7B1-58     MANUAL TRANSMISSION

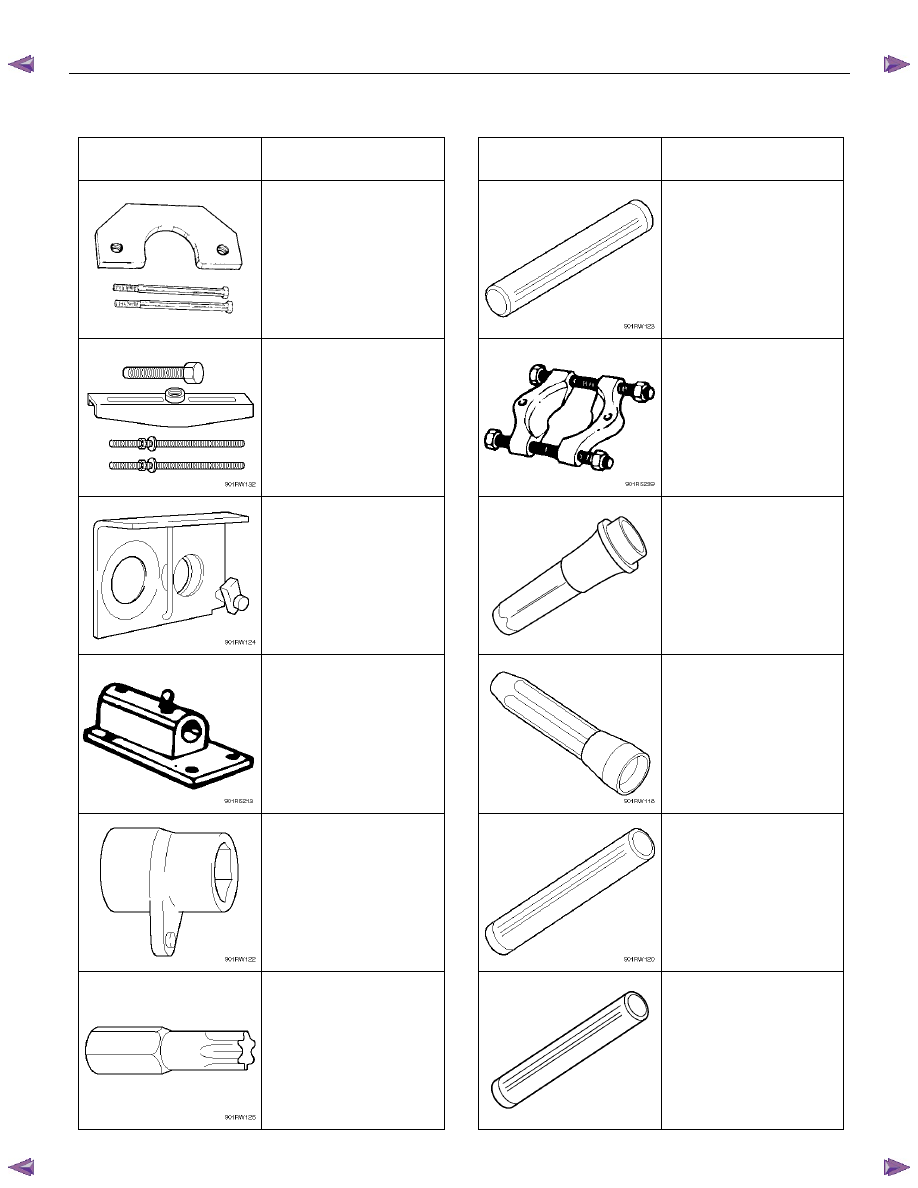

Special Tools (4

××××2)



ILLUSTRATION

TOOL NO.

TOOL NAME

ILLUSTRATION

TOOL NO.

TOOL NAME



5-8840-2155-0

(J-37217)

Bearing remover





5-8840-2159-0

(J-37223)

Mainshaft end bearing

installer



5-8840-2027-0

Puller





5-8840-0015-0

(J-22912-01)

Bearing

 remover/installer



5-8840-2160-0

(J-37224)

Holding fixture





5-8522-0050-0

(J-29769)

Rear case oil seal

installer



5-8840-0003-0

(J-3289-20)

Holding fixture base





5-8840-0026-0

(J-26540)

Front cover oil seal

installer



5-8840-2156-0

(J-37219)

Mainshaft nut wrench





9-8522-1165-0

(J-6133-01)

Mainshaft collar remover



5-8840-0047-0

(J-37225)

Tork bit wrench

(T– 45)





5-8840-2194-0

(J-35283)

Bearing installer



MANUAL TRANSMISSION     7B1-59

Service Precaution



WARNING: THIS VEHICLE HAS A SUPPLE MENTAL

RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE
SRS COMPONENTS OR THE SRS WIRING, REFER
TO THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNECESSARY SRS SYSTEM
REPAIRS.



CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU/GM will call out those fasteners that require a
replacement after removal. ISUZU/GM will also call
out the fasteners that require thread lockers or
thread sealant. UNLESS OTHERWISE SPECIFIED,
do not use supplemental coatings (paints, greases,
or other corrosion inhibitors) on threaded fasteners
or fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener.
When you install fasteners, use the correct
tightening sequence and specifications. Following
these instructions can help you avoid damage to
parts and systems.



7B1-60     MANUAL TRANSMISSION

General Description

MUA5G/5H/5S Transmission (4

××××4)



A07R300003

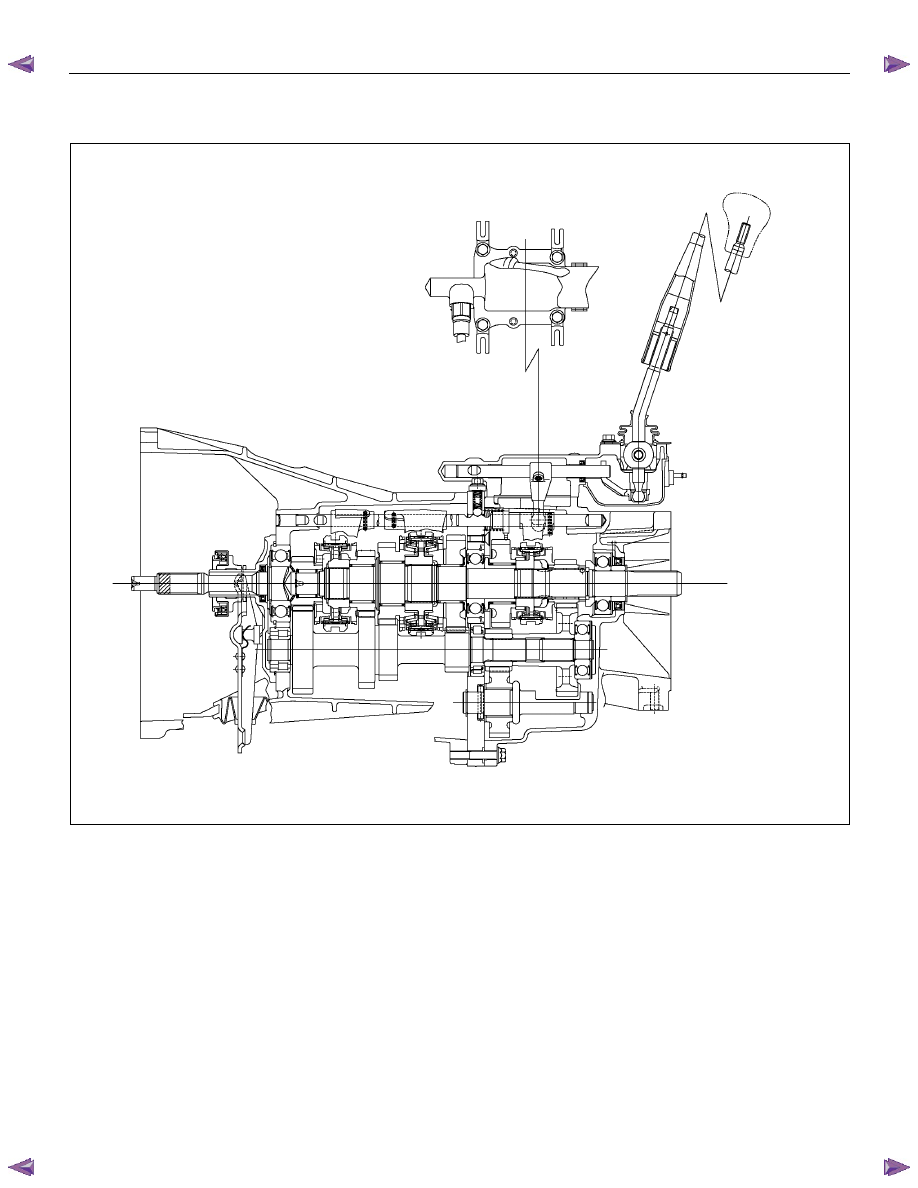

The MUA5G/5H/5S is a constant mesh transmission,
synchronized in all speeds. The transmission is
designed for a great reduction of the shift effort and the
quietest possible operation.





Principle parts of the transmission are the integral clutch
housing, the intermediate plate, the rear case, and the
gears.

The transmission control box is built into the
transmission.





MANUAL TRANSMISSION     7B1-61

Transmission (4

××××4)

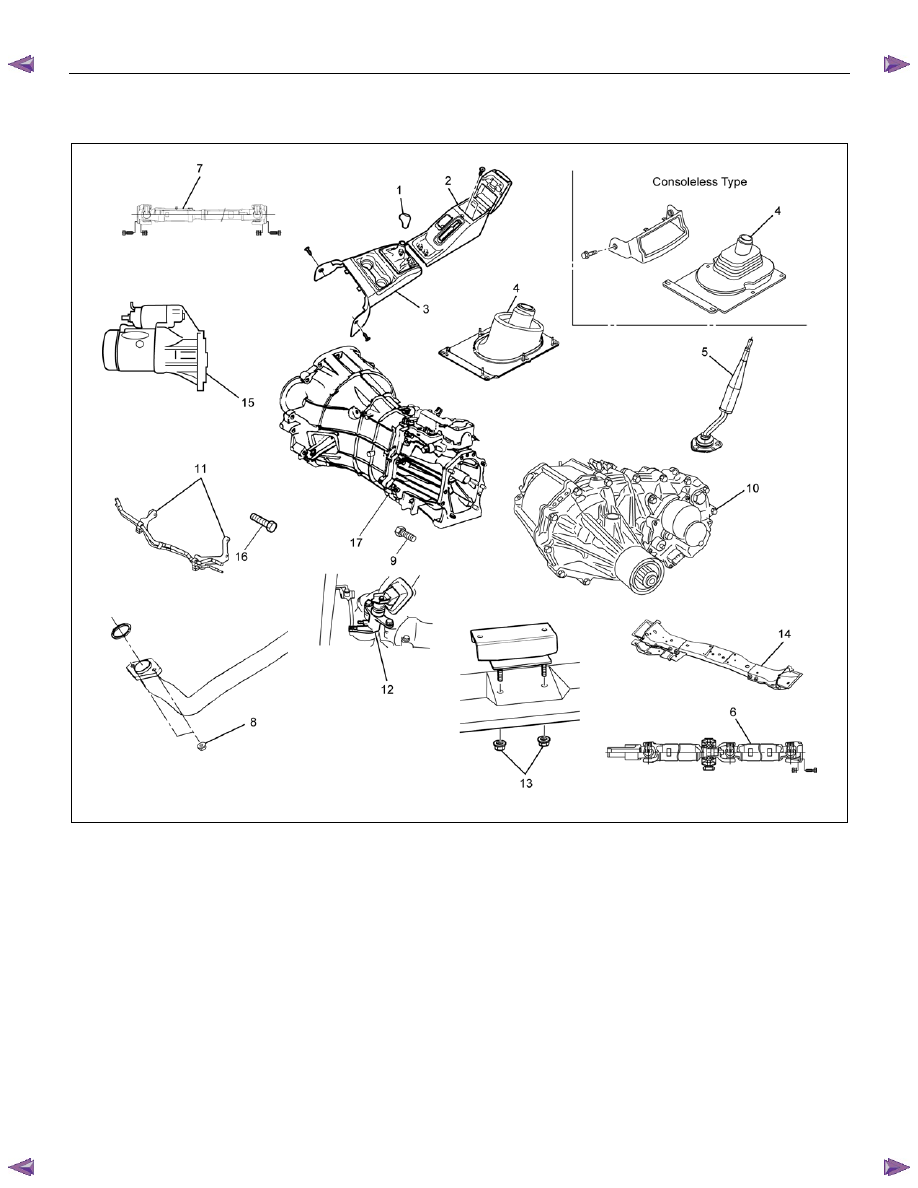

Disassembled View









RTW77BLF003601

Legend

(1)  Gear Control Lever Knob

(10) Transfer Assembly

(2)  Rear Floor Console (bucket)

(11) Fuel Pipe Bracket

(3)  Front Floor Console

(12) Slave Cylinder

(4)  Grommet Assembly

(13) Rear Mount Nut

(5)  Gear Control Lever

(14) Transmission Crossmember

(6)  Rear Propeller Shaft

(15) Starter (Diesel engine only)

(7)  Front Propeller Shaft

(16) Transmission Retaining Nut and Bolt

(8)  Exhaust Pipe Nut (Diesel engine)

(17) Transmission Assembly

(9)  Transmission-Transfer Fixing Bolt
