7B1-22     MANUAL TRANSMISSION

Inspection and Repair

Make the necessary adjustments and part replacements
if excessive wear or damage is discovered during
inspection.

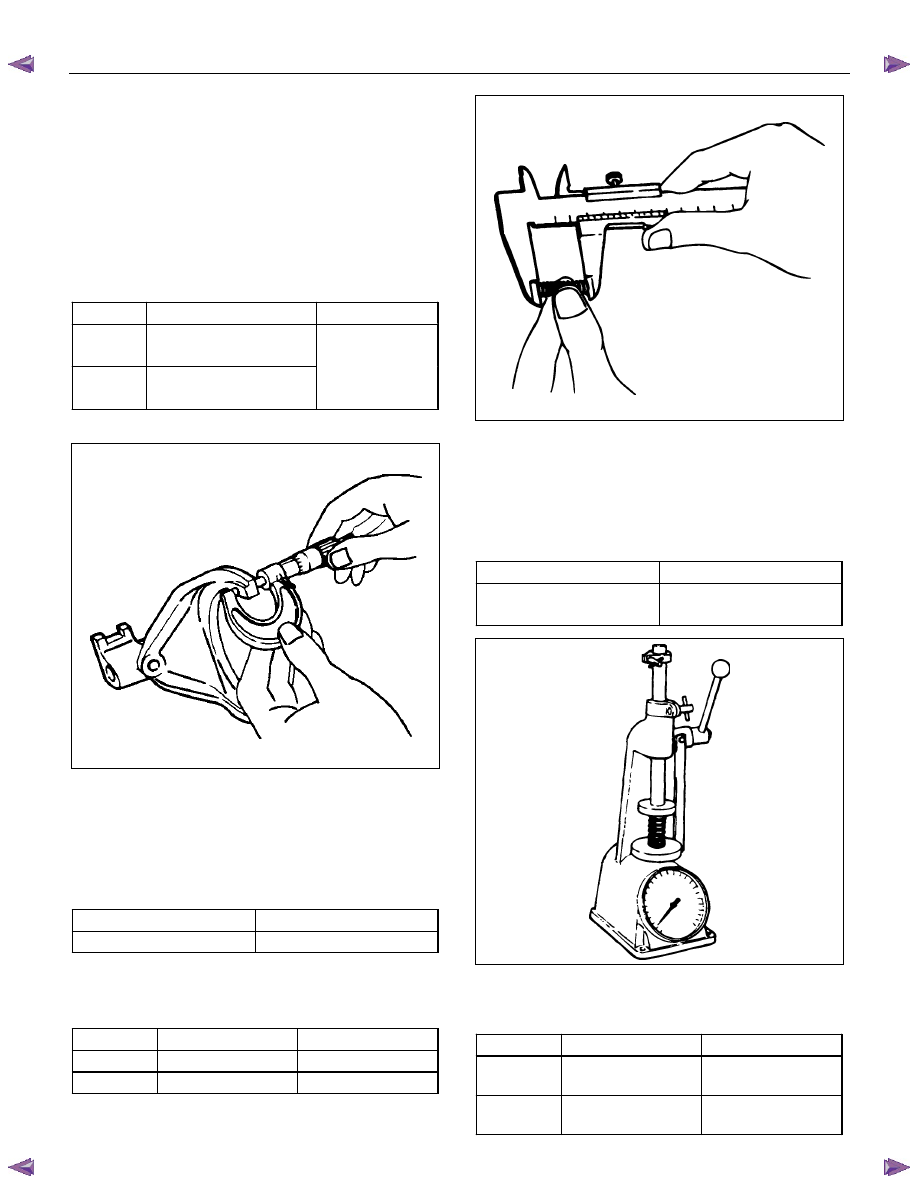

Shift Arm Thickness



• Use a micrometer to measure the shift arm

thickness.

If the measured value is less than the specified limit,
the shift arm must be replaced.



Shift Arm Thickness

 Standard  Limit

1st-2nd

9.60 - 9.85 mm

(0.378 - 0.388 in)

3rd-4th

Rev.5th

9.60 - 9.80 mm

(0.378 - 0.386 in)

9.0 mm

(0.354 in)







230RS006

Detent Spring Free Length



•  Use a vernier caliper to measure the detent spring

free length.

If the measured value is less than the specified limit,
the detent spring must be replaced.



Detent Spring Free Length

Standard Limit

26.8 mm (1.06 in)

26.2 mm (1.03 in)





SOUTH AFRICA 5th-Rev Only

Detent Spring Free Length

 Standard  Limit

Outer

27.6 mm (1.09 in)

27.0 mm (1.06 in)

Inner

26.6 mm (1.05 in)

26.0 mm (1.02 in)







220RS012

Detent Spring Tension



• Use a spring tester to measure the detent spring

tension.

If the measured value is less than the specified limit,
the detent spring must be replaced.



Detent Spring Tension

Compressed height

Standard

20 mm (0.787 in)

87.2 - 97.1 N

(19.6 - 21.8 lb)





220RS013



SOUTH AFRICA 5th-RV Only

Detent Spring Free Length

 Compressed Standard

Outer

20 mm (0.787 in)

93.5 – 103.3 N

 (21.0 – 23.3 lb)

Inner

20 mm (0.787 in)

26.4 – 36.3 N

 (5.9 – 8.2 lb)

MANUAL TRANSMISSION     7B1-23

Reassembly

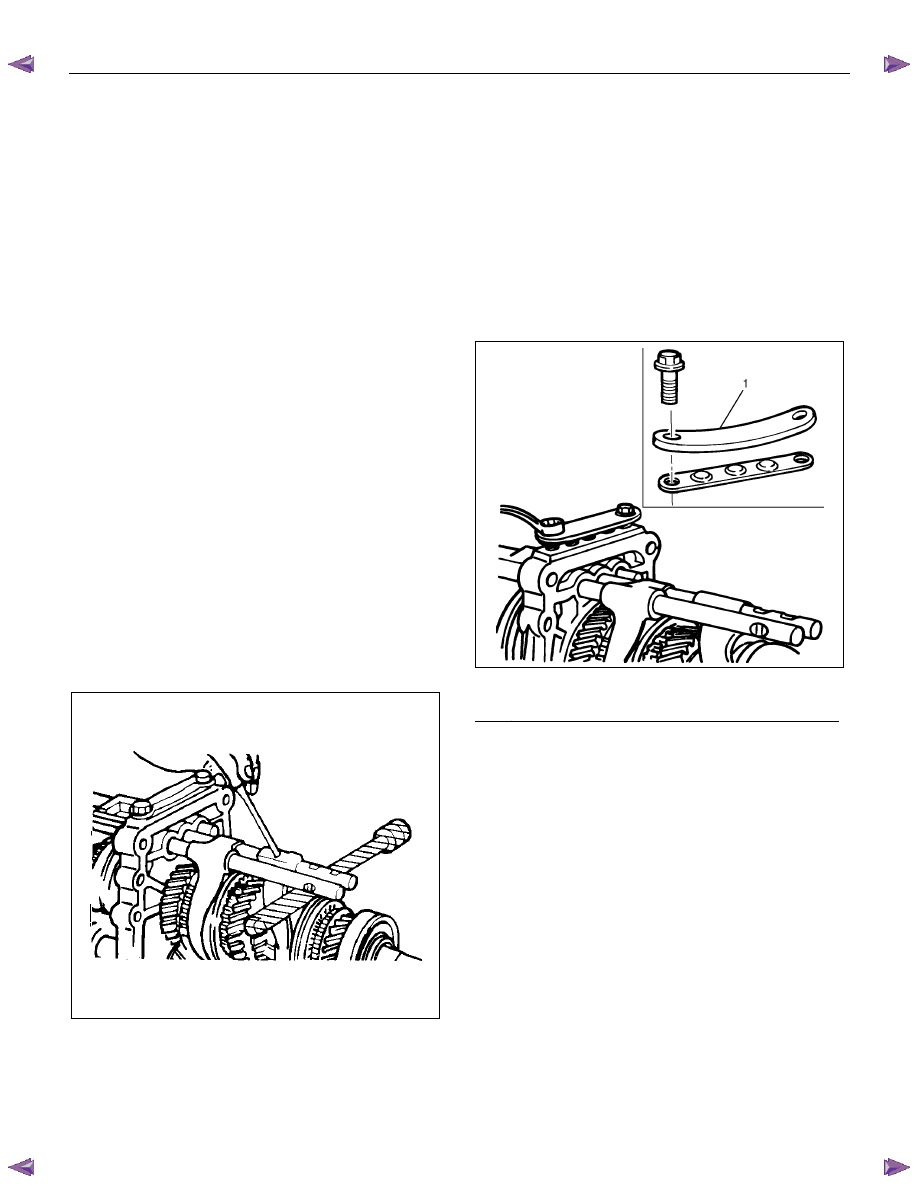

  1. Install the rev-5th shift arm and reverse inhibitor and

the rev-5th shift rod.
•  Apply oil to the reverse inhibitor inner surface.
•  Install the shift rod in the intermediate plate.
•  Hold a round bar against the shift rod end lower

face to protect it against damage.

•  Install a new spring pin.

Never reinstall the used spring pin.

•  Install the interlock pin in the intermediate plate.

Do not allow the interlock pin to fall from the
intermediate plate.

  2. Install the 1st-2nd shift arm and 3rd-4th shift arm to

the intermediate plate and gear assembly.

  3. Install the 3rd-4th shift rod and 1st-2nd shift rod.

•  Install the interlock pin in the intermediate plate

and gear assembly.

•  Install the 3rd-4th shift rod in the intermediate

plate.

Do not allow the interlock pin to fall from the
intermediate plate.

•  Install the interlock pin and then 1st-2nd shift rod

in the intermediate plate.

Do not allow the interlock pin to fall from the
intermediate plate.

•  Hold a round bar against the shift rod end lower

face to protect it against damage.

•  Install a new spring pin.

Never reinstall the used spring pin.





230RS007





  4. Install the spring.

  5. Put the detent balls in the intermediate plate holes.

•  Apply oil to the detent balls.

  6. Install the detent springs and detent spring plate and

gasket.

NOTE: For South Africa model, it has double detent
spring for Rev-5th shift rod.

•  Install a new gasket and the detent spring plate.
•  Tighten the detent spring plate bolts to the

specified torque.

Torque: 25 N

⋅⋅⋅⋅m (2.5 kgf⋅⋅⋅⋅m/18 lb⋅⋅⋅⋅ft)







220RS030



Legend

(1)

Warped






7B1-24     MANUAL TRANSMISSION

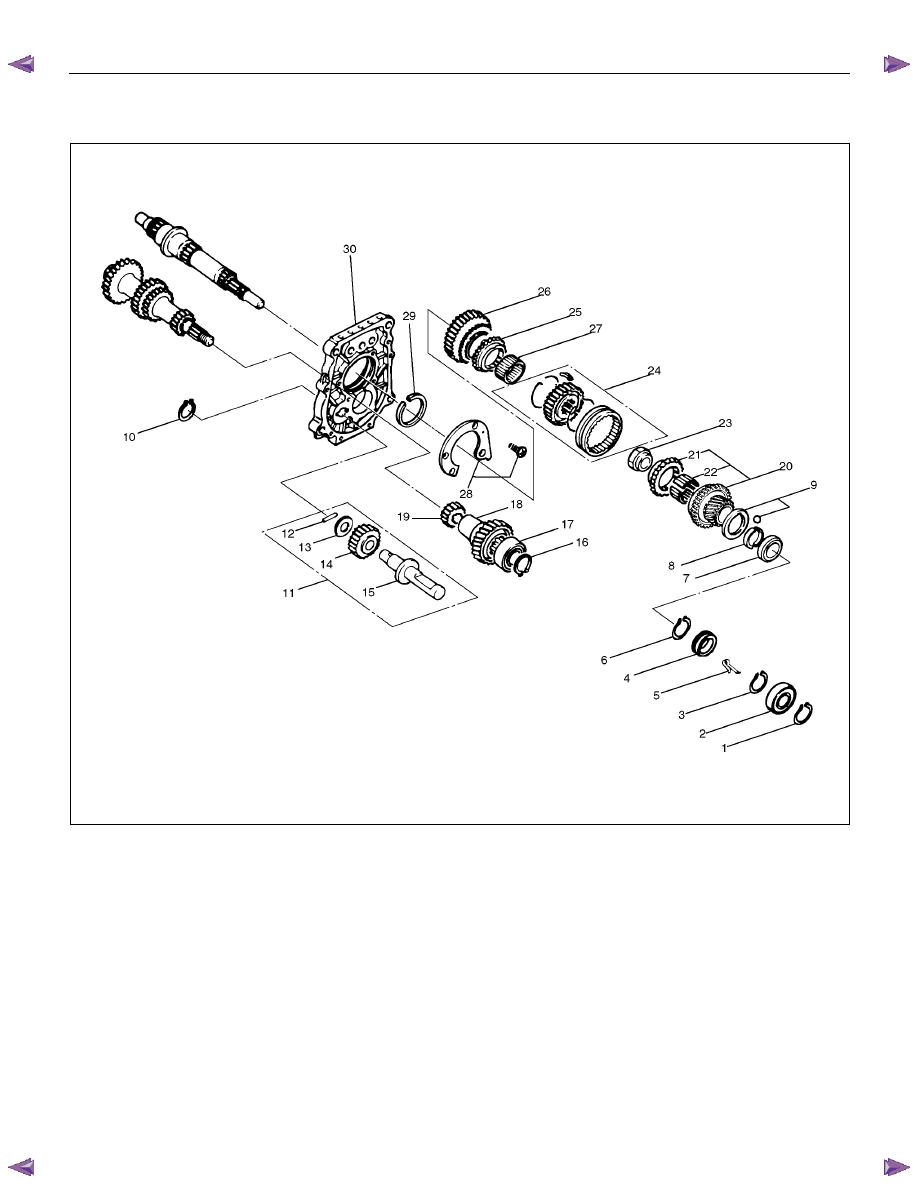

Reverse Gear and 5th Gear

Disassembled View



226R300027



Legend

(1)  Bearing Snap Ring

(11) Reverse Idler Gear Assembly

(2)  Ball Bearing

(12) Idle Shaft Pin

(3)  Bearing Snap Ring

(13) Thrust Washer

(4)  Speedometer Drive Gear

(14) Reverse Idler Gear

(5)  Clip

(15) Reverse Idler Shaft

(6)  Retainer Snap Ring

(16) Bearing Snap Ring

(7) Retainer

(17) Ball

Bearing

(8)  Thrust Plate

(18) Counter 5th Gear

(9)  Thrust Washer and Lock Ball

(19) Counter Reverse Gear

(10)  Reverse Idler Gear Snap Ring

(20) 5th Gear

MANUAL TRANSMISSION     7B1-25

(21)  5th Block Ring

(26) Reverse Gear

(22)  Needle Bearing

(27) Needle Baring

(23)  Mainshaft Nut

(28) Bearing Plate and Screw

(24)  Rev-5th Synchronizer Assembly

(29) Bearing Snap Ring

(25)  Reverse Block Ring

(30) Intermediate Plate
