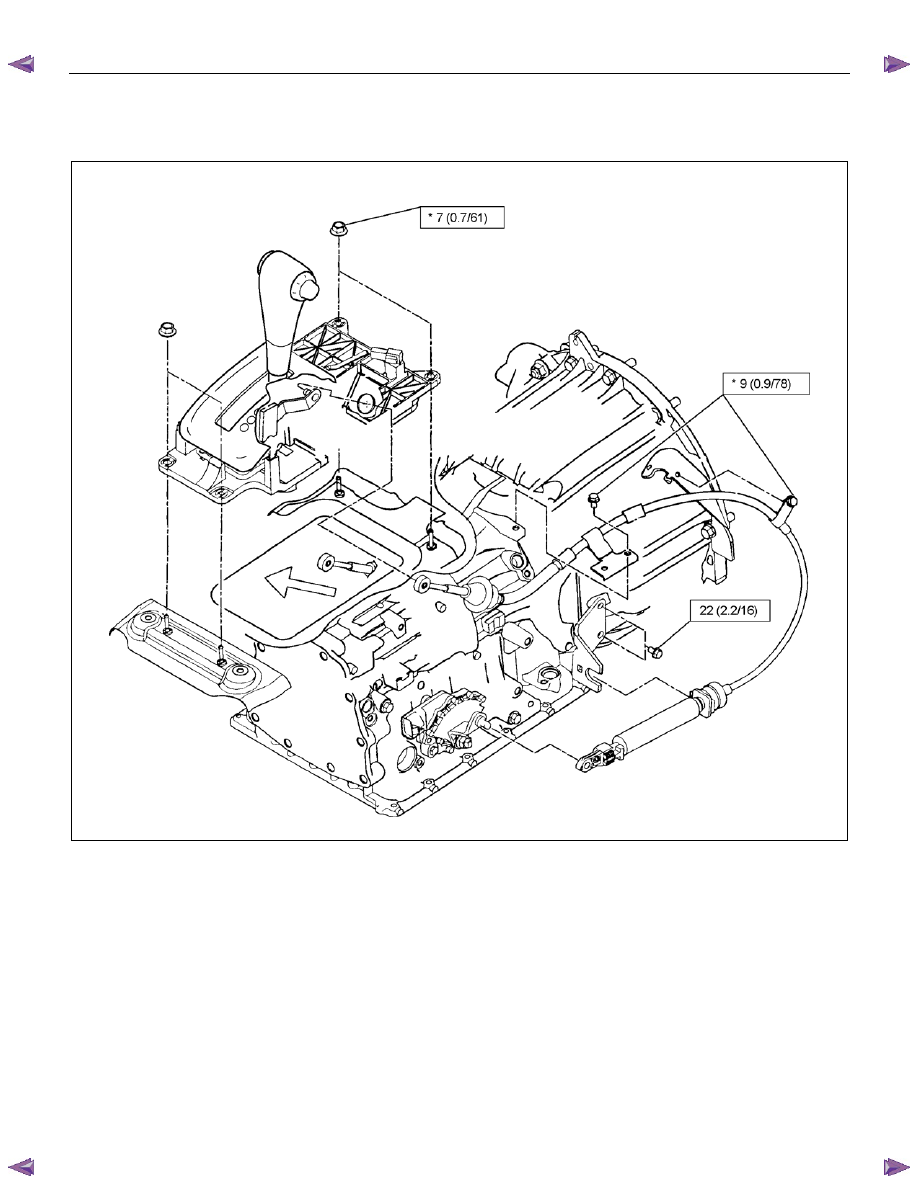

7A3-14 ON-VEHICLE SERVICE (JR405E) Install or Connect 1. Install the shift cable toward the inside of the cabin from the bottom of the vehicle. 2. Push the shift cable into the select lever base. 3. Connect the shift cable to the select lever. 4. Fix the shift cable to the bracket.

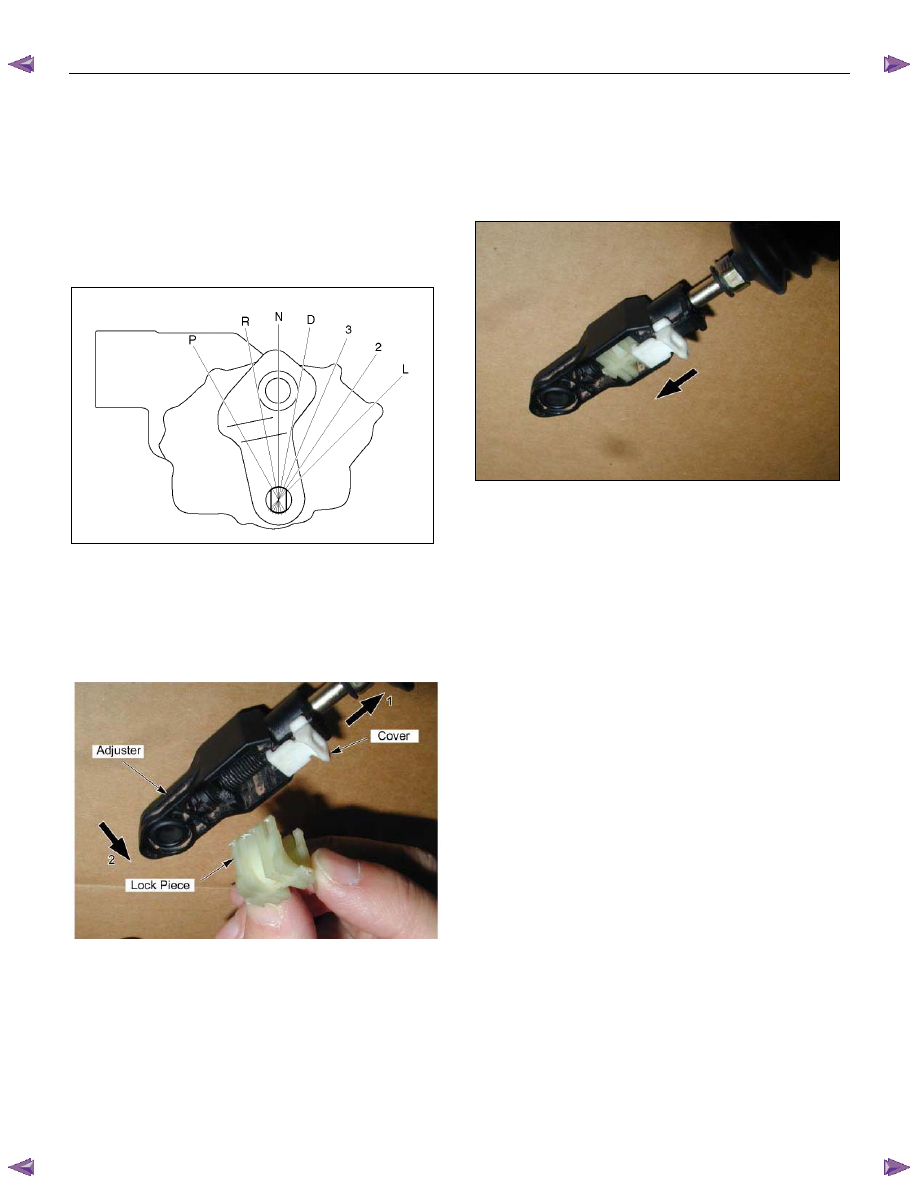

Install the clip on the marking on the shift cable. 5. Check that the select lever is in the “N” position. 6. Check that the transmission is in the “N” position. 249R300002 7. Slide the cover in the direction shown by the arrow (1). 8. Use an ordinary screwdriver to move the lock piece from the position indicated by the arrow (2). Continue to move the lock piece until the adjuster position begins to change. P1010012
9. Connect the shift cable to the manual shaft select lever at the transmission side. 10. Insert the lock piece to the adjuster (cable length adjustment). 11. Slide the cover on the adjuster and secure the lock piece. P1010016-2 12. Press the select lever knob button 5 times at “P” position.
Then check that the select lever moves smoothly to each of its positions. 13. Check that the shift position indicated by the select lever and the actual shift position are the same. 14. Install the front console and rear console. 15. Connect the negative battery cable. 16. Remove the wheel blocks.
|
