7A2-70  TRANSMISSION CONTROL SYSTEM (AW30–40LE)



Step Action  Value(s)

YES

NO

7

Replace the Torque converter (Refer to Section 7A4).



Is the action complete?

— Go

to

Step 8 —

8



1. Reconnect all previously disconnected harness

connector(s).

 2. Clear the DTCs with a scan tool.

 3. Turn “OFF” the ignition.

 4. Start the engine.



5. Operate the vehicle within the Conditions For

Running the DTC. You may also operate the
vehicle within the conditions that you observed
from the Freeze Frame/ Failure Records.



Did the DTC fail this ignition?

— Go

to

Step 2 Go

to

Step 9

9

Observe the stored information, Capture Info with a
scan tool.



Are there any DTCs that you have not diagnosed?

— Go

to

Diagnostic

Trouble Code

(DTC) List

Verify repair



TRANSMISSION CONTROL SYSTEM (AW30–40LE)  7A2-71



DTC P0746 (Flash Code 45)














RTW77ALF001501

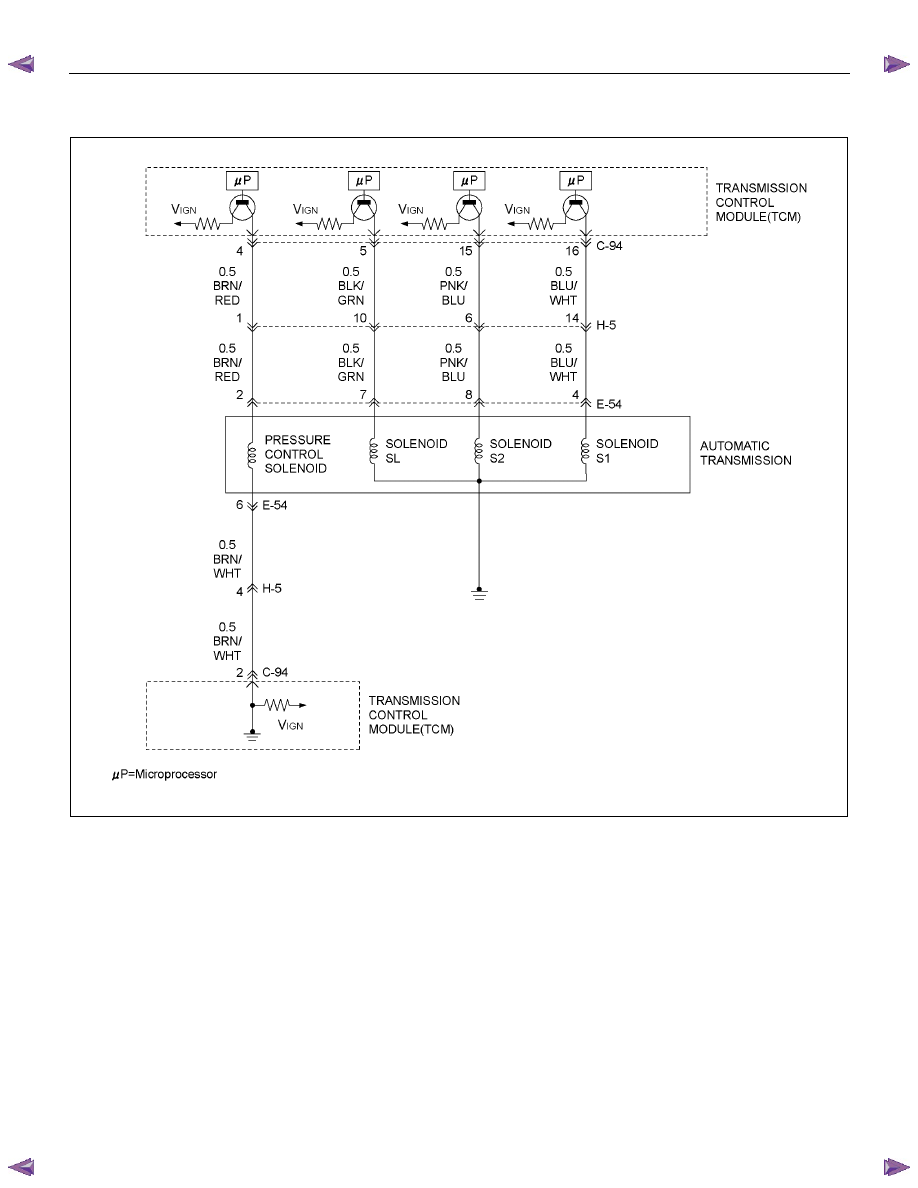

Circuit Description

The pressure control solenoid is a PWM duty control
solenoid located in the valve body.

The pressure control solenoid is a Transmission
Control Module (TCM)-controlled device used to
regulate transmission throttle pressure by energizing
current from the TCM.

Condition For Running The DTC

All of the following conditions are met.

 (1) All of the following conditions are met for 2

seconds or more.







•  The supply voltage is more than 10.2 volts and

less than 15.5 volts.

  (2) Not emergency mode.

  (3) All of the following conditions are met.



•  Device Control is not operating.



• Disable Normal Communication Service is

receiving enable.



•  DTC Clear is not operating.

  (4) Pressure control solenoid is not detecting failure or

not deciding failure.

  (5) Feedback AD value keeps less than 1000 for 0.5

seconds and also linear solenoid assured voltage
keeps 10.5 volts for 0.5 seconds.



7A2-72  TRANSMISSION CONTROL SYSTEM (AW30–40LE)



Condition For Setting The DTC

All of the following conditions are met.



• Accumulation of feedback error current value is

more than 8A.



• Detect failure twice continuously.

Conditions For Clearing The DTC



• The DTC can be cleared from the TCM history by

using a scan tool.



• The DTC will be cleared from history when the

vehicle has achieved 40 warm-up cycles without a
failure reported.



• After more than 1 second has elapsed after the

ignition key has been turned "ON", short between
No.11 and No.4 (ground) of DLC (Data Link
Connector). Then, after 1 second, but within 6
seconds, discontinue shorting.

Action Taken When The DTC Sets



• No L-up control.



• No line pressure reduction control at gear change.



• No squat control.







• No slope control.



• No torque reduction control.



• No line pressure reduction control at garage.



• Line pressure FULL output.



• No shift solenoid functional failure detection.



• No L-up solenoid functional failure detection.



• Become emergency mode.



• Check Trans "ON".



• DTC stored.



• MIL request "ON". (EURO 4 only)

Diagnostic Aids



• Inspect the wiring for poor electrical connection at

the TCM. Look for possible bent, backed out,
deformed or damaged terminals. Check for weak
terminal tension as well. Also check for a chafed
wire that could short to bare metal or other wiring.
Inspect for a broken wire inside the insulation.



• When diagnosing for a possible intermittent short

or open condition, move the wiring harness while
observing test equipment for change.



Circuit/System Testing DTC P0746

Step Action  Value(s)

YES

NO

1



Was the On-Board Diagnostic (OBD) System
Check performed?

—

Go to Step 2 Go

to

OBD

System

Check

2

 1. Install a scan tool.

 2. Turn “ON” the ignition.

 3. Record a scan tool data.

 4. Operate the vehicle within scan tool data.



Does a scan tool indicate DTC P0746?

—

Go to Step 3 Refer

to

Diagnostic

Aids

3

Perform the transmission fluid checking procedure.

Refer to checking Transmission Fluid level and
Condition in Automatic Transmission 7A section.

If the problem found, repair or replace necessary.



Was the problem found?

—

Go to Step 9 Go

to

Step 4

TRANSMISSION CONTROL SYSTEM (AW30–40LE)  7A2-73



Step Action  Value(s)

YES

NO

4

Measure the resistance of pressure control
solenoid.

 1. Turn “OFF” the ignition.



2.

Disconnect the automatic transmission
connector and TCM connector.



3.

Measure the resistance between automatic
transmission terminal E54-2 and automatic
transmission terminal E54-6.



Is the resistance specified value?

5 to 5.6

Ω

at 20

°C

(68

°F)



Go to Step 5 Go

to

Step 7

5

Measure the resistance of wire between terminal
C94-2 and terminal C94-4.

 1. Turn “OFF” the ignition.

 2. Connect the automatic transmission connector.

 3. Disconnect the TCM connector.

 4. Measure the resistance between terminal C94-2

and terminal C94-4.



Is the resistance specified value?

5 to 5.6

Ω

at 20

°C

(68

°F)

Go to Step 8 Go

to

Step 6

6

Repair or Replace the wire between terminals C94-
2, 4 and terminals E54-6, 2.



Is the action complete?

—

Go to Step 9

—

7

Replace the pressure control solenoid. (valve body)



Is the action complete?

—

Go to Step 9

—

8

Replace the TCM.

Important: The replacement TCM must be
programmed (Refer to SPS for procedure).



Is the action complete?

—

Go to Step 9 —

9

 1. Reconnect all previously disconnected harness

connector(s).

 2. Clear the DTCs with a scan tool.

 3. Turn “OFF” the ignition.

 4. Start the engine.

 5. Operate the vehicle within the Conditions For

Running the DTC. You may also operate the
vehicle within the conditions that you observed
from the Freeze Frame/ Failure Records.



Did the DTC fail this ignition?

—

Go to Step 2 Go

to

Step 10

10

Observe the stored information, Capture info with a
scan tool.



Are there any DTCs that you have not diagnosed?

—

Go to

Diagnostic

Trouble Code

(DTC) List

Verify repair
