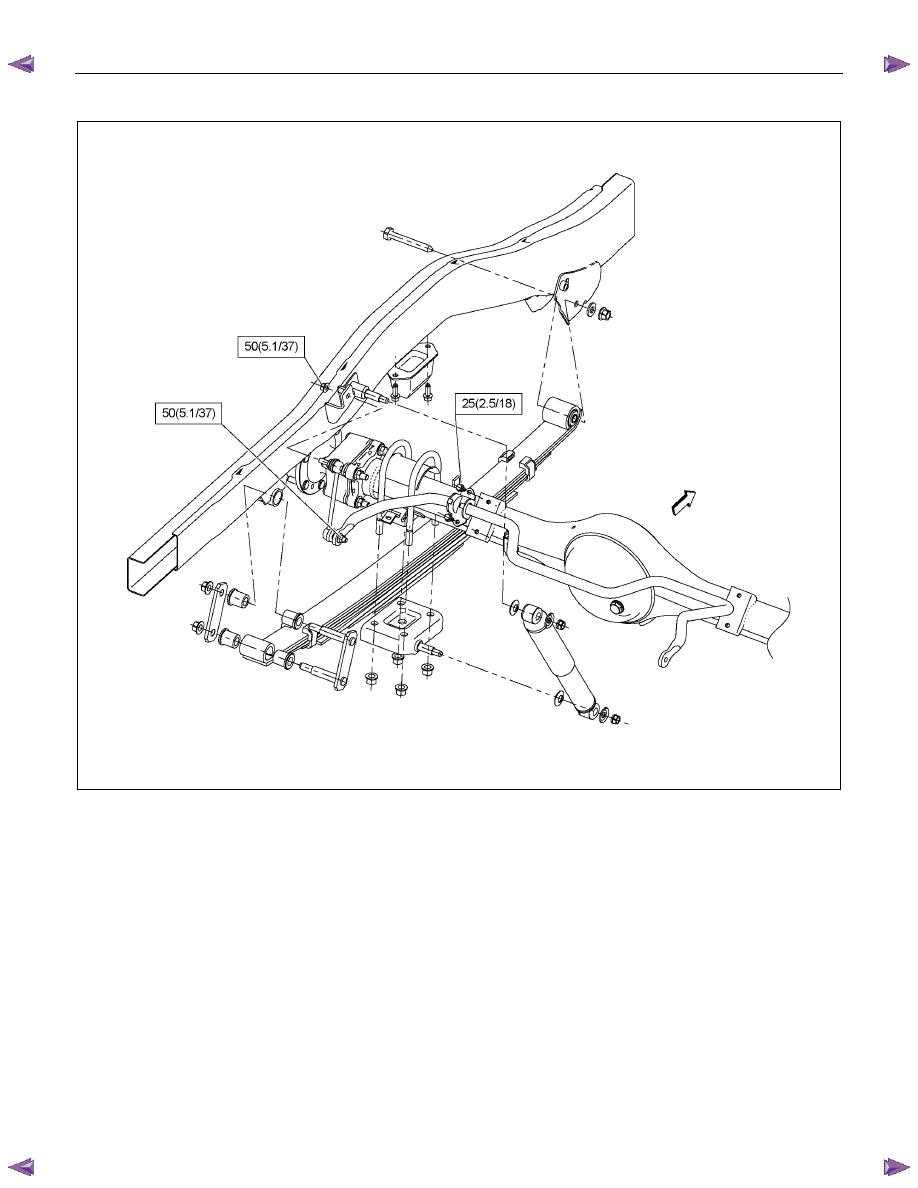

3D-4  REAR SUSPENSION



N

⋅m(kgf⋅m/lb⋅ft)













RTW73DLF000301



REAR SUSPENSION  3D-5

REAR SUSPENSION

GENERAL DESCRIPTION



Rear suspension absorbs vibration from the road surface thus preventing vehicle damage, as well as providing a
comfortable ride.



Components parts

•  Spring between the body and the axle case
•  Spring shackle connecting the spring to the body
•  Clamp and U-bolt fixing the axle case to the spring
•  Shock absorber as a countermeasure for vibration


3D-6  REAR SUSPENSION

LEAF SPRING AND SHOCK ABSORBER

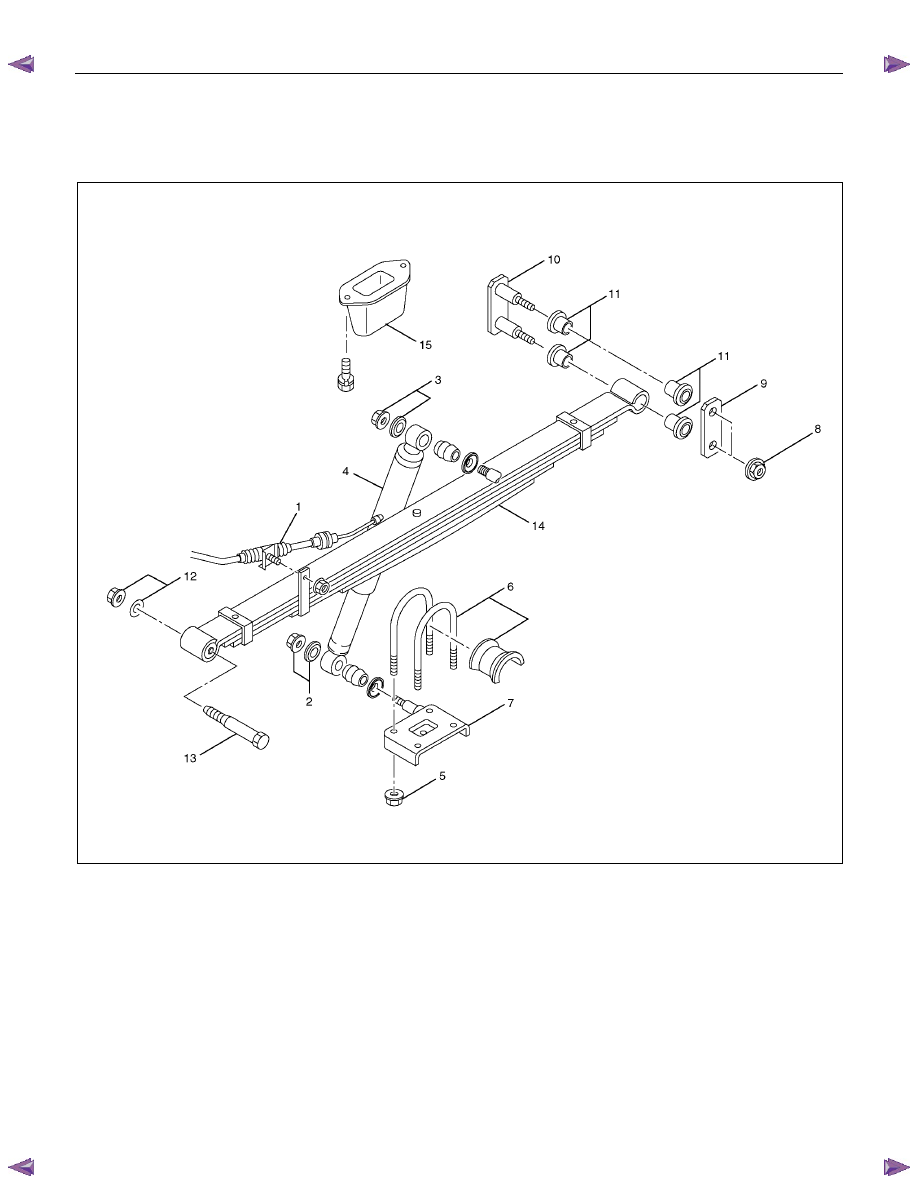

LEAF SPRING AND ASSOCIATED PARTS



460R300001



Legend



1. Parking Brake Cable Bracket



2. Nut and Washer



3. Nut and Washer



4. Shock Absorber

 5.

Nut



6. U Bolt and Seat



7. Lower Clamp

 8.

Nut



9. Shackle Plate







  10. Shackle Pin
  11. Rubber Bushing
  12. Nut and Plain Washer
  13. Spring Pin
  14. Leaf Spring
  15. Bump Rubber





REAR SUSPENSION  3D-7

F03L100003




Removal

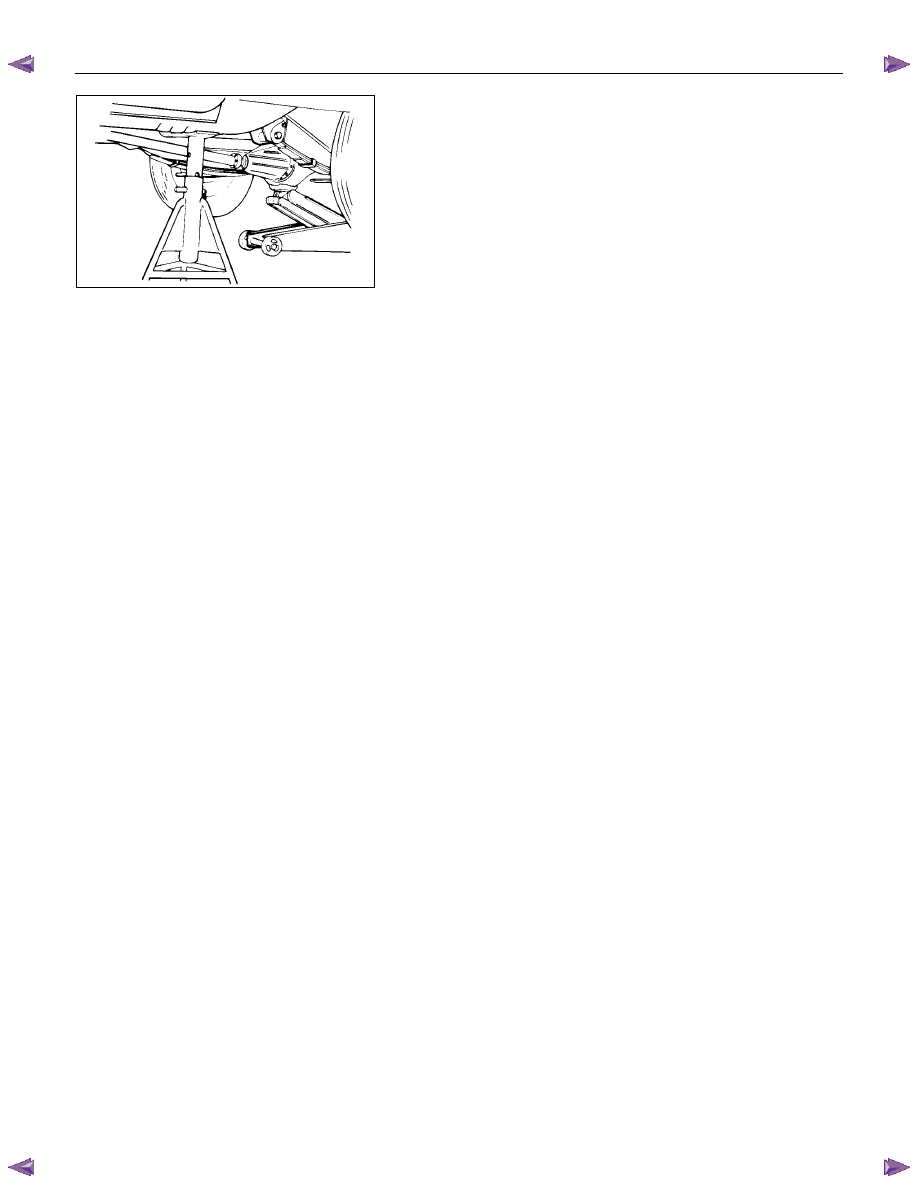

•  Jack up the rear axle and place chassis stands under the

frame near the front end of the rear spring brackets.

Note:
•  Be careful not to stretch the flexible brake hose or

parking brake cable.

•  Support the vehicle on the specified jack point.
1.  Remove the parking brake cable from the leaf spring.

2.  Loosen the shock absorber fixing nut and remove the nut

and special washer from the lower clamp.







3.  Remove the shock absorber fixing nut and washer at frame

side.

4. Lifting the rear axle using a jack, remove the shock

absorber and lower the jack.

5.  Remove the U bolt fixing nut.

6.  Take out the U bolt, seat and lower clamp.

7. Support the leaf spring using a jack and remove the

shackle pin fixing nuts.

8.  Drive out the shackle pin, using a brass bar and hammer.

9.  Remove the shackle plate and rubber bushings.

10. Remove the nut and drive out the shackle using a brass bar

and hammer.

11. Remove the leaf spring.

12. Remove the bump rubber.
