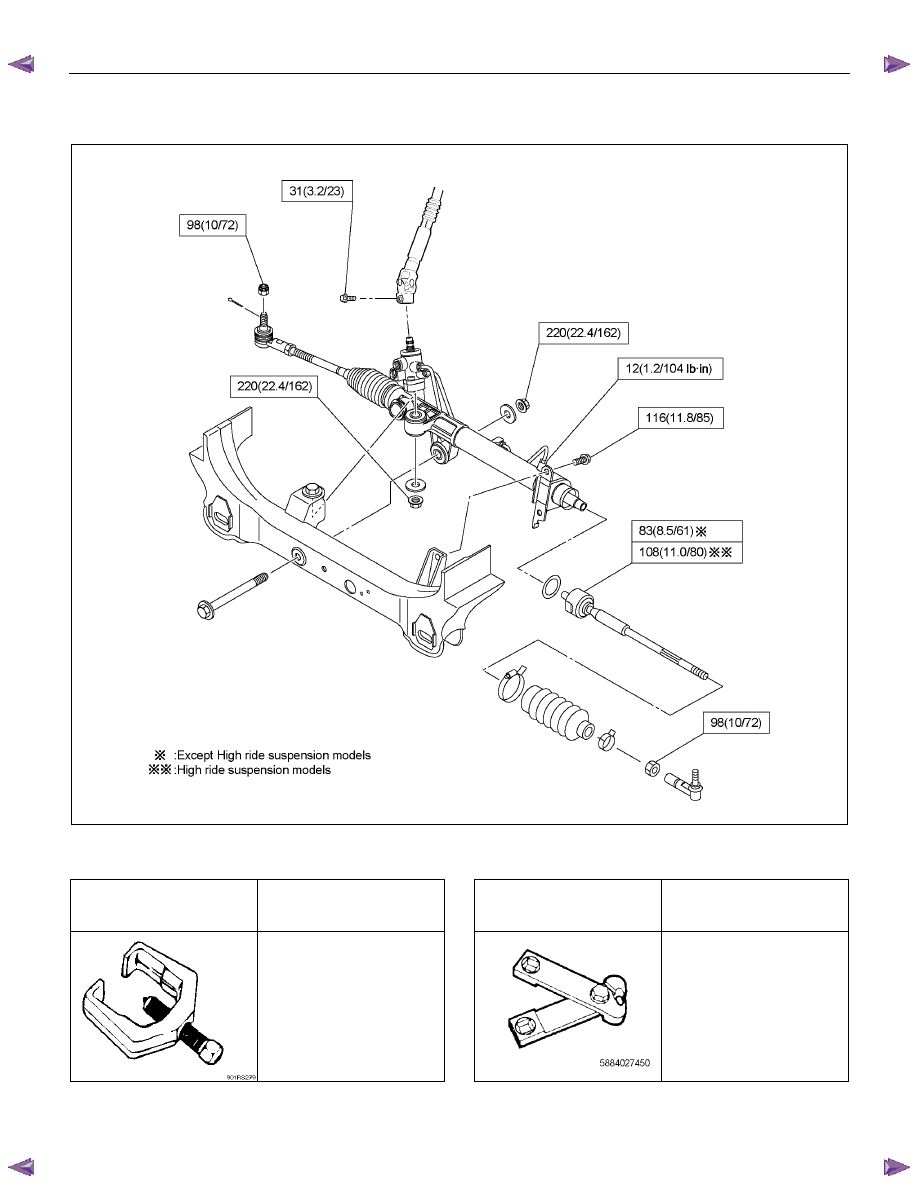

POWER-ASSISTED STEERING SYSTEM 3B-15
3. Install tie-rod assembly with tab washer, then tighten
to specified torque.
For 4
×2 except High ride suspension models;
Torque: 83 N
⋅⋅⋅⋅m (8.5 kgf⋅⋅⋅⋅m/61 lb⋅⋅⋅⋅ft)
For 4
×4 and 4×2 High ride suspension models;
Torque: 108 N
⋅⋅⋅⋅m (11.0 kgf⋅⋅⋅⋅m/80 lb⋅⋅⋅⋅ft)
After tightening, bend tab washer against width
across flat of inner ball joint.

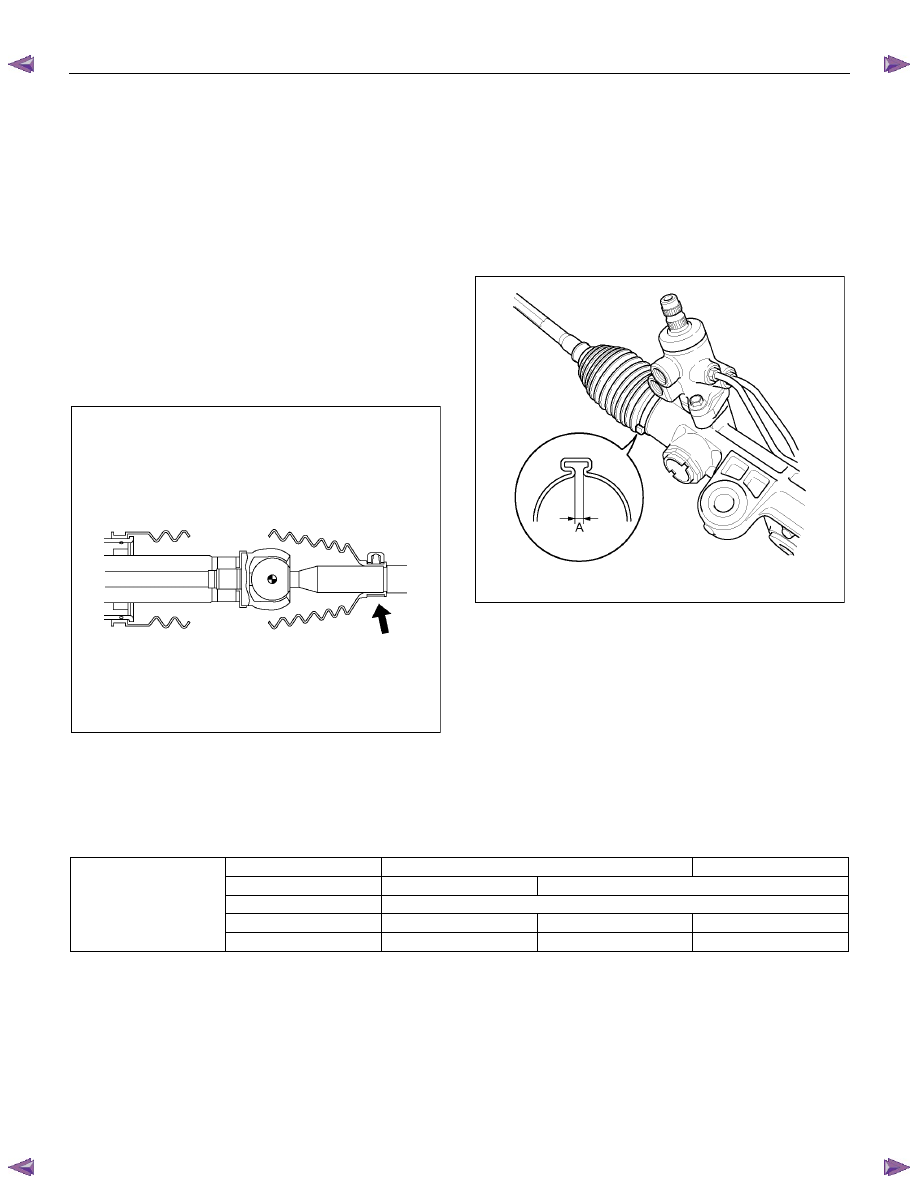

4. Apply grease to the tie-rod groove. Install bellows on
housing assembly.
CAUTION :
Make sure that there are no bulges or dents in the
bellows.
After installation, confirm the small end of the
bellows is inserted into the tie-rod groove.
RUW53BSH000301
5. Caulk the band using clamp pliers 5-8840-2745-0.
For 4
×2 except High ride suspension models;
Caulk gap(A): less than 2.0mm(0.08in).
For 4
×4 and 4×2 High ride suspension models;
Caulk gap(A): 2.6 – 3.3mm(0.10 – 0.13in).
CAUTION :
Be sure to use a new band.
RUW53BSH000601
6. Install
clip.
7. Install tie-rod end and tighten lock nut.
Torque:
98 N
⋅⋅⋅⋅m (10 kgf⋅⋅⋅⋅m/72 lb⋅⋅⋅⋅ft)
Main Data and Specifications
General Specifications
2WD
4WD
Power steering
Without
With
Type
Rack and pinion
Rack stroke mm (in)
138 (5.43)
138 (5.43)
152 (5.98)
Steering unit
Lock to lock
4.84
3.38
3.23
