3B-4 POWER-ASSISTED STEERING SYSTEM

General Description

The hydraulic power steering system consists of a
pump, an oil reservoir, a steering unit, a pressure hose
and a return hose.







Power Steering Unit





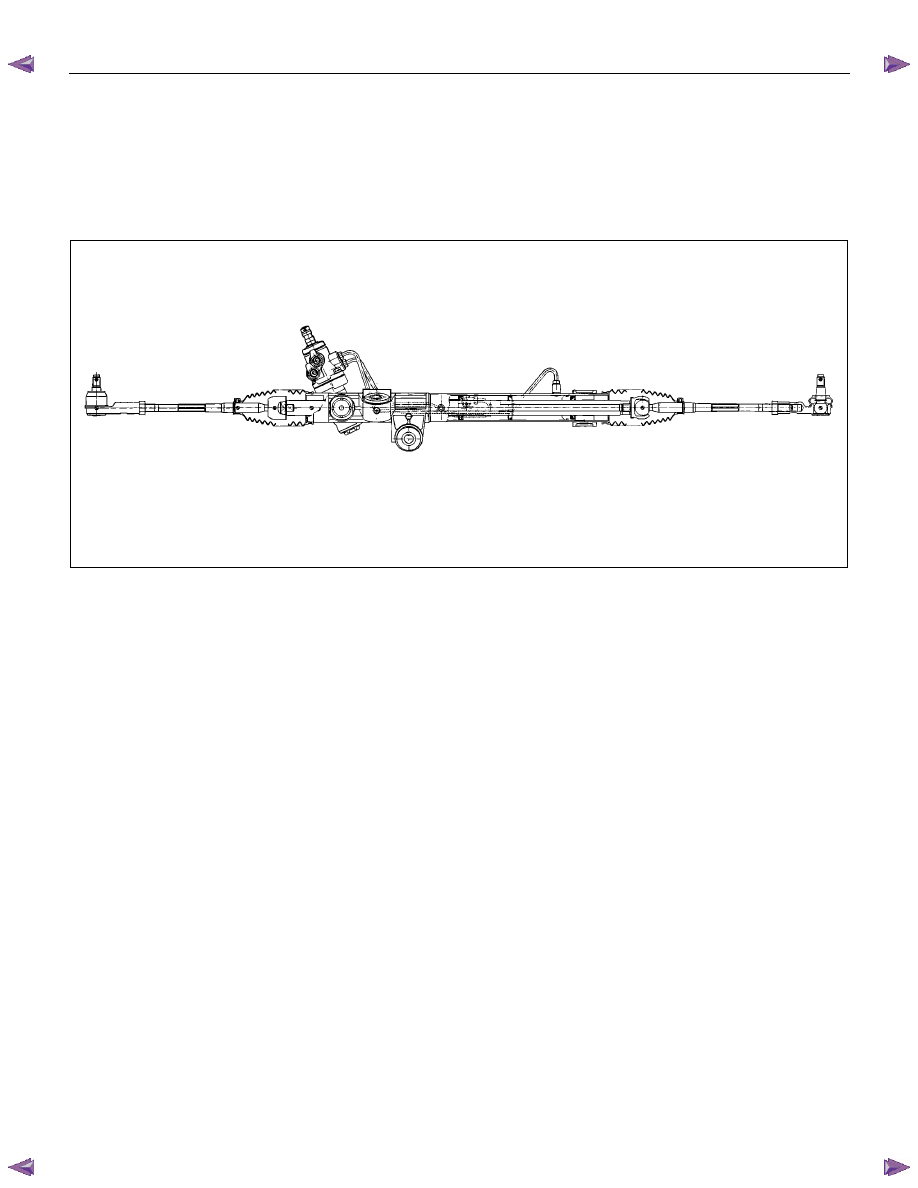

440R300001

The power steering unit is a rack and pinion type.
The toe-in angle can be adjusted by turning the rod on
each side.
The steering housing cannot be disassembled.







POWER-ASSISTED STEERING SYSTEM 3B-5

Hydraulic Pump

4JJ1-TC, 4JK1-TC







RTW53BMF0003

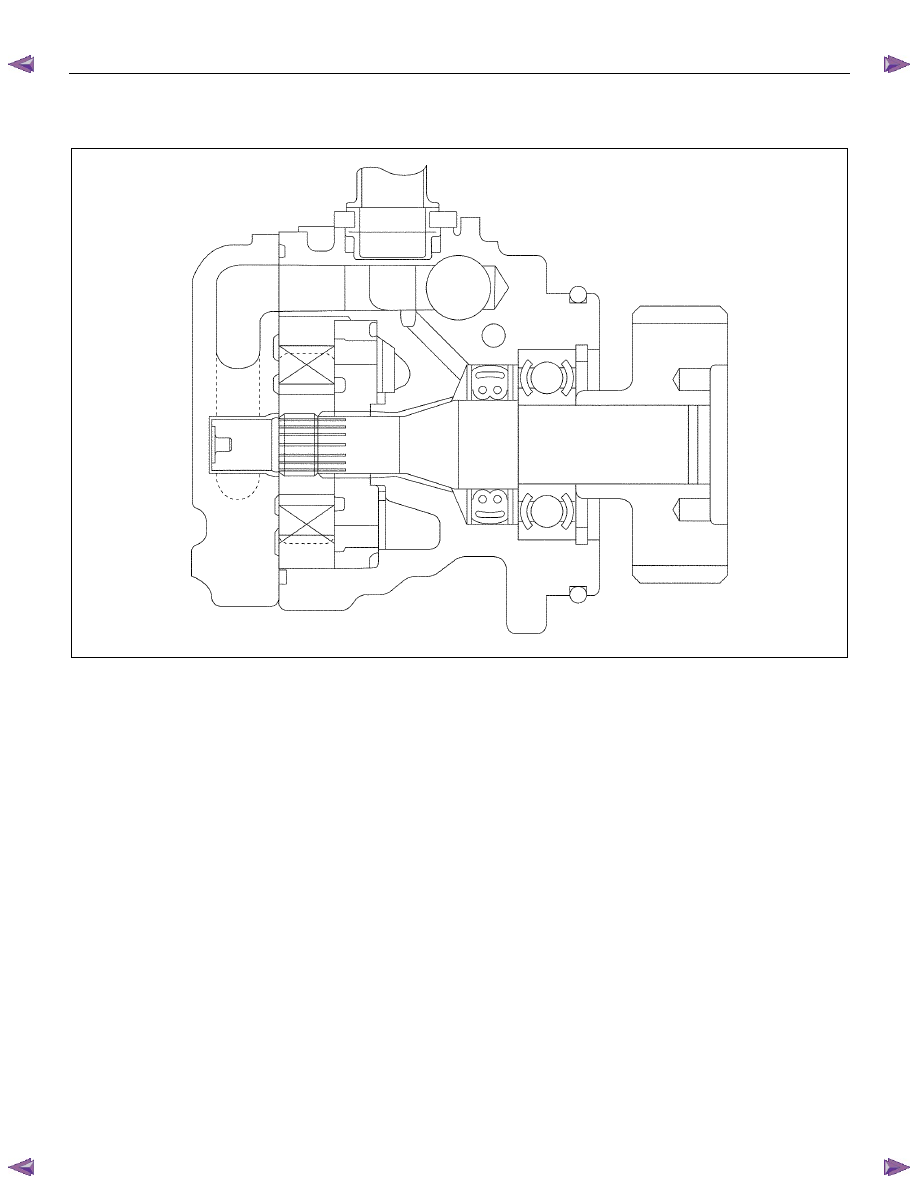

The hydraulic pump is vane-type design. The
submerged pump has a housing and internal parts that
are inside the reservoir and operate submerged in oil.
There are two bore openings at the rear of the pump
housing. The larger opening contains the cam ring,
pressure plate, thrust plate, rotor and vane assembly,
and end plate. The smaller opening contains the
pressure line union, flow control valve and spring.



The flow control orifice is part of the pressure line union.
The pressure relief valve inside the flow control valve
limits the pump pressure.




3B-6 POWER-ASSISTED STEERING SYSTEM

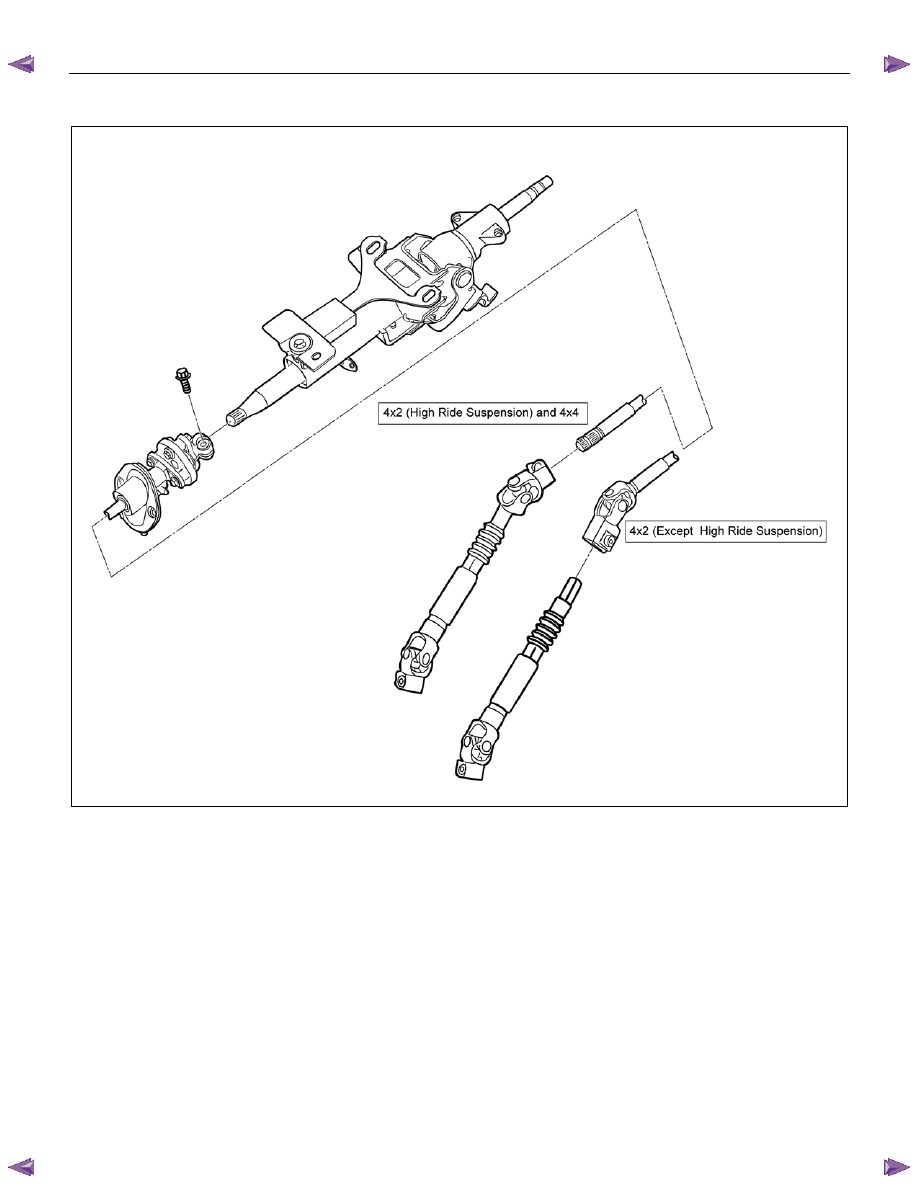

Steering Column







RTW53BLF000901

WARNING: TO AVOID DEPLOYMENT WHEN
TROUBLE-SHOOTING THE SRS SYSTEM, DO NOT
USE ELECTRICAL TEST EQUIPMENT, SUCH AS A
BATTERY-POWERED OR A/C-POWERED
VOLTMETER, OHMMETER, ETC., OR ANY TYPE OF
ELECTRICAL EQUIPMENT OTHER THAN SPECIFIED
IN THIS MANUAL. DO NOT USE A NON-POWERED
PROBE-TYPE TESTER.

INSTRUCTIONS IN THIS MANUAL MUST BE
FOLLOWED CAREFULLY, OTHERWISE PERSONAL
INJURY MAY RESULT.
When servicing a vehicle equipped with a Supplemental
Restraint System, pay close attention to all WARNINGS
and CAUTIONS.
For detailed explanations about SRS, refer to Restraints
section.
The steering column has three important features in
addition to the steering function:



1.  The column is energy absorbing, designed to

compress in a front-end collision to minimize the
possibility of injury to the driver of the vehicle.

2. The ignition switch and lock are mounted

conveniently on the column.

3.  With the column mounted lock, the ignition and

steering operation can be locked to prevent theft of
the vehicle.

The column can be disassembled and reassembled.
However, to insure the energy absorbing action, use
only the specified screws, bolts and nuts as designated,
and tighten them to the specified torque.
Handle the column with care when it is removed from
the vehicle. A sharp blow on the end of the steering
shaft or shift lever, or dropping the assembly could
shear or loosen the fasteners that maintain column
rigidity.
