0A-6  GENERAL INFORMATION

IDENTIFICATION










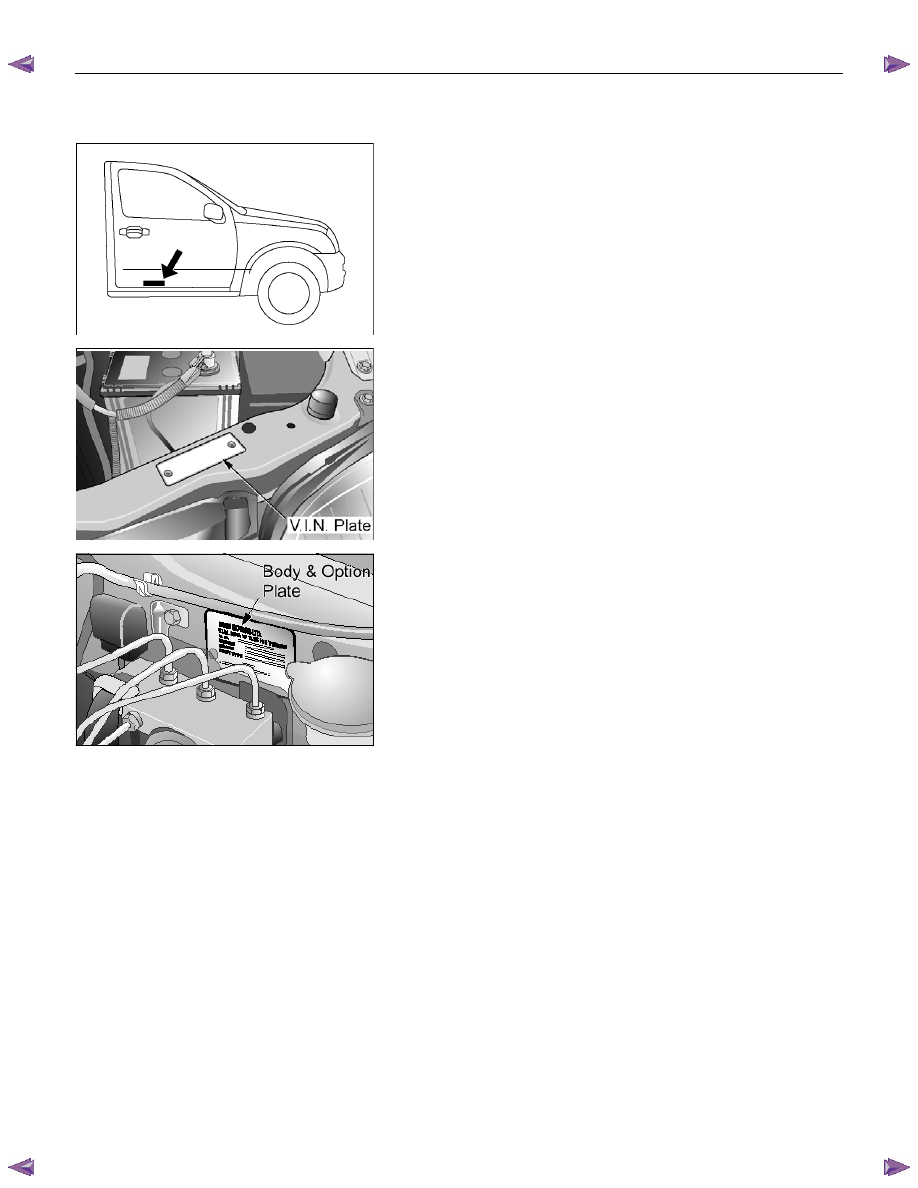

CHASSIS NUMBER

The chassis number is stamped on the right-hand side of the
chassis side member under the right door.






RTW50ASH000201




VEHICLE IDENTIFICATION PLATE

The vehicle identification plate is attached to the upper face of
the radiator sill in the engine compartment.








BODY AND OPTION IDENTIFICATION

PLATE

The body and option plate shows body style, body serial
number, paint and trim colour combination, paint number,
engine transmissions, axle ratio options and built date. The
built date is defined as 'the date of manufacture' by the
calendar month and year in which the body shell and power
train sub-assemblies are co-joined or moved from the
production line.



GENERAL INFORMATION  0A-7

LIFTING INSTRUCTIONS

If a lifting device other than the original jack is used, it is most important that the device be applied only to the
correct lifting points.  (See the illustration.)  Raising the vehicle from any other point may result in serious damage.

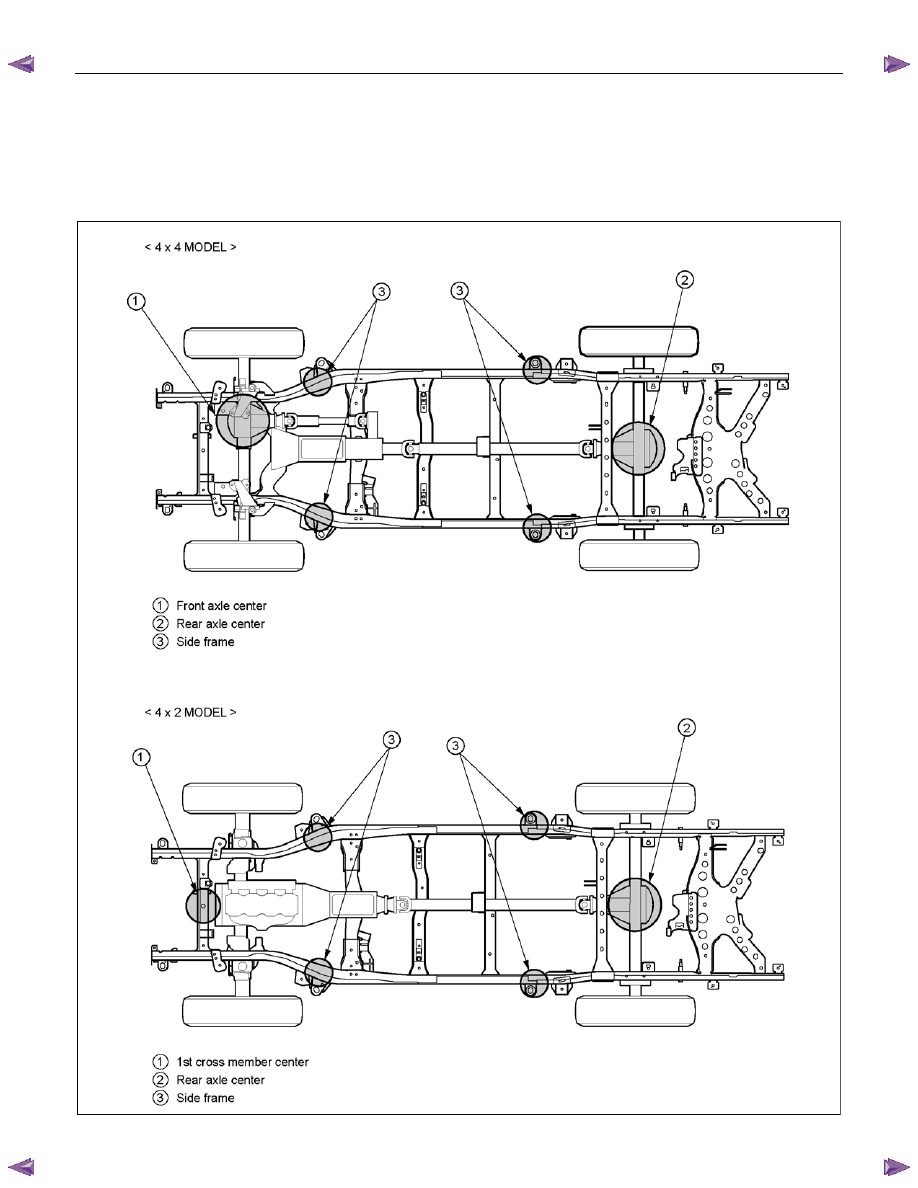

Lifting Points and Supportable Point-Locations









RTW50AXF000201

0A-8  GENERAL INFORMATION







RUW50ASH000101

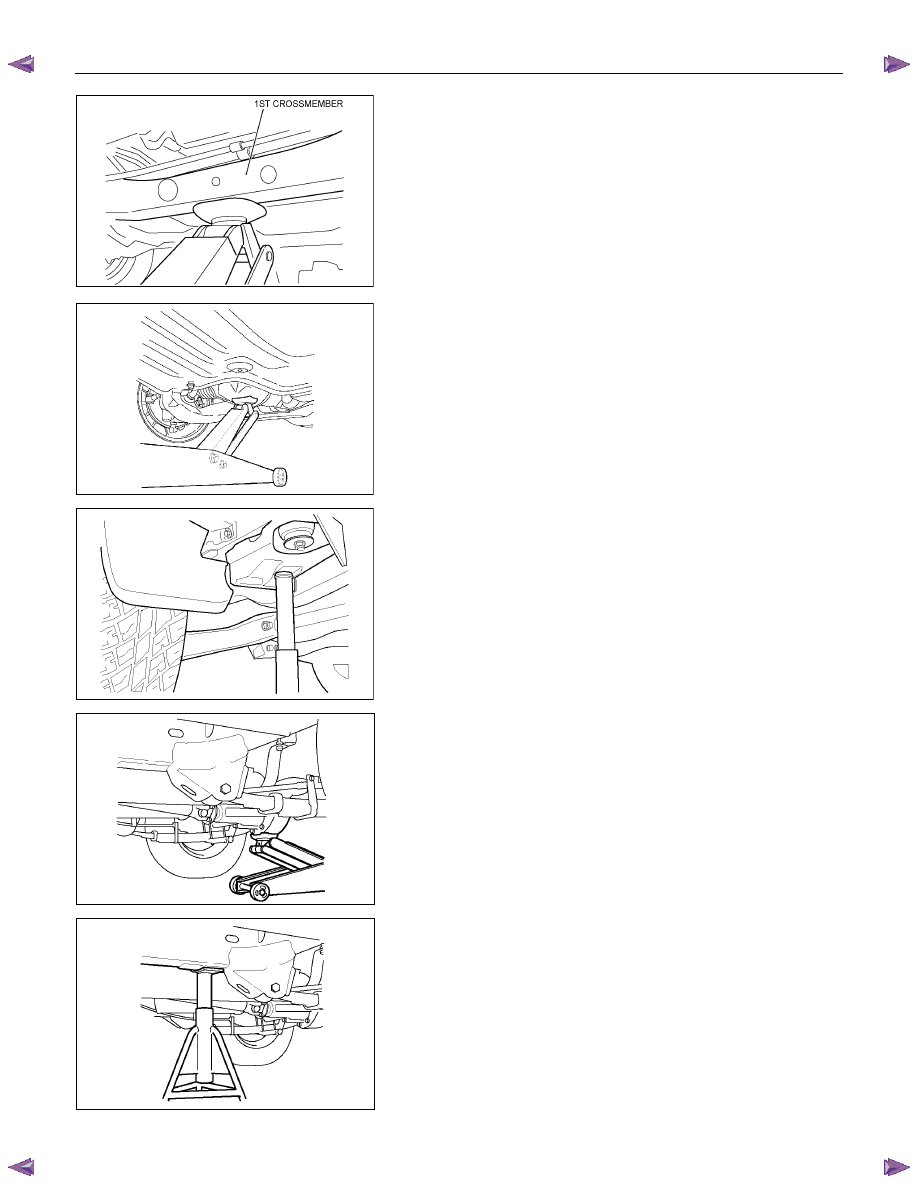

LIFTING POINT; FRONT
4

××××2 model

•  When using floor jack, lift the center of 1st cross member.







RTW60ASH000101




4

××××4 model

•  When using floor jack, lift the center of front axle case.








RTW60ASH000201




SUPPORTABLE POINT; FRONT

•  Position the chassis stands at the bottom of the frame side

member, backward of front wheel.





RTW30ASH000101




LIFTING POINT; REAR

•  When using floor jack, lift the center of rear axle case.




RTW30ASH000201




SUPPORTABLE POINT; REAR

•  Position the chassis stands at the bottom of the frame side

member, forward of the rear wheel.





GENERAL INFORMATION  0A-9



CONVERSION TABLE

TABLE OF CONTENTS



PAGE

Length ..............................................................................................................................  0A-10

Area ..................................................................................................................................  0A-11

Volume .............................................................................................................................  0A-12

Mass .................................................................................................................................  0A-13

Pressure ...........................................................................................................................  0A-14

Torque ..............................................................................................................................  0A-15

Temperature.....................................................................................................................  0A-16




LENGTH



MILLIMETERS TO INCHES

mm in. mm in. mm in. mm

in.



1 0.0394  26 1.0236  51 2.0079  76

2.9921



2 0.0787  27 1.0630  52 2.0472  77

3.0315



3 0.1181  28 1.1024  53 2.0866  78

3.0709



4 0.1575  29 1.1417  54 2.1260  79

3.1102



5 0.1969  30 1.1811  55 2.1654  80

3.1496



6 0.2362  31 1.2205  56 2.2047  81

3.1890



7 0.2756  32 1.2598  57 2.2441  82

3.2283



8 0.3150  33 1.2992  58 2.2835  83

3.2677



9 0.3543  34 1.3386  59 2.3228  84

3.3071

10 0.3937  35 1.3780  60 2.3622  85

3.3465

11 0.4331  36 1.4173  61 2.4016  86

3.3858

12 0.4724  37 1.4567  62 2.4409  87

3.4252

13 0.5118  38 1.4961  63 2.4803  88

3.4646

14 0.5512  39 1.5354  64 2.5197  89

3.5039

15 0.5906  40 1.5748  65 2.5591  90

3.5433

16 0.6299  41 1.6142  66 2.5984  91

3.5827

17 0.6693  42 1.6535  67 2.6378  92

3.6220

18 0.7087  43 1.6929  68 2.6772  93

3.6614

19 0.7480  44 1.7323  69 2.7165  94

3.7008

20 0.7874  45 1.7717  70 2.7559  95

3.7402

21 0.8268  46 1.8110  71 2.7953  96

3.7795

22 0.8661  47 1.8504  72 2.8346  97

3.8189

23 0.9055  48 1.8898  73 2.8740  98

3.8583

24 0.9449  49 1.9291  74 2.9134  99

3.8976

25 0.9843  50 1.9685  75 2.9528 100

3.9370

















101 3.9764 111 4.3701 121 4.7638 131

5.1575

102 4.0157 112 4.4094 122 4.8031 132

5.1968

103 4.0551 113 4.4488 123 4.8425 133

5.2362

104 4.0945 114 4.4882 124 4.8819 134

5.2756

105 4.1339 115 4.5276 125 4.9213 135

5.3150

106 4.1732 116 4.5669 126 4.9606 136

5.3543

107 4.2126 117 4.6063 127 5.0000 137

5.3937

108 4.2520 118 4.6457 128 5.0394 138

5.4331

109 4.2913 119 4.6850 129 5.0787 139

5.4724

INCHES TO MILLIMETERS

in. mm in. mm





1/64

0.3969





33/64

13.0969



1/32

 0.7938



17/32



13.4938





3/64

1.1906





35/64

13.8906

1/16





1.5875 9/16





14.2875





5/64

1.9844





37/64

14.6844



3/32

 2.3813



19/32



15.0813





7/64

2.7781





39/64

15.4781

1/8





3.1750 5/8





15.8750





9/64

3.5719





41/64

16.2719



5/32

 3.9688



21/32



16.6688





11/64

4.3656





43/64

17.0656

3/16





4.7625 11/16





17.4625





13/64

5.1594





45/64

17.8594



7/32

 5.5563



23/32



18.2563





15/64

5.9531





47/64

18.6531

1/4





6.3500 3/4





19.0500





17/64

6.7469





49/64

19.4469



9/32

 7.1438



25/32



19.8438





19/64

7.5406





51/64

20.2406

5/16





7.9375 13/16





20.6375





21/64

8.3344





53/64

21.0344



11/32

 8.7313



27/32



21.4313





23/64

9.1281





55/64

21.8281

3/8





9.5250 7/8





22.2250





25/64

9.9219





57/64

22.6219



13/32

 10.3188

29/32



23.0188





27/64

10.7156





59/64

23.4156

7/16





11.1125 15/16





23.8125





29/64

11.5094





61/64

24.2094



15/32

 11.9063

31/32



24.6063





31/64

12.3031





63/64

25.0031

1/2





12.7000 1





25.4000
