HEATED STEERING WHEEL
ST-7
< FUNCTION DIAGNOSIS >
C
D
E
F
H
I
J
K
L
M
A
B
ST
N
O
P
FUNCTION DIAGNOSIS
HEATED STEERING WHEEL

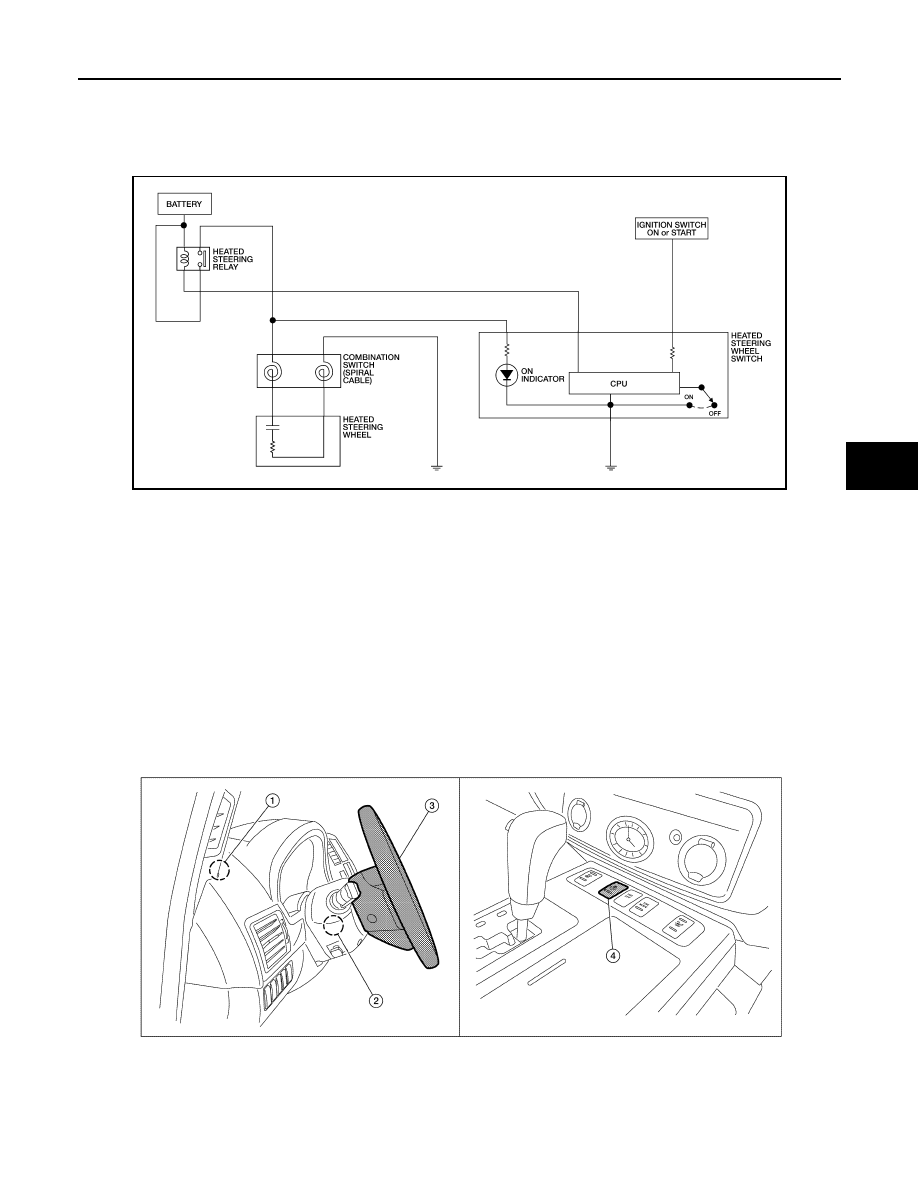

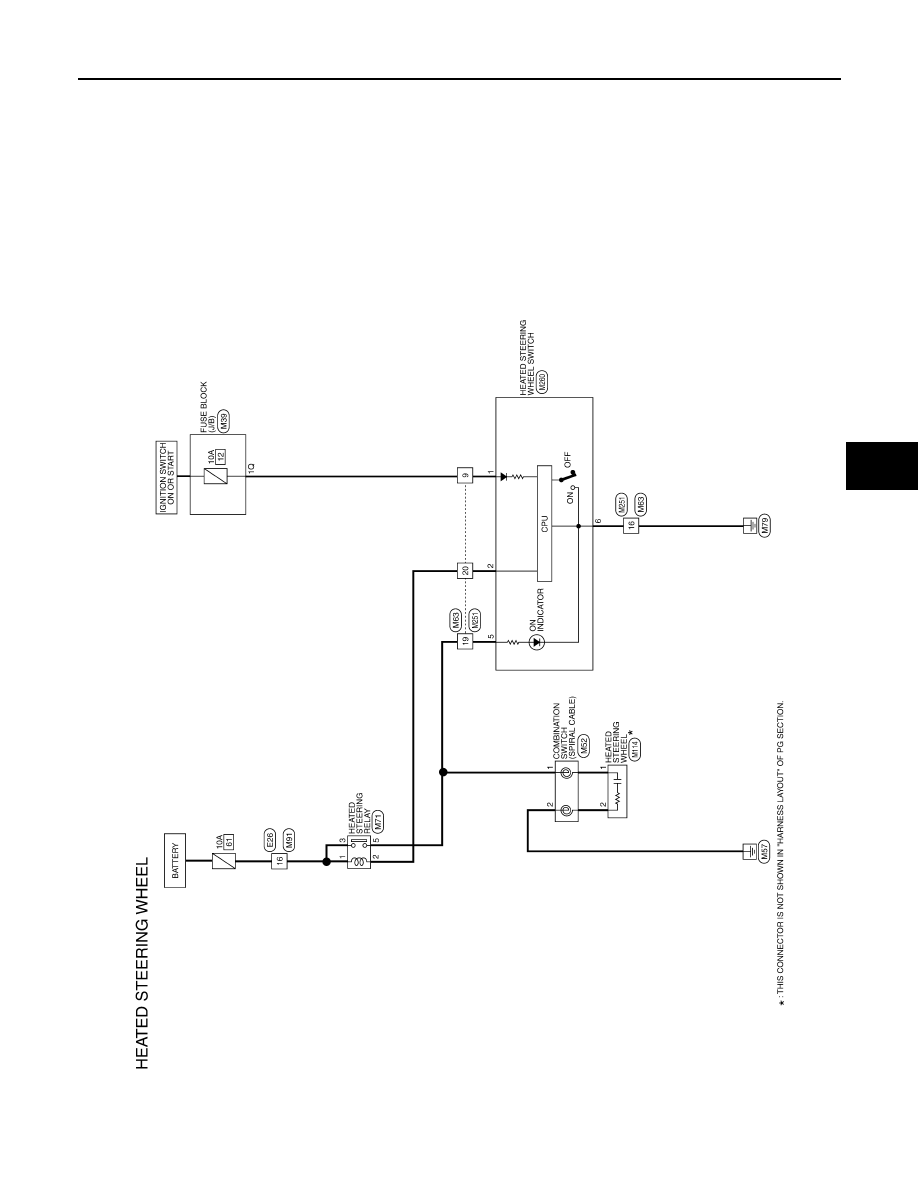

System Diagram
INFOID:0000000005147859
System Description
INFOID:0000000005147860
The heated steering wheel switch controls the heated steering relay. When the switch is turned on, the relay is
energized and the heated steering system will operate. The heated steering system will turn off when the
steering wheel temperature reaches approximately 86
° F (30° C). Heated steering system operation can also
be canceled by pressing the heated steering wheel switch again.
NOTE:
If the surface temperature of the steering wheel is below 68
° F (20° C), the system will heat the steering wheel
to approximately 86
° F (30° C), and cycle off and on to maintain a temperature above 68° F (20° C). The indi-
cator light will remain on as long as the system is on. Push the switch again to turn the heated steering wheel
system off manually. The indicator light will go off.

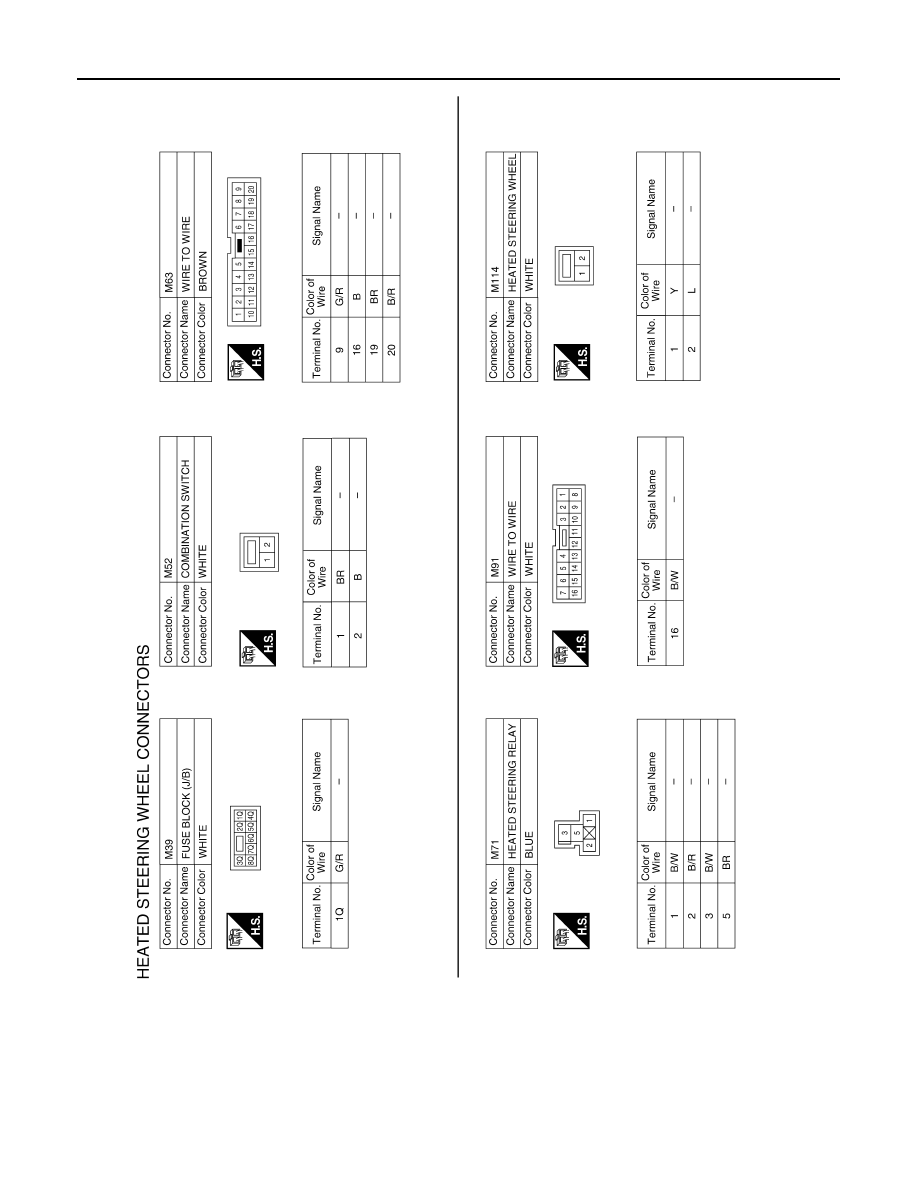

Component Parts Location
INFOID:0000000005147861
AWGIA0022GB
1.
Heated steering relay M71
2.
Combination switch (spiral cable) M52 3.
Heated steering wheel M114
4.
Heated steering wheel switch M260
ALGIA0030ZZ
