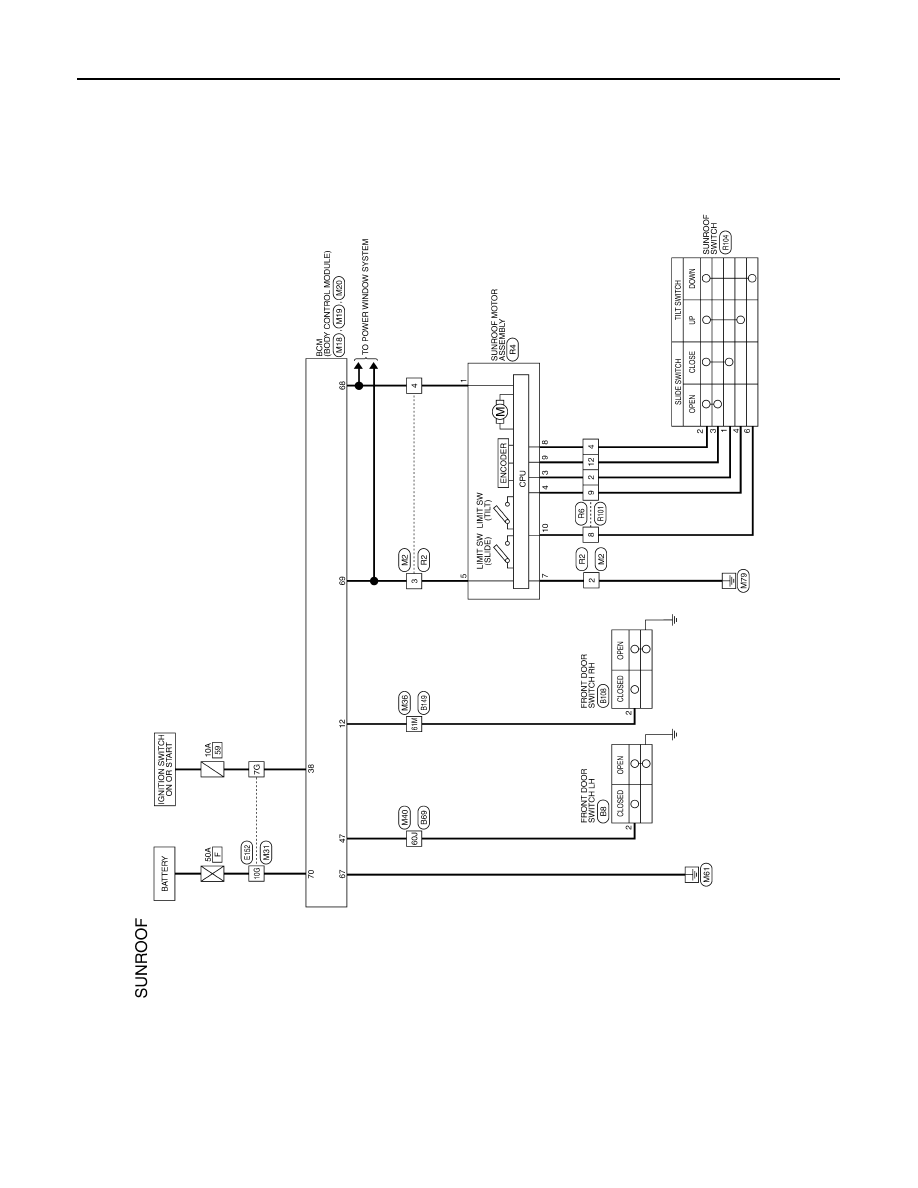

SUNROOF SYSTEM
Reference Value
INFOID:0000000005147293

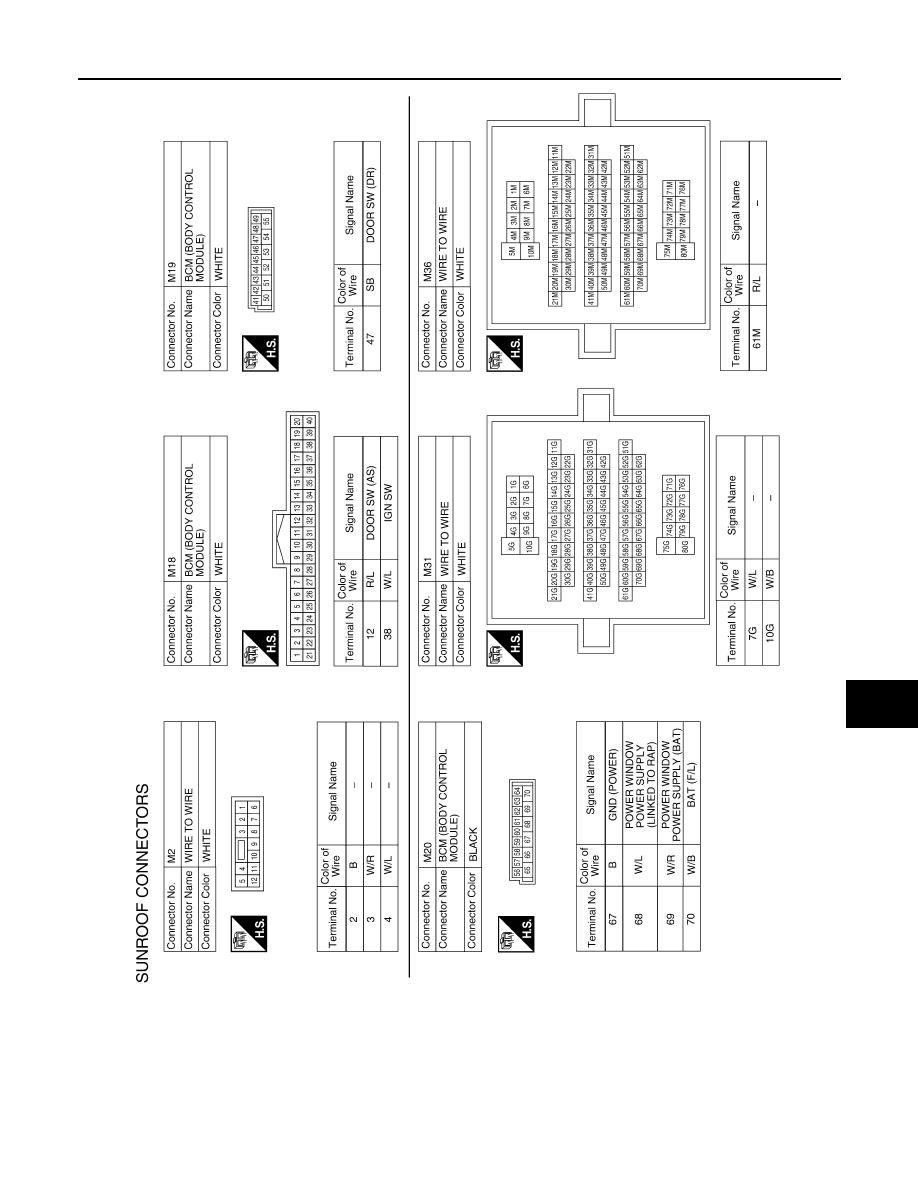

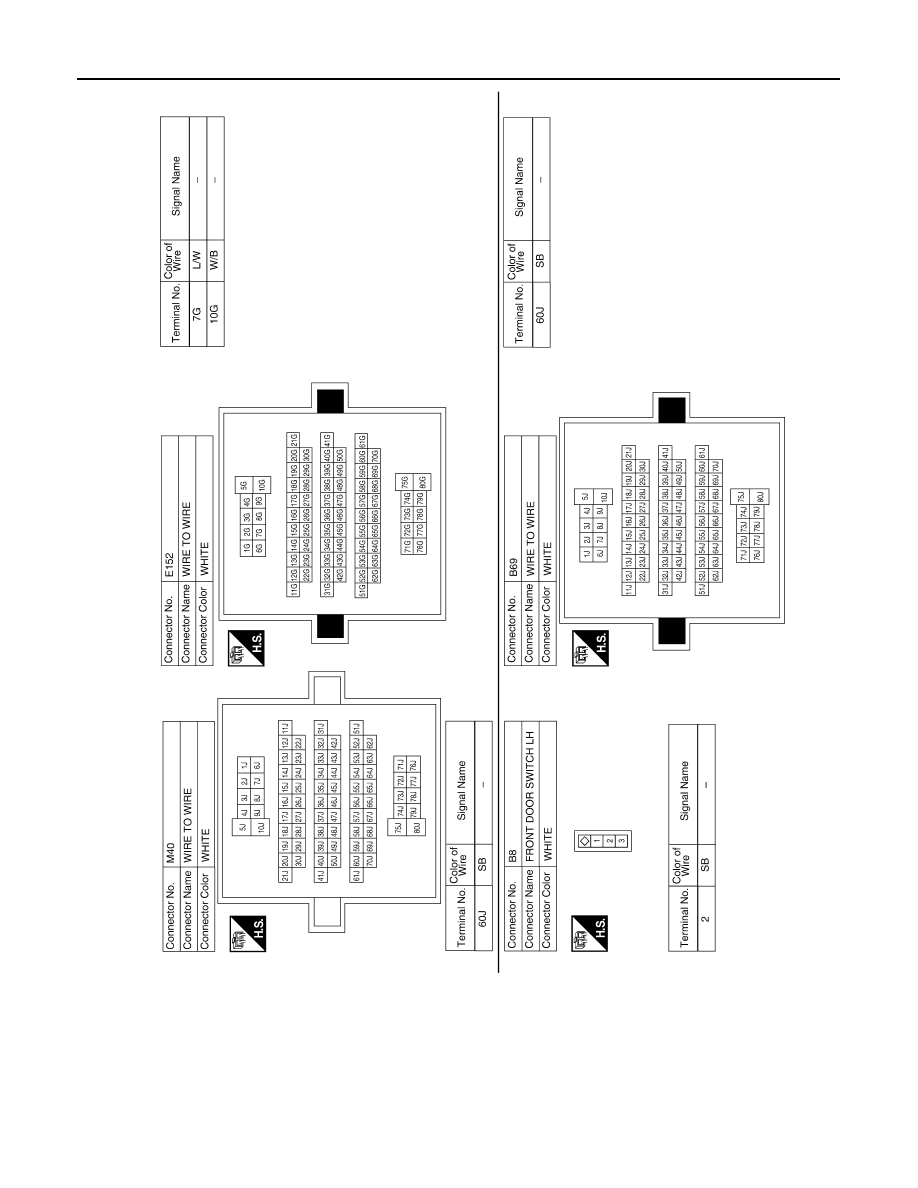

TERMINAL LAYOUT
PHYSICAL VALUES
LIIA2447E
Terminal No.
(Wire color)
Description
Condition
Voltage (V)
(Approx.)
+
-
Signal name
Input/
Output
1
(W/L)
Ground
RAP signal
Input
Ignition switch ON
Battery voltage
Within 45 seconds after ignition
switch is turned OFF
Battery voltage
When front door LH or RH is
open while retained power is op-
erating
0V
3
(P/W)
Ground
Sunroof switch CLOSE
signal
Input
Ignition switch is ON and sun-
roof switch in CLOSE position
0V
Other than above
Battery voltage
4
(O)
Ground
Sunroof switch TILT UP
signal
Input
Ignition switch is ON and sun-
roof switch in TILT UP position
0V
Other than above
Battery voltage
5
(W/R)
Ground
BAT power supply
Input
—
Battery voltage
7
(B)
Ground
Ground
Input
—
Less than 0.2V
8
(Y)
Ground
Sunroof switch ground
Output
—
Less than 0.2V
9
(P)
Ground
Sunroof switch OPEN sig-
nal
Input
Ignition switch ON and sunroof
switch in OPEN position
0V
Other than above
Battery voltage
10
(L/R)
Ground
Sunroof switch TILT
DOWN signal
Input
Ignition switch ON and sunroof
switch in TILT DOWN position
0
Other than above
Battery voltage
