Infiniti QX56 (JA60). Manual - part 739

HARNESS

PG-43

< COMPONENT DIAGNOSIS >

W/10

: To E10

M84

W/16

: To B101

B/5

: Passenger select unlock relay

M85

W/3

: Tilt motor

W/16

: To D2

M86

W/2

: Tilt motor

BR/24

: To D1

M87

B/5

: Rear power vent window relay (open)

M10

Y/4

: To E29

M89

B/5

: Rear power vent window relay (close)

M11

B/1

: Parking brake switch

M91

W/16

: To E26

C3 M12

GR/6

: Key switch and ignition knob switch

M92

GR/6

: Power liftgate switch

D3 M13

BR/2

: Front passenger air bag OFF indicator

M93

W/24

: Display unit

M14

B/2

: Diode-3

M95

W/6

: Rear power vent window switch

M15

W/4

: Steering lock solenoid

M96

BR/6

: Pedal adjusting switch

M16

GR/6

: ADP steering switch

M98

W/16

: A/C and AV switch assembly

M17

W/8

: Steering angle sensor

M99

BR/2

: Foot lamp LH

C2 M18

W/40

: BCM (body control module)

M100

BR/2

: Foot lamp RH

C2 M19

W/15

: BCM (body control module)

M104

W/4

: Aux jack

C2 M20

B/15

: BCM (body control module)

M105

Y/2

: Front passenger air bag module

C3 M21

W/4

: NATS antenna AMP.

M106

O/2

: Front passenger air bag module

C3 M22

W/16

: Data link connector

M107

B/5

: Front blower relay

M23

W/12

: Combination meter

M108

B/6

: Yaw rate/ side/ decel G sensor

C1 M24

W/40

: Combination meter

M109

BR/2

: Front tweeter LH

M25

B/4

: Remote keyless entry receiver

M110

BR/2

: Center speaker

M26

W/6

: Ignition switch

M111

BR/2

: Front tweeter RH

M28

W/16

: Combination switch

M112

BR/14

: BOSE speaker amp.

M29

Y/6

: Combination switch

M113

BR/23

: BOSE speaker amp.

M30

GR/8

: Combination switch

M116

GR/8

: Sonar system OFF switch

G4 M31

SMJ

: To E152

M118

B/2

: Front sonar buzzer

C3 M32

W/4

: In-vehicle sensor

M120

W/4

: Remote keyless entry receiver

M33

W/32

: Automatic drive positioner control unit

M122

W/4

: Variable blower control (front)

M34

W/16

: Automatic drive positioner control unit

M123

W/2

: Tire pressure warning check connector

C5 M35

Y/28

: Air bag diagnosis sensor unit

M139

B/2

: Diode-1

G4 M36

SMJ

: To B149

M140

B/2

: Diode-2

G3 M37

B/1

: Fuse block (J/B)

M141

GR/8

: 4WD shift switch

G3 M38

B/2

: Fuse block (J/B)

M142

B/6

: Mode door motor (front)

G3 M39

W/8

: Fuse block (J/B)

M143

B/6

: Air mix door motor (passenger)

M40

SMJ

: To B69

M144

B/6

: Defroster door motor

D2 M42

W/20

: AV control unit

M146

GR/2

: Intake sensor

D2 M43

W/12

: AV control unit

M147

B/6

: Air mix door motor (driver)

D2 M44

W/32

: AV control unit

M148

W/4

: Headlamp aiming switch

D2 M45

W/40

: AV control unit

M149

W/4

: Clock

M47

B/2

: Sonar buzzer

M150

W/2

: Ignition keyhole illumination

D2 M49

B/26

: A/C auto amp.

M158

W/10

: To D3

D2 M50

L/26

: A/C auto amp.

Console sub-harness

M51

L/4

: Trailer tow relay 1

M201

W/16

: To M56

M52

W/2

: Combination switch

M202

BR/24

: To M64

D3 M53

B/3

: Front power socket LH

M203

W/12

: A/T shift selector

M54

B/3

: Front power socket RH

M205

W/32

: DVD player

PG-44

< COMPONENT DIAGNOSIS >

HARNESS

D2 M55

W/4

: Hazard switch

M207

B/3

: Console power socket

D4 M56

W/16

: To M201

M208

BR/20

: To M69

M57

—

: Body ground

M209

W/2

: Center console area antenna (rear)

M58

B/6

: Intake door motor

M210

GR/2

: Center console area antenna (front)

M59

BR/2

: Glove box lamp

M212

W/6

: Rear heated seat switch LH

G3 M60

W/6

: Fuse block (J/B)

M213

BR/6

: Rear heated seat switch RH

C3 M61

—

: Body ground

Console switch sub-harness

M62

B/2

: Front blower motor

M251

BR/20

: To M63

D4 M63

BR/20

: To M251

M252

BR/6

: Front heated seat switch RH

D4 M64

BR/24

: To M202

M253

GR/6

: VDC OFF switch

M65

W/4

: To M301

M255

W/6

: Front heated seat switch LH

G3 M66

B/1

: To E33

M256

B/2

: A/T shift selector

C3 M69

BR/20

: To M208

M258

GR/8

: Tow mode switch

M70

W/40

: Intelligent key unit

M260

W/6

: Heated steering wheel switch

M71

L/4

: Heated steering relay

Optical sensor sub-harness

D3 M73

BR/6

: Back-up lamp relay

M301

W/4

: To M65

G3 M74

BR/20

: To D102

M302

B/4

: Optical sensor

G3 M75

W/10

: To D101

M76

W/6

: Electric brake (pre-wiring)

M77

Y/4

: Front passenger air bag module
(service replacement)

HARNESS

PG-45

< COMPONENT DIAGNOSIS >

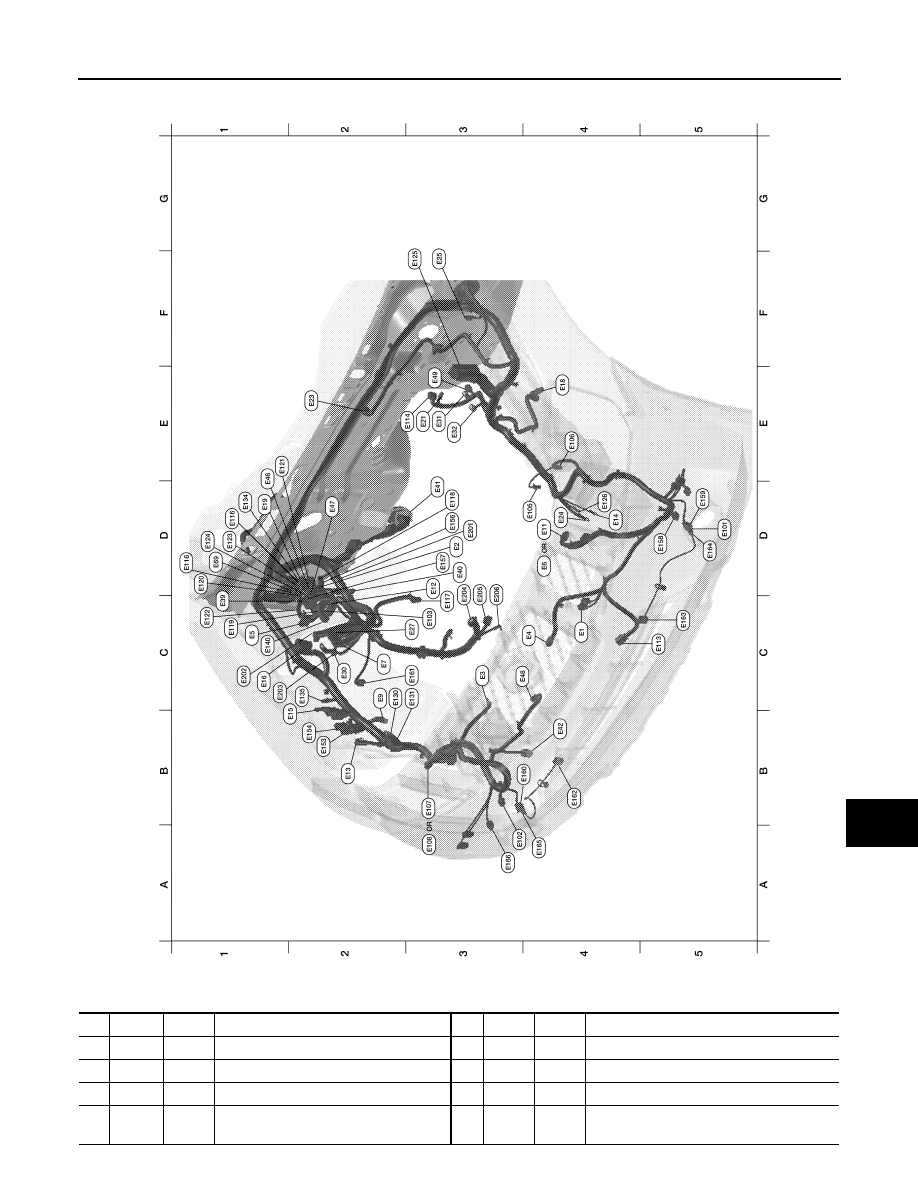

ENGINE ROOM HARNESS

ABMIA1200GB

C4 E1

GR/2

: Ambient sensor

E113

W/2

: Cooling fan motor

D3 E2

W/16

: To F32

E114

B/6

: Delta stroke motor

C3 E3

B/2

: Horn

E116

W/2

: Condenser-2

C3 E4

Y/2

: Crash zone sensor

E117

GR/2

: Front wheel sensor RH

C1 E5

W/24

: To F14

E118

B/2

: IPDM E/R (intelligent power distribution
module engine room)

PG-46

< COMPONENT DIAGNOSIS >

HARNESS

D4 E6

B/8

: Front combination lamp LH (with
daytime light system)

E119

W/16

: IPDM E/R (intelligent power distribution
module engine room)

C2 E7

GR/2

: Fusible link box (battery)

E120

W/6

: IPDM E/R (intelligent power distribution
module engine room)

C2 E9

—

: Body ground

E121

BR/12

: IPDM E/R (intelligent power distribution
module engine room)

D4 E11

B/8

: Front combination lamp LH (without
daytime light system)

E122

W/12

: IPDM E/R (intelligent power distribution
module engine room)

D3 E12

B/5

: Stop lamp relay

E123

BR/8

: IPDM E/R (intelligent power distribution
module engine room)

E13

W/2

: Hood switch

E124

B/6

: IPDM E/R (intelligent power distribution
module engine room)

D4 E14

—

: Body ground

E125

B/47

: ABS actuator and electric unit
(control unit)

C2 E15

—

: Body ground

E126

—

: Body ground

C1 E16

B/40

: ECM

E130

W/2

: Compressor motor relay

E18

GR/2

: Front wheel sensor LH

E131

W/2

: Compressor motor relay

D1 E19

W/16

: To F33

E134

GR/6

: ICC brake hold relay

E21

GR/2

: Brake fluid level switch

E135

GR/2

: Transfer dropping resistor

E23

GR/6

: Front wiper motor

E140

BR/6

: Trailer tow relay 2

D4 E24

—

: Body ground

E153

W/2

: Transfer motor relay

E25

BR/3

: Intelligent key warning buzzer

E154

W/2

: Transfer motor relay

C3 E27

BR/2

: Fusible link box (battery)

E156

L/4

: Trailer turn relay LH

C2 E30

: Fusible link box (battery)

E157

L/4

: Trailer turn relay RH

E31

B/3

: Front pressure sensor

E158

B/3

: Front sonar sensor LH outer

E32

B/3

: Rear pressure sensor

E159

GR/3

: To E164

E39

W/2

: To F34

E160

GR/3

: To E165

D3 E40

B/3

: To E201

E161

B/3

: Battery current sensor

D3 E41

SMJ

: To C1

E162

B/3

: Front sonar sensor LH inner

E42

B/6

: ICC sensor

E163

B/3

: Front sonar sensor RH inner

E46

B/5

: Transfer shift high relay

E164

GR/3

: To E159

D2 E47

B/5

: Transfer shift low relay

E165

GR/3

: To E160

C4 E48

B/3

: Refrigerant pressure sensor

E166

B/3

: Front sonar sensor RH outer

E49

B/6

: Active booster

Engine room sub-harness

D1 E69

L/4

: Transfer shut off relay

E201

B/3

: To E40

D5 E101

B/3

: Front turn/fog lamp LH

E202

: Fusible link box (battery)

E102

B/3

: Front turn/fog lamp RH

E203

—

: Engine ground

C3 E103

B/5

: Daytime light relay

E204

: Generator

D4 E105

BR/2

: Front and rear washer motor

E205

B/3

: Generator

E106

BR/2

: Washer fluid level switch

E206

: Generator

E107

B/8

: Front combination lamp RH (without
daytime light system)

E108

B/6

: Front combination lamp RH (with
daytime light system)
