5. When the repair work is completed, return the ignition switch to the

″LOCK″ position before connecting

the battery cables. (At this time, the steering lock mechanism will engage.)

6. Perform a self-diagnosis check of all control units using CONSULT-III.

Service Notice

INFOID:0000000005147346

• When removing or installing various parts, place a cloth or padding on the vehicle body to prevent scratches.

• Handle trim, molding, instruments, grille, etc. carefully during removing or installing. Be careful not to soil or

damage them.

• Apply sealing compound where necessary when installing parts.

• When applying sealing compound, be careful that the sealing compound does not protrude from parts.

• When replacing any metal parts (for example body outer panel, members, etc.), be sure to take rust preven-

tion measures.

INT-10

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000005147347

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

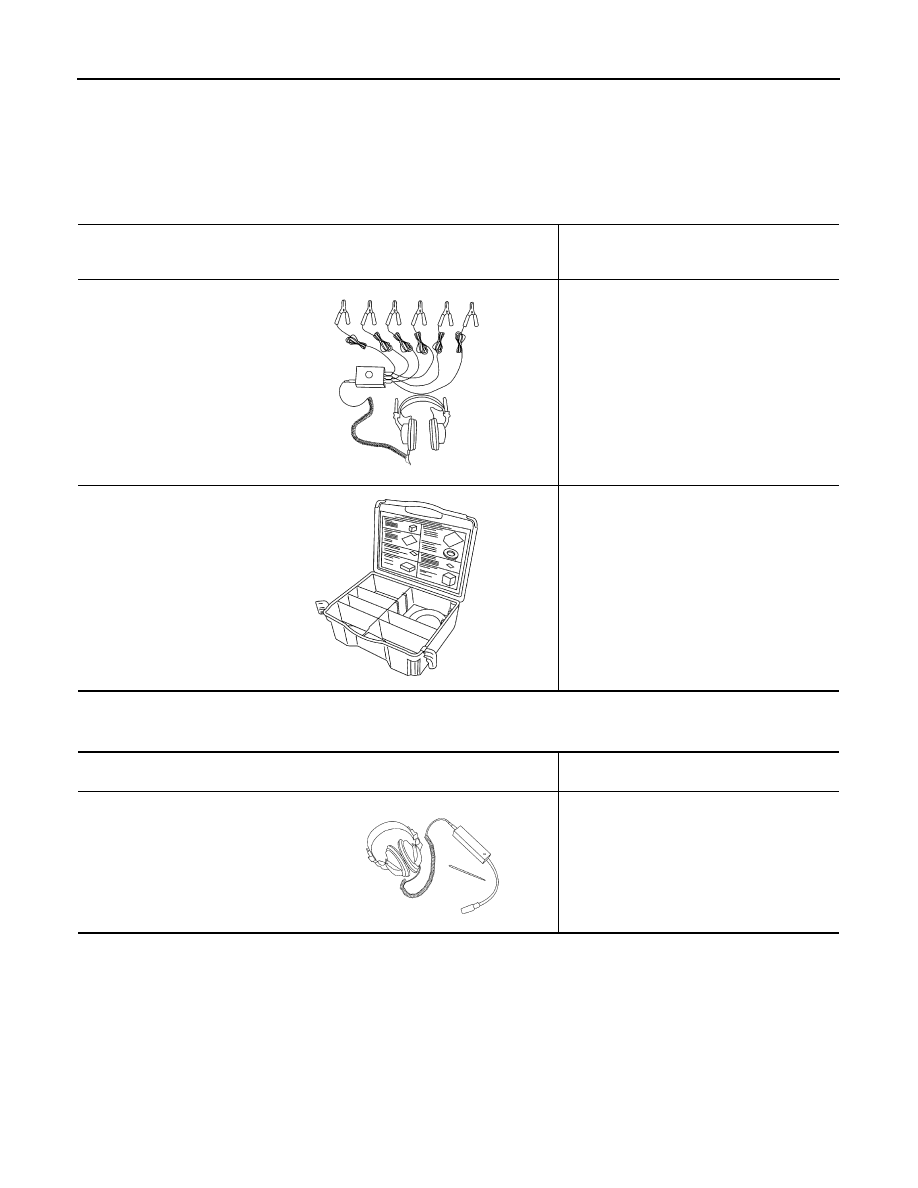

Commercial Service Tool

INFOID:0000000005147348

Tool number
(Kent-Moore No.)
Tool name

Description

—

(J-39570)
Chassis ear

Locating the noise

—

(J-43980)
NISSAN Squeak and Rattle kit

Repairing the cause of noise

SBT839

SBT840

Tool name
(Kent-Moore No.)

Description

Engine ear
(J-39565)

Locating the noise

SIIA0995E

DOOR FINISHER

INT-11

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

ON-VEHICLE REPAIR

DOOR FINISHER

Removal and Installation

INFOID:0000000005147349

FRONT DOOR

Removal

1. Remove the power window switch assembly.

• Disconnect the harness connectors.

2. Remove the cap from the inside door handle escutcheon and remove screw.
3. Remove the pull handle cover.

• Remove the screws behind pull handle cover.

4. Remove the seat memory switch.

• Disconnect the harness connector.

5. Remove the step lamp.

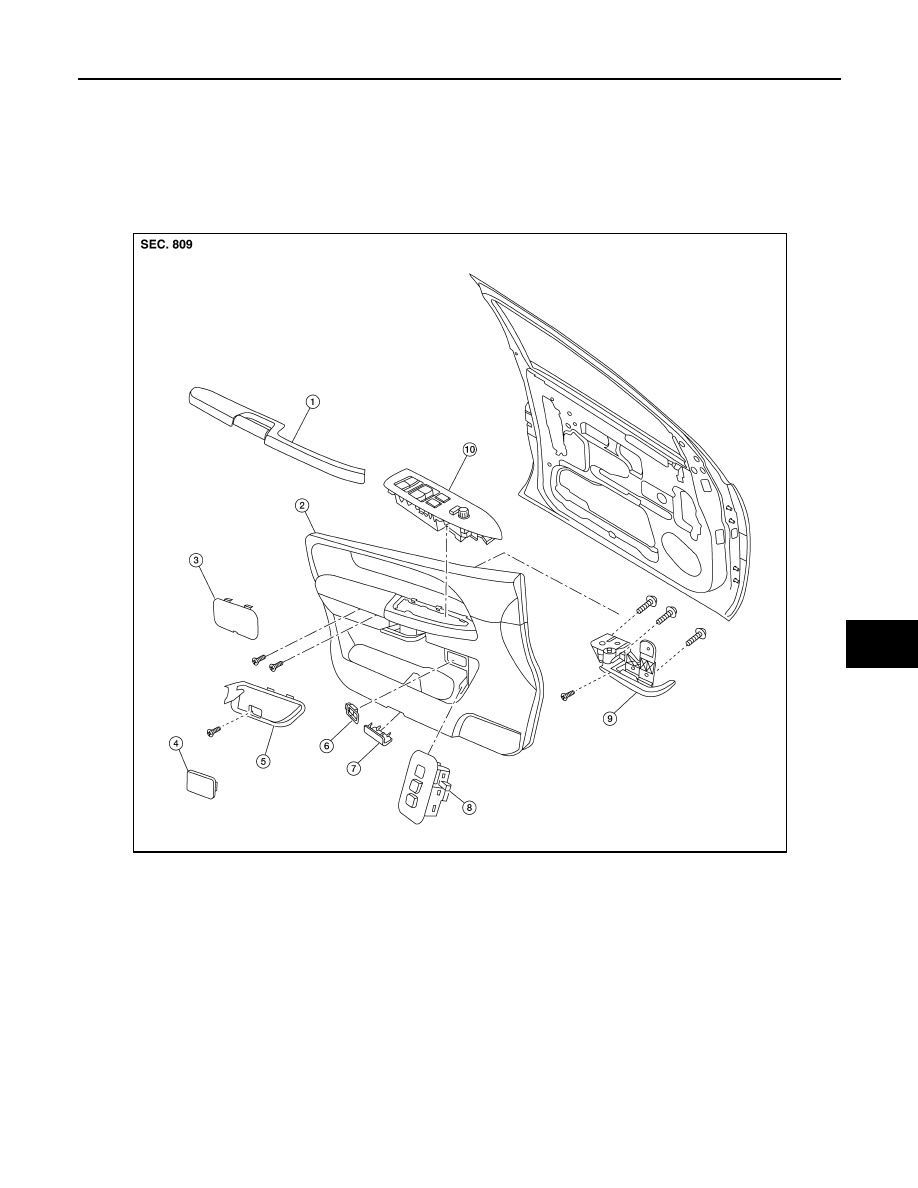

1.

Armrest

2.

Front door finisher (LH shown)

3.

Pull handle cover

4.

Cap

5.

Inside door handle escutcheon

6.

Door lock knob

7.

Step lamp

8.

Seat memory switch

9.

Inside door handle assembly

10. Power window switch assembly

AWJIA0450ZZ

INT-12

< ON-VEHICLE REPAIR >

DOOR FINISHER

• Disconnect the harness connector.

6. Remove the door finisher and disconnect the lock cable and handle cable from the inside door handle

assembly. Refer to

INT-11, "Removal and Installation"

.

7. Remove the inside door handle assembly.
8. Remove door lock knob.
9. Remove the armrest screws (A), then remove the armrest (1).

Installation

Installation is in the reverse order of removal.

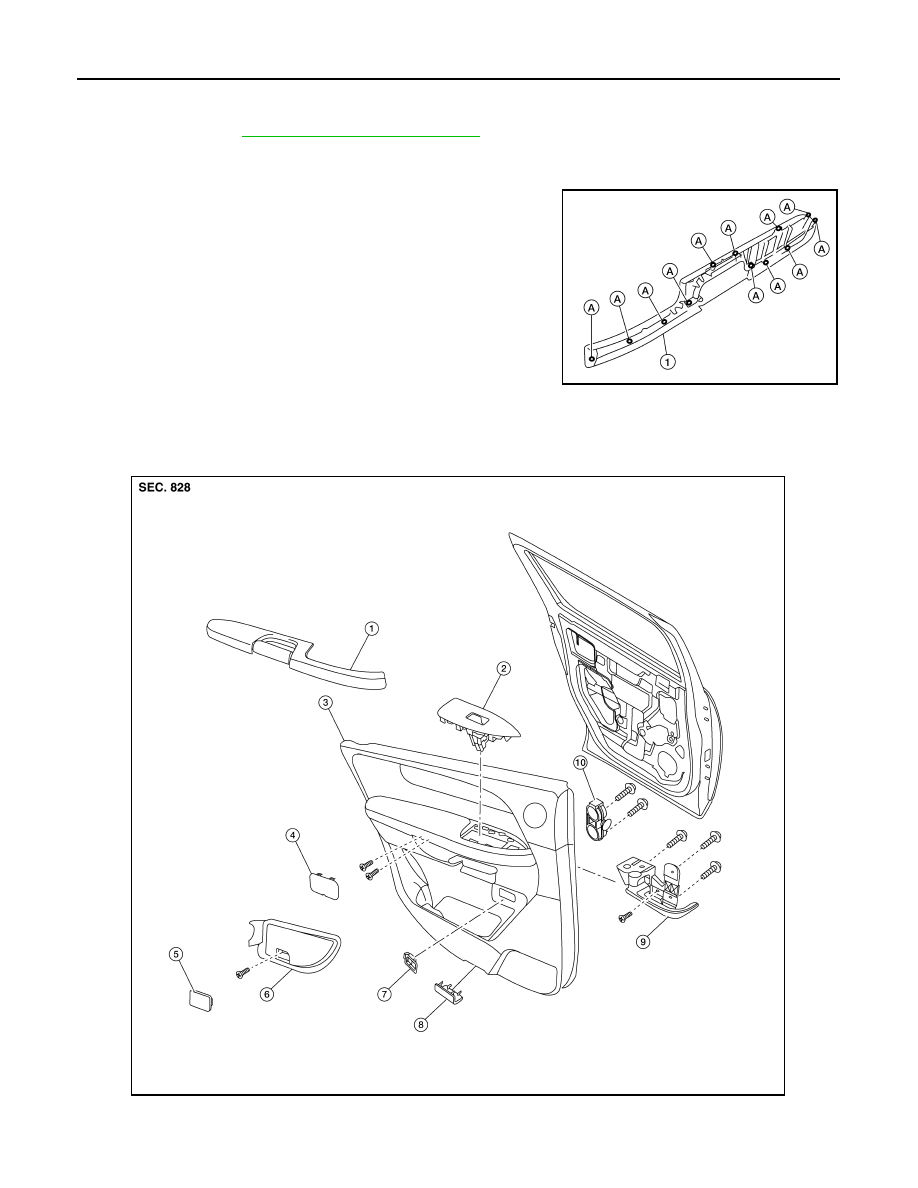

REAR DOOR

AWJIA0452ZZ

AWJIA0451ZZ
