DISASSEMBLY AND ASSEMBLY

DRIVE SHAFT

Disassembly and Assembly

INFOID:0000000005148946

DISASSEMBLY

Final Drive Side

1. Mount the drive shaft in a vise.

CAUTION:

When mounting the drive shaft in a vise, use copper or aluminum plates between the vise and the

drive shaft.

2. Remove the boot bands.

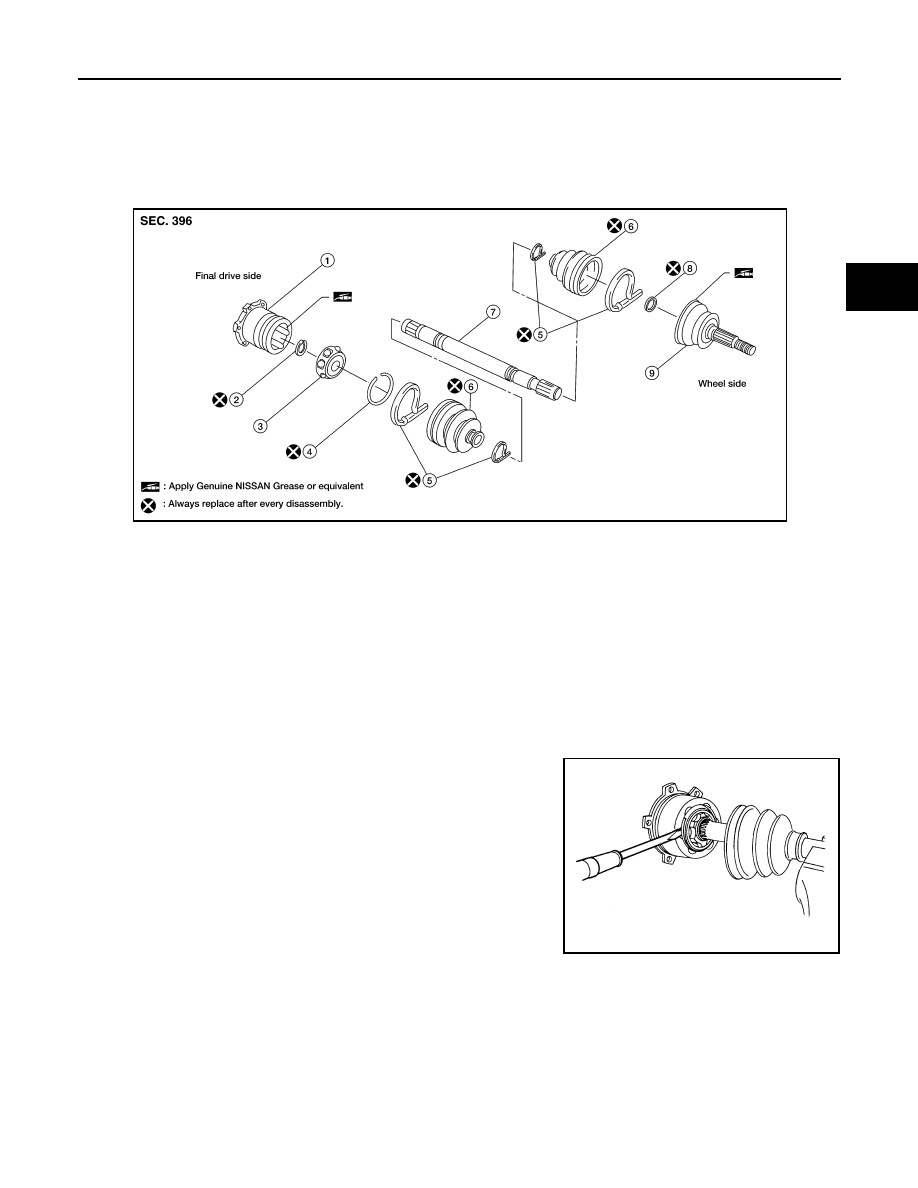

3. Remove the stopper ring using suitable tool as shown, and pull

the housing off.

1. Sliding joint housing

2. Snap ring

3. Ball cage, steel ball, inner race assembly

4. Stopper ring

5. Boot band

6. Boot

7. Drive shaft

8. Circlip

9. Joint sub-assembly

WDIA0054E

SRA249A

FAX-12

< DISASSEMBLY AND ASSEMBLY >

DRIVE SHAFT

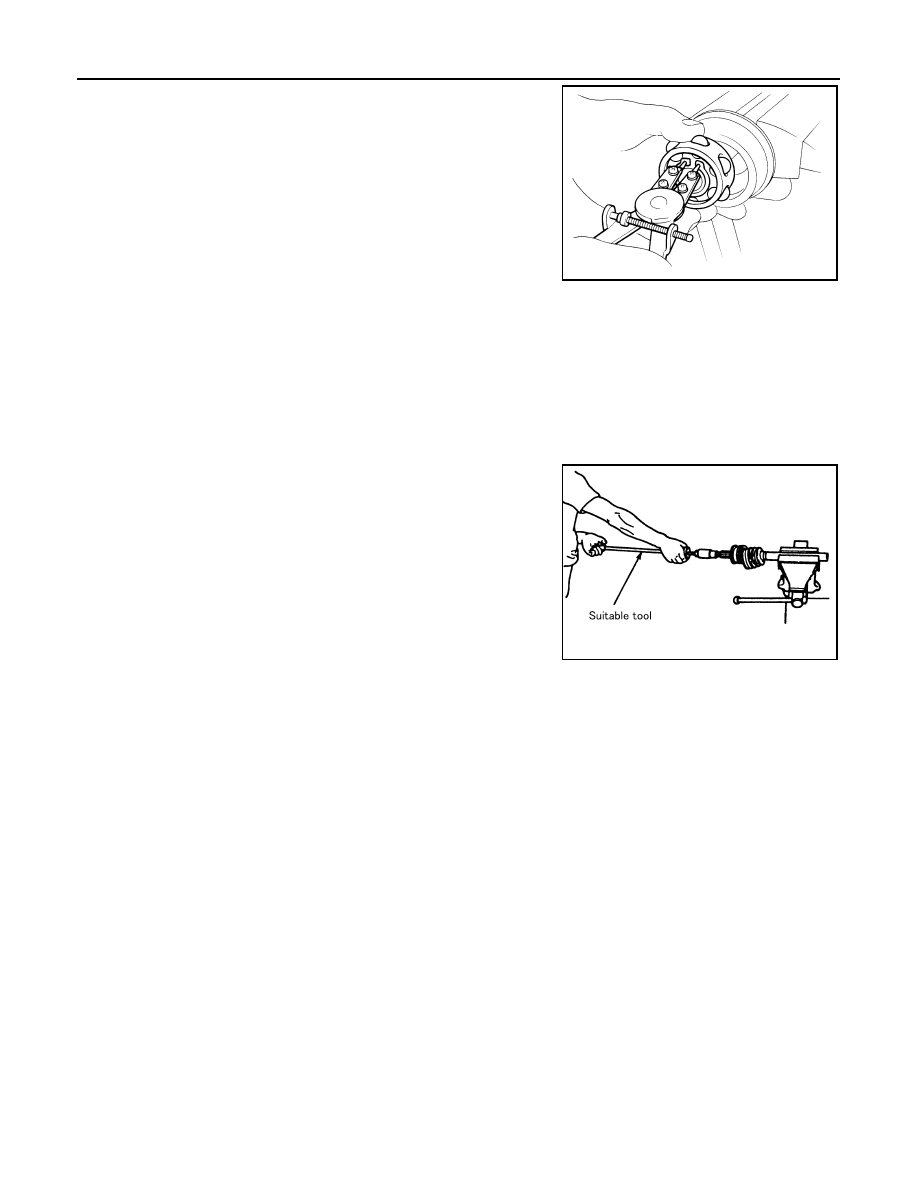

4. Remove the snap ring, then remove the ball cage, steel ball,

inner race assembly from the drive shaft.

5. Remove the boot from the drive shaft.
6. Remove any old grease on the housing using paper towels.

Wheel Side

1. Mount the drive shaft in a vise.

CAUTION:

When mounting the drive shaft in a vise, use copper or aluminum plates between the vise and the

drive shaft.

2. Remove the boot bands, then remove the boot from the joint sub-assembly.
3. Screw a suitable drive shaft puller 30 mm (1.18 in) or more into

the threaded part of the joint sub-assembly. Pull the joint sub-

assembly off of the drive shaft as shown.

NOTE:

Align the sliding hammer and drive shaft and remove the joint

sub-assembly by pulling straight out.

CAUTION:

• If the joint sub-assembly cannot be removed after five or

more attempts, replace the drive shaft and joint sub-

assembly as a set.

4. Remove the boot from the drive shaft.
5. Remove the circlip from the drive shaft.
6. While rotating the ball cage, remove any old grease from the joint sub-assembly using paper towels.

INSPECTION AFTER DISASSEMBLY

Drive Shaft

• Replace the drive shaft if there is any runout, cracking, or other damage.

Joint Sub-assembly

• Check for any rough rotation or unusual axial looseness.

• Clean any foreign material from inside the joint sub-assembly.

• Check for any compression scars, cracks, or fractures.

CAUTION:

If any defective conditions are found in the joint sub-assembly components, replace the entire joint

sub-assembly.

Sliding Joint Side Housing

• Check for any compression scars, cracks, fractures, or unusual wear on the ball rolling surface.

• Check for any damage to the drive shaft screws.

• Check for any deformation of the boot installation components.

Ball Cage

• Check the sliding surface for any compression scars, cracks, or fractures.

Steel Ball

• Check for any compression scars, cracks, fractures, or unusual wear.

Inner Race

SFA514A

SDIA0606E

DRIVE SHAFT

FAX-13

< DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

• Check the ball sliding surface for any compression scars, cracks, or fractures.

• Check for any damage to the serrated part.

CAUTION:

If any defective conditions are found, install a new housing, ball cage, steel ball, and inner race as a

set.

ASSEMBLY

Final Drive Side

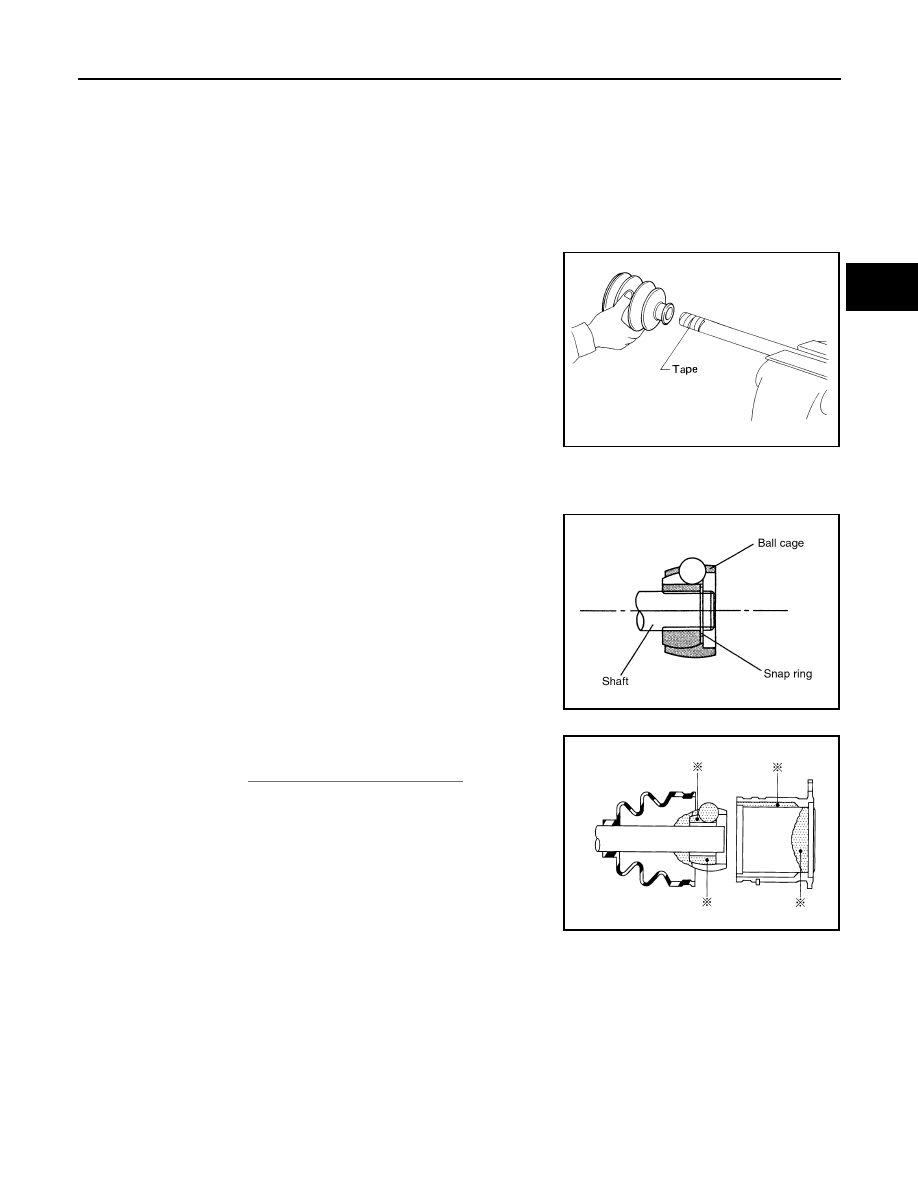

1. Wrap the serrated part of the drive shaft with tape. Install the

boot band and boot to drive shaft.

NOTE:

Discard the old boot band and boot and use a new one for

assembly.

2. Remove the tape wound around the serrated part of the drive shaft.

3. Install the ball cage, steel ball, and inner race assembly on the

drive shaft, and secure them tightly using the snap ring.

NOTE:

Discard the old snap ring and use a new one for assembly.

4. Insert the specified quantity of Genuine NISSAN Grease or

equivalent, onto the housing (indicated by * marks), and install it

onto shaft. Refer to

MA-13, "Fluids and Lubricants"

.

5. Install the stopper ring onto the housing.
6. After installation, pull on the shaft to check engagement between the sliding joint and the stopper ring.

SFA800

SDIA1125E

Grease capacity

: 130

− 150 g (4.58 − 5.29 oz)

RAC0678D

FAX-14

< DISASSEMBLY AND ASSEMBLY >

DRIVE SHAFT

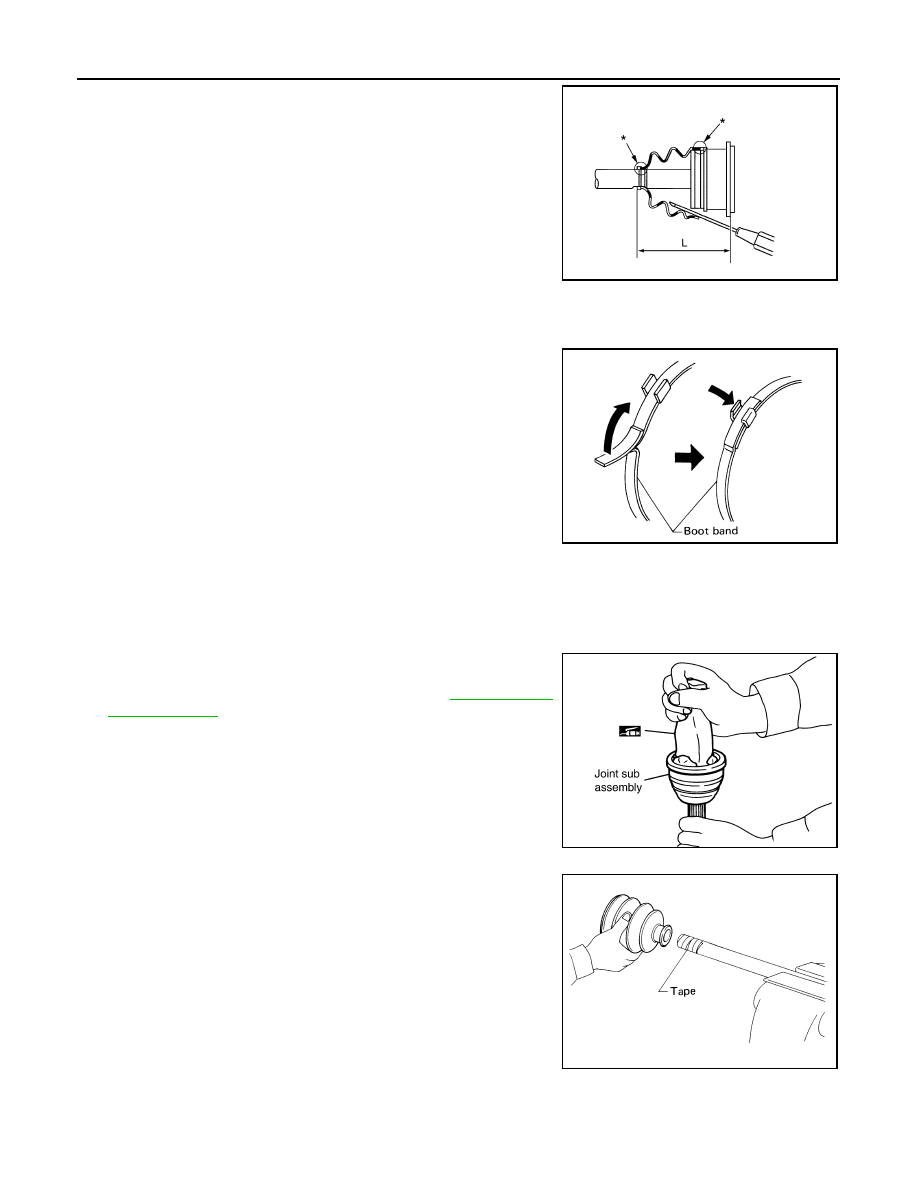

7. Install the boot securely into the grooves (indicated by * marks)

as shown.

CAUTION:

If there is grease on boot mounting surfaces (indicated by *

marks) of shaft and housing, boot may come off. Remove

all grease from surfaces.

8. Check that the boot installation length (L) is the length indicated

below. Insert a suitable tool into the large end of the boot, as

shown. Bleed air from the boot to prevent boot deformation.

CAUTION:

• The boot may break if the boot installation length is less than the specified value.

• Do not contact inside surface of boot with tip of the suitable tool.
9. Secure the large and small ends of the boot with the new boot

bands as shown.

NOTE:

Discard the old boot bands and use new ones for assembly.

10. After installing the sliding joint housing to the drive shaft, rotate the boot to check that the boot is posi-

tioned correctly. If the boot is not positioned correctly, reposition the boot and secure the boot using a new

boot band.

Wheel Side

1. Insert the Genuine NISSAN Grease or equivalent, into the joint

sub-assembly serration hole until the grease begins to ooze

from the ball groove and serration hole. Refer to

MA-13, "Fluids

and Lubricants"

. After inserting the grease, use a shop cloth to

wipe off the grease that has oozed out.

2. Wrap the serrated part of the drive shaft with tape. Install the

boot band and boot onto the shaft. Do not damage the boot.

NOTE:

Discard the old boot band and boot and use a new one for

assembly.

3. Remove the protective tape wound around the serrated part of

the drive shaft.

Boot installation length (L)

: 145 mm (5.71 in)

WDIA0287E

SFA395

SDIA1127E
