B2614 ACC RELAY CIRCUIT

DTC/CIRCUIT DIAGNOSIS

B2614 ACC RELAY CIRCUIT

DTC Logic

INFOID:0000000006220203

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Turn the power supply position to ACC under the following conditions, and wait for 2 second or more.

-

Selector lever is in the P position

-

Do not depress brake pedal

2.

Check “Self-diagnosis result” of BCM with CONSULT-III.

Is DTC detected?

YES

>> Go to

PCS-56, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000006220204

1.

CHECK ACCESSORY RELAY POWER SUPPLY-1

1.

Turn ignition switch OFF.

2.

Disconnect accessory relay.

3.

Check voltage between accessory relay harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK ACCESSORY RELAY POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect BCM connector.

3.

Check continuity between accessory relay harness connector and BCM harness connector.

4.

Check continuity between accessory relay harness connector and ground.

DTC No.

Trouble diagnosis

name

DTC detecting condition

Possible cause

B2614

BCM

An immediate operation of accessory relay is re-
quested by BCM, but there is no response for more
than 2 second.

• Harness or connectors

(Accessory relay circuit is open or
shorted)

• BCM
• Accessory relay

(+)

(–)

Condition

Voltage (V)

(Approx.)

Accessory relay

Terminal

1

Ground

Ignition switch

OFF

0

ACC or ON

12

Accessory relay

BCM

Continuity

Terminal

Connector

Terminal

1

M71

96

Existed

PCS

B2614 ACC RELAY CIRCUIT

PCS-57

< DTC/CIRCUIT DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-81, "Removal and Installation"

.

NO

>> Repair or replace harness.

3.

CHECK ACCESSORY RELAY GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Check continuity between accessory relay harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair accessory relay ground circuit.

4.

CHECK ACCESSORY RELAY POWER SUPPLY CIRCUIT-2

1.

Turn ignition switch ACC.

2.

Check voltage between accessory relay harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Check continuity open or short between accessory relay and battery.

5.

CHECK ACCESSORY RELAY

Refer to

PCS-57, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Replace accessory relay.

6.

CHECK INTERMITTENT INCIDENT

Refer to

GI-40, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection

INFOID:0000000006220205

1.

CHECK ACCESSORY RELAY

1.

Turn ignition switch OFF.

2.

Remove accessory relay.

Accessory relay

Ground

Continuity

Terminal

1

Not existed

Accessory relay

Ground

Continuity

Terminal

2

Existed

(+)

(–)

Voltage (V)

(Approx.)

Accessory relay

Terminal

5

Ground

Battery voltage

PCS-58

< DTC/CIRCUIT DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

B2614 ACC RELAY CIRCUIT

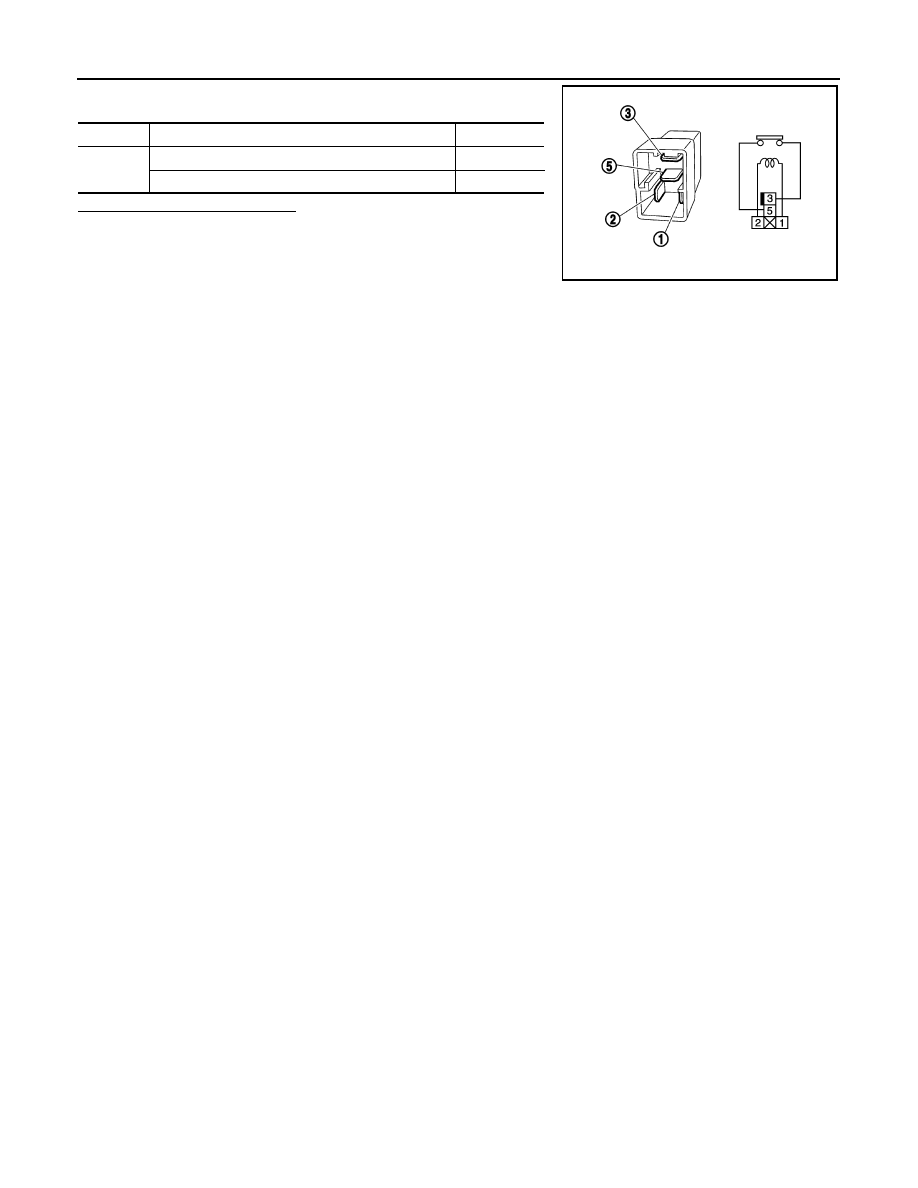

3.

Check the continuity between accessory relay terminals.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace accessory relay

Terminals

Condition

Continuity

3 and 5

12 V direct current supply between terminals 1 and 2

Existed

No current supply

Not existed

PBIB0098E

PCS

B2615 BLOWER RELAY CIRCUIT

PCS-59

< DTC/CIRCUIT DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

B2615 BLOWER RELAY CIRCUIT

DTC Logic

INFOID:0000000006220206

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Turn ignition switch ON under the following conditions, and wait for 1 second or more.

-

Selector lever is in the P position

-

Do not depress brake pedal

2.

Check “Self-diagnosis result” of BCM with CONSULT-III.

Is DTC detected?

YES

>> Go to

PCS-59, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000006220207

1.

CHECK BLOWER RELAY POWER SUPPLY

1.

Turn ignition switch OFF.

2.

Disconnect blower relay.

3.

Check voltage between blower relay harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK BLOWER RELAY POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect BCM connector.

3.

Check continuity between blower relay harness connector and BCM harness connector.

4.

Check continuity between blower relay harness connector and ground.

Is the inspection result normal?

DTC No.

Trouble diagnosis

name

DTC detecting condition

Possible cause

B2615

BCM

BCM detects a difference of signal for 1 second or
more between the following items.
• Blower relay ON/OFF request
• Blower relay feedback

• Harness or connectors

(Blower relay circuit is open or
shorted)

• BCM
• Blower relay

(+)

(–)

Condition

Voltage (V)

(Approx.)

Blower relay

Terminal

1

Ground

Ignition switch

OFF or ACC

0

ON

12

Blower relay

BCM

Continuity

Terminal

Connector

Terminal

1

M71

106

Existed

Blower relay

Ground

Continuity

Terminal

1

Not existed
