OIL PUMP

• (Clearance) = D

1

 (Valve hole diameter) - D

2

 (Outer Diameter of

valve)

CAUTION:

• Coat regulator valve with engine oil.
• Check that it falls smoothly into the regulator valve hole by its

own weight.

INSPECTION AFTER INSTALLATION

1.

Check the engine oil level. Refer to

LU-7, "Inspection"

2.

Start the engine and check for engine oil leaks.

3.

Stop the engine and wait 10 minutes.

4.

Check the engine oil level and adjust the engine oil level as required. Refer to

LU-7, "Inspection"

.

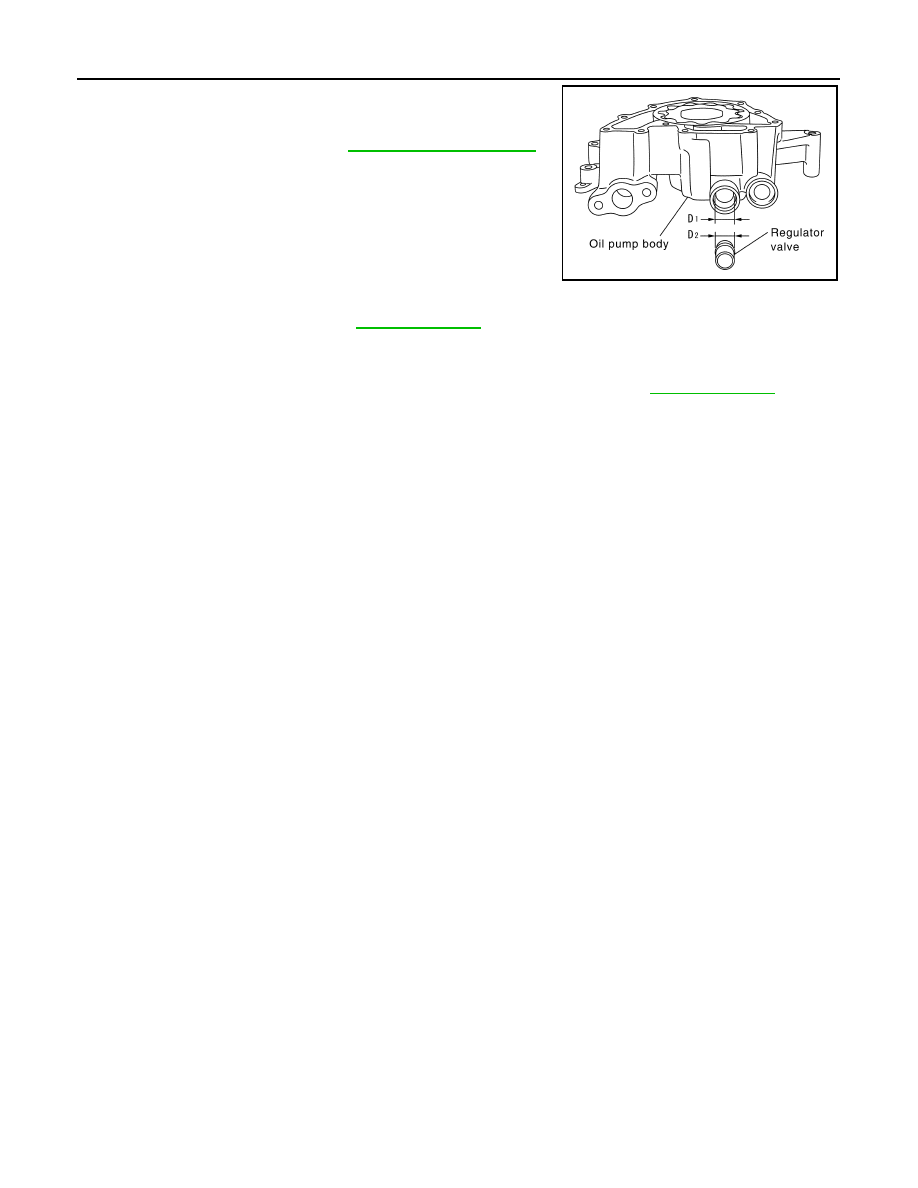

Regulator valve
to oil pump cover

: Refer to

LU-17, "Regulator Valve"

.

PBIC0143E

SERVICE DATA AND SPECIFICATIONS (SDS)

LU-17

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Periodical Maintenance Specification

INFOID:0000000006289628

ENGINE OIL CAPACITY (APPROXIMATE)

Unit:

 (US qt, Imp qt)

Engine Oil Pressure

INFOID:0000000006289629

Unit: kPa (kg/cm

2

, psi)

*: Engine oil temperature at 80

°

C (176

°

F)

Oil Pump

INFOID:0000000006289630

Unit: mm (in)

Regulator Valve

INFOID:0000000006289631

Unit: mm (in)

Drain and refill

With oil filter change

6.5 (6-7/8, 5-3/4)

Without oil filter change

6.2 (6-4/8, 5-1/2)

Dry engine (engine overhaul)

7.6 (8, 6-3/4)

Engine speed

Approximate discharge pressure*

Idle speed

More than 98 (1.0, 14)

2,000 rpm

More than 294 (3.0, 43)

Oil pump body to oil pump outer rotor radial clearance

0.114 - 0.200 (0.0045 - 0.0079)

Oil pump inner rotor to oil pump outer rotor tip clearance

Below 0.180 (0.0071)

Oil pump body to oil pump inner rotor axial clearance

0.030 - 0.070 (0.0012 - 0.0028)

Oil pump body to oil pump outer rotor axial clearance

0.030 - 0.090 (0.0012 - 0.0035)

Oil pump inner rotor to brazed portion of housing clearance

0.045 - 0.091 (0.0018 - 0.0036)

Regulator valve to oil pump cover clearance

0.040 - 0.097 (0.0016 - 0.0038)
