INT-32

< REMOVAL AND INSTALLATION >

HEADLINING

• Personal lamp assembly. Refer to

INL-77, "Removal and Installation"

.

• Rear ventilator grille assembly. Refer to

VTL-13, "REAR VENTILATOR GRILLE : Removal and Installa-

tion"

.

• Headlining harness.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Be careful not to bend headlining when installing.
• First install metal clips of map lamp assembly and clips of the rear end of headlining for positioning.

LUGGAGE FLOOR TRIM

INT-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

LUGGAGE FLOOR TRIM

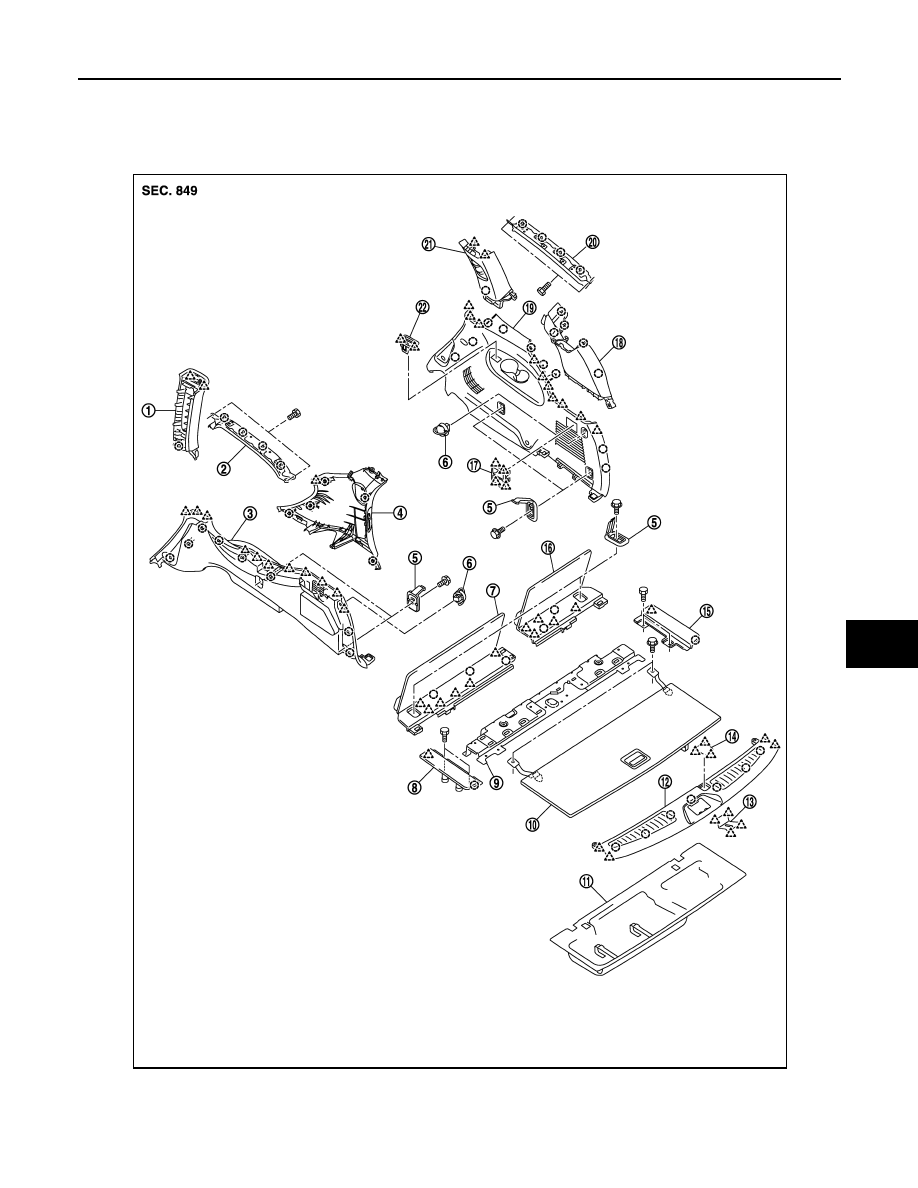

Exploded View

INFOID:0000000006220258

1.

Rear pillar finisher LH

2.

Luggage upper finisher LH

3.

Luggage side lower finisher LH

4.

Back pillar garnish LH

5.

Rope hook

6.

Clip

7.

Luggage lower board LH

8.

Luggage floor finisher LH

9.

Luggage floor bracket

JMJIA4308ZZ

INT-34

< REMOVAL AND INSTALLATION >

LUGGAGE FLOOR TRIM

*: Reclining switch (22) is also installed on luggage side lower finisher LH (3).

LUGGAGE FLOOR REAR BOARD

LUGGAGE FLOOR REAR BOARD : Removal and Installation

INFOID:0000000006220259

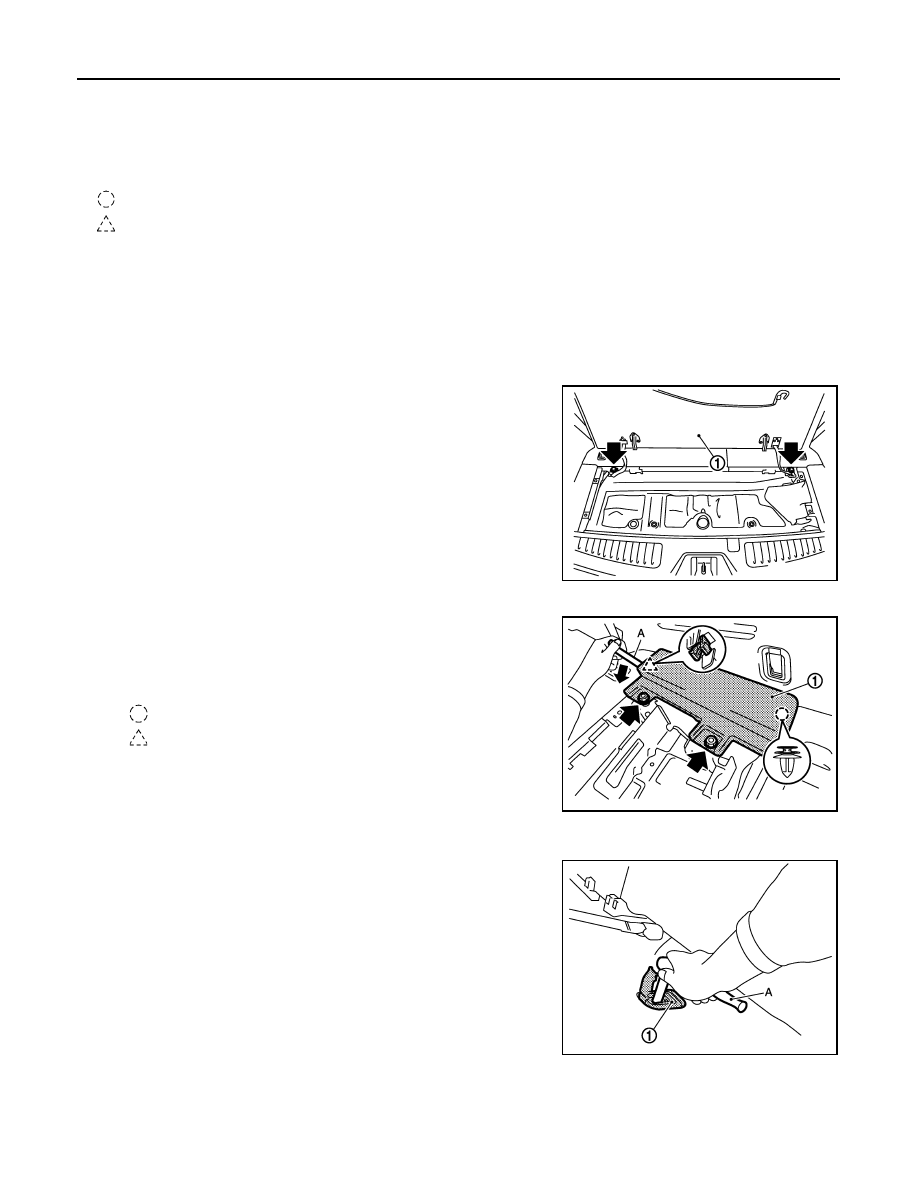

REMOVAL

1.

Open luggage floor board center (1).

2.

Remove both bolts shown by the arrows in the figure, and then
remove luggage floor board center.

3.

Remove luggage floor finishers (LH/RH).
1.

Remove bolts shown by the arrows in the figure.

2.

Disengage luggage floor finisher (1) fixing pawl and clip
using a remover tool (A), and then remove luggage side fin-
isher.

4.

Remove both luggage floor rear boards.
1.

Fold down the third seat forward.

2.

Remove rope hook (1) mounting bolt using a socket wrench
(A), and then remove rope hook.

10. Luggage floor board center

11. Tool box

12. Luggage rear plate

13. Luggage rear plate mask

14. Child anchor cover

15. Luggage floor finisher RH

16. Luggage lower board RH

17. Fold down switch

18. Back pillar garnish RH

19. Luggage side lower finisher RH

20. Luggage upper finisher RH

21. Rear pillar finisher RH

22. Reclining switch*

: Clip

: Pawl

JMJIA4027ZZ

: Clip

: Pawl

JMJIA4028ZZ

JMJIA4029ZZ

LUGGAGE FLOOR TRIM

INT-35

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

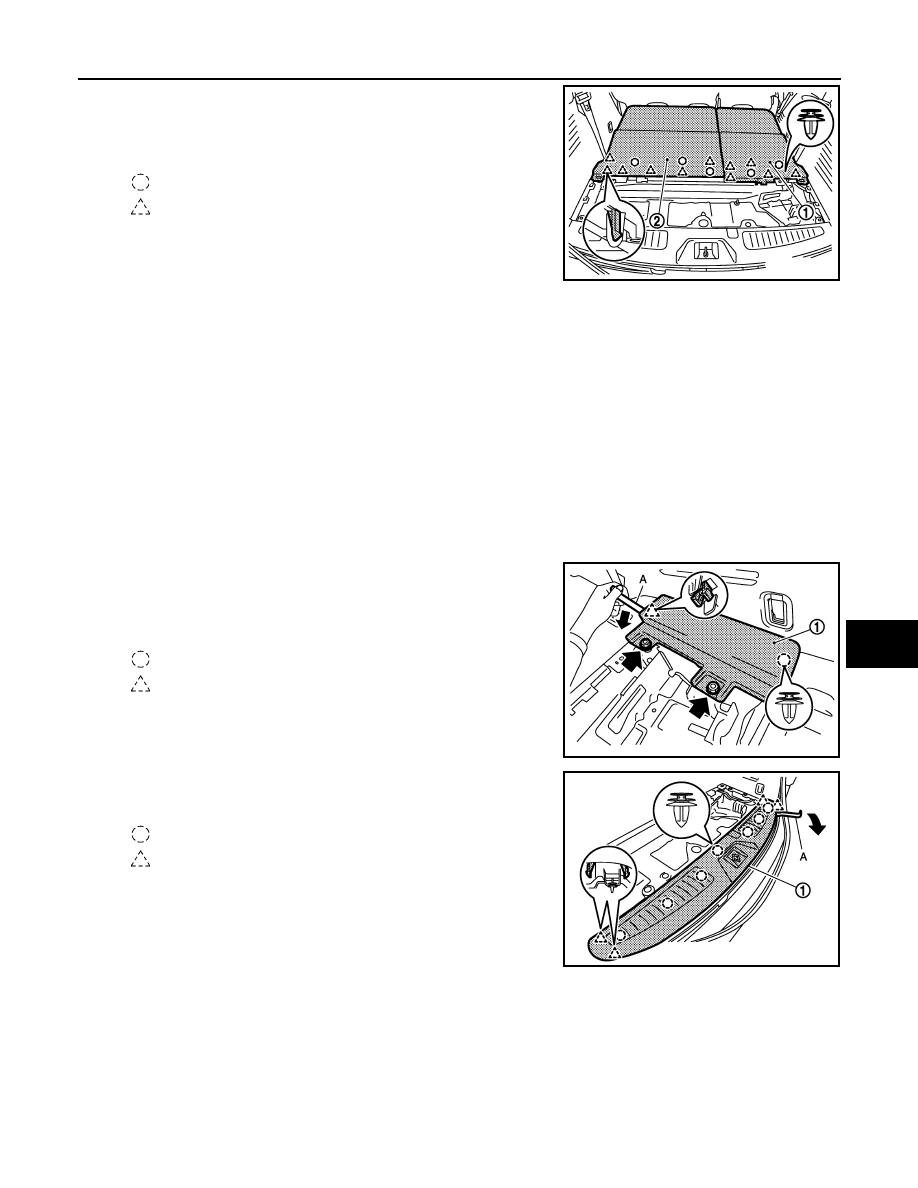

3.

Disengage luggage floor board RH (1) fixing pawls and
clips, and then remove luggage side finisher.

4.

Disengage luggage floor board LH (2) fixing pawls and clips,
and then remove luggage side finisher.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Visually check the clips and pawls for deformation and damage during installation. Replace with new

ones if necessary.

• When installing luggage floor rear board, check that clips and pawls are securely fitted in body panel

holes, and press them in.

LUGGAGE REAR PLATE

LUGGAGE REAR PLATE : Removal and Installation

INFOID:0000000006220260

REMOVAL

1.

Open luggage floor board center.

2.

Remove luggage floor finishers (LH and RH).
1.

Remove nuts shown by the arrows in the figure.

2.

Disengage luggage floor finisher (1) fixing clip and pawl
using a remover tool (A), and then remove luggage side fin-
isher.

3.

Disengage luggage rear plate (1) fixing clips and pawls using a
remover tool (A), and then remove luggage rear plate.

4.

Remove luggage rear plate mask from luggage rear plate.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Visually check the clips and pawls for deformation and damage during installation. Replace with new

ones if necessary.

• When installing luggage rear plate, check that clips and pawls are securely fitted in body panel

holes, and press them in.

: Clip

: Pawl

JMJIA4030ZZ

: Clip

: Pawl

JMJIA4028ZZ

: Clip

: Pawl

JMJIA4041ZZ
