Infiniti QX56 (Z62). Manual - part 758





INSPECTION AND ADJUSTMENT

GI-65

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

INSPECTION AND ADJUSTMENT

ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL

ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : Re-
quired Procedure After Battery Disconnection

INFOID:0000000006344676

*: Not equipped.

SYSTEM

ITEM

REFERENCE

Front automatic air
conditioning system

Temperature setting trimmer (Front)

HAC-68, "FRONT AUTOMATIC

AIR CONDITIONING SYSTEM :

Temperature Setting Trimmer

(Front)"

Foot position setting trimmer

HAC-68, "FRONT AUTOMATIC

AIR CONDITIONING SYSTEM :

Foot Position Setting Trimmer"

Inlet port memory function*

Inlet port memory function (FRE)

HAC-69, "FRONT AUTOMATIC

AIR CONDITIONING SYSTEM :

Inlet Port Memory Function (FRE)"

Inlet port memory function (REC)

HAC-69, "FRONT AUTOMATIC

AIR CONDITIONING SYSTEM :

Inlet Port Memory Function (REC)"

ACCS (Advanced Cli-
mate Control System)

Exhaust gas / outside odor detecting sensor sensitivity adjustment func-
tion

HAC-70, "ACCS (ADVANCED

CLIMATE CONTROL SYSTEM) :

Exhaust Gas / Outside Odor De-

tecting Sensor Sensitivity Adjust-

ment Function"

Auto intake switch interlocking movement change function

HAC-70, "ACCS (ADVANCED

CLIMATE CONTROL SYSTEM) :

Auto Intake Switch Interlocking

Movement Change Function"

Clean switch interlocking movement change function*

Rear automatic air
conditioning system

Temperature setting trimmer (Rear)

HAC-69, "REAR AUTOMATIC AIR

CONDITIONING SYSTEM : Tem-

perature Setting Trimmer (Rear)"

Automatic drive posi-
tioner

Automatic drive positioner system

ADP-51, "ADDITIONAL SERVICE

WHEN REMOVING BATTERY

NEGATIVE TERMINAL : Descrip-

tion"

Power window control

Power window control system

PWC-31, "Description"

Sunroof system*

Sunroof system

Sunshade system*

Sunshade system

Rear view monitor*

Rear view monitor predictive course line center position adjustment

Around view monitor

Predictive course line center position adjustment

AV-111, "Description"

Automatic back door
system

Automatic back door system

DLK-80, "ADDITIONAL SERVICE

WHEN REMOVING BATTERY

NEGATIVE TERMINAL : Descrip-

tion"

Engine oil level read*

Engine oil level read

GW-1

BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

C

D

E

F

G

H

I

J

L

M

SECTION

GW

A

B

GW

N

O

P

CONTENTS

GLASS & WINDOW SYSTEM

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

2

Precaution Necessary for Steering Wheel Rota-
tion after Battery Disconnect  ...................................
..

2

Precaution for Procedure without Cowl Top Cover

......

3

Handling for Adhesive and Primer  ............................

3

PREPARATION ............................................

4

PREPARATION ...................................................

4

Special Service Tools ..............................................

4

Commercial Service Tools .......................................

4

SYMPTOM DIAGNOSIS  ...............................

5

SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ................................................................

5

Work Flow  .................................................................

5

Inspection Procedure  ................................................

7

Diagnostic Worksheet  ...............................................

9

REMOVAL AND INSTALLATION ...............

11

WINDSHIELD GLASS  ........................................

11

Exploded View  ........................................................

11

Removal and Installation .........................................

12

Inspection ................................................................

13

SIDE WINDOW GLASS  ....................................

14

Exploded View .........................................................

14

Removal and Installation  .........................................

15

Inspection ................................................................

15

BACK DOOR WINDOW GLASS  ......................

16

Exploded View .........................................................

16

Removal and Installation  .........................................

16

Inspection ................................................................

17

FRONT DOOR GLASS  .....................................

19

Exploded View .........................................................

19

Removal and Installation  .........................................

19

Inspection and Adjustment  ......................................

20

FRONT REGULATOR .......................................

21

Exploded View .........................................................

21

Removal and Installation  .........................................

21

Disassembly and Assembly .....................................

21

Inspection and Adjustment  ......................................

22

REAR DOOR GLASS  .......................................

23

Exploded View .........................................................

23

Removal and Installation  .........................................

23

Inspection and Adjustment  ......................................

25

REAR REGULATOR  .........................................

26

Exploded View .........................................................

26

Removal and Installation  .........................................

26

Disassembly and Assembly .....................................

27

Inspection and Adjustment  ......................................

27

GW-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000006257243

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this
Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SRS AIR BAG”.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s)
with a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly
causing serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution Necessary for Steering Wheel Rotation after Battery Disconnect

INFOID:0000000006257244

NOTE:
• Before removing and installing any control units, first turn the push-button ignition switch to the LOCK posi-

tion, then disconnect both battery cables.

• After finishing work, confirm that all control unit connectors are connected properly, then re-connect both

battery cables.

• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.

If a DTC is detected, perform trouble diagnosis according to self-diagnosis results.

For vehicle with steering lock unit, if the battery is disconnected or discharged, the steering wheel will lock and
cannot be turned.
If turning the steering wheel is required with the battery disconnected or discharged, follow the operation pro-
cedure below before starting the repair operation.

OPERATION PROCEDURE

1.

Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.

2.

Turn the push-button ignition switch to ACC position.
(At this time, the steering lock will be released.)

3.

Disconnect both battery cables. The steering lock will remain released with both battery cables discon-
nected and the steering wheel can be turned.

4.

Perform the necessary repair operation.

PRECAUTIONS

GW-3

< PRECAUTION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

5.

When the repair work is completed, re-connect both battery cables. With the brake pedal released, turn
the push-button ignition switch from ACC position to ON position, then to LOCK position. (The steering
wheel will lock when the push-button ignition switch is turned to LOCK position.)

6.

Perform self-diagnosis check of all control units using CONSULT-III.

Precaution for Procedure without Cowl Top Cover

INFOID:0000000006108039

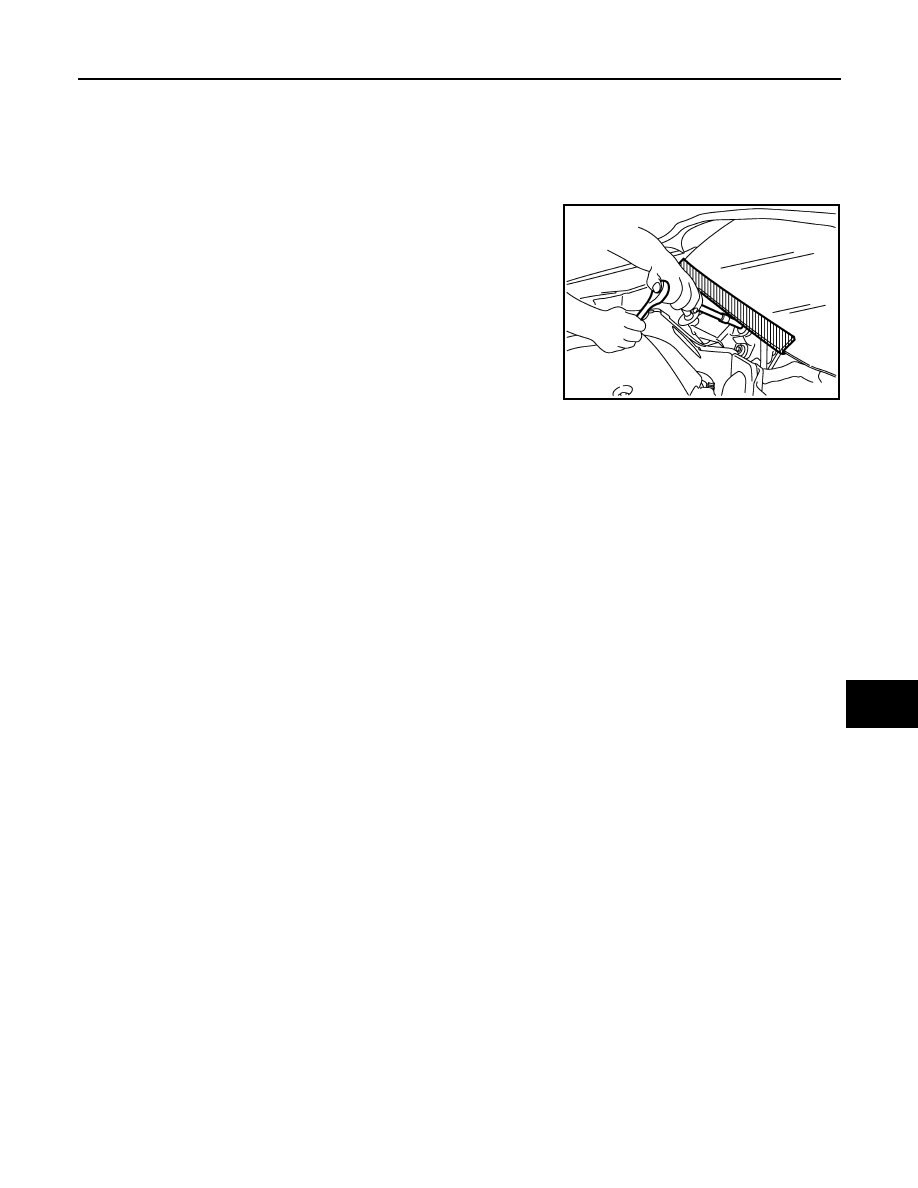

When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc.

Handling for Adhesive and Primer

INFOID:0000000006108040

• Do not use an adhesive which is past its usable date. Shelf life of this product is limited to six months after

the date of manufacture. Carefully adhere to the expiration or manufacture date printed on the box.

• Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.
• Open the seal of the primer and adhesive just before application. Discard the remainder.
• Before application, be sure to shake the primer container to stir the contents. If any floating material is found,

do not use it.

• If any primer or adhesive contacts the skin, wipe it off with gasoline or equivalent and wash the skin with

soap.

• When using primer and adhesive, always observe the precautions in the instruction manual.

PIIB3706J
