EC-14

< PREPARATION >

[VK56VD]

PREPARATION

PREPARATION

PREPARATION

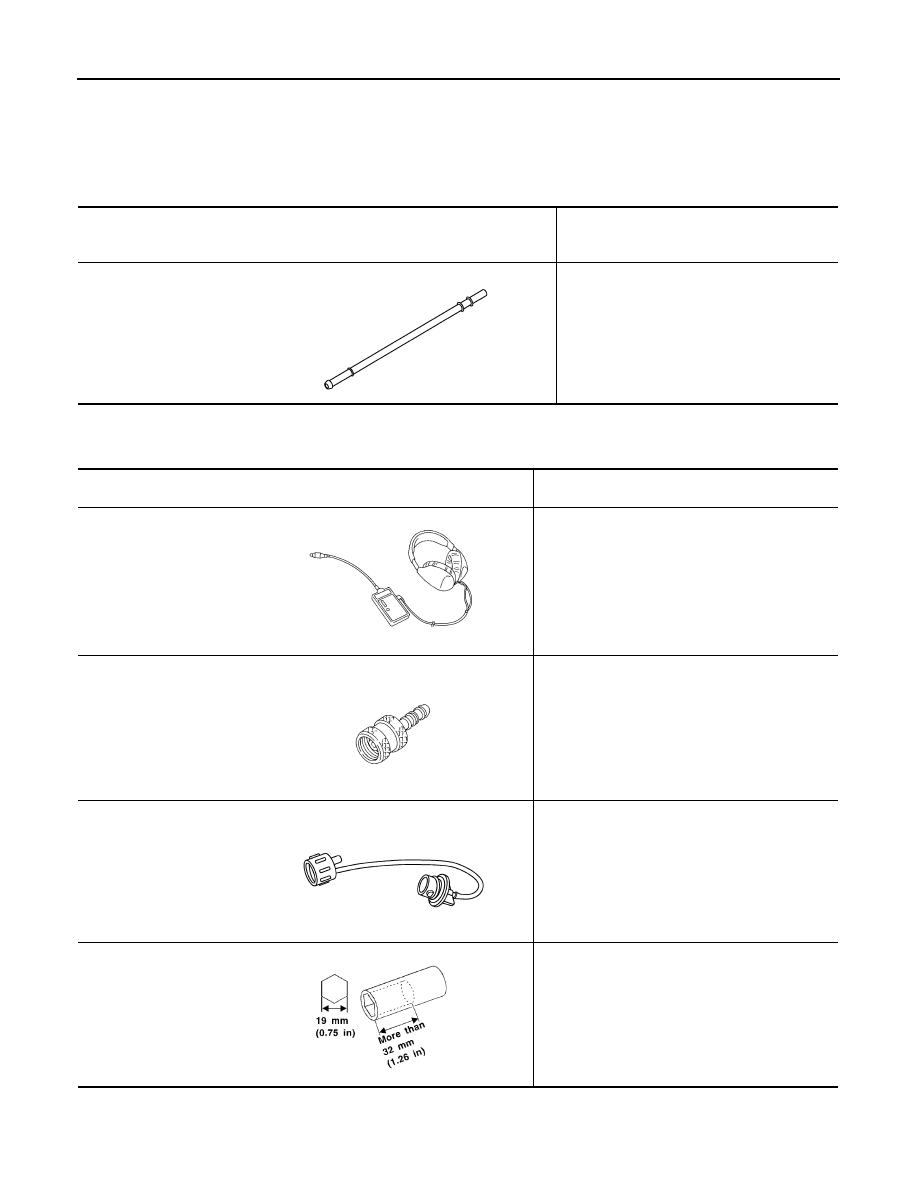

Special Service Tools

INFOID:0000000006217654

Commercial Service Tools

INFOID:0000000006217655

Tool number
(Kent-Moore No.)
Tool name

Description

KV10118400
(—)
Fuel tube adapter

Measures fuel pressure

PBIB3043E

Tool name
(Kent-Moore No.)

Description

Leak detector
i.e.: (J-41416)

Locates the EVAP leak

EVAP service port adapter
i.e.: (J-41413-OBD)

Applys positive pressure through EVAP service
port

Fuel filler cap adapter
i.e.: (MLR-8382)

Checks fuel tank vacuum relief valve opening
pressure

Socket wrench

Removes and installs engine coolant temperature
sensor

S-NT703

S-NT704

S-NT815

S-NT705

PREPARATION

EC-15

< PREPARATION >

[VK56VD]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

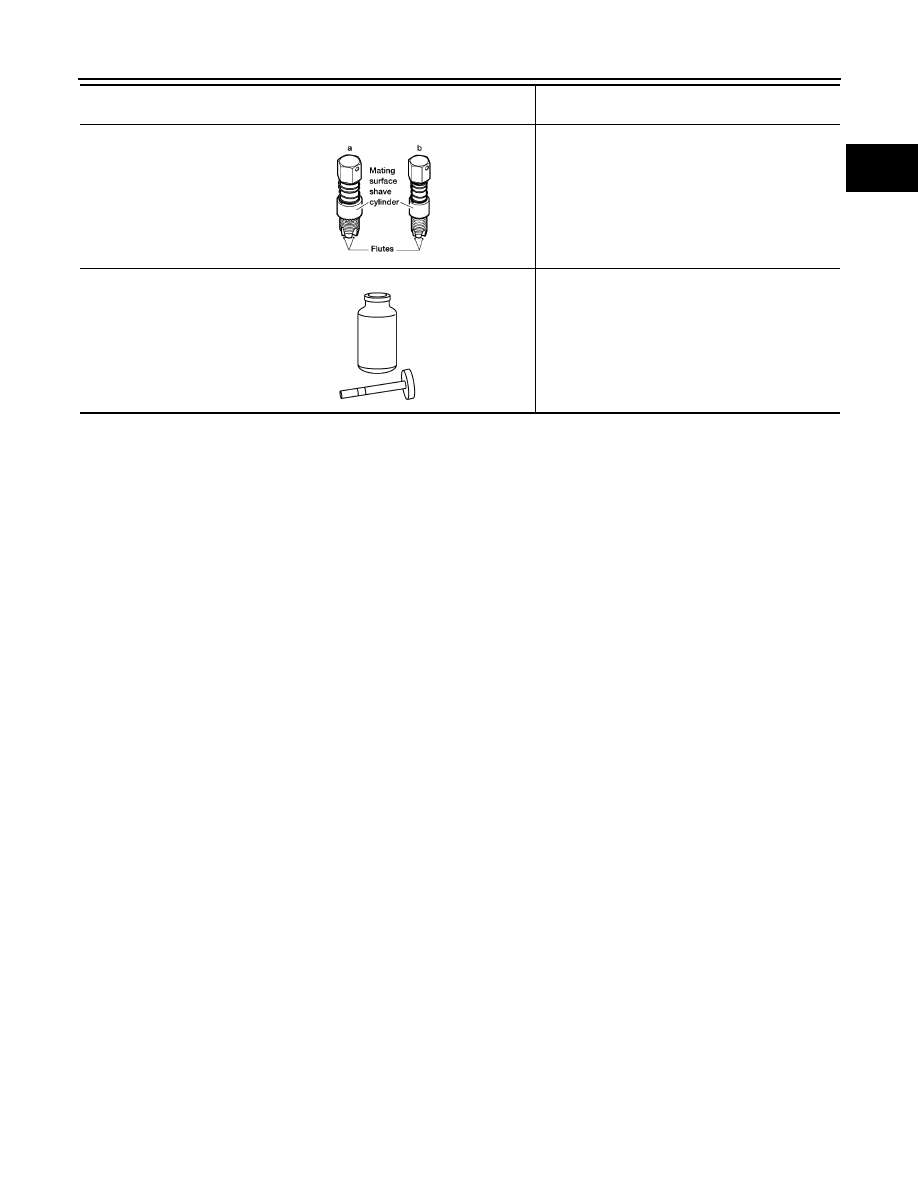

Oxygen sensor thread
cleaner
i.e.: (J-43897-18)
(J-43897-12)

Reconditions the exhaust system threads before
installing a new oxygen sensor. Use with anti-
seize lubricant shown below.
a: 18 mm diameter with pitch 1.5 mm for Zirco-
nia Oxygen Sensor
b: 12 mm diameter with pitch 1.25 mm for Tita-
nia Oxygen Sensor

Anti-seize lubricant i.e.:

(Permatex

TM

 133AR or

equivalent meeting MIL
specification MIL-A-907)

Lubricates oxygen sensor thread cleaning tool
when reconditioning exhaust system threads.

Tool name
(Kent-Moore No.)

Description

AEM488

S-NT779

EC-16

< SYSTEM DESCRIPTION >

[VK56VD]

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

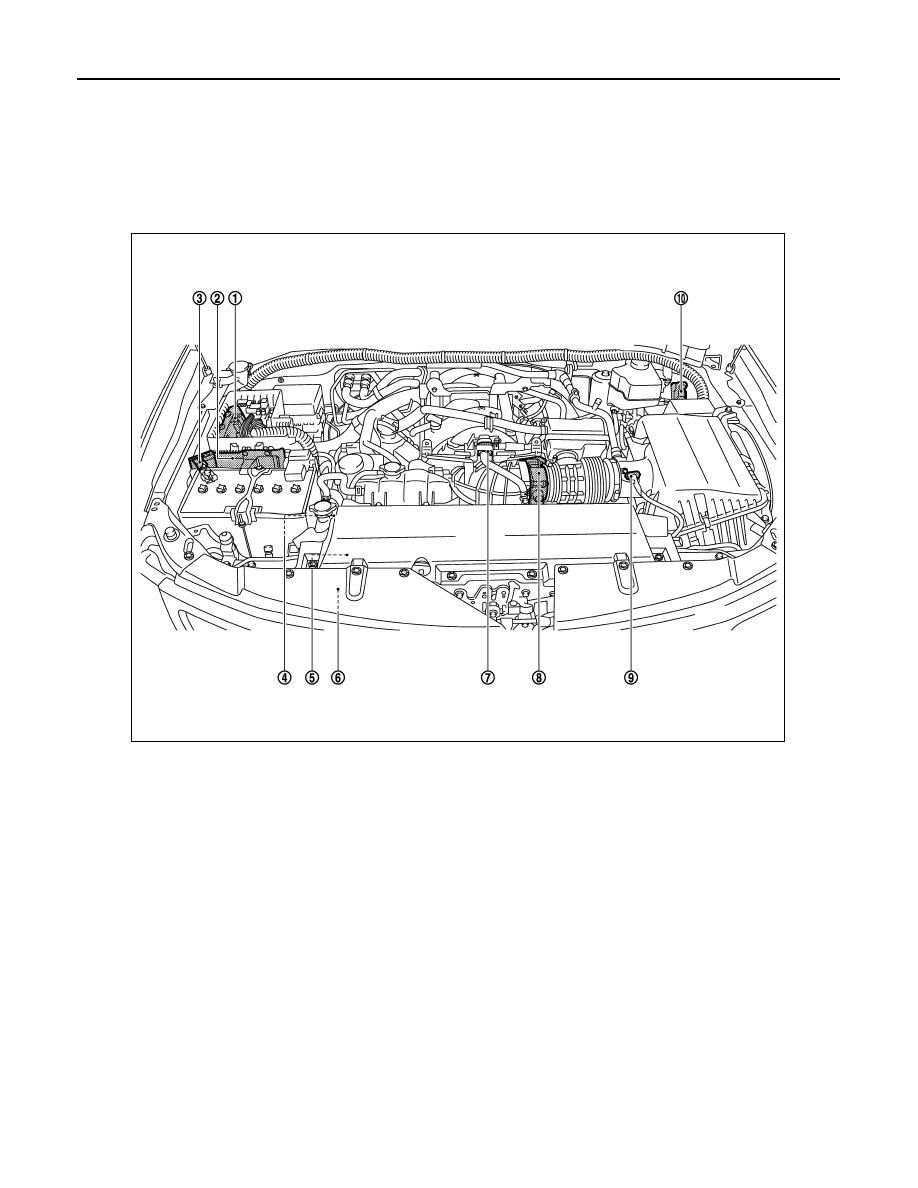

Component Parts Location

INFOID:0000000006217656

ENGINE ROOM COMPARTMENT

ENGINE COMPARTMENT

1.

IPDM E/R

2.

ECM

3.

Battery current sensor
(with battery temperature sensor)

4.

Power steering pressure sensor

5.

Alternator

6.

Refrigerant pressure sensor

7.

EVAP canister purge volume control
solenoid valve

8.

Electric throttle control actuator

9.

Mass air flow sensor
(with intake air temperature sensor)

10. VVEL control module

JSBIA0293ZZ

COMPONENT PARTS

EC-17

< SYSTEM DESCRIPTION >

[VK56VD]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

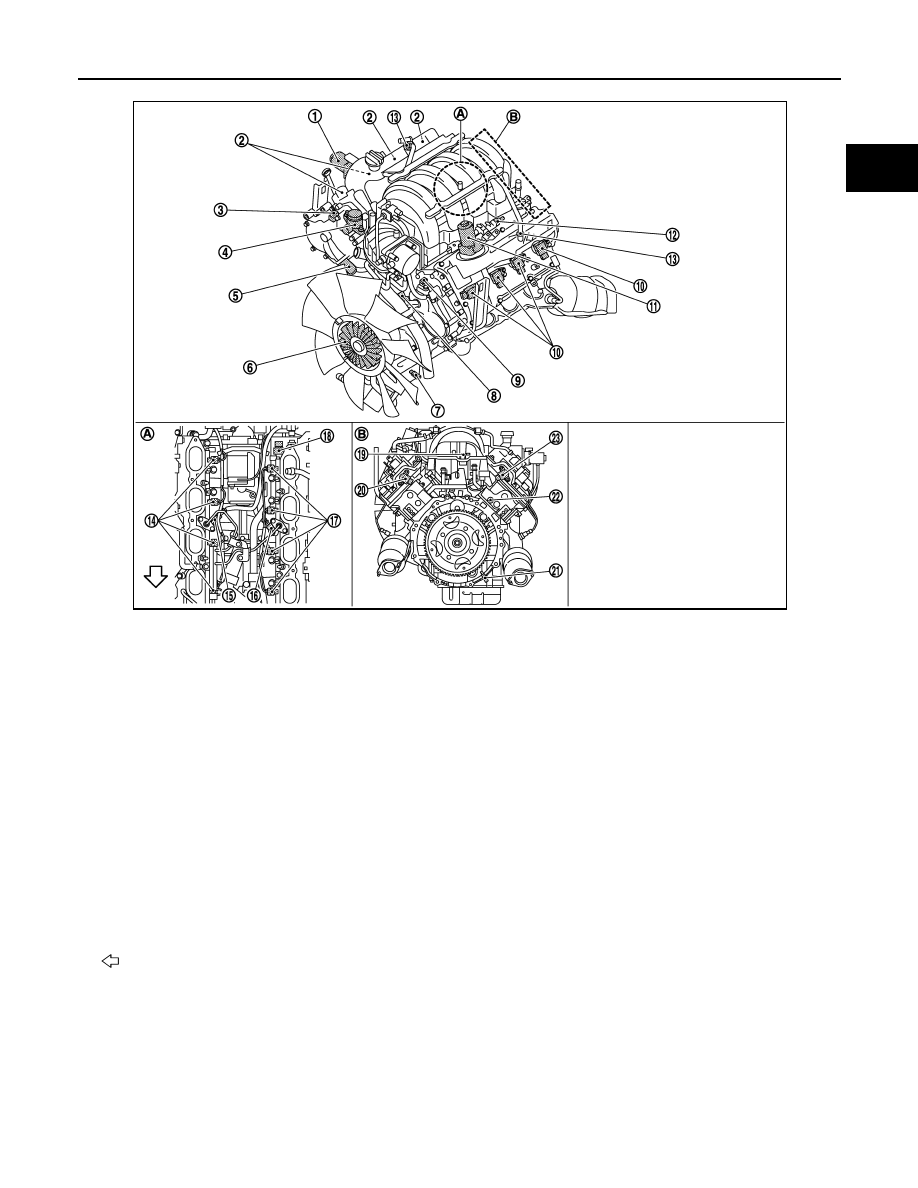

EXHAUST COMPARTMENT

1.

VVEL actuator motor (bank 2)

2.

Ignition coil (with power transistor)
and spark plug (bank 2)

3.

Camshaft position sensor (bank 2)

4.

High pressure fuel pump

5.

Intake valve timing control solenoid
valve (bank 2)

6.

Electric-viscous fan assembly

7.

Engine oil temperature sensor

8.

Intake valve timing control solenoid
valve (bank 1)

9.

Camshaft position sensor (bank 1)

10. Ignition coil (with power transistor)

and spark plug (bank 1)

11.

VVEL actuator motor (bank 1)

12. Low fuel pressure sensor

13. Positive crankcase ventilation (PCV)

valve

14. Fuel injector (bank 2)

15. Knock sensor (bank 2)

16. Knock sensor (bank 1)

17. Fuel injector (bank 1)

18. Fuel rail pressure sensor

19. Manifold absolute pressure sensor

20. VVEL control shaft position sensor

(bank 1)

21. Crankshaft position sensor

22. Engine coolant temperature sensor

23. VVEL control shaft position sensor

(bank 2)

A.

Top view of the engine
(View with intake manifold is re-
moved)

B.

Rear view of the engine

:Engine front

JPBIA3972ZZ
