Infiniti QX56 (Z62). Manual - part 465

DLN-60

< DTC/CIRCUIT DIAGNOSIS >

[TRANSFER: ATX90A]

P180E SENSOR POWER SUPPLY (8V)

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace error-detected parts.

3.

CHECK TRANSFER INTERNAL SPEED SENSOR POWER SUPPLY (2)

1.

Turn the ignition switch OFF.

2.

Connect transfer control actuator harness connector.

3.

Turn the ignition switch ON.

CAUTION:

Never start the engine.

4.

Check the voltage between transfer control actuator harness connector terminals.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Transfer internal speed sensor is malfunctioning. Replace transfer control actuator. Refer to

DLN-

114, "Removal and Installation"

.

4.

CHECK TERMINALS AND HARNESS CONNECTORS

Check the pin terminals for damage or loose connection with each harness connector.
Is the inspection result normal?

YES

>> Replace transfer control unit. Refer to

DLN-107, "Removal and Installation"

.

NO

>> Repair or replace error-detected parts.

Transfer control actuator

—

Continuity

Connector

Terminal

F52

7

Ground

Not existed

+

−

Voltage

Transfer control actuator

Connector

Terminal

F52

3

7

Approx. 8 V

P180F TRANSFER INTERNAL SPEED SENSOR

DLN-61

< DTC/CIRCUIT DIAGNOSIS >

[TRANSFER: ATX90A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

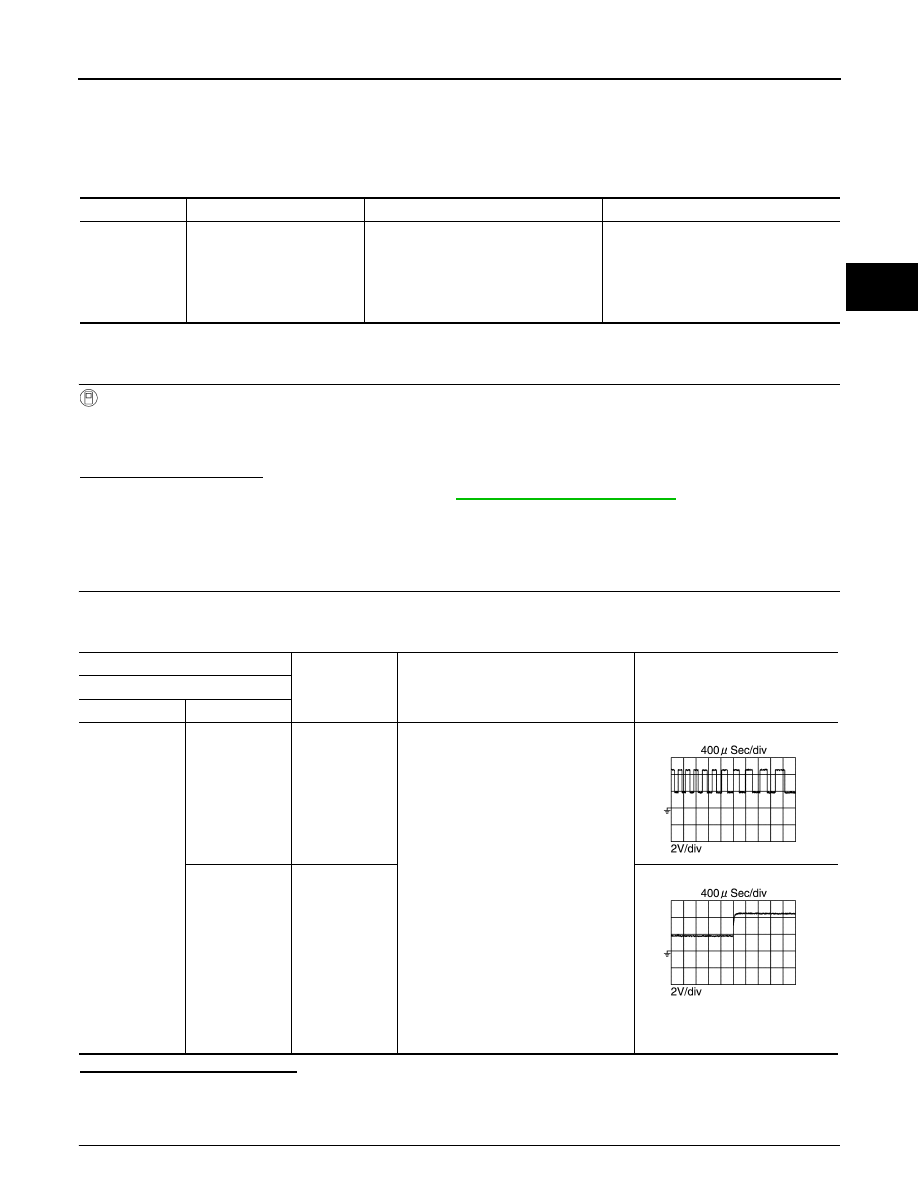

P180F TRANSFER INTERNAL SPEED SENSOR

DTC Logic

INFOID:0000000006222258

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

DTC REPRODUCTION PROCEDURE

With CONSULT-III

1.

Turn the ignition switch OFF to ON.

2.

Turn the 4WD shift switch AUTO

⇒

4H

⇒

4LO

⇒

4H

⇒

AUTO.

3.

Perform self-diagnosis for “ALL MODE AWD/4WD”.

Is DTC “P180F” detected?

YES

>> Proceed to diagnosis procedure. Refer to

DLN-61, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000006222259

1.

CHECK TRANSFER INTERNAL SPEED SENSOR SIGNAL

1.

Turn the ignition switch ON.

2.

Check the voltage between transfer control unit harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> GO TO 2.

2.

CHECK TRANSFER INTERNAL SPEED SENSOR POWER SUPPLY

DTC

Display item

Malfunction detected condition

Possible cause

P180F

MOTOR SYSTEM

• Malfunction is detected in transfer mo-

tor.

• Malfunction is detected in transfer in-

ternal speed sensor.

Transfer control actuator
• Transfer motor error
• Transfer internal speed sensor circuit

error

• Transfer assembly internal malfunc-

tion.

+

—

Condition

Voltage

Transfer control unit

Connector

Terminal

E59

10

Ground

4WD mode: AUTO
A/T shift selector: N
Depress accelerator pedal several time

31

Ground

NOTE:
When changing the transfer motor
rotation direction.

JPDIE0267GB

JPDIE0269GB

DLN-62

< DTC/CIRCUIT DIAGNOSIS >

[TRANSFER: ATX90A]

P180F TRANSFER INTERNAL SPEED SENSOR

1.

Turn the ignition switch OFF.

2.

Disconnect transfer control actuator harness connector.

3.

Turn the ignition switch ON.

4.

Check the voltage between transfer control actuator harness connector terminals.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 3.

3.

CHECK TRANSFER INTERNAL SPEED SENSOR POWER SUPPLY CIRCUIT

1.

Turn the ignition switch OFF.

2.

Disconnect transfer control unit harness connector.

3.

Check the continuity between transfer control unit harness connector and transfer control actuator har-
ness connector.

4.

Check the continuity between transfer control actuator harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair or replace error-detected parts.

4.

CHECK TRANSFER INTERNAL SPEED SENSOR SIGNAL CIRCUIT

1.

Turn the ignition switch OFF.

2.

Disconnect transfer control unit harness connector.

3.

Check the continuity between transfer control unit harness connector and transfer control actuator har-
ness connector.

4.

Check the continuity between transfer control actuator harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace error-detected parts.

+

−

Voltage

Transfer control actuator

Connector

Terminal

F52

3

7

8V

Transfer control unit

Transfer control actuator

Continuity

Connector

Terminal

Connector

Terminal

E59

39

F52

3

Existed

9

7

Transfer control actuator

—

Continuity

Connector

Terminal

F52

3

Ground

Not existed

Transfer control unit

Transfer control actuator

Continuity

Connector

Terminal

Connector

Terminal

E59

10

F52

2

Existed

31

6

Transfer control actuator

—

Continuity

Connector

Terminal

F52

2

Ground

Not existed

6

P180F TRANSFER INTERNAL SPEED SENSOR

DLN-63

< DTC/CIRCUIT DIAGNOSIS >

[TRANSFER: ATX90A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

5.

REPLACE TRANSFER CONTROL ACTUATOR

1.

Replace transfer control actuator. Refer to

DLN-114, "Removal and Installation"

.

2.

Perform confirmation procedure again. Refer to

DLN-57, "DTC Logic"

.

Is DTC “P180F” detected?

YES

>> GO TO 6.

NO

>> INSPECTION END

6.

CHECK TRANSFER INTERNAL FUNCTION

With CONSULT-III

1.

Remove transfer control actuator. Refer to

DLN-114, "Removal and Installation"

.

2.

Turn the actuator shaft. Refer to

DLN-114, "Inspection"

.

3.

Check “ROTARY POSI SEN” of CONSULT-III “DATA MONITOR” for “ALL MODE AWD/4WD”.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Transfer assembly is mechanical malfunction. Replace transfer assembly. Refer to

DLN-121,

"Removal and Installation"

.

7.

CHECK TERMINALS AND HARNESS CONNECTORS

Check the pin terminals for damage or loose connection with each harness connector.

Is the inspection result normal?

YES

>> Replace transfer control unit. Refer to

DLN-107, "Removal and Installation"

.

NO

>> Repair or replace error-detected parts.

Monitor item

Condition

Status

ROTARY POSI SEN

Turn the actuator shaft.

Value is changing
