REAR DOOR

1.

Remove center pillar lower garnish. Refer to

INT-22, "CENTER PILLAR LOWER GARNISH : Removal

and Installation"

.

2.

Loosen door hinge mounting nuts on door side.

3.

Adjust the surface height of rear door according to the fitting standard dimension.

4.

Temporarily tighten door hinge mounting nuts on door side.

5.

Loosen door hinge mounting nuts and bolts on body side.

6.

Raise rear door at rear end to adjust clearance of rear door according to the fitting standard dimension.

7.

After adjustment tighten bolts and nuts to the specified torque.

CAUTION:

• After installation, apply touch-up paint (the body color) onto the head of hinge mounting bolts

and nuts.

• Check door hinge rotating part for poor lubrication. If necessary, apply body grease.

8.

Install center pillar lower garnish. Refer to

INT-22, "CENTER PILLAR LOWER GARNISH : Removal and

Installation"

.

DOOR STRIKER ADJUSTMENT

Adjust door striker so that it becomes parallel with door lock insertion direction.

DOOR STRIKER

DOOR STRIKER : Removal and Installation

INFOID:0000000006226083

REMOVAL

Remove TORX bolts, and then remove door striker.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Check rear door open/close, after installation.
• After installation, be sure to perform the fitting adjustment. Refer to

DLK-229, "DOOR ASSEMBLY :

Adjustment"

.

DOOR HINGE

DOOR HINGE : Removal and Installation

INFOID:0000000006226084

CAUTION:

• Perform work with 2 workers, because of it’s heavy weight.
• When removing and installing rear door assembly, support door with a jack and shop cloth to pro-

tect door and body.

REMOVAL

1.

Remove rear door assembly. Refer to

DLK-228, "DOOR ASSEMBLY : Removal and Installation"

.

2.

Remove center pillar lower garnish. Refer to

INT-22, "CENTER PILLAR LOWER GARNISH : Removal

and Installation"

.

3.

Remove rear door hinge mounting bolts and nuts (body side), and then remove door hinge.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Apply anticorrosive agent onto the mounting surface.
• Check rear door open/close operation after installation.
• Check door hinge rotating part for poor lubrication. If necessary, apply body grease.
• When removing and installing rear door assembly, perform the fitting adjustment. Refer to

DLK-229,

"DOOR ASSEMBLY : Adjustment"

.

• After installing, apply the touch-up paint (the body color) onto the head of door hinge mounting nuts.

DOOR CHECK LINK

DOOR CHECK LINK : Removal and Installation

INFOID:0000000006226085

REMOVAL

REAR DOOR

DLK-231

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

1.

Fully close the rear door window.

2.

Remove rear door finisher. Refer to

INT-16, "Removal and Installation"

.

3.

Remove rear door speaker mounting bolts.

4.

Disconnect connector and remove rear door speaker.

5.

Remove mounting bolt of the check link on the vehicle.

6.

Remove mounting nuts of the check link on door panel.

7.

Take door check link out from the hole of door panel.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

Check rear door open/close operation after installation.

DLK-232

< REMOVAL AND INSTALLATION >

BACK DOOR

BACK DOOR

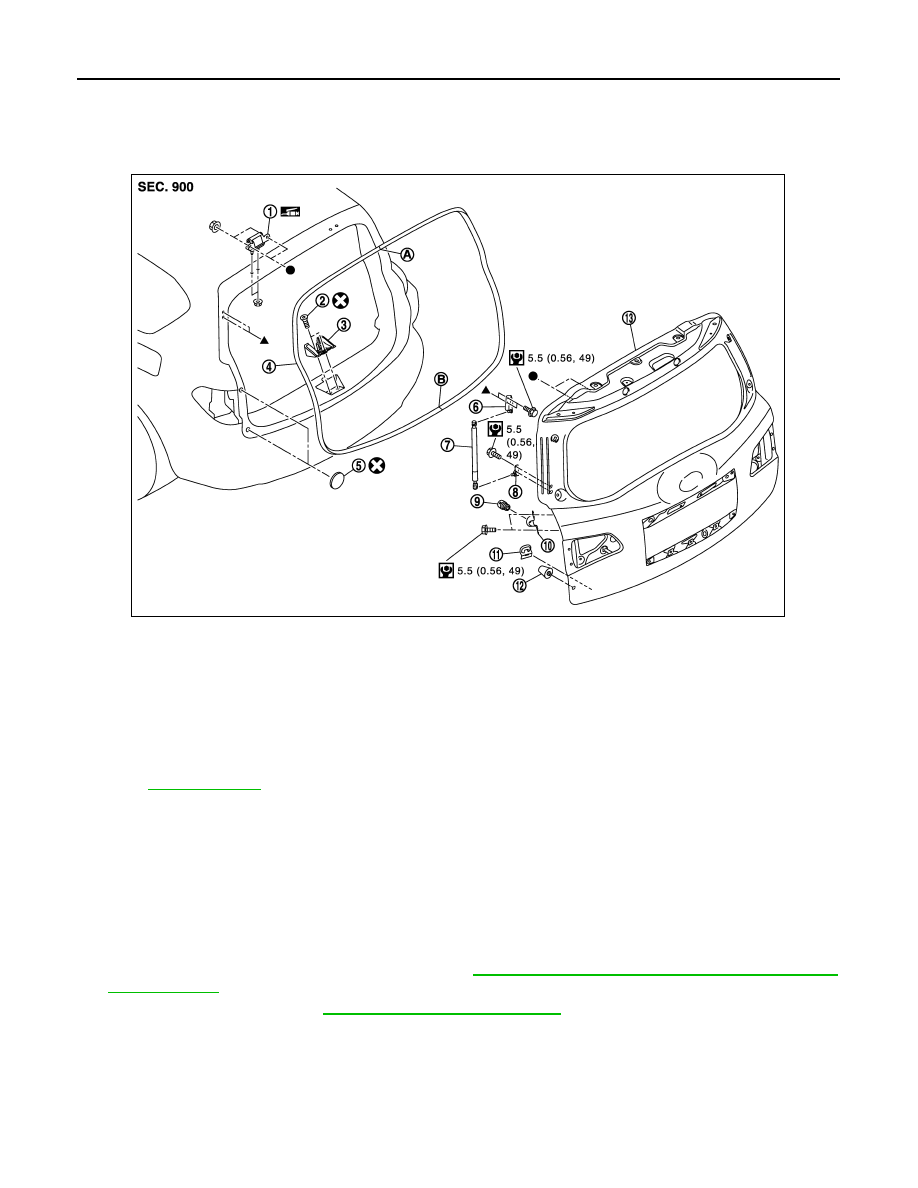

Exploded View

INFOID:0000000006226086

BACK DOOR ASSEMBLY

BACK DOOR ASSEMBLY : Removal and Installation

INFOID:0000000006226087

CAUTION:

• Operate with two workers, because of its heavy weight.
• Use protective tape or cloth to protect from damage during remove and installation.

REMOVAL

1.

Remove stud ball of back door support rod. Refer to

DLK-247, "BACK DOOR SUPPORT ROD : Removal

and Installation"

.

2.

Remove roof garnish. Refer to

INT-29, "Removal and Installation"

.

1.

Back door hinge

2.

TORX bolt

3.

Back door striker

4.

Back door weather-strip

5.

Stopper seal

6.

Back door stay bracket

7.

Back door stay

8.

Back door lower bracket

9.

Bumper rubber (side)

10. Bumper rubber bracket

11.

Drain plug

12. Bumper rubber (lower)

13. Back door assembly

A

: Center mark

B

:  Seam

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA5482GB

BACK DOOR

DLK-233

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

3.

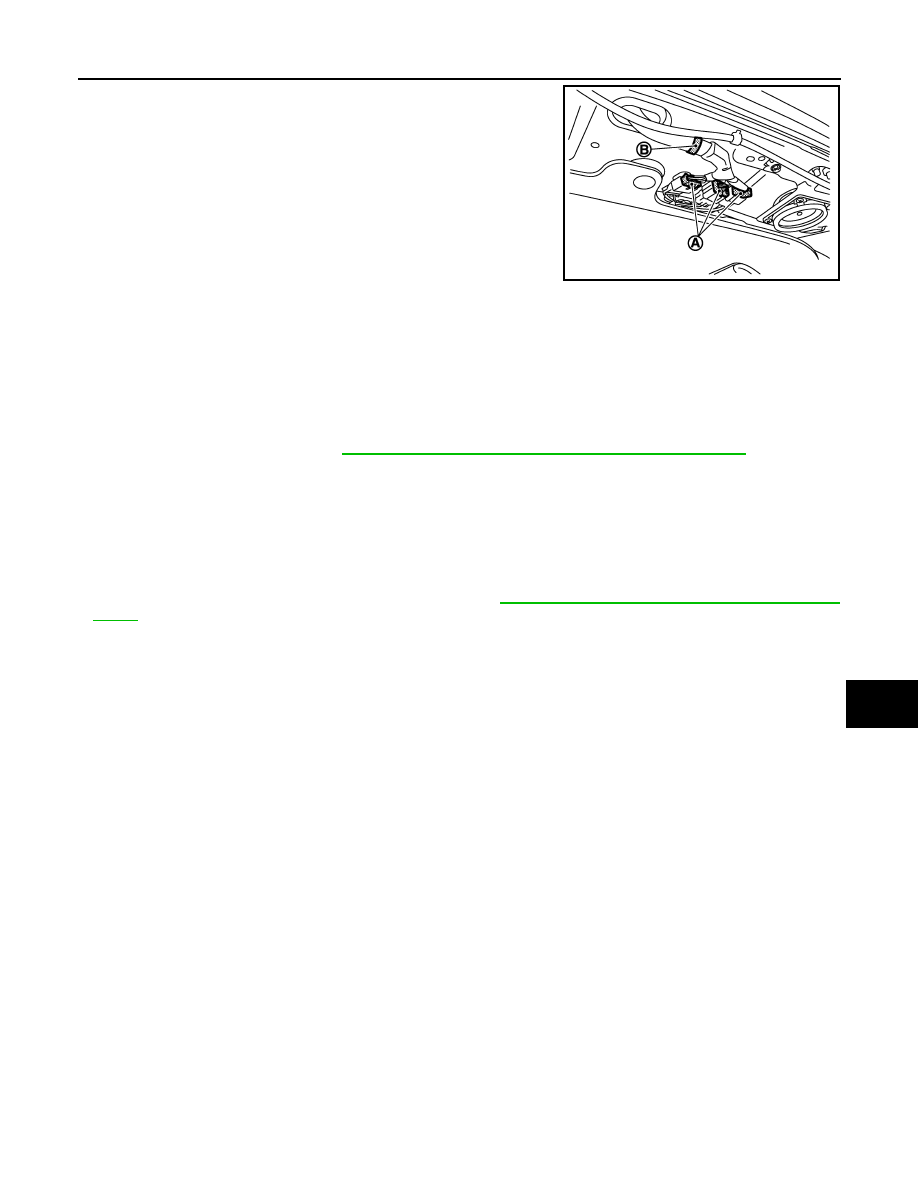

Disconnect back door harness connectors (A) and remove back
door harness clip (B).

4.

Remove back door harness grommet, and then pull harness out of vehicle through roof panel hole.

5.

Disconnect washer tube.

6.

Remove washer tube grommet, and then pull washer tube out of vehicle through roof panel hole.

7.

Support back door lock with the proper material to prevent it from falling.

WARNING:

Body injury may occur if no supporting rod is holding the back door open when removing the
back door stay.

8.

Remove back door stay. Refer to

DLK-236, "BACK DOOR STAY : Removal and Installation"

.

9.

Remove back door hinge mounting nuts on back door and remove back door assembly.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Apply anticorrosive agent onto the mounting surface.
• Check back door open/close, lock/unlock operation after installation.
• After installation, perform fitting adjustment. Refer to

DLK-234, "BACK DOOR ASSEMBLY : Adjust-

ment"

.

JMKIA5262ZZ
