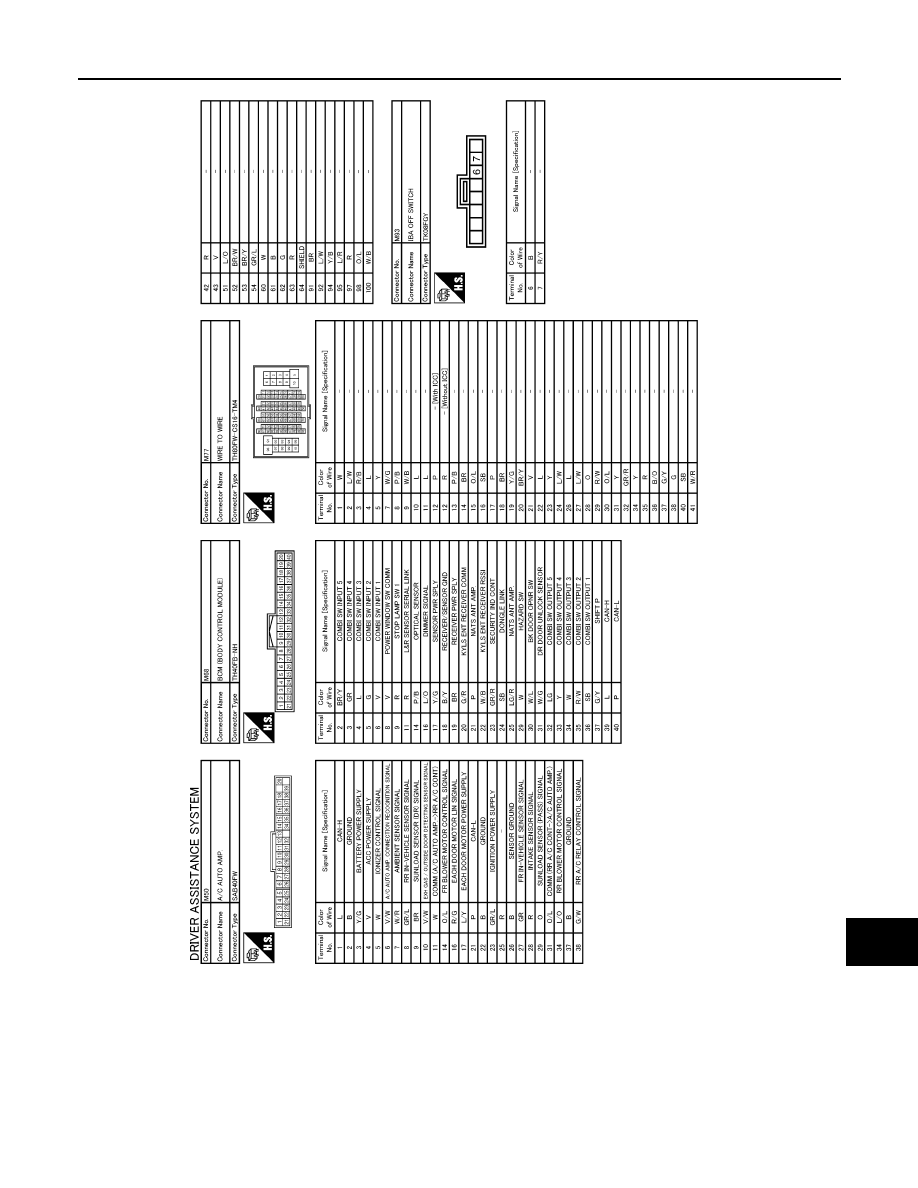

DRIVER ASSISTANCE SYSTEMS

DAS-329

< WIRING DIAGRAM >

[LDW & LDP]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

JCOWM0364GB

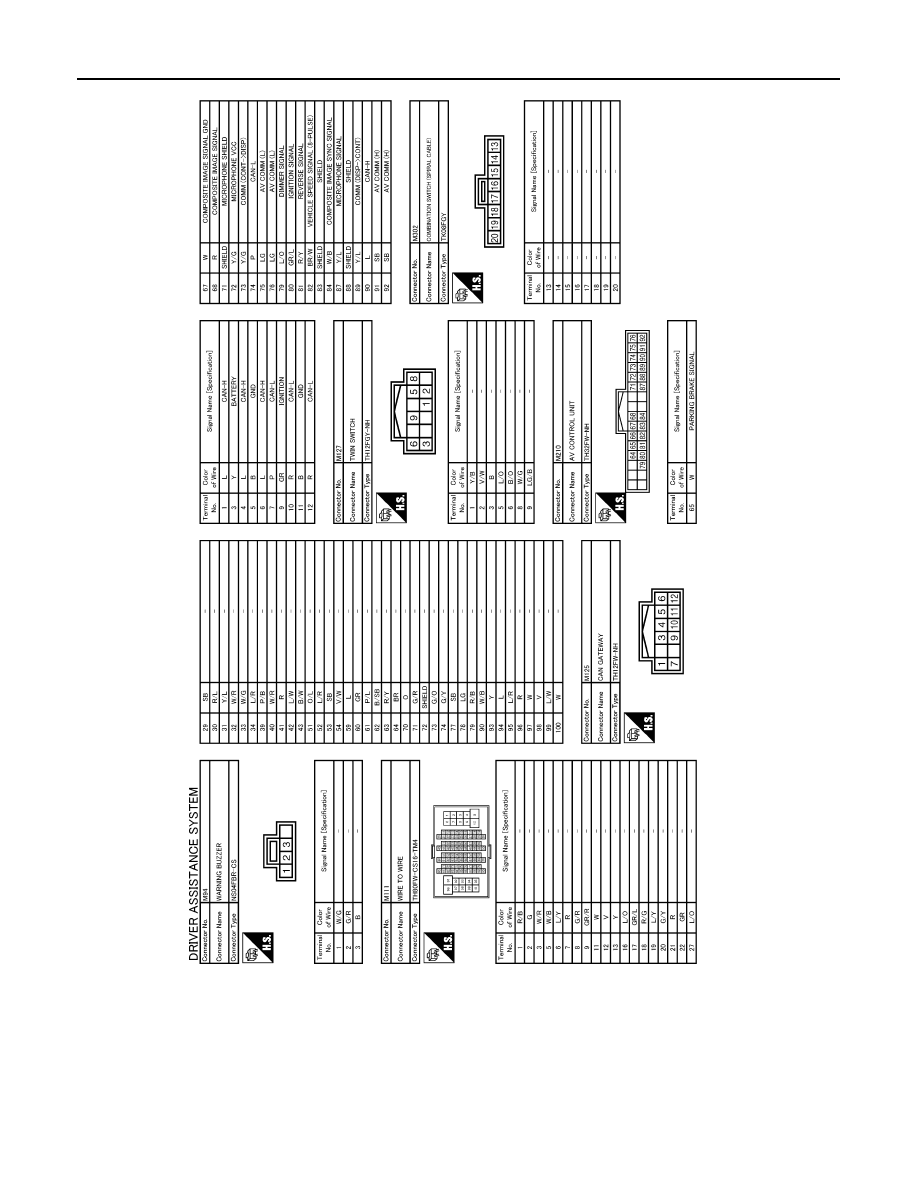

DAS-330

< WIRING DIAGRAM >

[LDW & LDP]

DRIVER ASSISTANCE SYSTEMS

JCOWM0365GB

DAS

DRIVER ASSISTANCE SYSTEMS

DAS-331

< WIRING DIAGRAM >

[LDW & LDP]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

JCOWM0366GB

DAS-332

< BASIC INSPECTION >

[LDW & LDP]

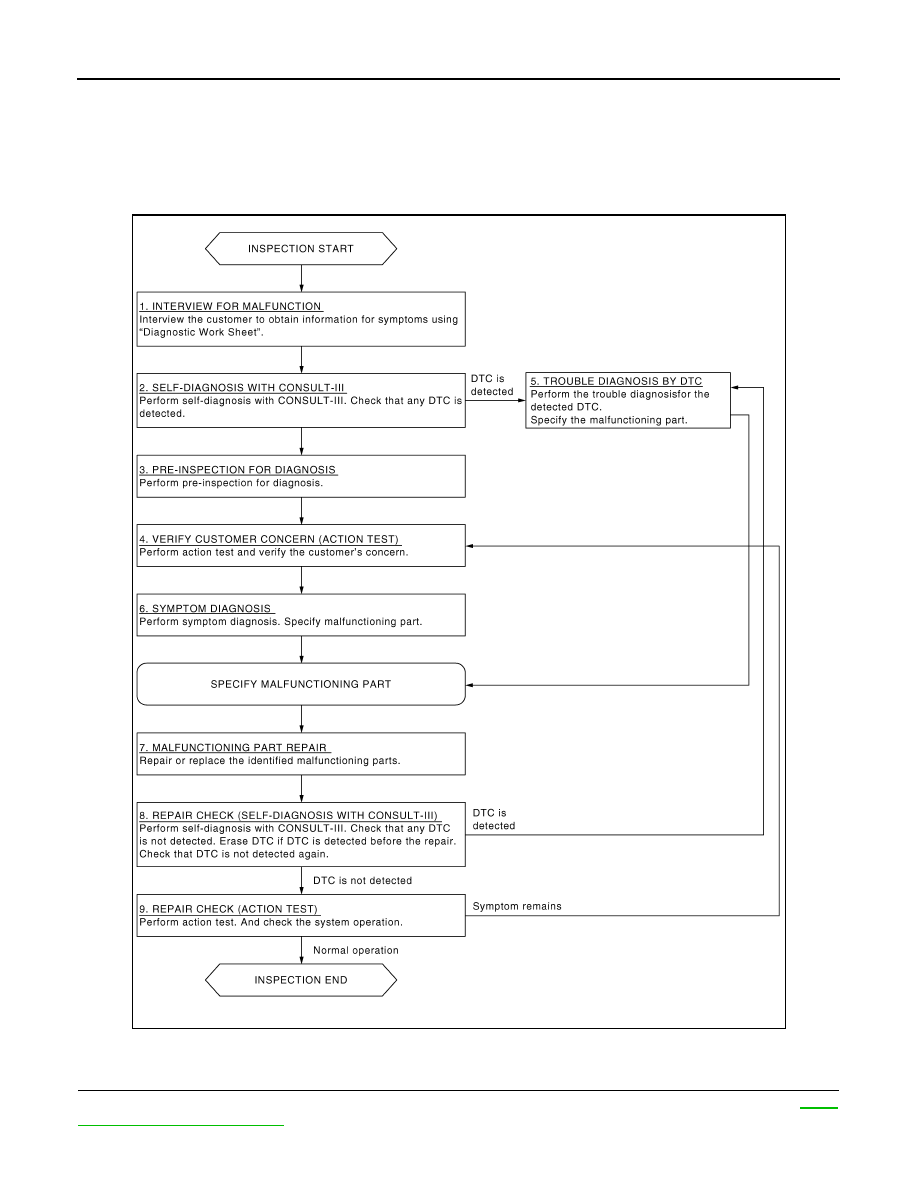

DIAGNOSIS AND REPAIR WORK FLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000006223727

OVERALL SEQUENCE

DETAILED FLOW

1.

INTERVIEW FOR MALFUNCTION

Interview the customer to obtain information about symptoms using “Diagnostic Work Sheet”. (Refer to

DAS-

333, "Diagnostic Work Sheet"

.)

JPOIA0010GB
