DAS
DIAGNOSIS SYSTEM (ADAS CONTROL UNIT)
DAS-29
< SYSTEM DESCRIPTION >
[ADAS CONTROL UNIT]
C
D
E
F
G
H
I
J
K
L
M
B
N
P
A
Active Pedal
CAUTION:
• Shift the selector lever to “P” position, and then perform the test.
• Never depress the accelerator pedal excessively. (The engine speed may rise unexpectedly when
finishing the test.)
NOTE:
• Depress the accelerator pedal to check when performing the test.
• The test can be performed only when the engine is running.
NOTE:
The test is finished in 10 seconds after starting
DCA INDICATOR
NOTE:
The test can be performed only when the engine is running.
LDP BUZZER
WARNING SYSTEM IND

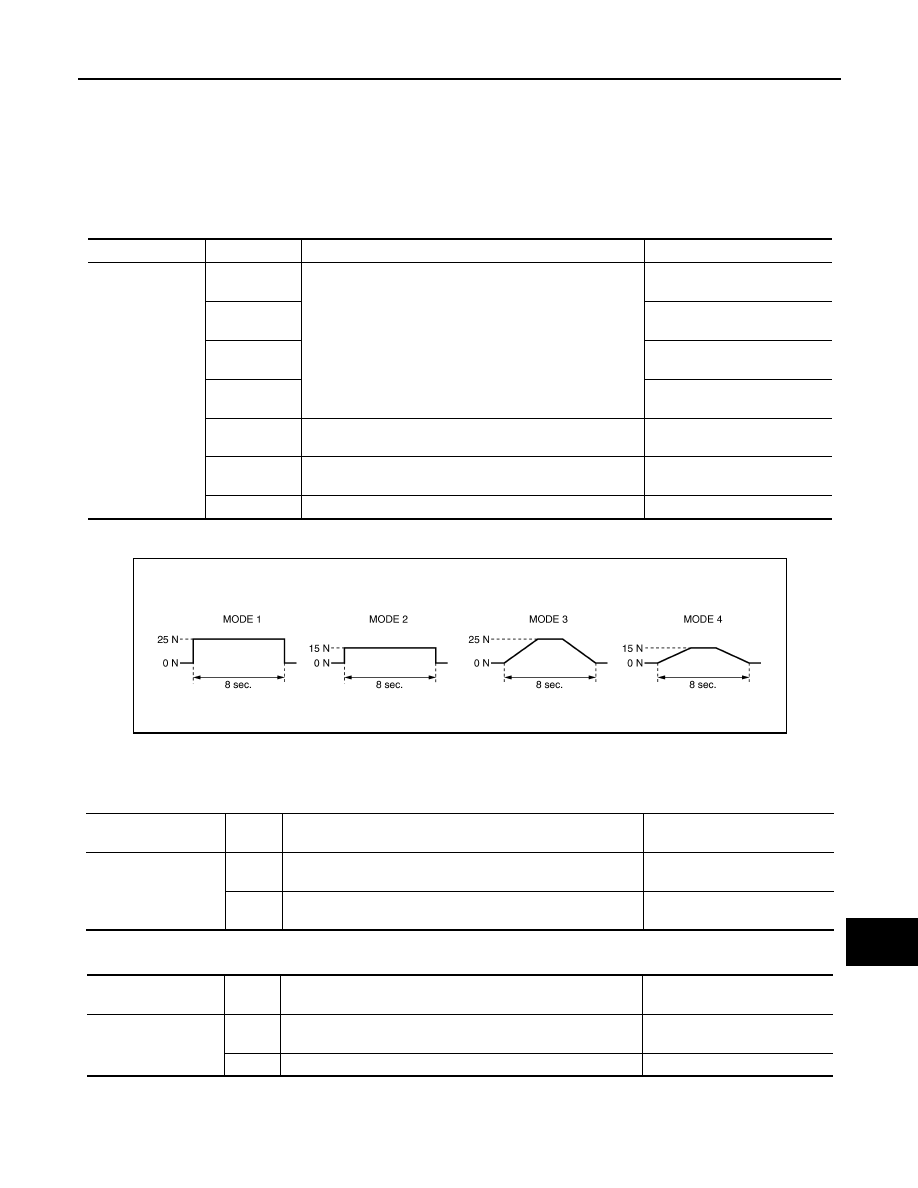

Test item
Operation
Description
Accelerator pedal operation
Active Pedal
MODE1
Transmit the accelerator pedal feedback force control signal
to the accelerator pedal actuator via ITS communication.
Constant with a force of 25 N
for 8 seconds
MODE2
Constant with a force of 15 N
for 8 seconds
MODE3
Change up to a force of 25 N for
8 seconds
MODE4
Change up to a force of 15 N for
8 seconds
Test start
Starts the tests of “MODE1”, “MODE2”, “MODE3” and
“MODE4”
—
Reset
Stops transmitting the accelerator pedal feedback force
control signal below to end the test.
—
End
Returns to the “SELECT TEST ITEM” screen
—
JPOIA0061GB
Test item
Opera-
tion
Description
DCA system switch indicator
DCA INDICATOR
Off
Stops transmitting the DCA system switch indicator signal be-
low to end the test
—
On
Transmits the DCA system switch indicator signal to the com-
bination meter via CAN communication
ON
Test item
Opera-
tion
Description
Warning buzzer
LDP BUZZER
Off
Stops transmitting the warning buzzer signal below to end the
test
—
On
Transmits the warning buzzer signal to the warning buzzer
ON
