SUNROOF MOTOR ASSEMBLY

RF-35

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

SUNROOF MOTOR ASSEMBLY

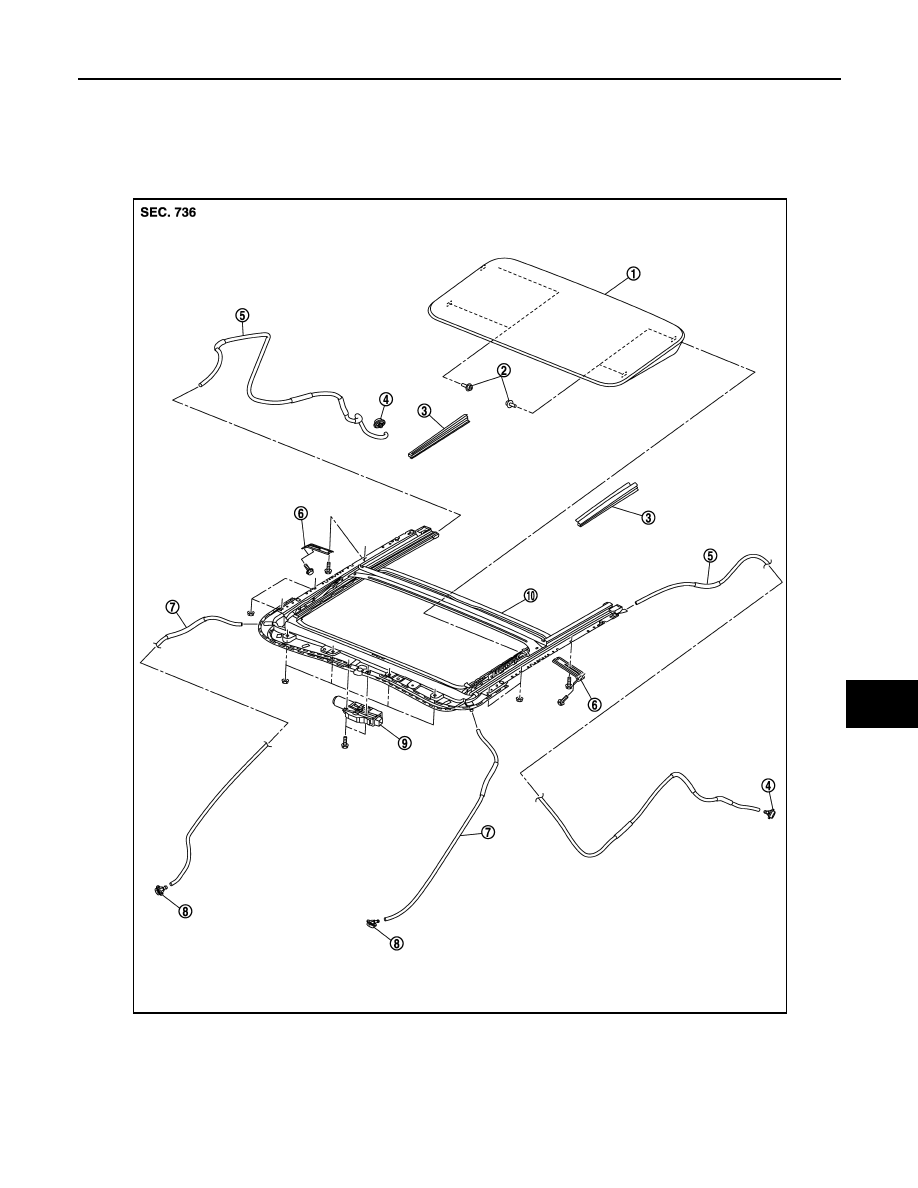

Exploded View

INFOID:0000000006141248

1.

Glass lid

2.

TORX bolt

3.

Side trim

4.

Rear drain connector

5.

Rear drain hose

6.

Sunroof bracket (LH,RH)

7.

Front drain hose

8.

Front drain connector

9.

Sunroof motor assembly

10. Sunroof unit assembly

JMKIA5212ZZ

RF-36

< REMOVAL AND INSTALLATION >

SUNROOF MOTOR ASSEMBLY

Removal and Installation

INFOID:0000000006141249

REMOVAL

CAUTION:

• Before removing sunroof motor, check that glass lid is fully closed.
• After removing sunroof motor, never attempt to rotate sunroof motor assembly as a single unit.

1.

Remove the headlining. Refer to

INT-29, "Removal and Installation"

.

2.

Disconnect connector from sunroof motor assembly.

3.

Remove sunroof motor assembly mounting screws, and then remove sunroof motor assembly.

INSTALLATION

CAUTION:

Before installing the sunroof motor assembly, be sure to the place the link and wire assembly in the
symmetrical and fully closed position.
1.

Move the sunroof motor assembly laterally by little so that the gear is completely engaged into the wire on
the sunroof unit assembly and mounting surface becomes parallel. Then secure the sunroof motor
assembly with screw.

2.

Install the headlining. Refer to

INT-29, "Removal and Installation"

.

SUNROOF UNIT ASSEMBLY

RF-37

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

SUNROOF UNIT ASSEMBLY

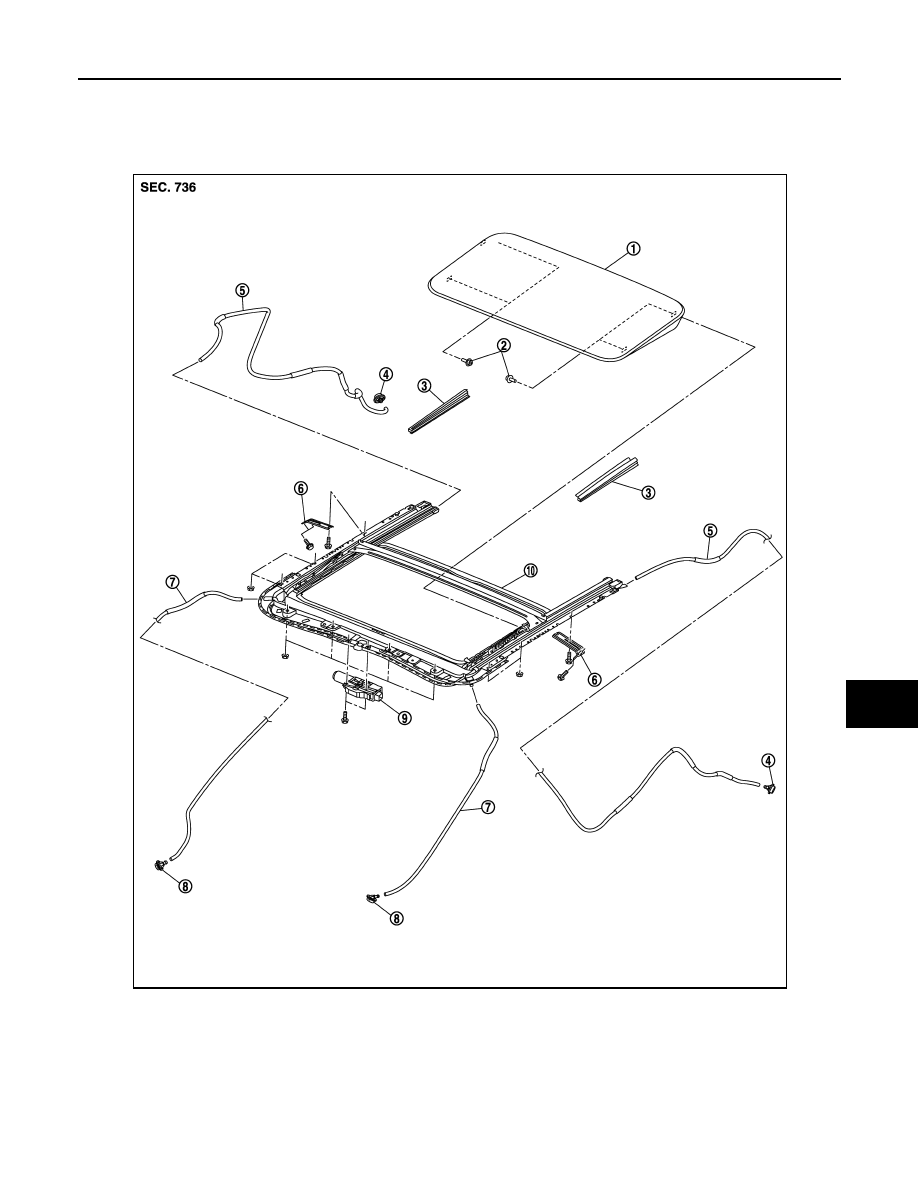

Exploded View

INFOID:0000000006141250

REMOVAL

DISASSEMBLY

1.

Glass lid

2.

TORX bolt

3.

Side trim

4.

Rear drain connector

5.

Rear drain hose

6.

Sunroof bracket (LH,RH)

7.

Front drain hose

8.

Front drain connector

9.

Sunroof motor assembly

10. Sunroof unit assembly

JMKIA5212ZZ

RF-38

< REMOVAL AND INSTALLATION >

SUNROOF UNIT ASSEMBLY

Removal and Installation

INFOID:0000000006141251

REMOVAL

CAUTION:

• Always work with a helper.
• Fully close the glass lid assembly, before removal, then never operate sunroof motor assembly after

removal.

• When taking sunroof unit out, use cloths to protect the seats and trim from damage.
• After installing the sunroof unit and glass lid, perform the leak test and check that there is no mal-

function.

1.

Remove the headlining. Refer to

INT-29, "Removal and Installation"

.

2.

Disconnect drain hoses.

3.

Remove the glass lid. Refer to

RF-33, "Removal and Installation"

.

4.

Remove the sunroof motor assembly. Refer to

RF-36, "Removal and Installation"

.

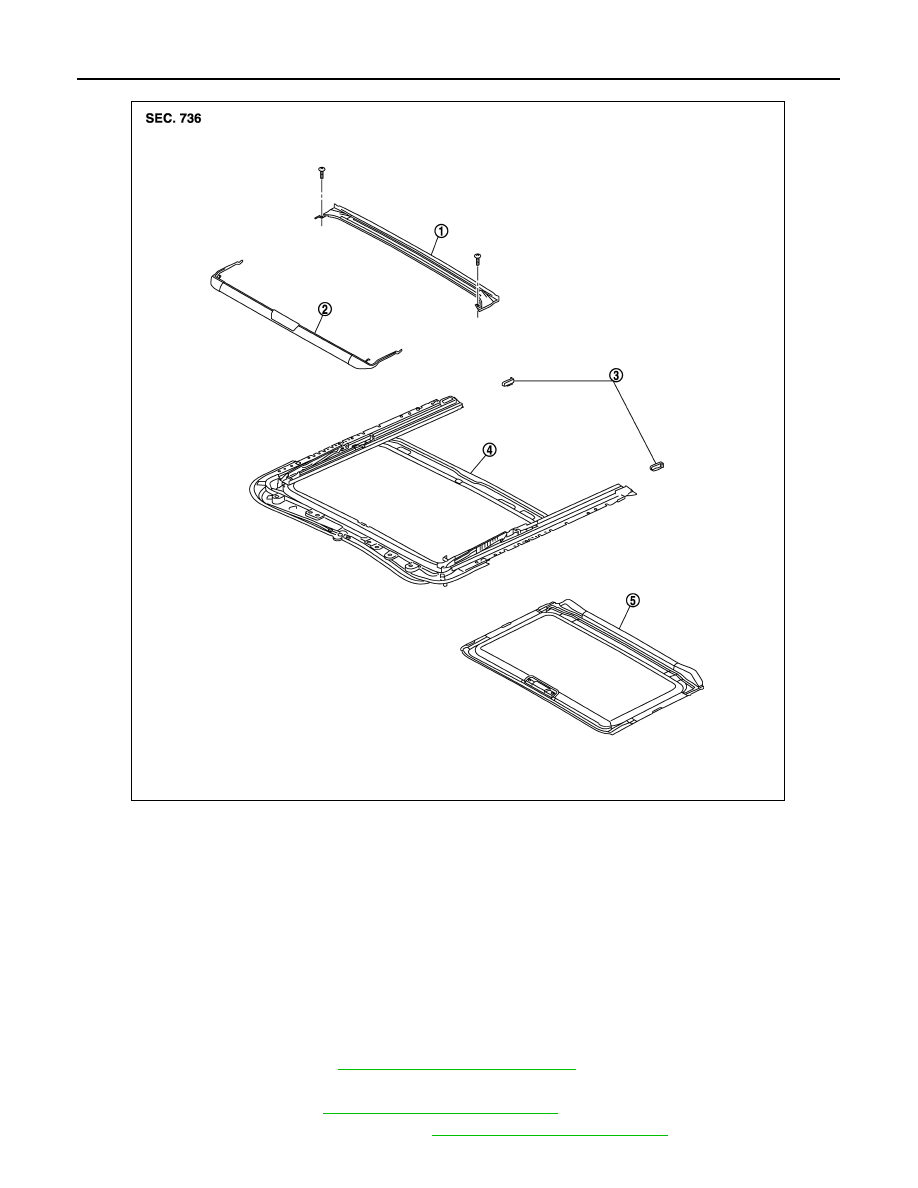

1.

Rear drain assembly

2.

Wind deflector

3.

Sunshade stopper

4.

Sunroof frame

5.

Sunshade

JMKIA5378ZZ
