CAN SYSTEM (TYPE 1)

LAN-53

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

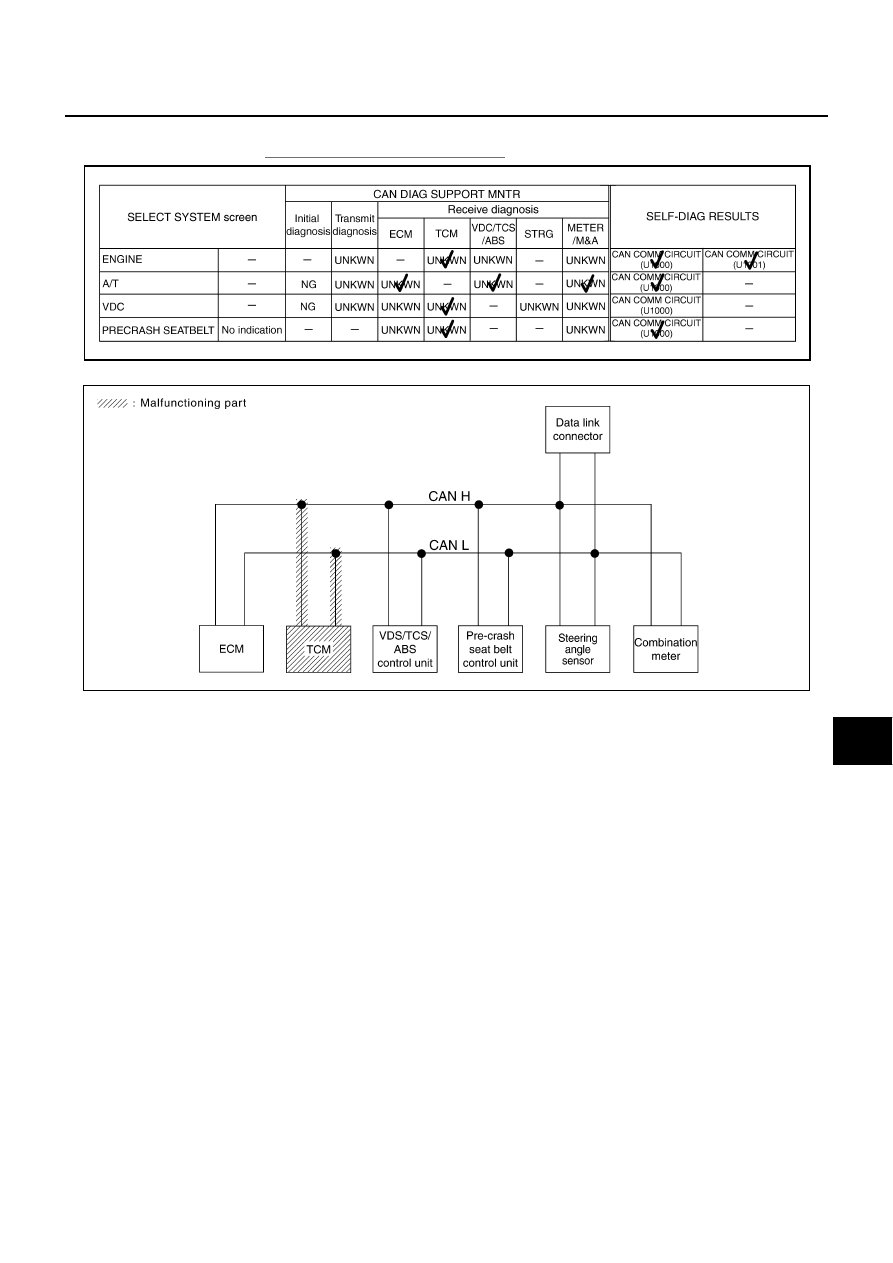

Case 5

Check TCM circuit. Refer to

LAN-103, "TCM Circuit Inspection"

 .

SKIB7463E

PKIA9833E

LAN-54

[CAN]

CAN SYSTEM (TYPE 1)

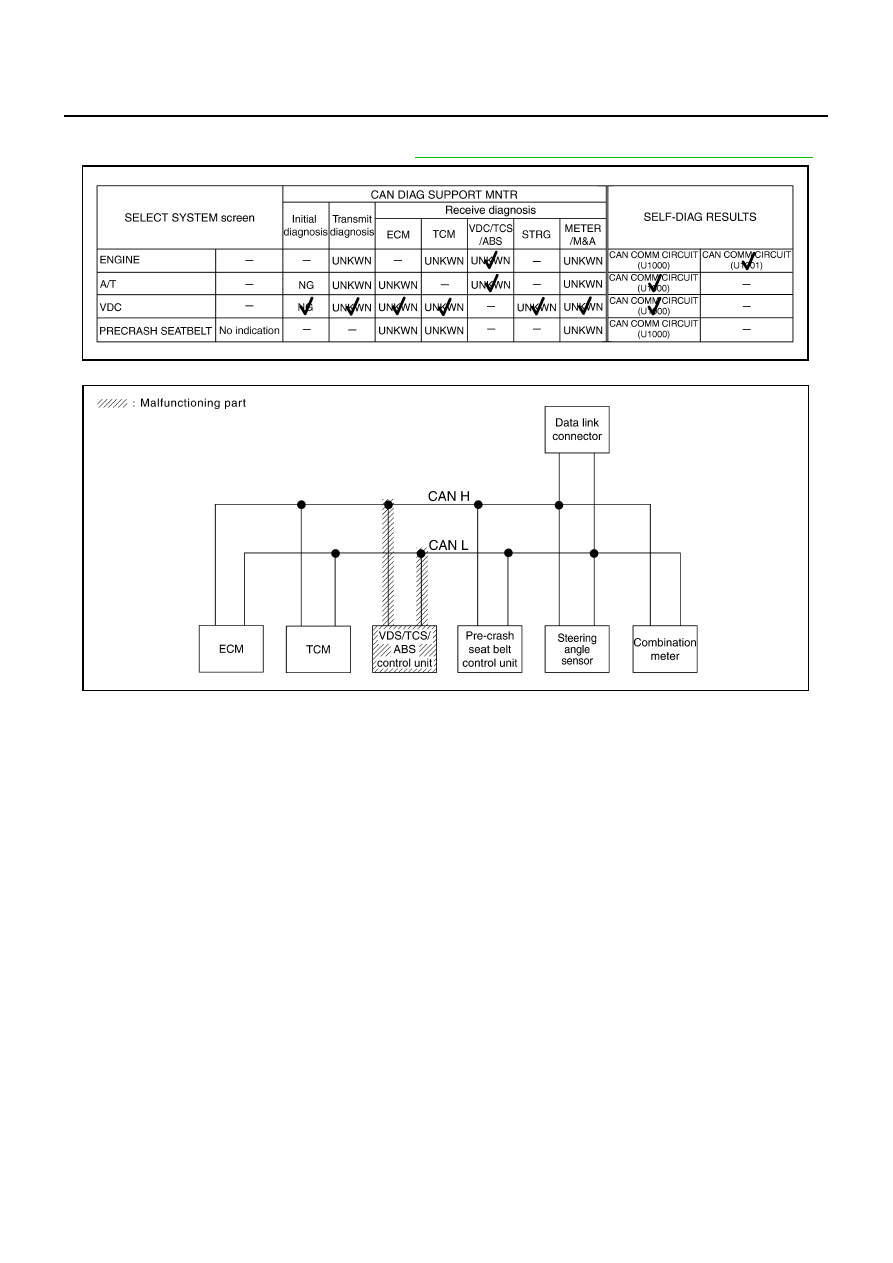

Case 6

Check VDC/TCS/ABS control unit circuit. Refer to

LAN-104, "VDC/TCS/ABS Control Unit Circuit Inspection"

 .

SKIB7464E

PKIA9834E

CAN SYSTEM (TYPE 1)

LAN-55

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

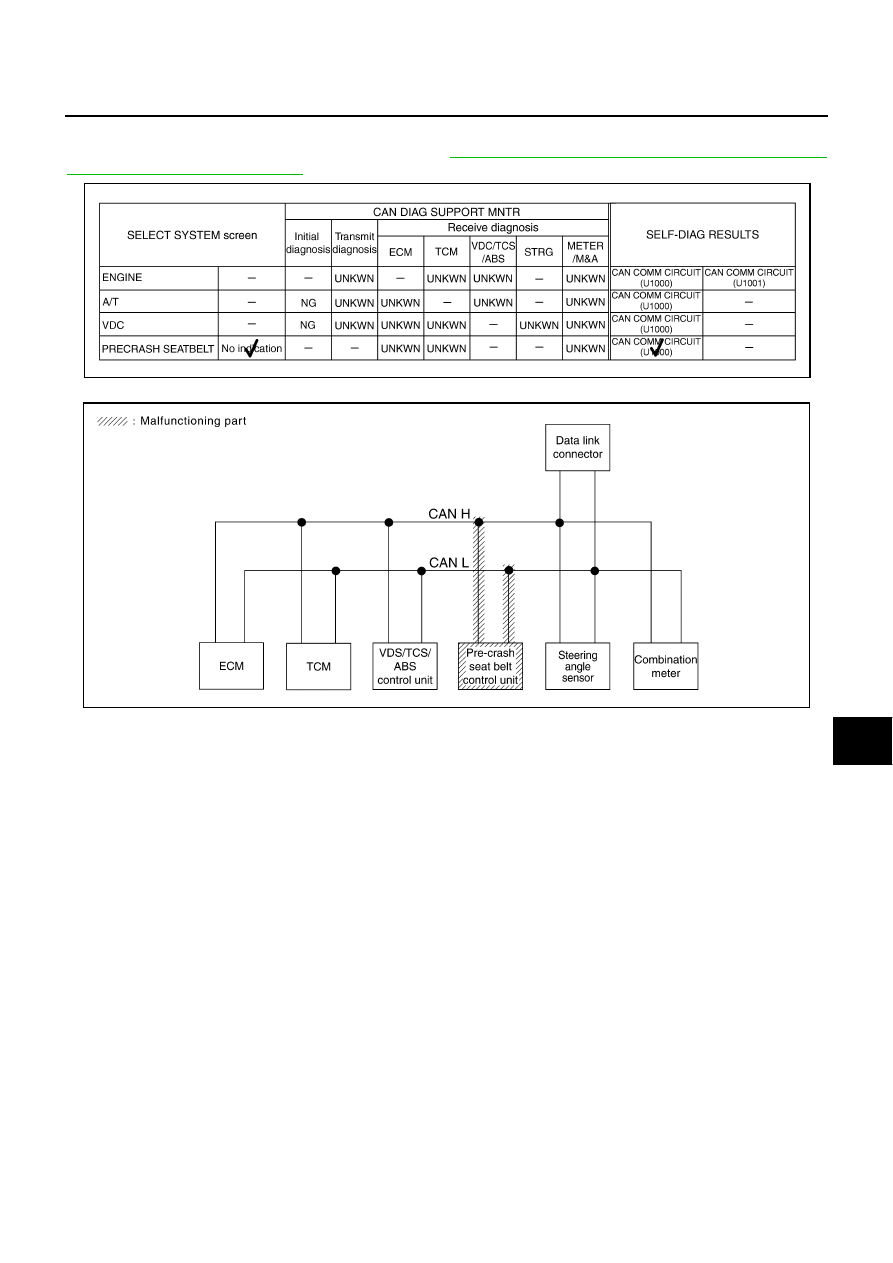

Case 7

Check pre-crash seat belt control unit circuit. Refer to

LAN-105, "Pre-Crash Seat Belt Control Unit and Data

Link Connector Circuit Inspection"

 .

SKIB7465E

PKIA9835E

LAN-56

[CAN]

CAN SYSTEM (TYPE 1)

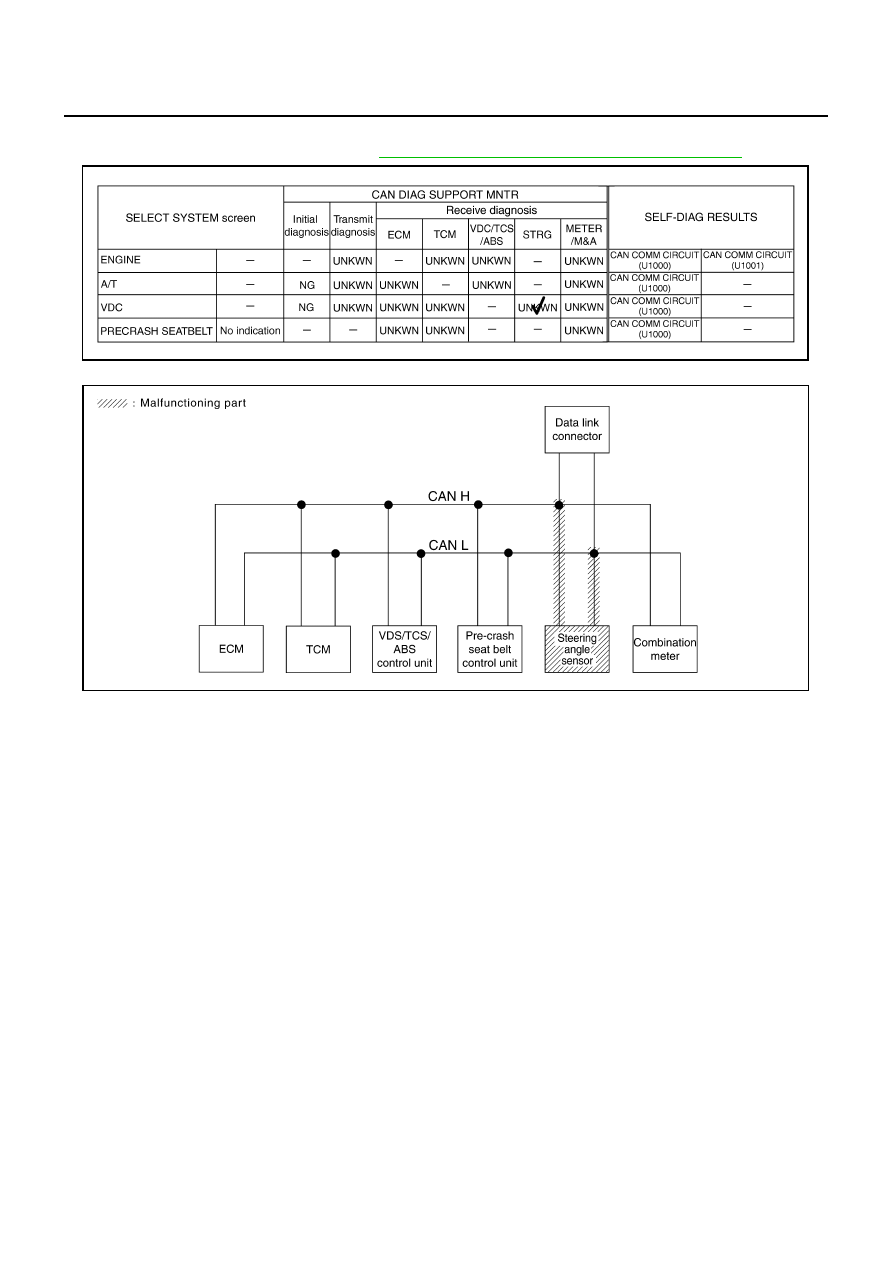

Case 8

Check steering angle sensor circuit. Refer to

LAN-108, "Steering Angle Sensor Circuit Inspection"

 .

SKIB7466E

PKIA9836E
