DTC P0133, P0153 A/F SENSOR 1

EC-275

C

D

E

F

G

H

I

J

K

L

M

A

EC

11.

CHECK PCV VALVE

Refer to

EC-44, "Component Inspection"

 .

OK or NG

OK

>> GO TO 12.

NG

>> Repair or replace PCV valve.

12.

CHECK INTERMITTENT INCIDENT

Perform

EC-145, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

 .

OK or NG

OK

>> GO TO 13.

NG

>> Repair or replace.

13.

REPLACE AIR FUEL RATIO (A/F) SENSOR 1

Replace air fuel ratio (A/F) sensor 1.

CAUTION:

●

Discard any A/F sensor which has been dropped from a height of more than 0.5 m (19.7 in) onto a
hard surface such as a concrete floor; use a new one.

●

Before installing new A/F sensor, clean exhaust system threads using Oxygen Sensor Thread
Cleaner tool J-43897-18 or J-43897-12 and approved anti-seize lubricant.

>> INSPECTION END

Removal and Installation

NBS002XQ

AIR FUEL RATIO (A/F) SENSOR 1

 Refer to

EM-23, "EXHAUST MANIFOLD AND THREE WAY CATALYST"

 .

EC-276

DTC P0137, P0157 HO2S2

DTC P0137, P0157 HO2S2

PFP:226A0

Component Description

NBS002XR

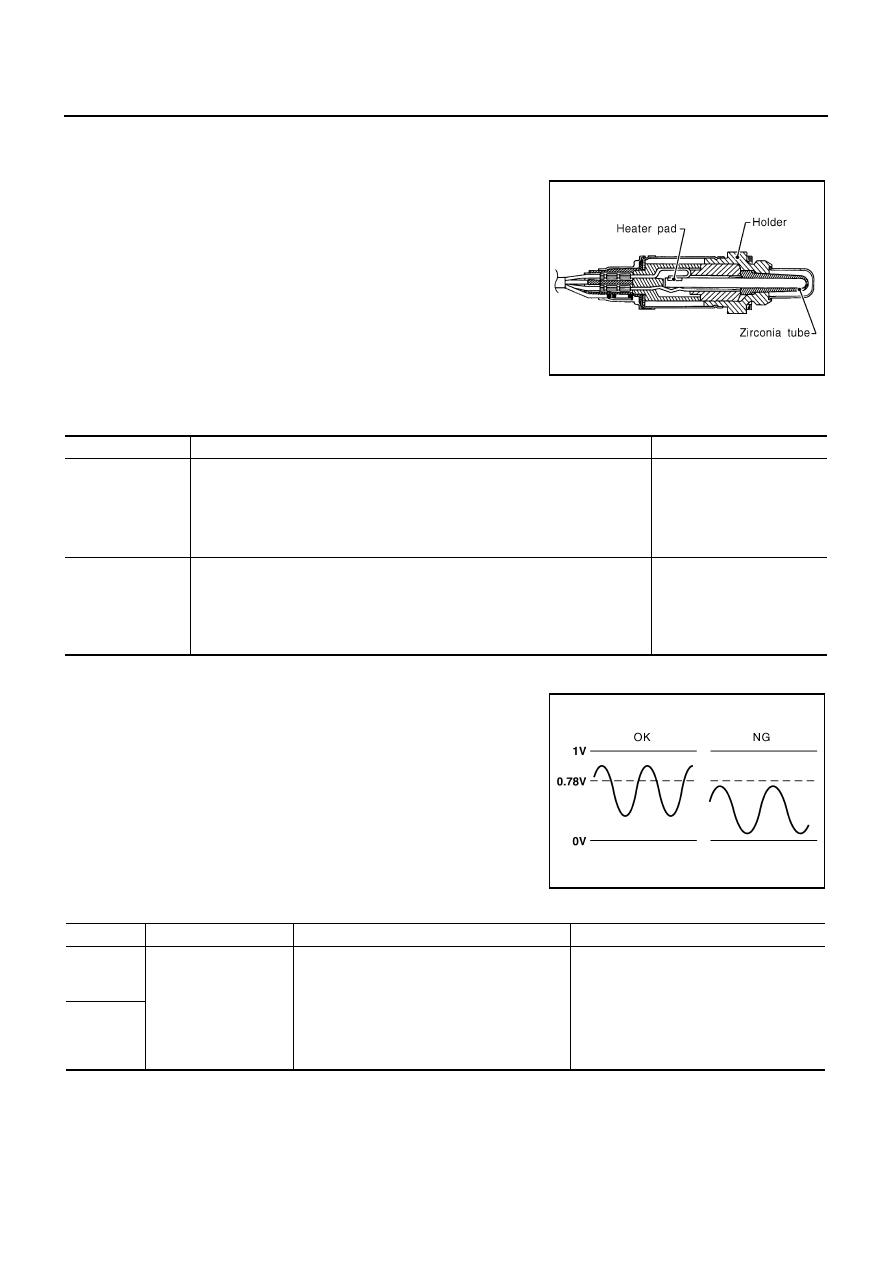

The heated oxygen sensor 2, after three way catalyst (manifold),
monitors the oxygen level in the exhaust gas on each bank.
Even if switching characteristics of the air fuel ratio (A/F) sensor 1
are shifted, the air-fuel ratio is controlled to stoichiometric, by the sig-
nal from the heated oxygen sensor 2.
This sensor is made of ceramic zirconia. The zirconia generates volt-
age from approximately 1V in richer conditions to 0V in leaner condi-
tions.
Under normal conditions the heated oxygen sensor 2 is not used for
engine control operation.

CONSULT-II Reference Value in Data Monitor Mode

NBS00217

Specification data are reference values.

On Board Diagnosis Logic

NBS00218

The heated oxygen sensor 2 has a much longer switching time
between rich and lean than the A/F sensor 1. The oxygen storage
capacity of the three way catalyst (manifold) causes the longer
switching time. To judge the malfunctions of heated oxygen sensor
2, ECM monitors whether the maximum voltage of the sensor is suf-
ficiently high during the various driving condition such as fuel-cut.

SEF327R

MONITOR ITEM

CONDITION

SPECIFICATION

HO2S2 (B1)
HO2S2 (B2)

●

Revving engine from idle to 3,000 rpm quickly after the following conditions
are met.

–

Engine: After warming up

–

Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute and at
idle for 1 minute under no load

0 - 0.3V

←→

 Approx. 0.6 -

1.0V

HO2S2 MNTR (B1)
HO2S2 MNTR (B2)

●

Revving engine from idle to 3,000 rpm quickly after the following conditions
are met.

–

Engine: After warming up

–

Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute and at
idle for 1 minute under no load

LEAN

←→

 RICH

PBIB2030E

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0137
0137
(Bank 1)

Heated oxygen sensor
2 circuit low voltage

The maximum voltage from the sensor is not
reached to the specified voltage.

●

Harness or connectors
(The sensor circuit is open or shorted)

●

Heated oxygen sensor 2

●

Fuel pressure

●

Fuel injector

●

Intake air leaks

P0157
0157
(Bank 2)

DTC P0137, P0157 HO2S2

EC-277

C

D

E

F

G

H

I

J

K

L

M

A

EC

DTC Confirmation Procedure

NBS00219

NOTE:
If DTC confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

 WITH CONSULT-II

TESTING CONDITION:
For better results, perform “DTC WORK SUPPORT” at a temperature of 0 to 30

°

C (32 to 86

°

F).

1.

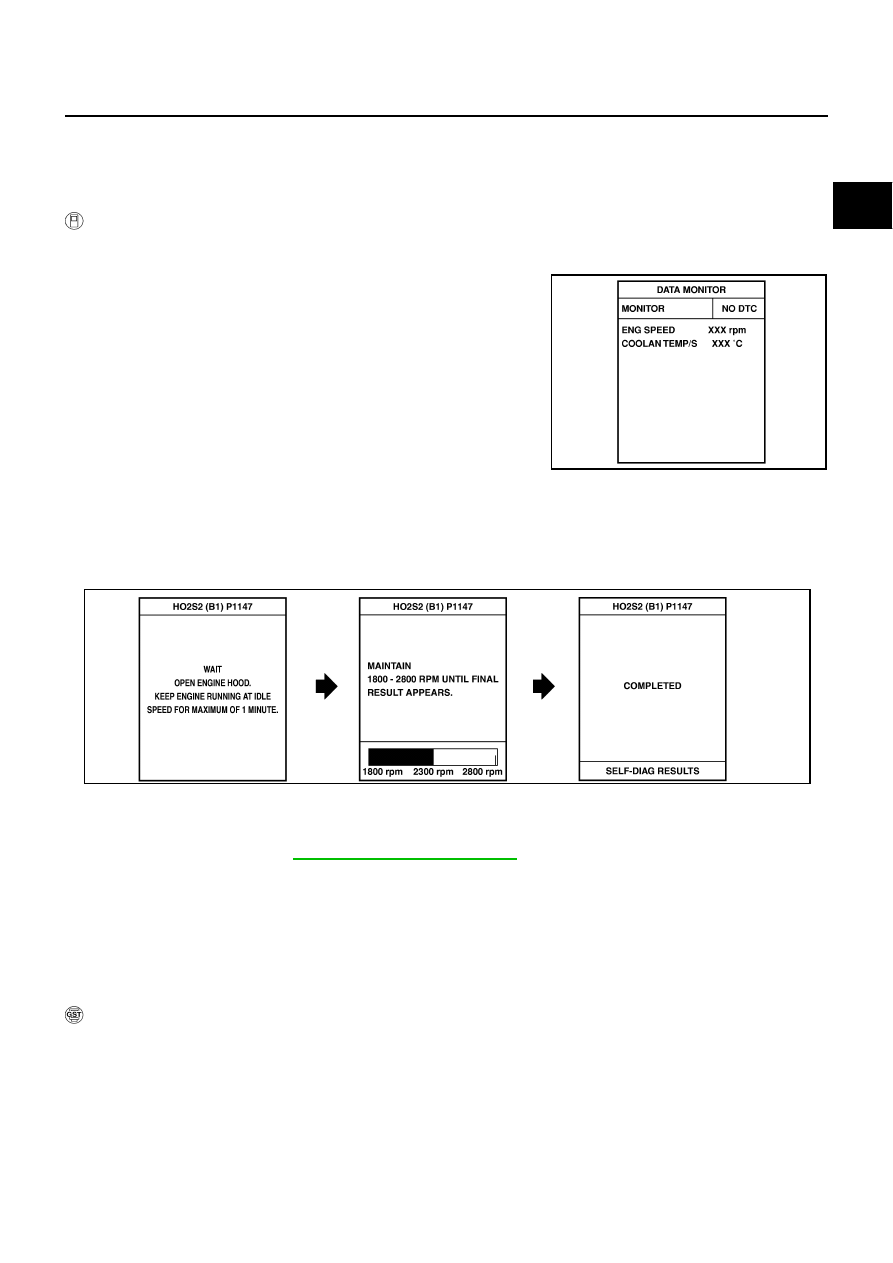

Turn ignition switch ON and select “DATA MONITOR” mode with
CONSULT-II.

2.

Start engine and warm it up to the normal operating tempera-
ture.

3.

Turn ignition switch OFF and wait at least 10 seconds.

4.

Start engine and keep the engine speed between 3,500 and
4,000 rpm for at least 1 minute under no load.

5.

Let engine idle for 1 minute.

6.

Make sure that “COOLAN TEMP/S” indicates more than 70

°

C

(158

°

F).

If not, warm up engine and go to next step when “COOLAN
TEMP/S” indication reaches to 70

°

C (158

°

F).

7.

Open engine hood.

8.

Select “HO2S2 (B1) P1147” (for DTC P0137) or “HO2S2 (B2) P1167” (for DTC P0157) of “HO2S2” in
“DTC WORK SUPPORT” mode with CONSULT-II.

9.

Start engine and following the instruction of CONSULT-II.

NOTE:
It will take at most 10 minutes until “COMPLETED” is displayed.

10. Make sure that “OK” is displayed after touching “SELF-DIAG RESULTS”.

If “NG” is displayed, refer to

EC-282, "Diagnostic Procedure"

 .

If “CAN NOT BE DIAGNOSED” is displayed, perform the following.

a.

Turn ignition switch OFF and leave the vehicle in a cool place (soak the vehicle).

b.

Return to step 1.

Overall Function Check

NBS0021A

Use this procedure to check the overall function of the heated oxygen sensor 2 circuit. During this check, a 1st
trip DTC might not be confirmed.

 WITH GST

1.

Start engine and warm it up to the normal operating temperature.

2.

Turn ignition switch OFF and wait at least 10 seconds.

3.

Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1 minute under no load.

4.

Let engine idle for 1 minute.

5.

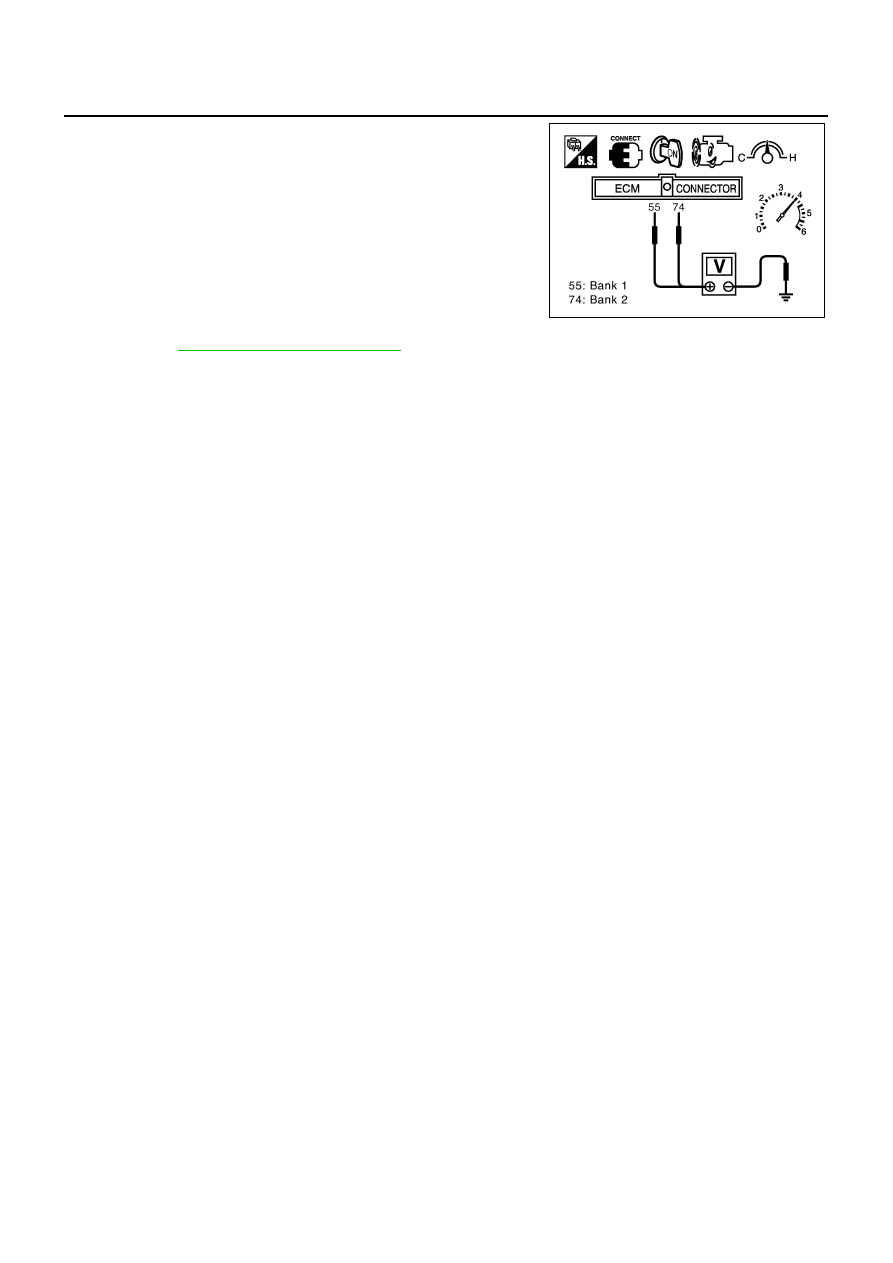

Set voltmeter probes between ECM terminal 55 [HO2S2 (B1) signal] or 74 [HO2S2 (B2) signal] and
ground.

SEF174Y

PBIB2373E

EC-278

DTC P0137, P0157 HO2S2

6.

Check the voltage when revving up to 4,000 rpm under no load
at least 10 times.
(Depress and release accelerator pedal as soon as possible.)
The voltage should be above 0.78V at least once during this
procedure.
If the voltage can be confirmed in step 6, step 7 is not nec-
essary.

7.

Keep vehicle at idling for 10 minutes, then check the voltage. Or
check the voltage when coasting from 80 km/h (50 MPH) in D
position.
The voltage should be above 0.78V at least once during this
procedure.

8.

If NG, go to

EC-282, "Diagnostic Procedure"

 .

PBIB2024E
