Infiniti Q45. Manual - part 204

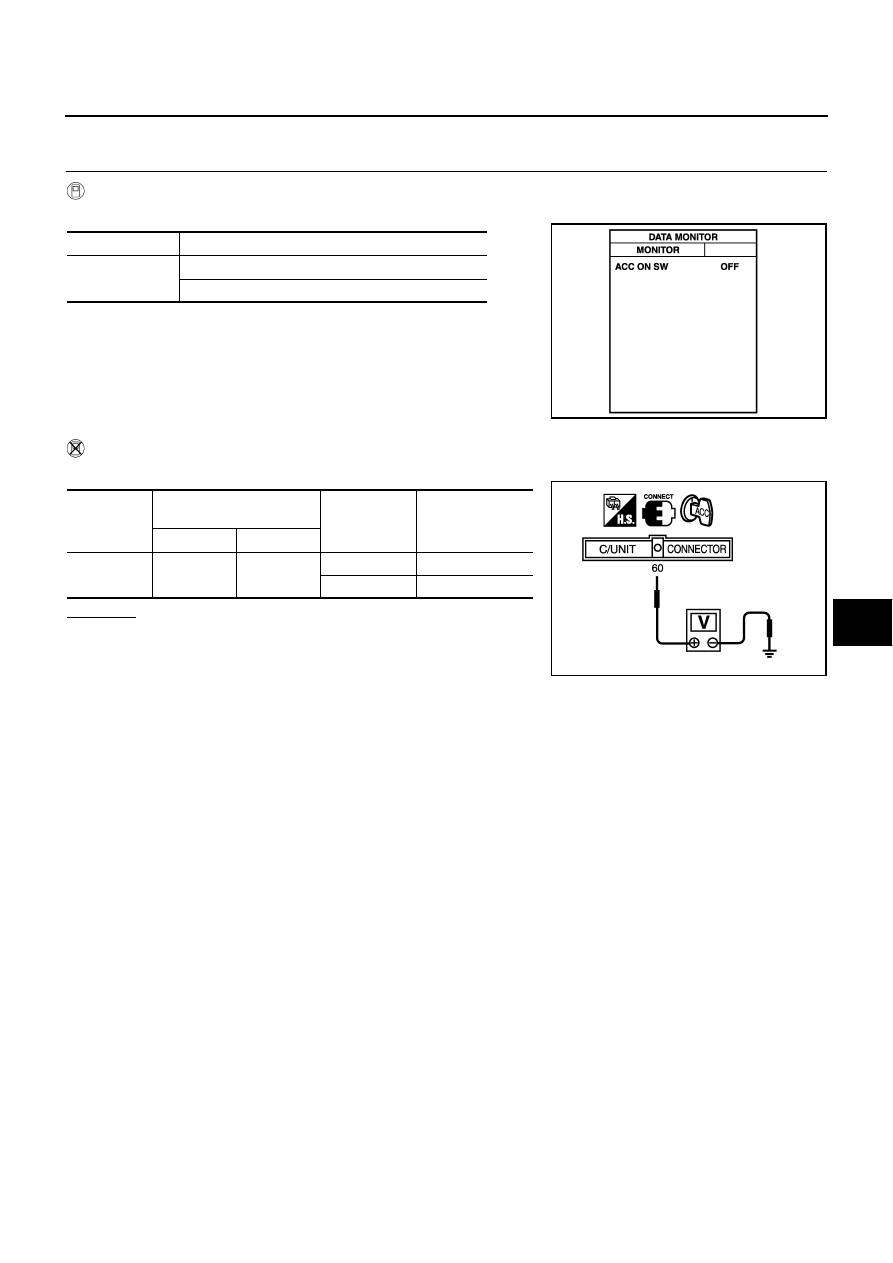

REMOTE KEYLESS ENTRY SYSTEM

BL-85

C

D

E

F

G

H

J

K

L

M

A

B

BL

Check ACC Power

NIS000UQ

1.

CHECK ACC POWER

 With CONSULT-II

Check ACC power (“ACC ON SW”) in “DATA MONITOR” mode with CONSULT-II.

Without CONSULT-II

Check voltage between BCM connector and ground.

OK or NG

OK

>> ACC power is OK.

NG

>> Check the following.

●

10A fuse [No. 21, located in fuse block (J/B) No. 1]

●

Harness for open or short between BCM and fuse

Monitor item

Condition

ACC ON SW

Ignition switch ACC or ON position

: ON

Ignition switch OFF position

: OFF

PIIA3367E

Connector

Terminal

(Wire color)

Condition

Voltage (V)

(Approx.)

( + )

( – )

M4

60 (L/OR)

Ground

ACC or ON

Battery voltage

OFF

0

PIIA3438E

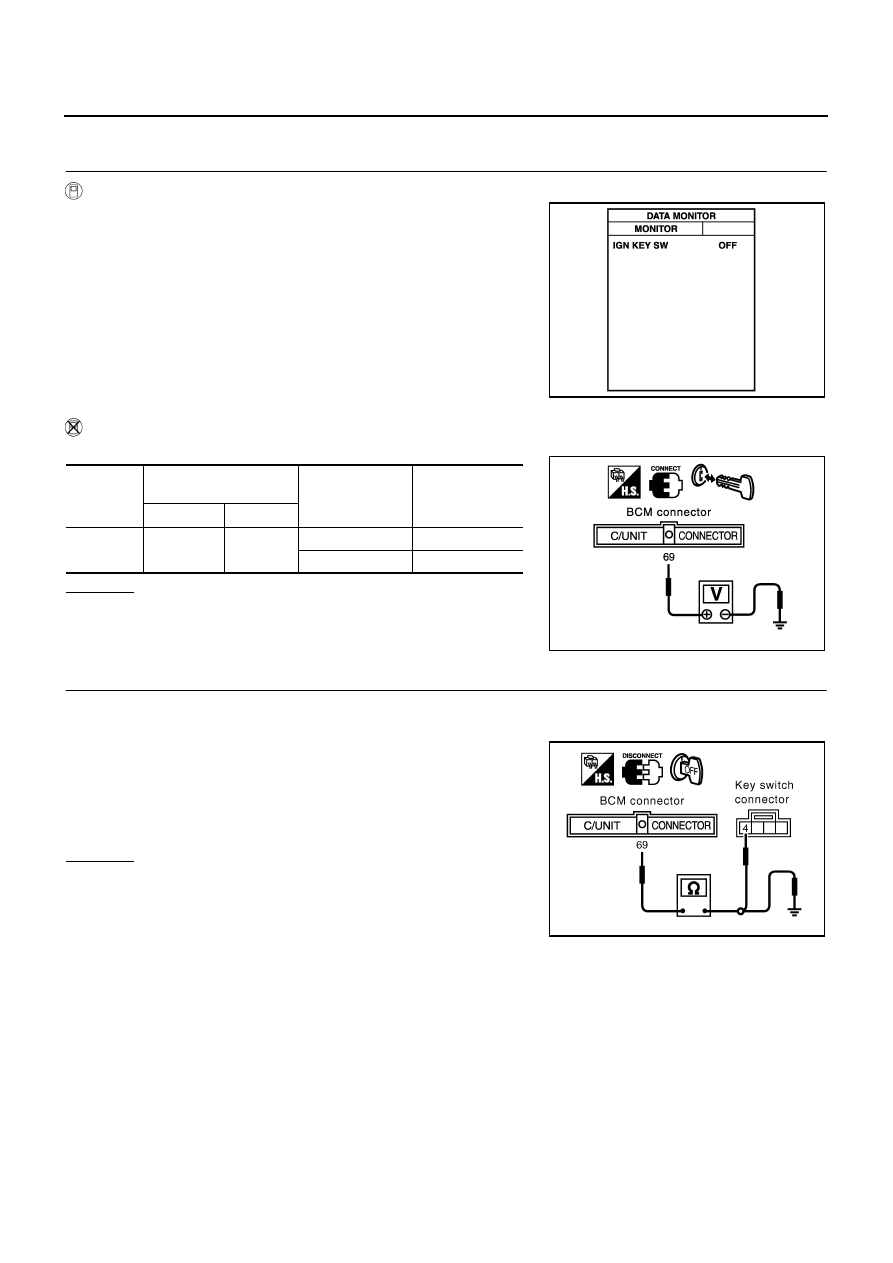

BL-86

REMOTE KEYLESS ENTRY SYSTEM

Check Key Switch

NIS000UR

1.

CHECK KEY SWITCH

With CONSULT-II

Check key switch “IGN KEY SW” in “DATA MONITOR” mode with
CONSULT-II.

Without CONSULT-II

Check voltage between BCM connector and ground.

OK or NG

OK

>> Key switch is OK.

NG

>> GO TO 2.

2.

CHECK KEY SWITCH CIRCUIT

1.

Disconnect BCM connecotr and key switch connectors.

2.

Check continuity between BCM connector M4 terminal 69 and key switch connector M64 terminal 4.

3.

Check continuity between BCM connector M4 terminal 69 and
ground.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace harness.

Key is inserted in ignition
key cylinder

: IGN KEY SW  ON

Key is removed from igni-
tion key cylinder

: IGN KEY SW  OFF

PIIA4243E

Connector

Terminal

(Wire color)

Condition

Voltage (V)

(Approx.)

(+)

(–)

M4

69 (PU/W)

Ground

Key is inserted

Battery Voltage

Key is removed

0

PIIA2820E

69 (PU/W) – 4 (PU/W)

: Continuity should exist.

69 (PU/W) – Ground

: Continuity should not exist.

PIIA2821E

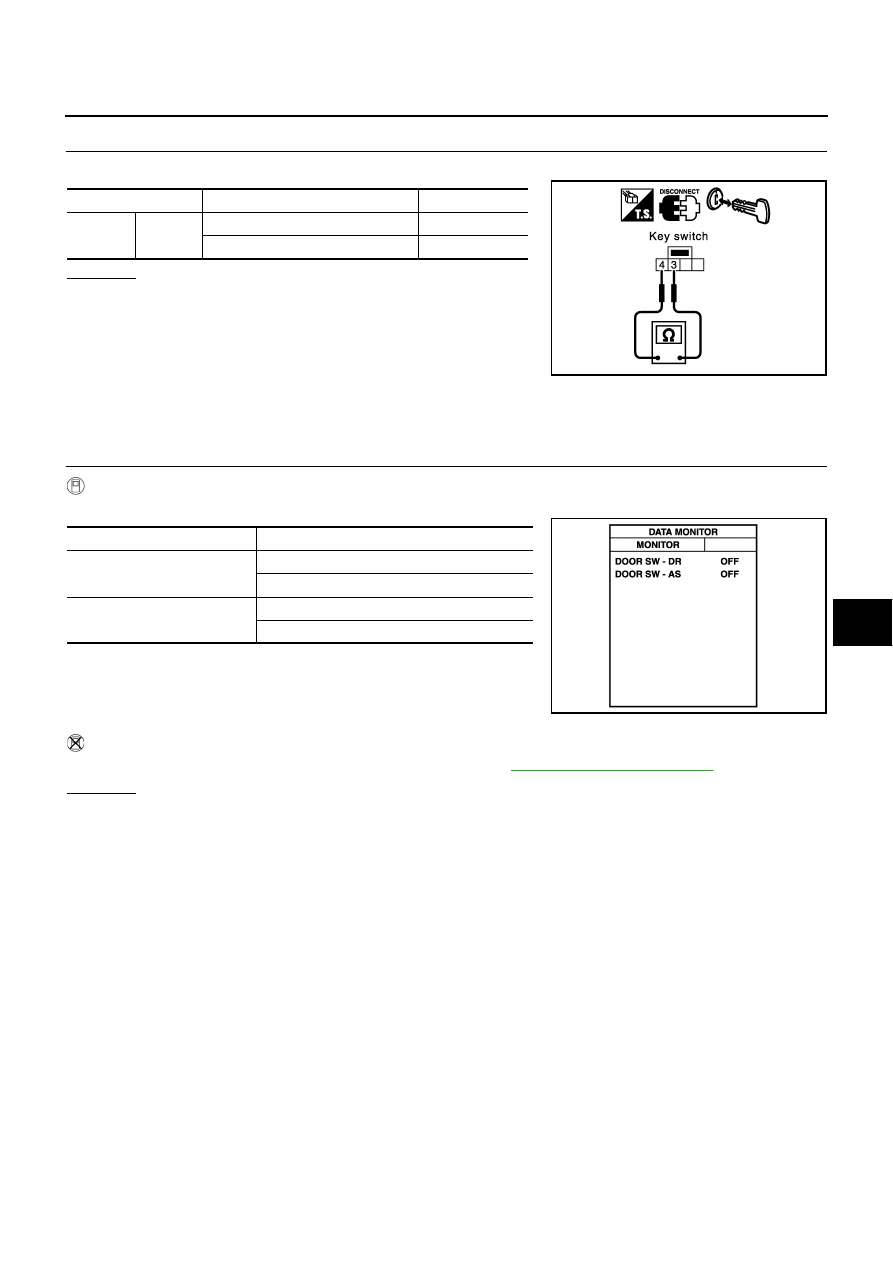

REMOTE KEYLESS ENTRY SYSTEM

BL-87

C

D

E

F

G

H

J

K

L

M

A

B

BL

3.

CHECK KEY SWITCH

Check continuity between key switch terminals 3 and 4.

OK or NG

OK

>> Check the following.

●

10A fuse [No. 32, located in fuse block (J/B) No.2]

●

Harness for open or short between key switch and
fuse

NG

>> Replace key switch.

Check Door Switch

NIS000US

CHECK FRONT DOOR SWITCH

1.

CHECK FRONT DOOR SWITCH INPUT SIGNAL

 With CONSULT-II

Check front door switch (“DOOR SW-DR” and “DOOR SW-AS”) in “DATA MONITOR” mode with CONSULT-II.

Without CONSULT-II

Check front door switch in “SWITCH MONITOR” mode.Refer to

BL-82, "SWITCH MONITOR"

 .

OK or NG

OK

>> Front door switch is OK.

NG

>> GO TO 2.

Terminal

Condition of key switch

Continuity

3 4

Key is inserted.

Yes

Key is removed.

No

PIIA3044E

Monitor item

Condition

DOOR SW-DR

OPEN

: ON

CLOSE

: OFF

DOOR SW-AS

OPEN

: ON

CLOSE

: OFF

PIIA2464E

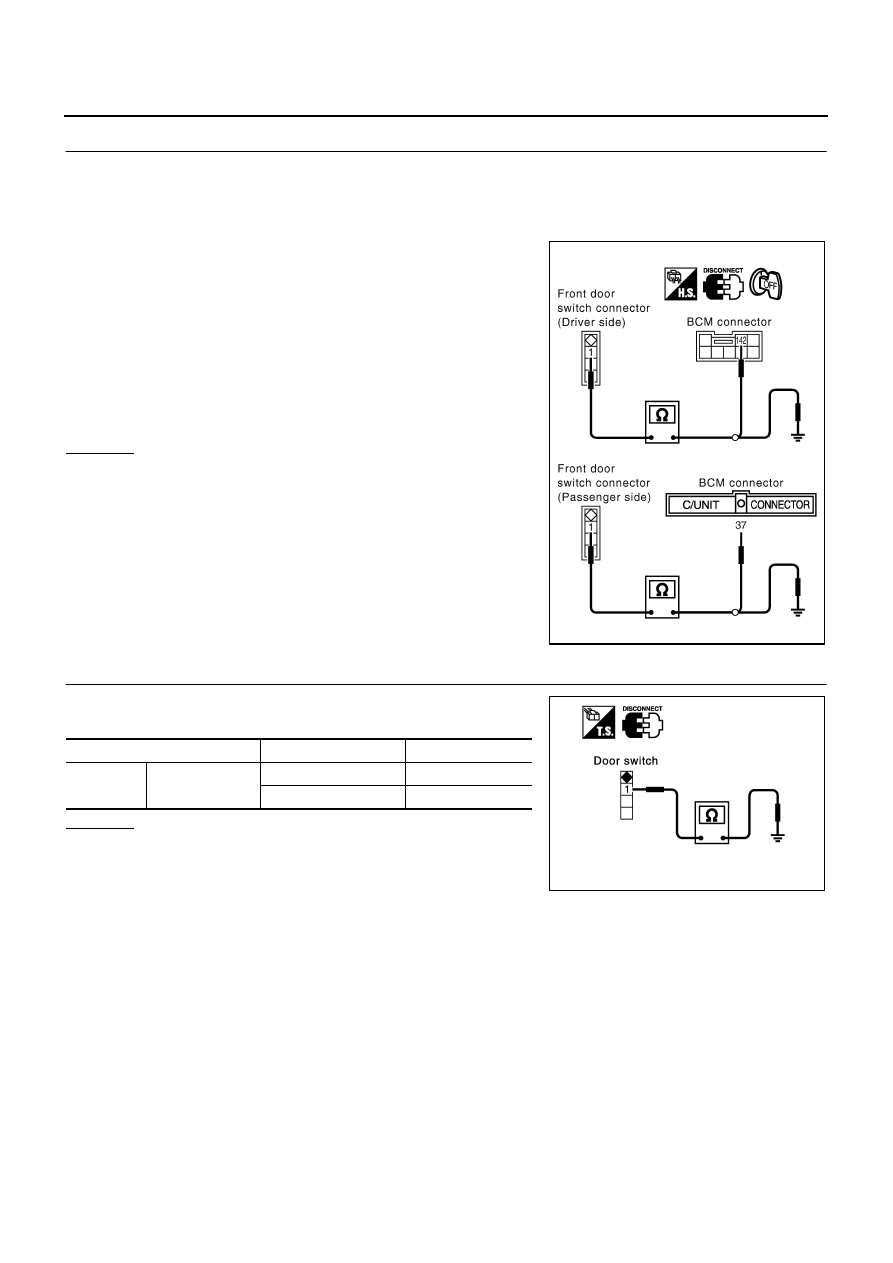

BL-88

REMOTE KEYLESS ENTRY SYSTEM

2.

CHECK FRONT DOOR SWITCH

1.

Turn ignition switch OFF.

2.

Disconnect front door switch connector and BCM connector.

3.

Check continuity between front door switch connector B20 (driver side), B220 (passenger side) terminal 1
and BCM connector M4 (passenger side), B4 (driver side) terminal 37, 142.

4.

Check continuity between front door switch connector B20
(driver side), B220 (passenger side) terminal 1and ground.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace harness.

3.

CHECK FRONT DOOR SWITCH

Check continuity between front door switch(driver side),(passenger
side) terminal 1and ground part of front door switch.

OK or NG

OK

>> Check door switch case ground.

NG

>> Replace malfunction front door switch.

Driver side door switch

1 (W/R) – 142 (W/R)

: Continuity should exist.

Passenger side door switch

1 (W/G) – 37 (W/G)

: Continuity should exist.

Each door switch

1 (W/R, W/G) – Ground

: Continuity should not exist.

PIIA3118E

Terminal

Front door switch

Continuity

1

Ground part of

front door switch

Pushed

No

Released

Yes

PIIA3351E
