GROUND DISTRIBUTION

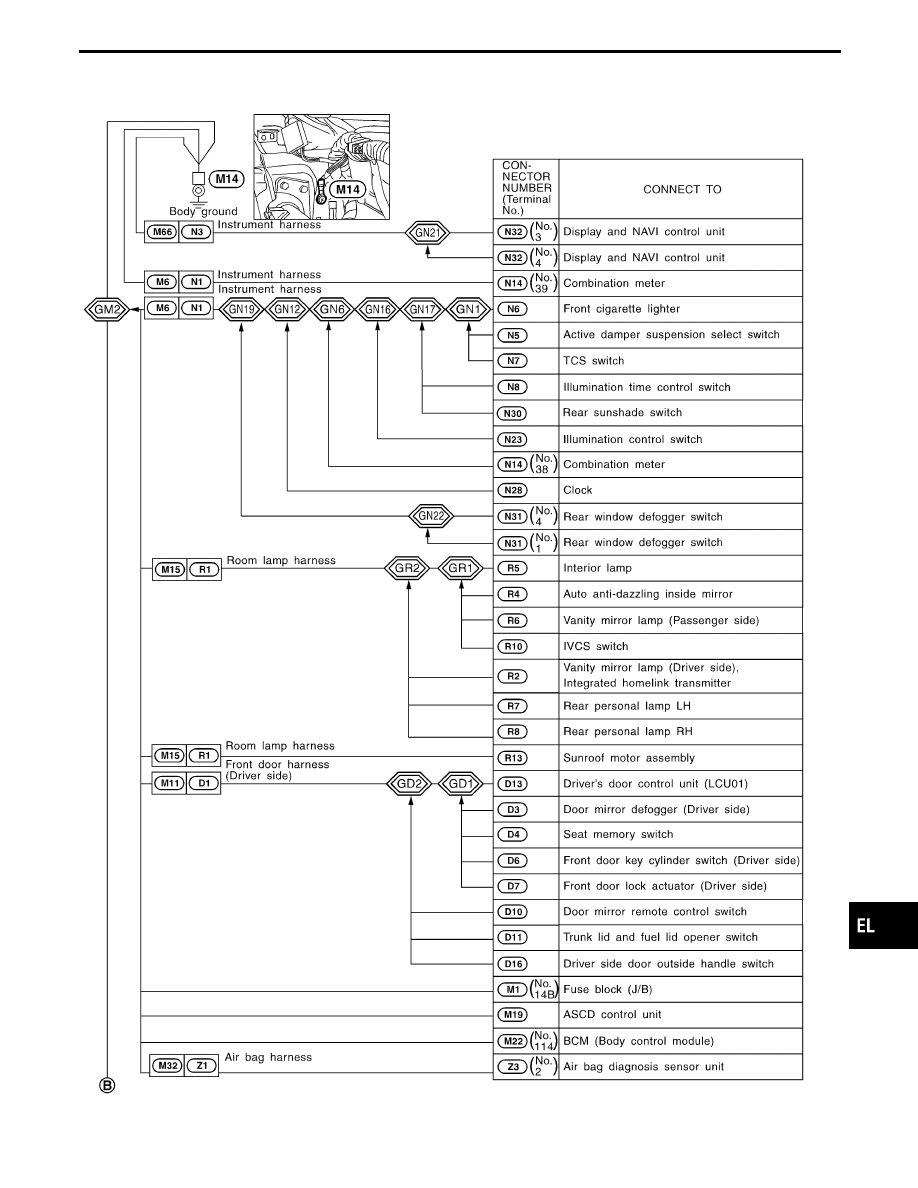

Main Harness (Cont’d)

EL-27

WITH NAVIGATION SYSTEM

CEL272A

GROUND DISTRIBUTION

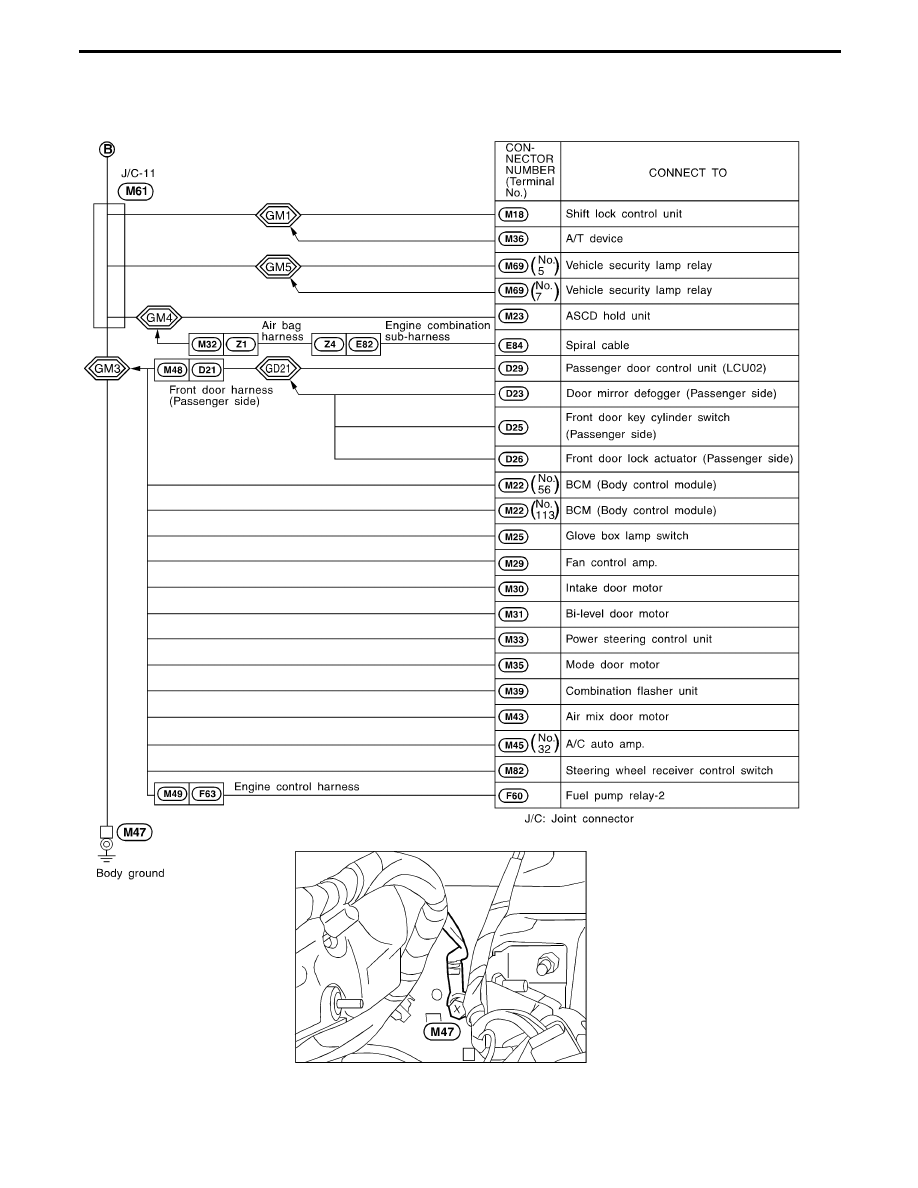

Main Harness (Cont’d)

EL-28

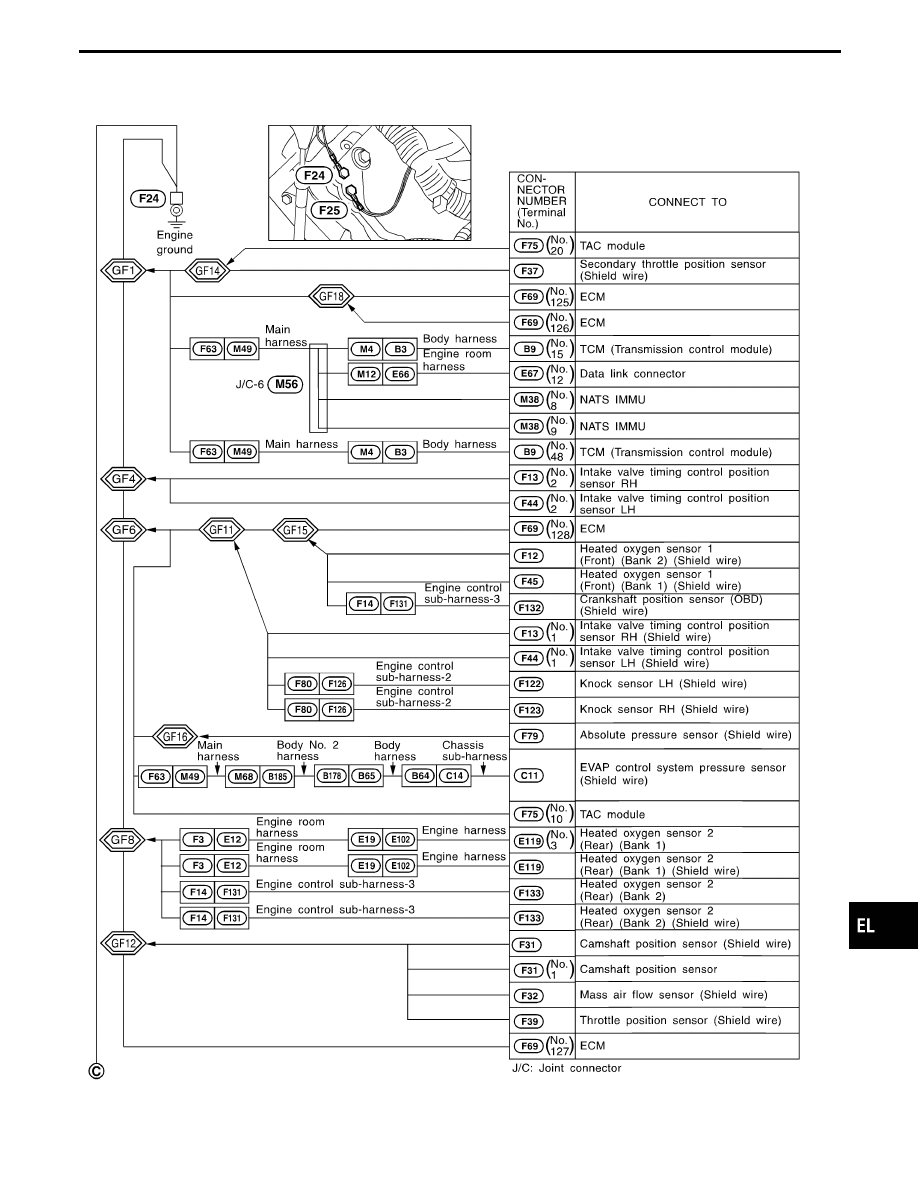

Engine Control Harness

CEL275A

GI

MA

EM

LC

EC

FE

AT

PD

FA

RA

BR

ST

RS

BT

HA

IDX

GROUND DISTRIBUTION

EL-29

CEL008M

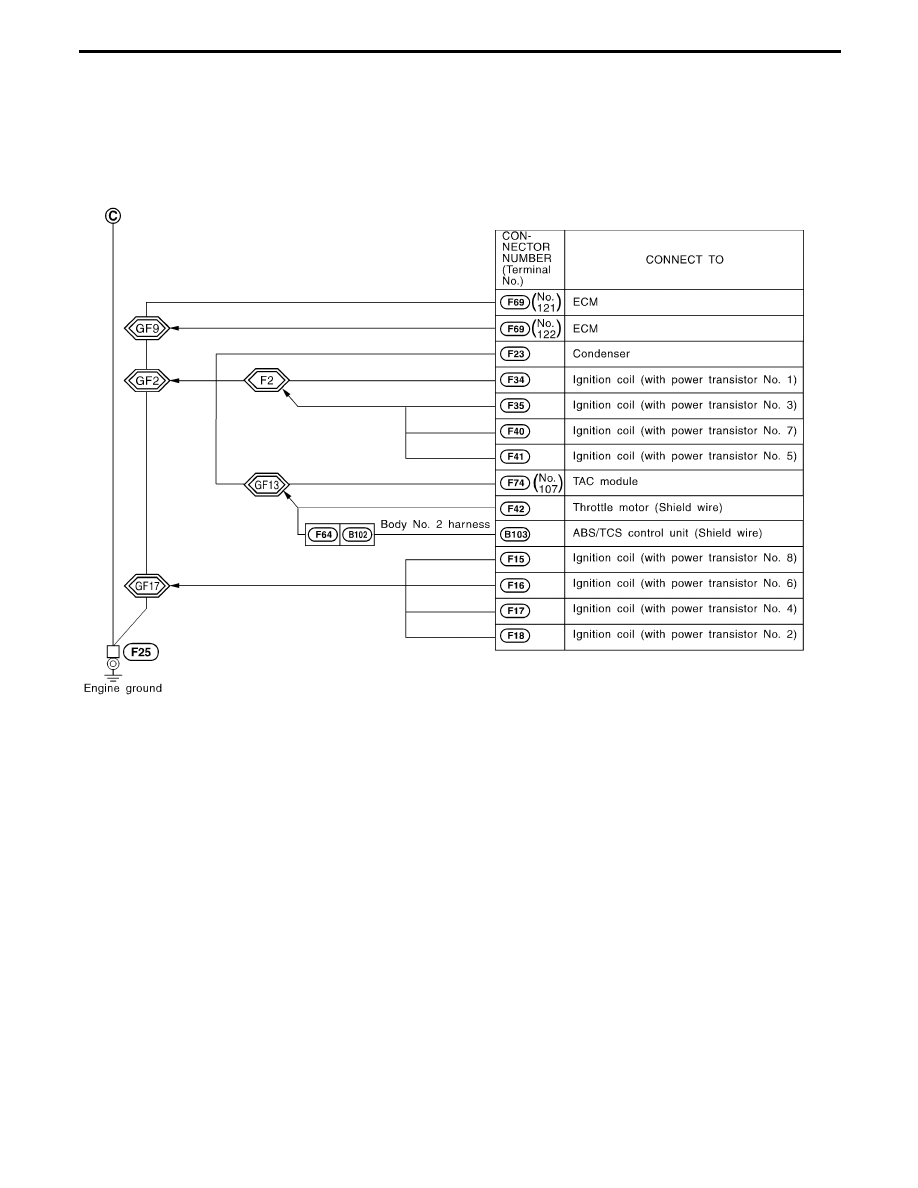

GROUND DISTRIBUTION

Engine Control Harness (Cont’d)

EL-30
