FRONT WIPER AND WASHER SYSTEM

PFP:28810

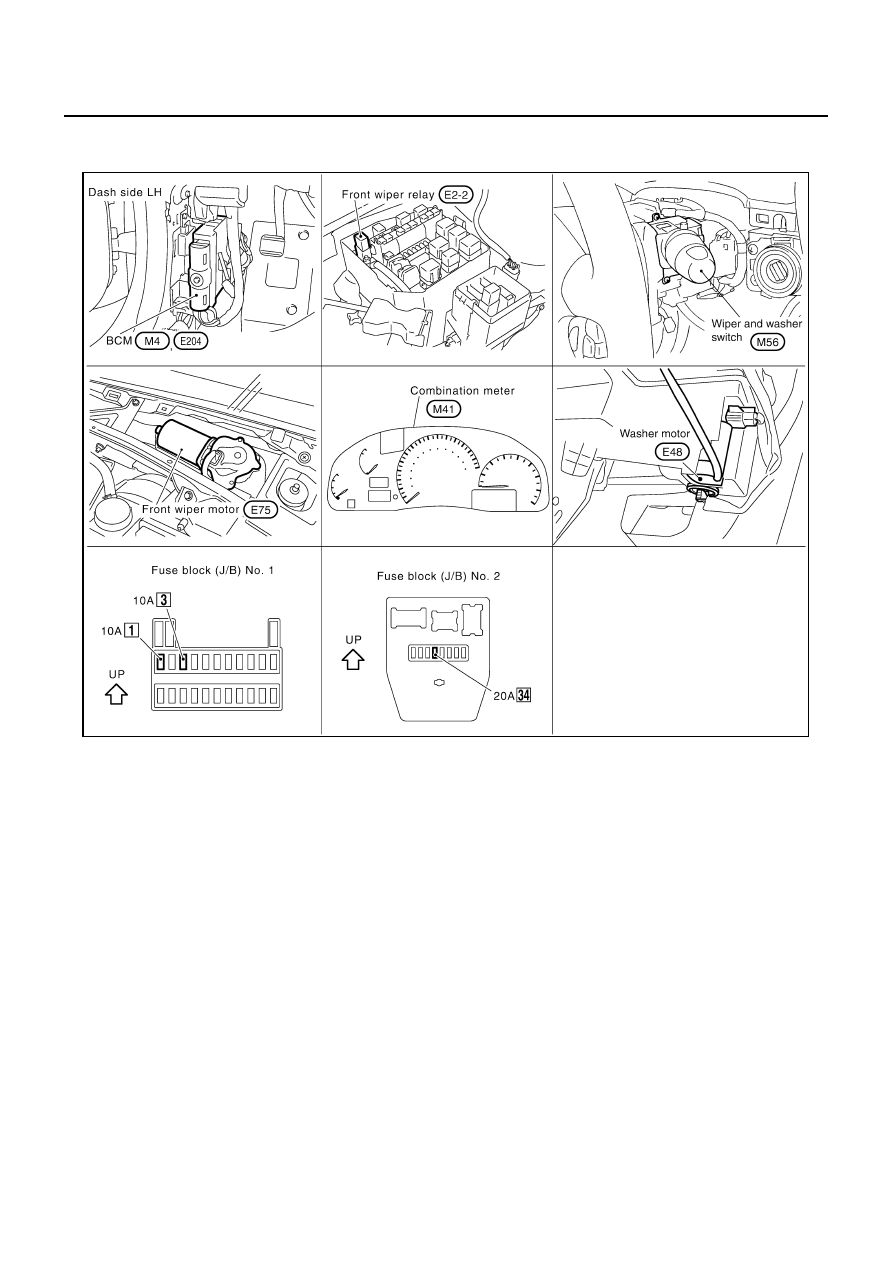

Component Parts and Harness Connector Location

AKS002L9

System Description

AKS002L8

Through the adoption of vehicle speed detect-type intermittent wiper, Front Wiper System changes wiper's
intermittent time when the engine is stopped and while driving.
Vehicle speed signal is send from the combination meter to BCM. BCM controls intermittent activation time
and coupled activation of washer and wiper.

WIPER OPERATION
Description

The wiper switch is controlled by a lever built in the combination switch.
There are three wiper switch positions

●

LO speed

●

HI speed

●

INT (intermittent)

Power is supplied at all times

●

through 10A fuse [No.3, located in fuse block (J/B) No.1]

●

to BCM terminal 105

With the ignition switch in the ON position, power is supplied

●

through 10A fuse [No. 1, located in fuse block (J/B) No.1]

●

to BCM terminal 68

●

through 20A fuse [No. 34, located in fuse block (J/B) No.2]

●

to front wiper motor terminal 4

PKIA6947E

FRONT WIPER AND WASHER SYSTEM

WW-5

●

to front wiper relay terminal 1

●

to front washer motor terminal 1.

Ground is supplied

●

to front wiper switch terminals 17 and 20

●

through grounds M25 and M115.

Low (MIST) and High Speed Wiper Operation

When the wiper switch is placed in the LO or MIST position, ground is supplied

●

through front wiper switch terminal 14

●

to front wiper motor terminal 6.

With power and ground supplied, the front wiper motor operates at low speed.

When the front wiper switch is placed in the HI position, ground is supplied

●

through front wiper switch terminal 16

●

to front wiper motor terminal 5.

With power and ground supplied, the front wiper motor operates at high speed.

Auto Stop Operation

When the front wiper switch is placed in the OFF position, the front wiper motor will continue to operate until
the wiper arms reach the base of the windshield (Auto stop). When the front wiper switch is placed in the OFF
position, ground is supplied

●

from front wiper switch terminal 14

●

to front wiper motor terminal 6, in order to continue front wiper motor operation at low speed.

Ground is also supplied until the wiper arms reaches the base of the windshield

●

through front wiper switch terminal 13

●

to front wiper relay terminal 3

●

through front wiper relay terminal 4

●

to front wiper motor terminal 3

●

through front wiper motor terminal 1, and

●

through grounds E24, E42 and E62.

When the wiper arms reach the base of the windshield, the switch in the front wiper motor moves to the
“STOP” position. The ground path is interrupted and the front wiper motor stops.

Intermittent Operation

Intermittent operation is controlled by the BCM. When the front wiper switch is placed in the INT position,
ground is supplied

●

to BCM terminal 9

●

through front wiper switch terminal 15

●

to grounds M25 and M115

●

through front wiper switch terminal 17.

The desired interval time is input

●

to BCM terminal 48

●

through front wiper switch terminal 19

●

to BCM terminal 49

●

through combination meter terminal 38 (vehicle speed pulse).

The desired interval time is input

●

to front wiper relay terminal 2

●

through BCM terminal 128.

With power and ground supplied, the front wiper relay is activated. When activated, an intermittent ground is
supplied

●

to front wiper motor terminal 6

●

through front wiper switch terminal 14

●

to front wiper switch terminal 13

WW-6

FRONT WIPER AND WASHER SYSTEM

●

through front wiper relay terminal 3

●

to front wiper relay terminal 5

●

through grounds E24, E42 and E62.

Front wiper motor operates at desired interval with BCM terminal 9 grounded. Intermittent operation can be
adjusted from: Approx. 0.9 - 45 sec.: (when vehicle is stopped), Approx. 0.4 - 30 sec.: (when vehicle is mov-
ing). Judgement on vehicle stopped or moving: Stopped, Moving: More than 5 km/h (3 MPH) Moving, Stopped:
Less than 2 km/h (1 MPH)

WASHER OPERATION

With the ignition switch in the ON position, power is supplied

●

through 20A fuse [No. 34, located in fuse block (J/B) No.2]

●

to front washer motor terminal 1.

When the lever is pulled to the WASH position, ground is supplied

●

to front washer motor terminal 2, and

●

to BCM terminal 4

●

from front wiper switch terminal 18

●

through front wiper switch, terminal 17, and

●

through grounds M25 and M115.

With power and ground supplied, the front washer motor operates. The front wiper motor operates at low
speed for about 3 seconds. This feature is controlled by the BCM in the same manner as the intermittent oper-
ation.
