FRONT LOWER LINK

RSU-13

C

D

F

G

H

I

J

K

L

M

A

B

RSU

FRONT LOWER LINK

PFP:55110

Removal and Installation

AES00092

REMOVAL

1.

Remove tire with power tool.

2.

Set jack under rear lower link.

3.

Remove fixing bolt and nut between front lower link and rear suspension member with power tool.

4.

Remove fixing bolt and nut between front lower link and axle with power tool.

5.

Remove front lower link from vehicle.

INSPECTION AFTER REMOVAL

●

Check front lower link and bushing for any deformation, crack, or damage. Replace if necessary.

INSTALLATION

●

Refer to

RSU-7, "Components"

  for tightening torque. Tighten in the reverse order of removal.

CAUTION:

Refer to component parts location and do not reuse non-reusable parts.

●

Perform final tightening of rear suspension member and axle installation position (rubber bushing) under
unladen condition with tires on level ground. Check wheel alignment. Refer to

RSU-5, "Wheel Alignment

Inspection"

 .

RSU-14

REAR LOWER LINK & COIL SPRING

REAR LOWER LINK & COIL SPRING

PFP:551B0

Removal and Installation

AES00093

REMOVAL

1.

Remove tire with power tool.

2.

Set jack under rear lower link.

3.

Loosen fixing bolt and nut of rear lower link in side of rear suspension member, and then remove fixing
bolt and nut in side of axle.

4.

Slowly lower jack, then remove upper seat, coil spring and rubber sheet from rear lower link.

5.

Remove fixing bolt and nut in side of rear suspension member to remove rear lower link.

INSPECTION AFTER REMOVAL

●

Check rear lower link, bushing and coil spring for deformation, cracks, and damage. Replace rear lower
link and coil spring if necessary.

INSTALLATION

●

Refer to

RSU-7, "Components"

  for tightening torque. Tighten in the reverse order of removal.

CAUTION:

Refer to component parts location and do not reuse non-reusable parts.

●

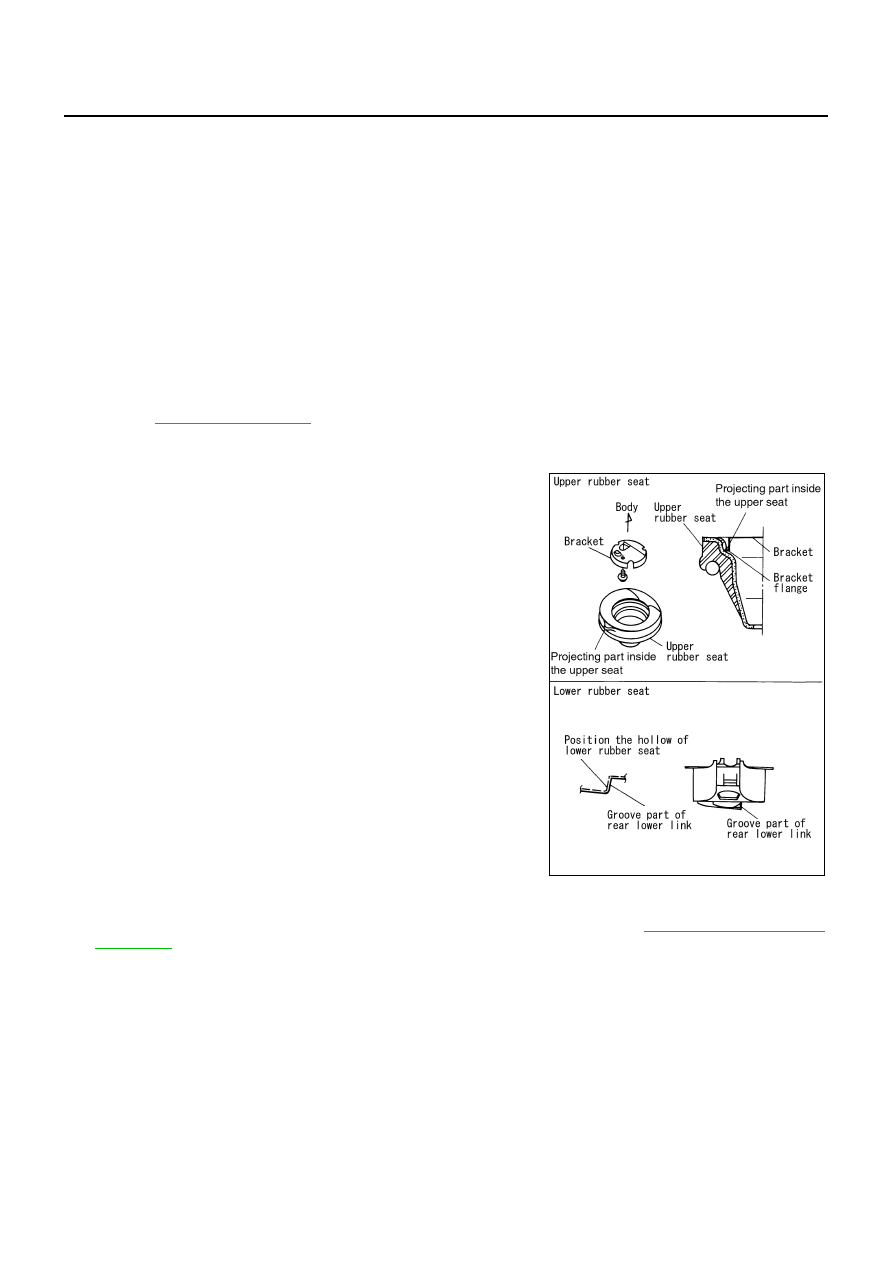

Check that the projecting part inside upper seat and the flange
part of bracket are attached as shown in the figure.

●

Check that the projection part outside upper seat directs to vehi-
cle front.

●

Position the hollow of rubber seat with the groove part of rear
lower link to install.

●

Install coil spring with the side of 2 paint markers directing to
lower side.

●

Perform final tightening of rear suspension member and axle installation position (rubber bushing) under
unladen condition with tires on level ground. Check wheel alignment. Refer to

RSU-5, "Wheel Alignment

Inspection"

 .

SEIA0266E

STABILIZER BAR

RSU-15

C

D

F

G

H

I

J

K

L

M

A

B

RSU

STABILIZER BAR

PFP:54611

Removal and Installation

AES00094

REMOVAL

1.

Remove dynamic dampener of exhaust tube. Refer to

EX-3, "Removal and Installation"

 .

2.

Remove stabilizer connecting rod from stabilizer bar with power tool.

3.

Remove mounting bolts of stabilizer clamp and then remove stabilizer clamp and stabilizer bushing from
stabilizer bar with power tool.

4.

Remove stabilizer bar from vehicle behind.

INSPECTION AFTER REMOVAL

●

Check stabilizer bar, stabilizer bushing, stabilizer clamp, stabilizer connecting rod, stabilizer connecting
rod mounting bracket for any deformation, crack or damage. Replace if necessary.

INSTALLATION

●

Refer to

RSU-7, "Components"

  for tightening torque. Tighten in the reverse order of removal.

CAUTION:

Refer to component parts location and do not reuse non-reusable parts.

●

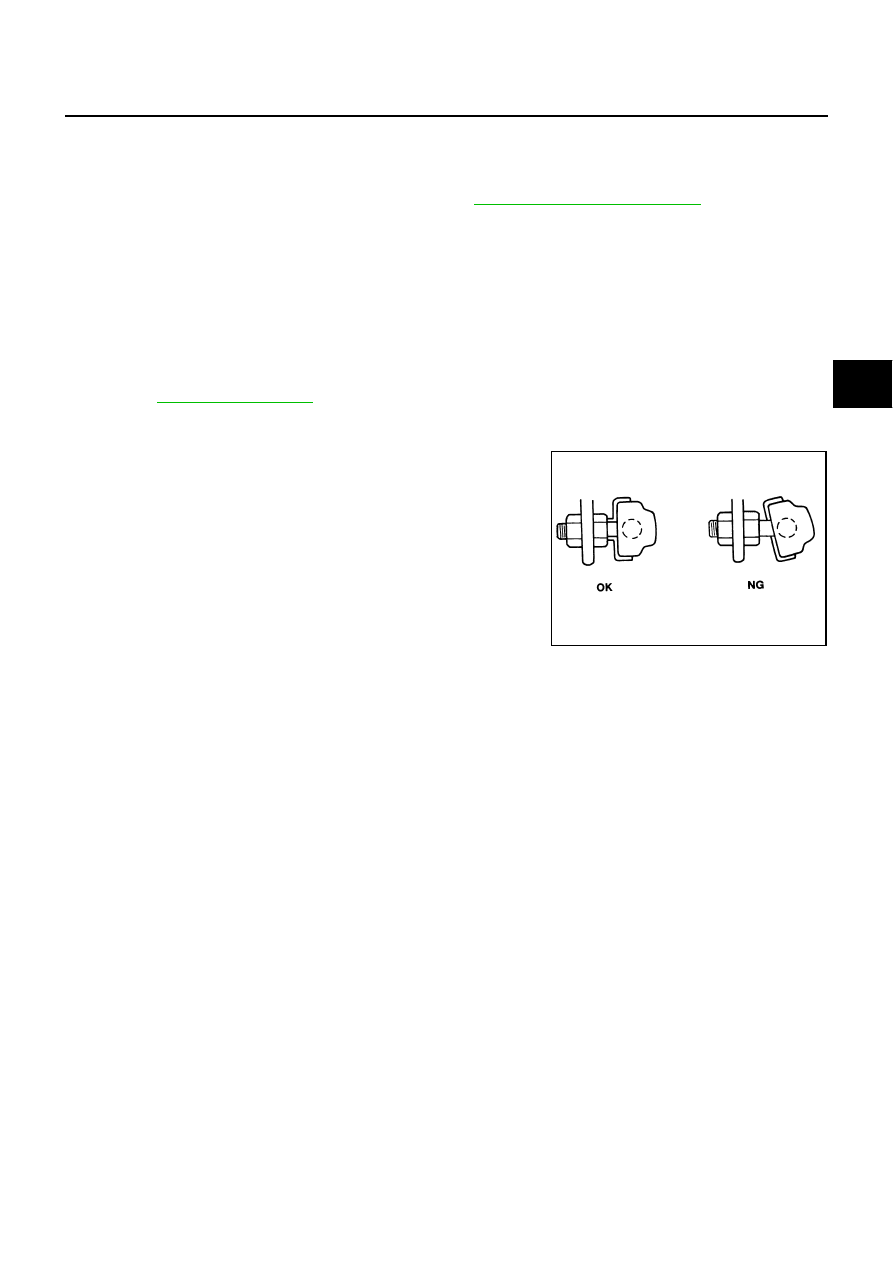

Stabilizer bar uses the pillow ball type connecting rod, position
ball joint with case on pillow ball head parallel to stabilizer bar.

SFA449BB

RSU-16

REAR SUSPENSION MEMBER

REAR SUSPENSION MEMBER

PFP:55501

Removal and Installation

AES00095

REMOVAL

1.

Remove tire with power tool.

2.

Remove brake caliper with power tool. Hang it in a place where it will not interfere with work. Refer to

BR-

29, "REAR DISC BRAKE"

 .

CAUTION:

Avoid depressing brake pedal while brake caliper is removed.

3.

Remove stabilizer bar with power tool. Refer to

RSU-15, "STABILIZER BAR"

 .

4.

Remove rear final drive from vehicle. Refer to

RFD-11, "REAR FINAL DRIVE ASSEMBLY"

 .

5.

Remove parking brake cable from body and rear suspension member. Refer to

PB-4, "PARKING BRAKE

CONTROL"

 .

6.

Set jack under rear lower link.

7.

Remove fixing bolt and nut in the lower side of shock absorber with power tool.

8.

Remove fixing nut in rear suspension member side of suspension arm.

9.

Remove rear lower link and coil spring. Refer to

RSU-14, "REAR LOWER LINK & COIL SPRING"

 .

10. Set jack under rear suspension member.

11. Remove fixing bolt in body side of member stay.

12. Remove fixing nuts of rear suspension member with power tool.

13. Slowly jack to remove rear suspension member from vehicle.

14. Remove front lower link from rear suspension member with power tool.
15. Remove radius rod from rear suspension member with power tool.

INSPECTION AFTER REMOVAL

●

Check rear suspension member for deformation, cracks, and other damage and replace if necessary.

INSTALLATION

●

Refer to

RSU-7, "Components"

  for tightening torque. Tighten in the reverse order of removal.

CAUTION:

Refer to component parts location and do not reuse non-reusable parts.

●

Perform final tightening of installation position of links (rubber bushing) under unladen condition with tires
on level ground. Check wheel alignment. Refer to

RSU-5, "Wheel Alignment Inspection"

 .
