REMOTE KEYLESS ENTRY SYSTEM

BL-69

C

D

E

F

G

H

J

K

L

M

A

B

BL

2.

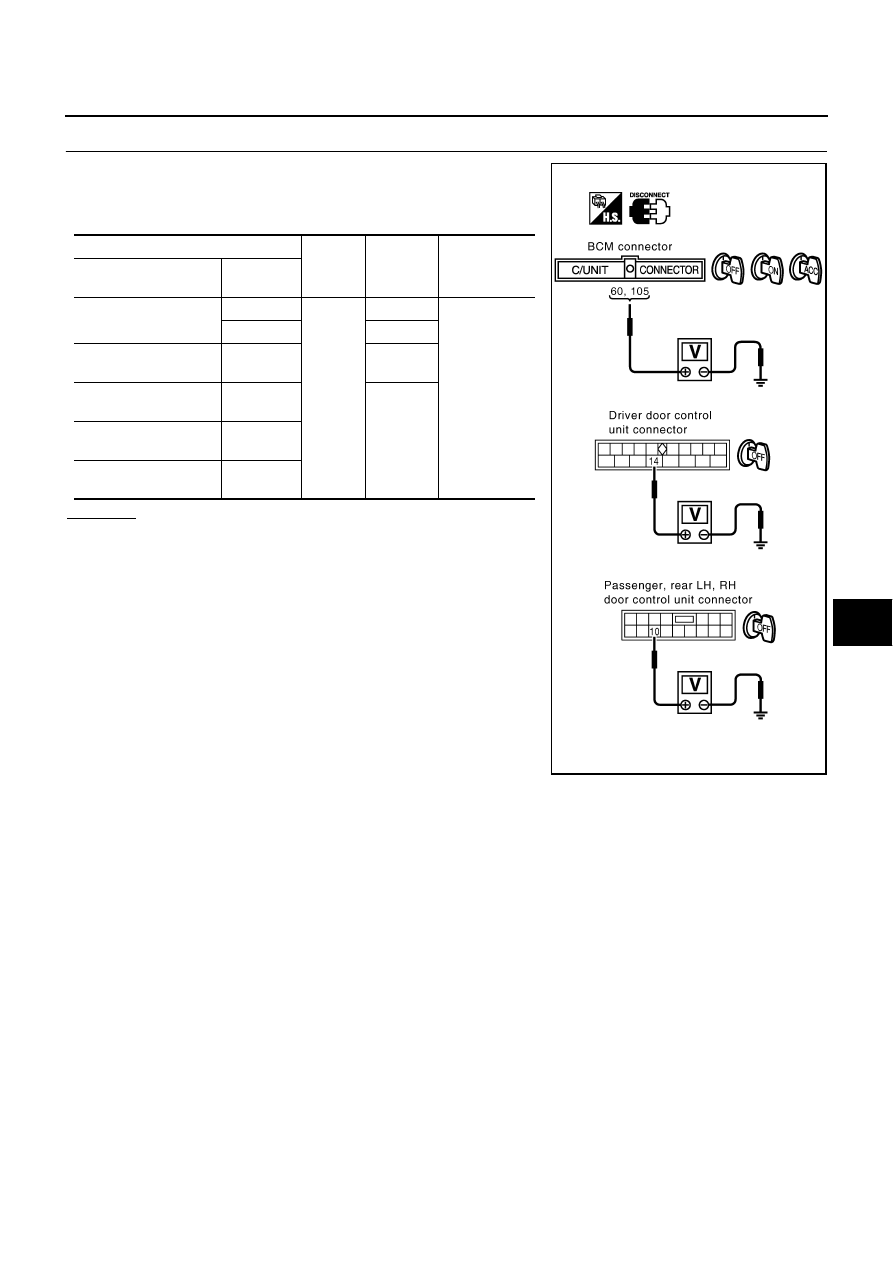

POWER SUPPLY CIRCUIT INSPECTION

Disconnect the connectors of BCM and driver door control unit
(LCU) or passenger, rear LH, RH door control units, measure the
voltage between the following terminal No. of the connector and
ground.

OK or NG

OK

>> GO TO 3.

NG

>> Check harness for open or short.

(+)

(–)

Ignition

switch

position

Voltage (V)

Approx.

Unit

Terminal

(wire color)

BCM (M4)

105 (Y/L)

Ground

OFF

Battery voltage

60 (L/OR)

ACC

Driver door control unit
(D8)

14 (Y/G)

OFF

Passenger door control
unit (D38)

10 (W/R)

OFF

Rear LH door control
unit (D58)

10 (Y/B)

Rear RH door control
unit (D78)

10 (Y/B)

PIIB0826E

BL-70

REMOTE KEYLESS ENTRY SYSTEM

3.

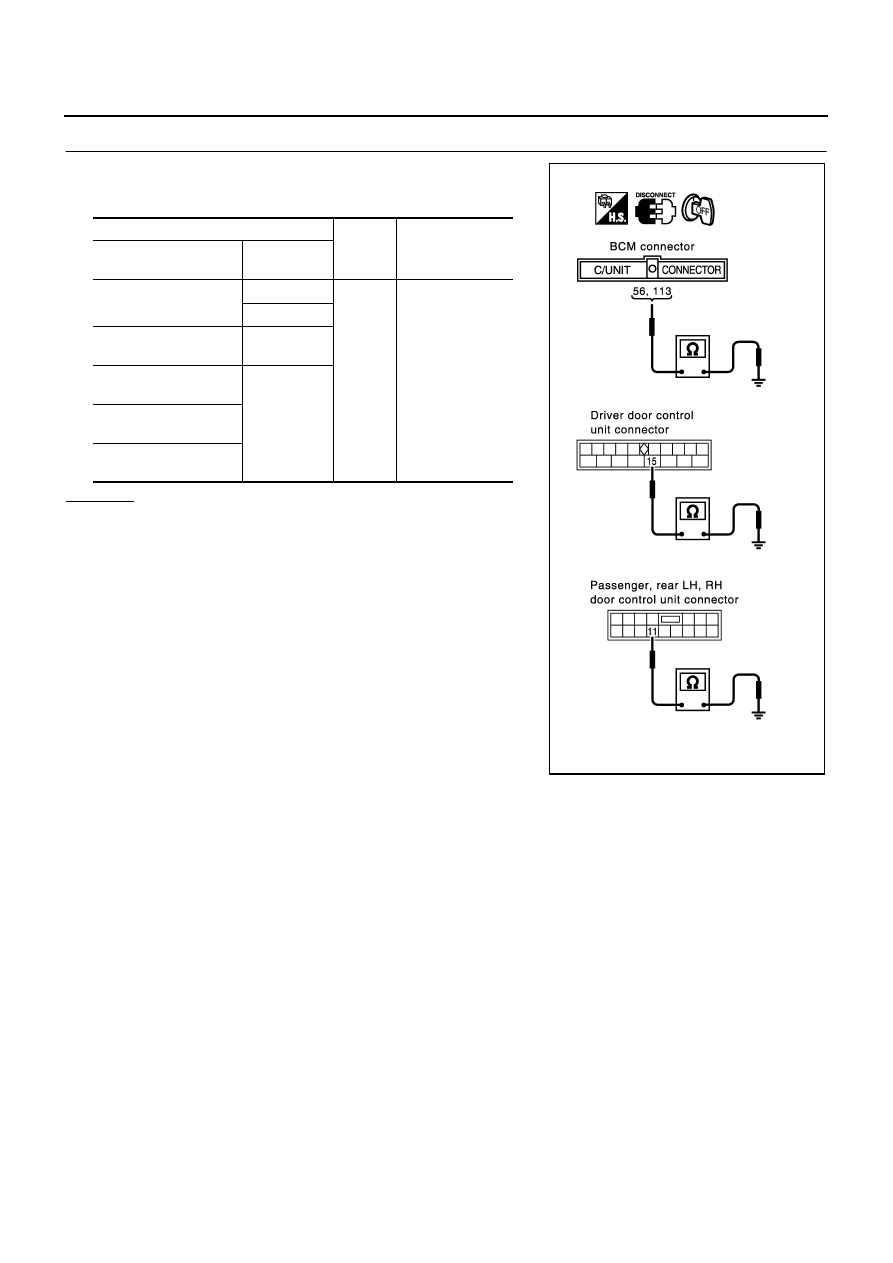

GROUND CIRCUIT INSPECTION

Check the continuity between the following terminals on the vehicle-
side connector for BCM, driver door LCU, passenger or rear LH, RH
door control units and ground.

OK or NG

OK

>> Power supply and ground circuit is “OK”.

NG

>> Repair or replace harness.

(+)

(–)

Continuity

Unit

Terminal

(wire color)

BCM (M4)

56 (B)

Ground

Continuity should
exist

113 (B)

Driver door control unit
(D8)

15 (B)

Passenger door control
unit (D38)

11 (B)

Rear LH door control
unit (D58)

Rear RH door control
unit (D78)

PIIA4453E

REMOTE KEYLESS ENTRY SYSTEM

BL-71

C

D

E

F

G

H

J

K

L

M

A

B

BL

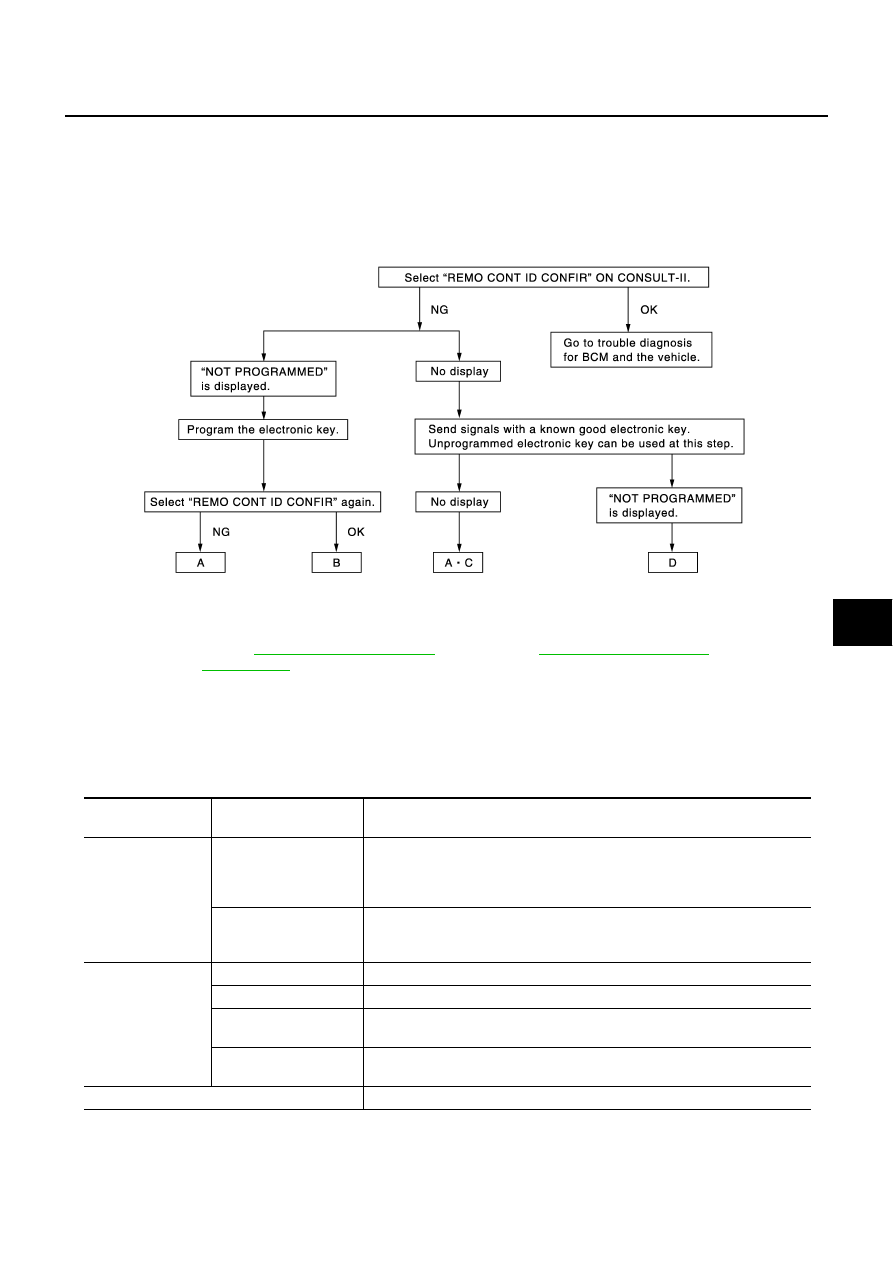

SYSTEM INSPECTION

●

When the Remote Keyless Entry System is malfunctioning, determine which part has caused the incident,
before carrying out the trouble diagnosis.

●

Using the following diagnosis flowchart, determine whether the electronic key or the vehicle component
(remote keyless entry receiver or BCM) has a malfunction and confirm the part to be checked.

Inspection with CONSULT-II

CONSULT–II Function

AIS001DW

CONSULT-II executes the following functions by combining data received and command transmitted via the
communication line from BCM. IVMS communication inspection, work support (only function setting of seats
and steering wheel), self-diagnosis, data monitor, and active test display.

DIAGNOSTIC ITEMS DESCRIPTION

PIIA2842E

A

: Replace BCM

B

: Electronic key not registered

C

: Remote keyless entry receiver inspection
 Refer to

BL-94, "Check Remote Keyless

Entry Receiver"

 .

D

: Electronic key inspection
 Refer to

BL-82, "Check Electronic Key"

 .

IVMS diagnosis

position

 Diagnosis mode

Description

IVMS-
COMM CHECK

IVMS-
COMM DIAGNOSIS

Diagnosis of continuity in the communication line(s), and of the function of the
IVMS-communication interface between the body control module and the
local control units, accomplished by transmitting a signal from the body con-
trol module to the local control units.

WAKE-UP DIAGNOSIS

Diagnosis of the“ wake-up” function of local control units by having a techni-
cian input the switch data into the local control unit that is in the temporary
“sleep” condition.

Each system
inspection

Work support

Changes the setting for each function.

Self-diagnosis results

Carries out self-diagnosis.

Data monitor

Displays data relative to the body control module (BCM) input signals and var-
ious control related data for each system.

Active test

Turns on/off actuators, relay and according to the commands transmitted by
the CONSULT-II unit.

BCM PART NUMBER

Displays BCM part No.

BL-72

REMOTE KEYLESS ENTRY SYSTEM

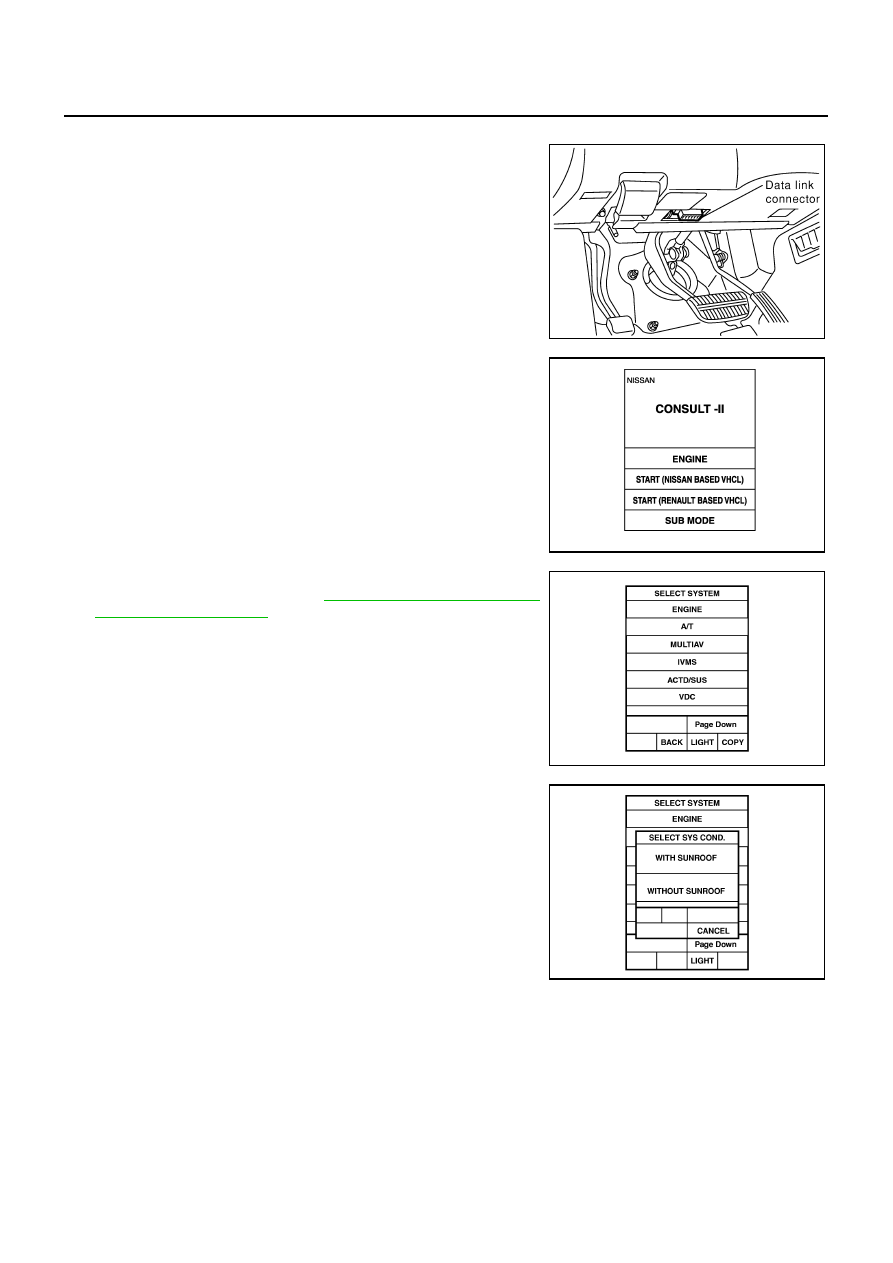

 CONSULT-II BASIC OPERATION PROCEDURE

1.

With the ignition switch OFF, connect “CONSULT–II” and “CON-
SULT-II CONVERTER” to the data link connector on vehicle
side, and turn the ignition switch ON.

2.

Touch “START (NISSAN BASED VHCL)”.

3.

Touch “IVMS”.
If “IVMS” is not indicated, go to

GI-38, "CONSULT-II Data Link

Connector (DLC) Circuit"

 .

4.

Check the model specification, touch either “WITH SUNROOF”
or “WITHOUT SUNROOF”.

5.

Touch “OK”. If the selection is wrong, touch “CANCEL”.

6.

Select the desired part to be diagnosed on the “SELECT TEST ITEM” screen.

PBIB0196E

MBIB0233E

PIIA0183E

PIIA0184E
