LIFTING POINT

PFP:00000

Commercial Service Tools

NAS0007Y

CAUTION:

●

Every time the vehicle is lifted up,  maintain the complete vehicle curb condition.

●

Since the vehicle's center of gravity changes when removing main parts on the front side (engine,
transmission, suspension etc.), support a jack up point on the rear side garage jack with a mission
jack or  equivalent.

●

Since the vehicle's center of gravity changes when removing main parts on the rear side (rear axle,
suspension, etc.), support a jack up point on the front side garage jack with a mission jack or
equivalent.

●

Be careful not to smash or do not do anything that would affect piping parts.

Garage Jack and Safety Stand and 2-Pole Lift

NAS0007Z

WARNING:

●

Park the vehicle on a level surface when using the jack. Make sure to avoid damaging pipes,
tubes, etc. under the vehicle.

●

Never get under the vehicle while it is supported only by the jack. Always use safety stands when
you have to get under the vehicle.

●

Place wheel chocks at both front and back of the wheels on the ground.

●

When lifting the vehicle, open the lift arms as wide as possible and ensure that the front and rear
of the vehicle are well balanced.

●

When setting the lift arm, do not allow the arm to contact the brake tubes, brake cable, fuel lines
and sill spoiler.

Tool name

Description

Board on attachment

Safety stand attachment

S-NT001

S-NT002

GI-42

LIFTING POINT

CAUTION:

There is canister just behind Garage jack point rear. Jack up be carefully.

Board-On Lift

NAS00080

CAUTION:

Make sure vehicle is empty when lifting.

●

The board-on lift attachment set at front end of vehicle
should be set on the front of the sill under the front door
opening.

●

Position attachments at front and rear ends of board-on lift.

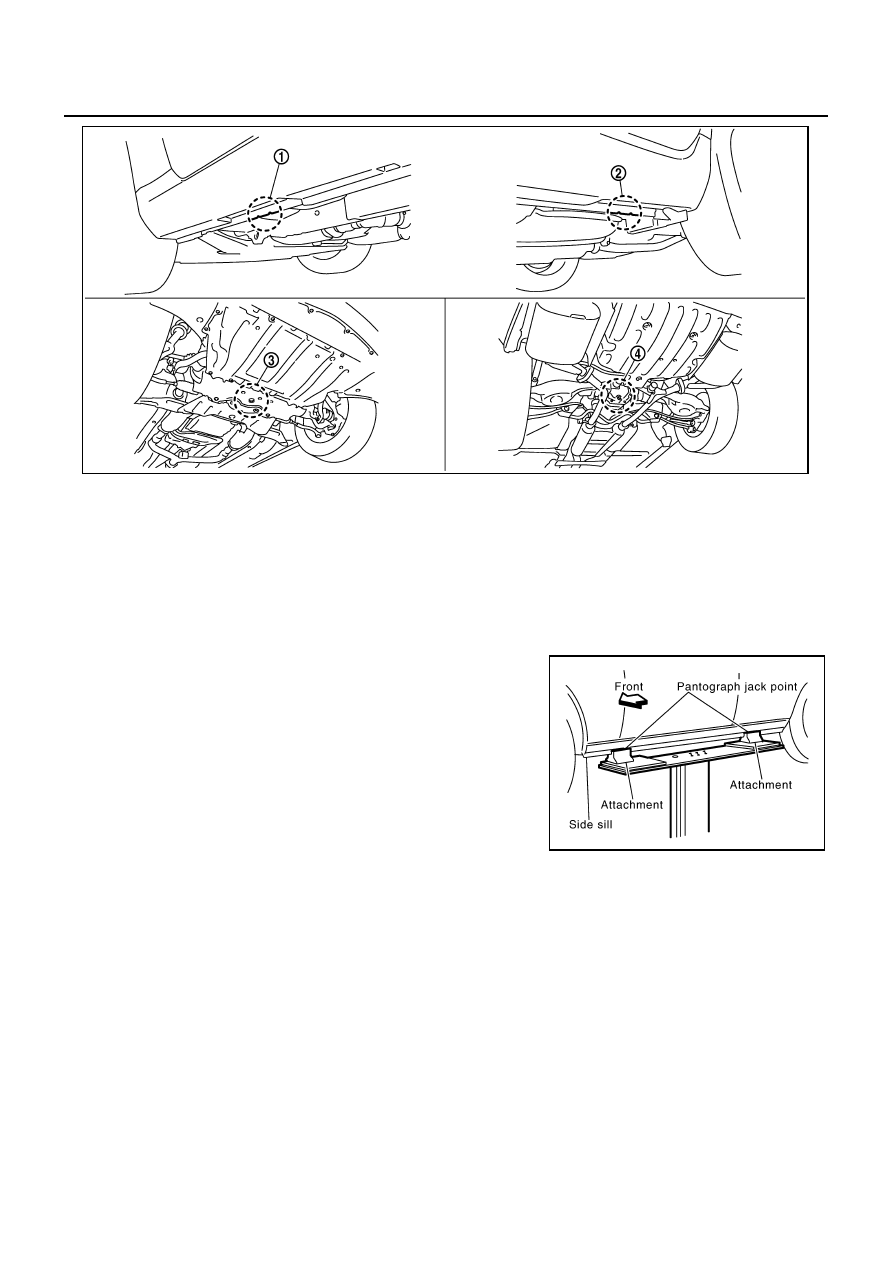

1.

Safety stand point and lift up point (front) 2.

Safety stand point and lift up point
(rear)

3.

Garage jack point (front)

4.

Garage jack point (rear)

PIIB3129E

PIIB7445E

TOW TRUCK TOWING

GI-43

C

D

E

F

G

H

I

J

K

L

M

B

GI

TOW TRUCK TOWING

PFP:00000

Tow Truck Towing

NAS00081

CAUTION:

●

All applicable state or Provincial (in Canada) laws and local laws regarding the towing operation
must be obeyed.

●

It is necessary to use proper towing equipment to avoid possible damage to the vehicle during
towing operation. Towing is in accordance with Towing Procedure Manual at dealer.

●

Always attach safety chains before towing.

●

When towing, make sure that the transmission, steering system and powertrain are in good order.
If any unit is damaged, dollies must be used.

●

Never tow an automatic transmission model from the rear (that is backward) with four wheels on
the ground. This may cause serious and expensive damage to the transmission.

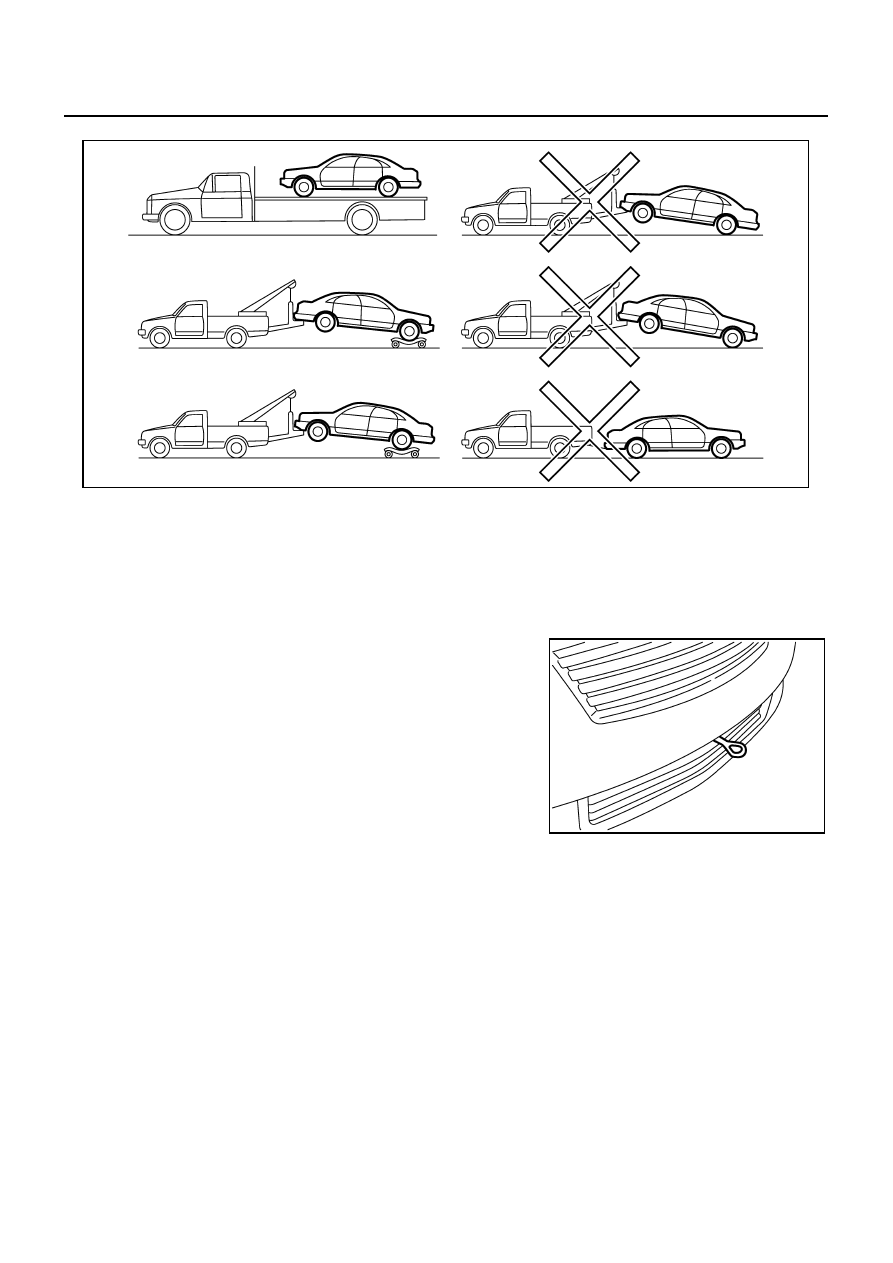

2WD MODELS

INFINITI recommends that vehicle be towed with the driving (rear) wheels off the ground or that a dolly be
used as illustrated.

CAUTION:

●

Never tow automatic transmission models with the rear wheels on the ground or four wheels on
the ground (forward or backward), as this may cause serious and expensive damage to the trans-
mission.
If it is necessary to tow the vehicle with the front wheels raised, always use towing dollies under
the rear wheels.

●

When towing rear wheel drive models with the front wheels on the ground or on towing dollies:

–

Turn the ignition key to the OFF position, and secure the steering wheel in a straight ahead posi-
tion with a rope or similar device.Never secure the steering wheel by turning the ignition key to the
LOCK position. This may damage the steering lock mechanism.

–

Move the selector lever to the N (Neutral) position.

●

When the battery of vehicle equipped with the Intelligent Key system is discharged, your vehicle
should be towed with the front wheels on towing dollies or place the vehicle on a flat bed truck.

If the speed or distance must necessarily be greater, remove the propeller shaft before towing to prevent dam-
age to the transmission.

PIIB6402E

GI-44

TOW TRUCK TOWING

AWD MODELS

INFINITI recommends that a dolly be used as illustrated when towing AWD models.

CAUTION:

Never tow AWD models with any of the wheels on the ground as this may cause serious and expen-
sive damage to the powertrain.

Vehicle Recovery (Freeing a Stuck Vehicle)

NAS00082

FRONT

Securely install the vehicle recovery hook stored with jacking tools.
Make sure that the hook is properly secured in the stored place after
use.

WARNING:

●

Stand clear of a stuck vehicle.

●

Do not spin your tires at high speed. This could cause them
to explode and result in serious injury. Parts of your vehicle
could also overheat and be damaged.

CAUTION:

●

Tow chains or cables must be attached only to the vehicle
recovery hooks or main structural members of the vehicle.
Otherwise, the vehicle body will be damaged.

●

Do not use the vehicle tie downs to free a vehicle stuck in sand, snow, mud, etc. Never tow the
vehicle using the vehicle tie downs or recovery hooks.

●

Always pull the cable straight out from the front of the vehicle. Never pull on the hook at an angle.

●

Pulling devices should be routed so they do not touch any part of the suspension, steering, brake
or cooling systems.

●

Pulling devices such as ropes or canvas straps are not recommended for use in vehicle towing or
recovery.

REAR

WARNING:

●

Rear hook is not available.

PIIB6403E

PIIB3130E
