DTC P0643 SENSOR POWER SUPPLY

EC-489

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

Diagnostic Procedure

NBS0052L

1.

CHECK GROUND CONNECTIONS

1.

Turn ignition switch OFF.

2.

Loosen and retighten two ground screws on the body.
Refer to

EC-160, "Ground Inspection"

 .

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace ground connections.

2.

CHECK ACCELERATOR PEDAL POSITION SENSOR 1 POWER SUPPLY CIRCUIT

1.

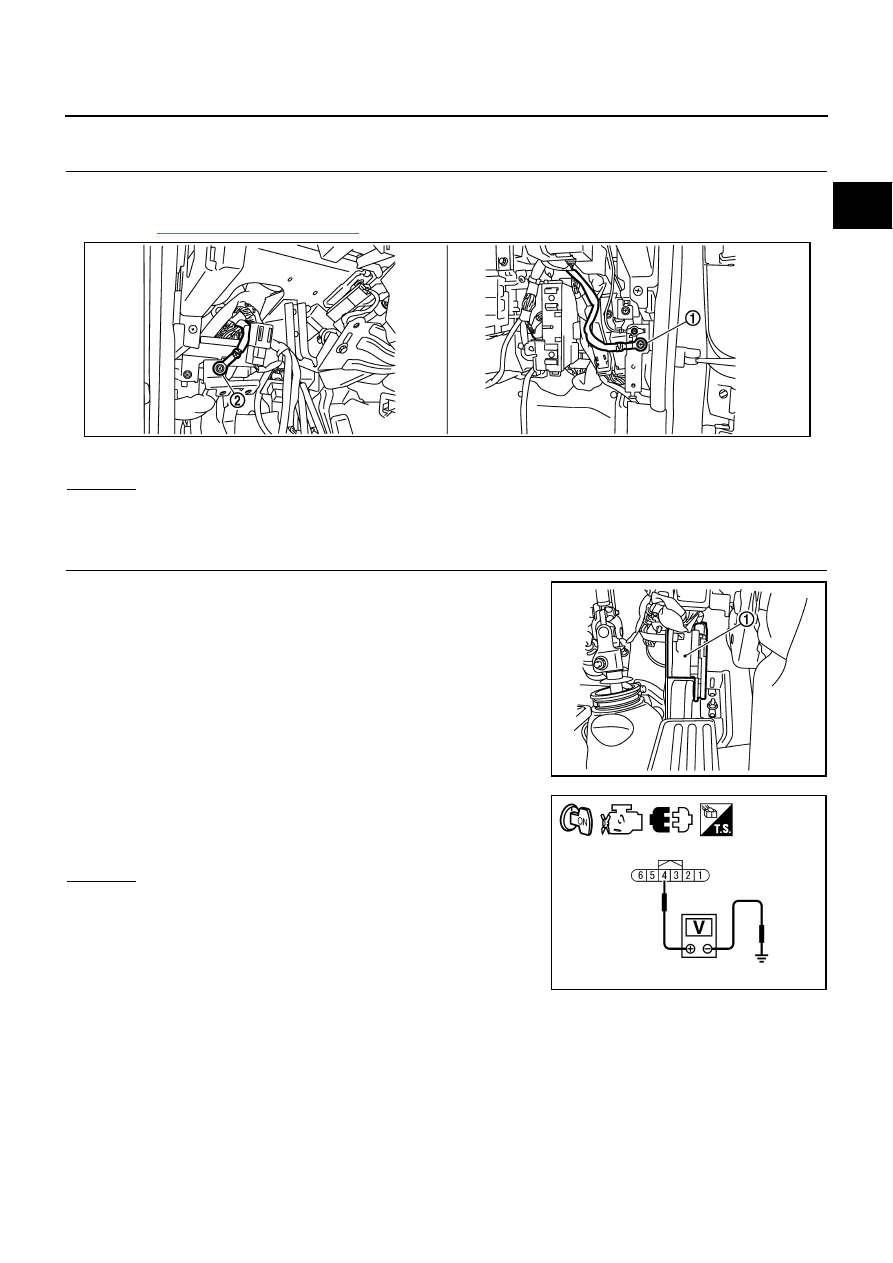

Disconnect accelerator pedal position (APP) sensor (1) harness
connector.

2.

Turn ignition switch ON.

3.

Check voltage between APP sensor terminal 4 and ground with
CONSULT-II or tester.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 3.

1.

Body ground M70

2.

Body ground M16

PBIB2782E

PBIB2704E

Voltage: Approximately 5V

PBIA9606J

EC-490

[VQ35DE]

DTC P0643 SENSOR POWER SUPPLY

3.

CHECK SENSOR POWER SUPPLY CIRCUITS

Check harness for short to power and short to ground, between the following terminals.

OK or NG

OK

>> GO TO 4.

NG

>> Repair short to ground or short to power in harness or connectors.

4.

CHECK COMPONENTS

Check the following.

●

EVAP control system pressure sensor (Refer to

EC-436, "Component Inspection"

 .)

●

Refrigerant pressure sensor (Refer to

ATC-97, "COMPONENT INSPECTION"

 .)

●

Battery current sensor (Refer to

EC-529, "Component Inspection"

 .)

●

Power steering pressure sensor (Refer to

EC-478, "Component Inspection"

 .)

OK or NG

OK

>> GO TO 7.

NG

>> Replace malfunctioning component.

5.

CHECK APP SENSOR

Refer to

EC-622, "Component Inspection"

 .

OK or NG

OK

>> GO TO 7.

NG

>> GO TO 6.

6.

REPLACE ACCELERATOR PEDAL ASSEMBLY

1.

Replace accelerator pedal assembly.

2.

Perform

EC-86, "Accelerator Pedal Released Position Learning"

 .

3.

Perform

EC-86, "Throttle Valve Closed Position Learning"

 .

4.

Perform

EC-86, "Idle Air Volume Learning"

 .

>> INSPECTION END

7.

CHECK INTERMITTENT INCIDENT

Refer to

EC-153, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

 .

>> INSPECTION END

ECM terminal

Sensor terminal

Reference Wiring Diagram

90

APP sensor terminal 4

EC-487

48

EVAP control system pressure sensor terminal 3

EC-433

49

Refrigerant pressure sensor terminal 1

EC-705

Battery current sensor terminal 1

EC-526

68

PSP sensor terminal 1

EC-475

DTC P0850 PNP SWITCH

EC-491

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

DTC P0850 PNP SWITCH

PFP:23006

Component Description

NBS0052M

When the selector lever position is P or N, park/neutral position (PNP) switch is ON.
ECM detects the position because the continuity of the line (the ON signal) exists.

CONSULT-II Reference Value in Data Monitor Mode

NBS0052N

Specification data are reference values.

On Board Diagnosis Logic

NBS0052O

DTC Confirmation Procedure

NBS0052P

CAUTION:

Always drive vehicle at a safe speed.

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

 WITH CONSULT-II

1.

Turn ignition switch ON.

2.

Select “P/N POSI SW” in “DATA MONITOR” mode with CON-
SULT-II. Then check the “P/N POSI SW” signal under the follow-
ing conditions.

If NG, go to

EC-494, "Diagnostic Procedure"

 .

If OK, go to following step.

3.

Select “DATA MONITOR” mode with CONSULT-II.

4.

Start engine and warm it up to normal operating temperature.

5.

Maintain the following conditions for at least 50 consecutive sec-
onds.

6.

If 1st trip DTC is detected, go to

EC-494, "Diagnostic Procedure"

 .

MONITOR ITEM

CONDITION

SPECIFICATION

P/N POSI SW

●

Ignition switch: ON

Selector lever: P or N

ON

Selector lever: Except above

OFF

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0850
0850

Park/neutral position
switch

The signal of the park/neutral position (PNP)
switch is not changed in the process of engine
starting and driving.

●

Harness or connectors
[The park/neutral position (PNP) switch
circuit is open or shorted.]

●

Park/neutral position (PNP) switch

●

Unified meter and A/C amp.

●

TCM

Position (Selector lever)

Known-good signal

N or P position

ON

Except above position

OFF

SEF212Y

ENG SPEED

1,400 - 6,375 rpm

COOLAN TEMP/S

More than 70

°

C (158

°

F)

B/FUEL SCHDL

2.0 - 31.8 msec

VHCL SPEED SE

More than 64 km/h (40 MPH)

Selector lever

Suitable position

SEF213Y

EC-492

[VQ35DE]

DTC P0850 PNP SWITCH

Overall Function Check

NBS0052Q

Use this procedure to check the overall function of the park/neutral position (PNP) switch circuit. During this
check, a 1st trip DTC might not be confirmed.

 WITH GST

1.

Turn ignition switch ON.

2.

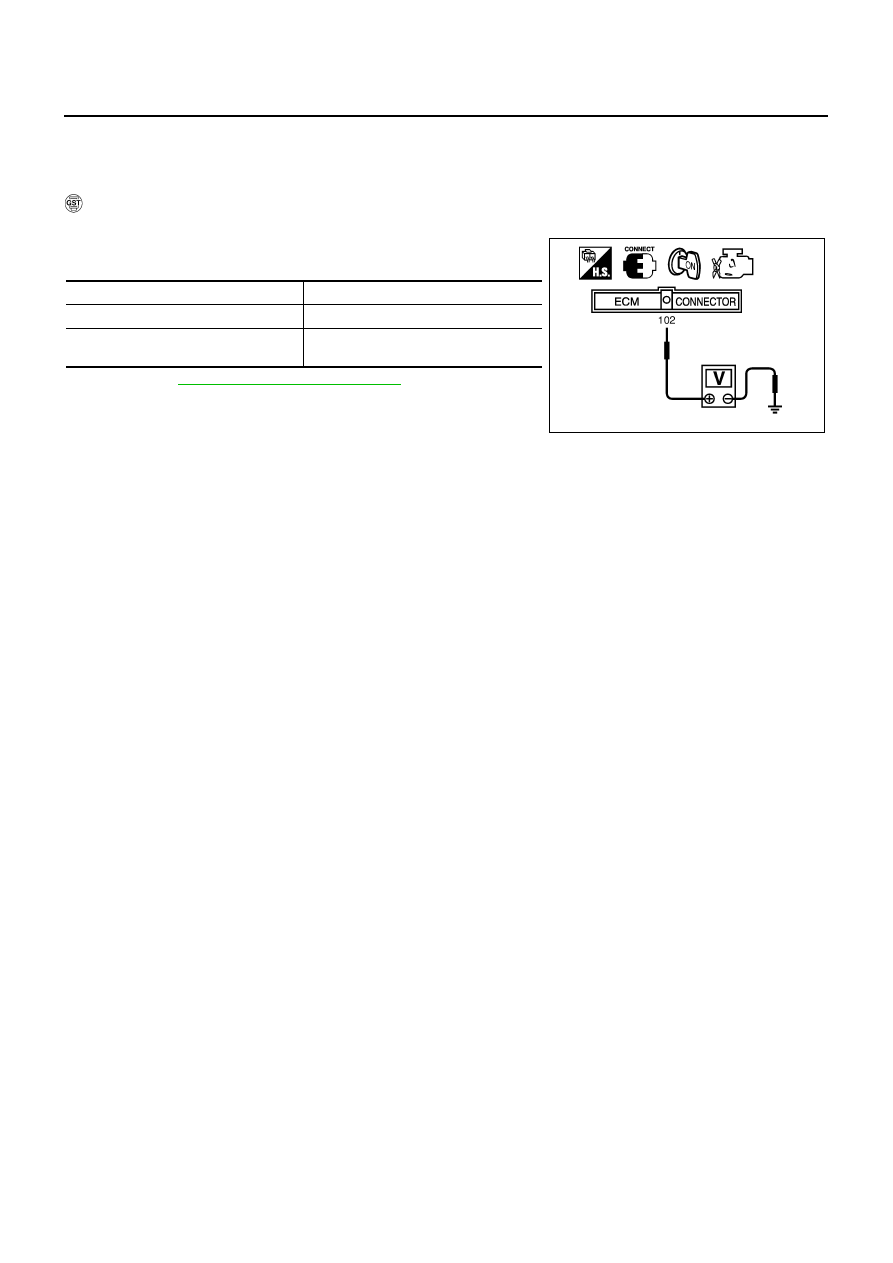

Check voltage between ECM terminal 102 (PNP switch signal)
and ground under the following conditions.

3.

If NG, go to

EC-494, "Diagnostic Procedure"

 .

Position (Selector lever)

Voltage (Known good data)

P or N position

Approx. 0V

Except above position

BATTERY VOLTAGE

(11 - 14V)

MBIB0043E
