FRONT DOOR LOCK

BL-197

C

D

E

F

G

H

J

K

L

M

A

B

BL

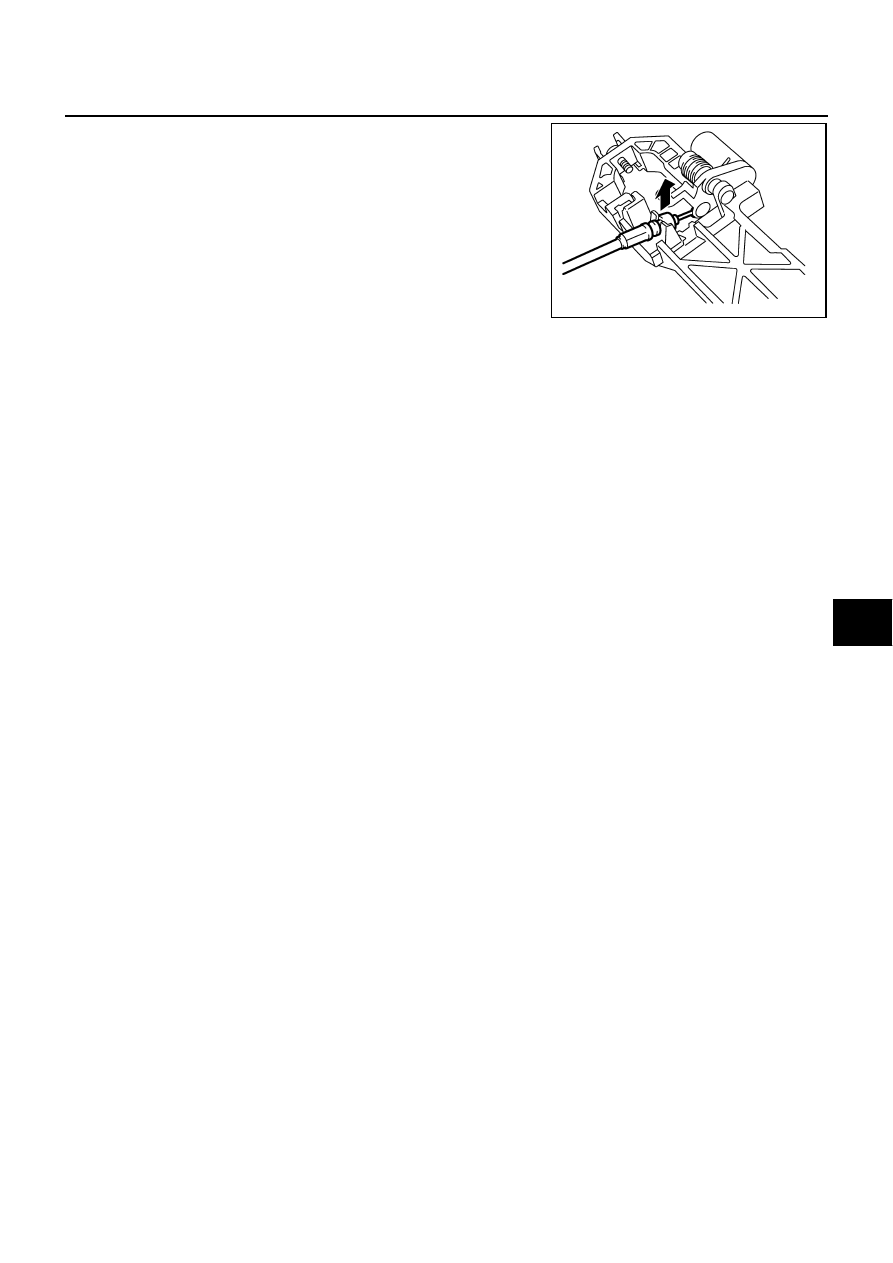

16. Reach to separate the outside handle cable connection.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

To install each rod, be sure to rotate the rod holder until a click is felt.

PIIB5815E

BL-198

REAR DOOR LOCK

REAR DOOR LOCK

PFP:82502

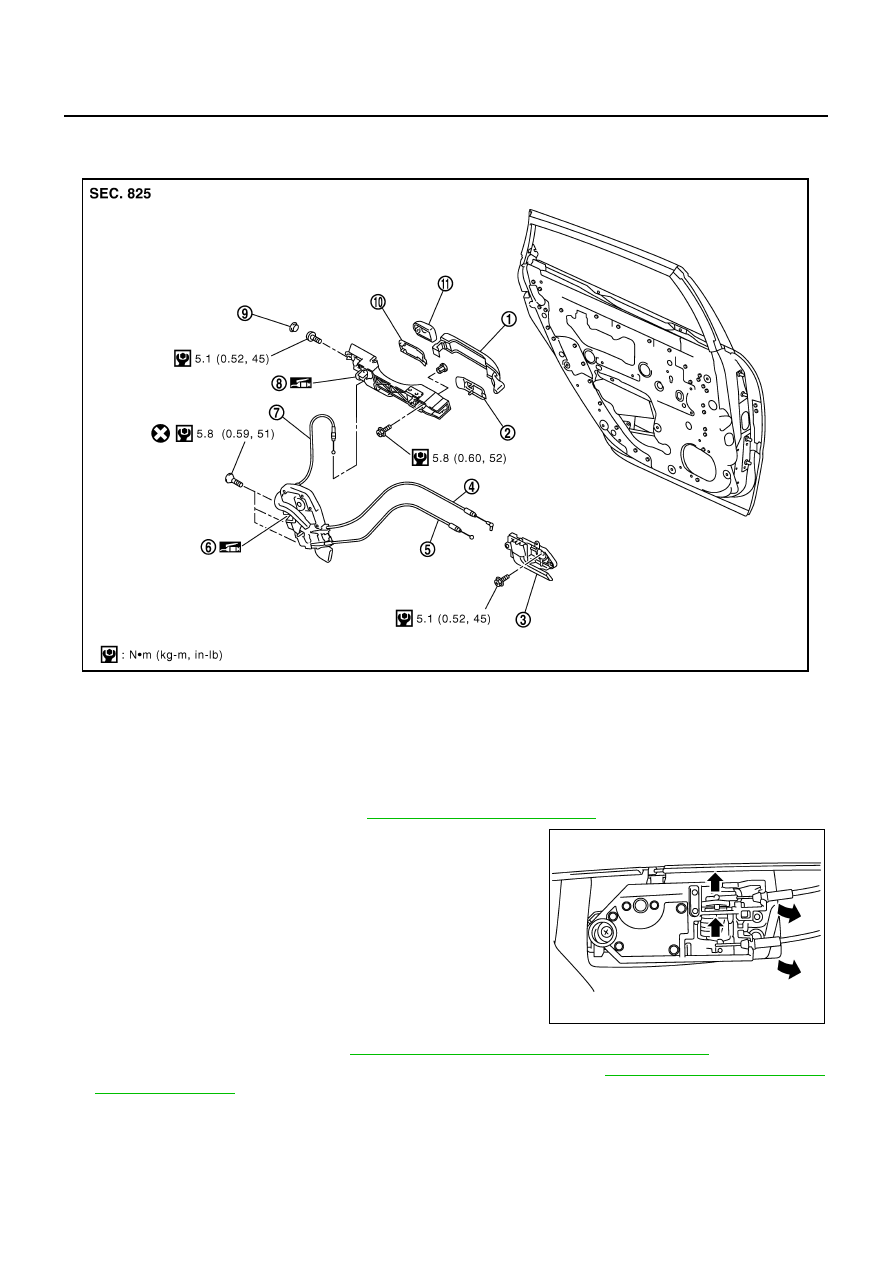

Component Structure

NIS001ZF

Removal and Installation

NIS001ZG

REMOVAL

1.

Remove the rear door finisher. Refer to

EI-34, "Removal and Installation"

 .

2.

Disconnect the inside handle knob cable and lock knob cable
from the back side of the rear door finisher.

3.

Remove the rear door sash. Refer to

GW-65, "REAR DOOR GLASS AND REGULATOR"

 .

4.

Remove the rear door window and rear door screen assembly. Refer to

GW-65, "REAR DOOR GLASS

AND REGULATOR"

 .

5.

Remove door side grommet, and remove outside handle escutcheon bolt from grommet hole.

1.

Outside handle

2.

Front gasket

3.

Inside handle

4.

Lock knob cable

5.

Inside handle knob cable

6.

Door lock assembly

7.

Outside handle cable

8.

Outside handle bracket

9.

Grommet

10. Rear gasket

11.

Outside handle escutcheon

PIIB5816E

PIIB4933E

REAR DOOR LOCK

BL-199

C

D

E

F

G

H

J

K

L

M

A

B

BL

CAUTION:

Do not forcibly remove the TORX bolts.

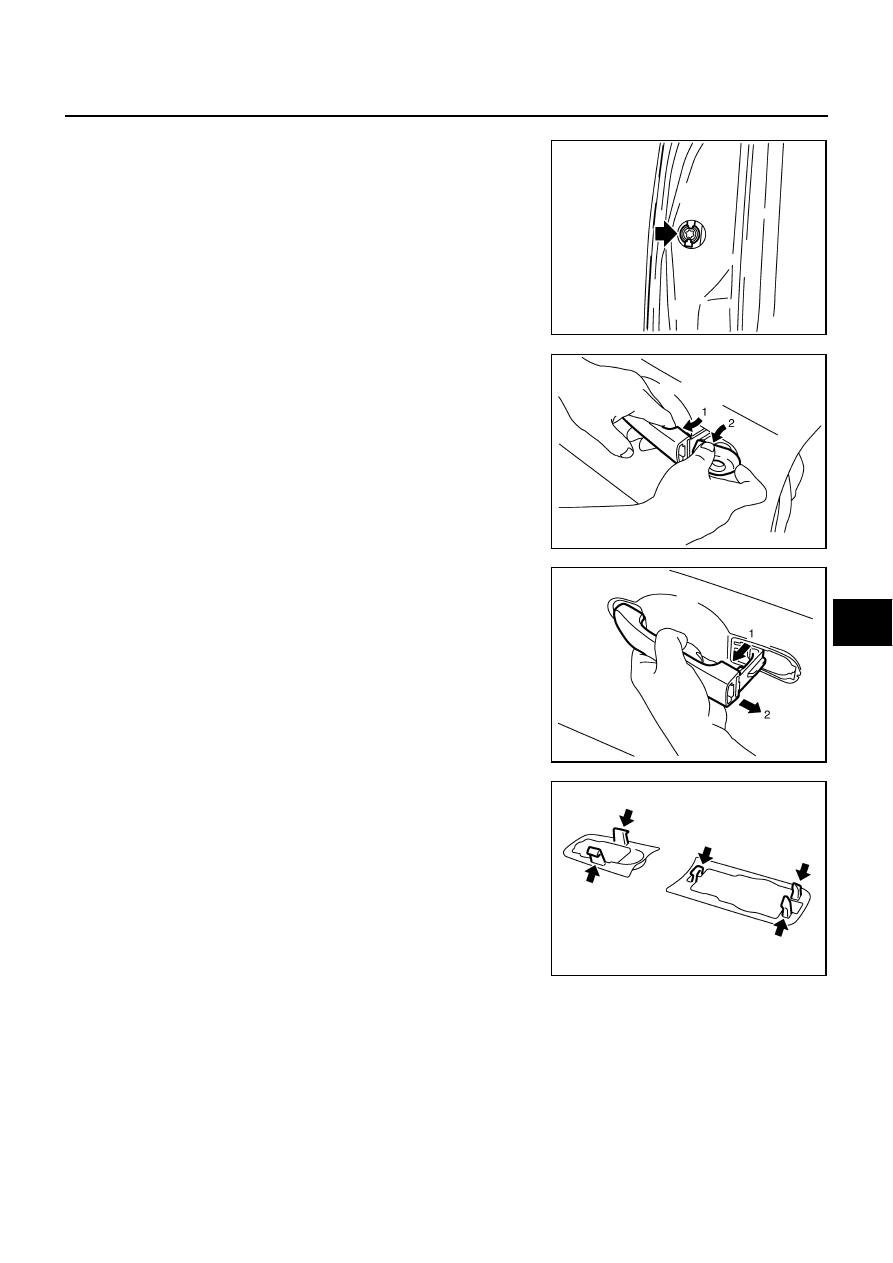

6.

While pulling the outside handle, remove outside handle
escutcheon.

7.

While pulling outside handle, slide toward rear of vehicle to
remove outside handle.

8.

Remove the front gasket and rear gasket.

PIIB5808E

PIIB5809E

PIIB5810E

PIIB5811E

BL-200

REAR DOOR LOCK

9.

Remove the TORX bolts, remove the door lock assembly.

10. Remove the TORX bolt, and remove the outside handle bracket.

11. While pulling outside handle, slide toward rear of vehicle to

remove outside handle.

12. Disconnect the door lock actuator connector and remove the door lock assembly.

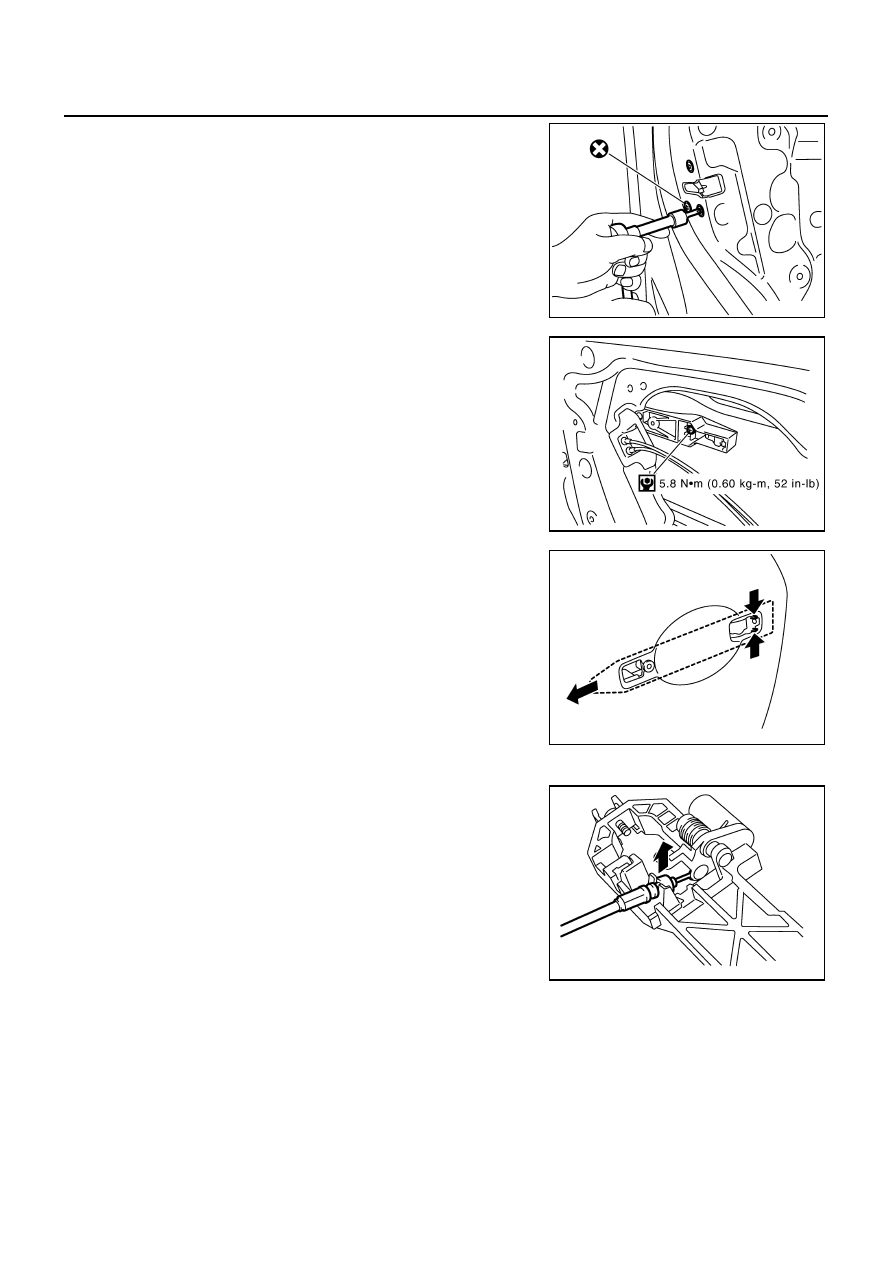

13. Reach to separate outside handle cable connection.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

To install each rod, be sure to rotate the rod holder until a click is felt.

PIIB5812E

PIIB5813E

PIIB5814E

PIIB5815E
