RADIATOR CORE SUPPORT

BL-21

C

D

E

F

G

H

J

K

L

M

A

B

BL

RADIATOR CORE SUPPORT

PFP:62500

Removal and Installation

NIS001WN

REMOVAL

1.

Remove front bumper, bumper reinforcement. Refer to

EI-14, "Removal and Installation"

 .

2.

Remove headlamp (LH/RH). Refer to

LT-40, "Removal and Installation"

 .

3.

Remove air duct. Refer to

EM-19, "Removal and Installation"

 (VQ35DE models),

EM-177, "Removal and

Installation"

 (VK45DE models).

4.

Remove hood lock assembly, then remove hood lock cable. Refer to

BL-18, "Removal and Installation of

Hood Lock Control"

 .

5.

Remove washer tank. Refer to

WW-48, "Removal and Installation of Washer Tank"

 .

6.

Remove ambient sensor. Refer to

ATC-125, "Removal and Installation"

 .

7.

Remove crash zone sensor. Refer to

SRS-49, "Removal and Installation"

 .

1.

Headlamp (RH)

2.

Radiator core support side (RH)

3.

Washer tank

4.

Air guide (RH)

5.

Horn (High)

6.

Air guide (LH)

7.

Radiator core support side (LH)

8.

Horn (Low)

9.

Headlamp (LH)

10. Radiator core support center

11.

Upper radiator bracket (LH)

12. Upper radiator bracket (RH)

13. Power steering tube assembly

PIIB5804E

BL-22

RADIATOR CORE SUPPORT

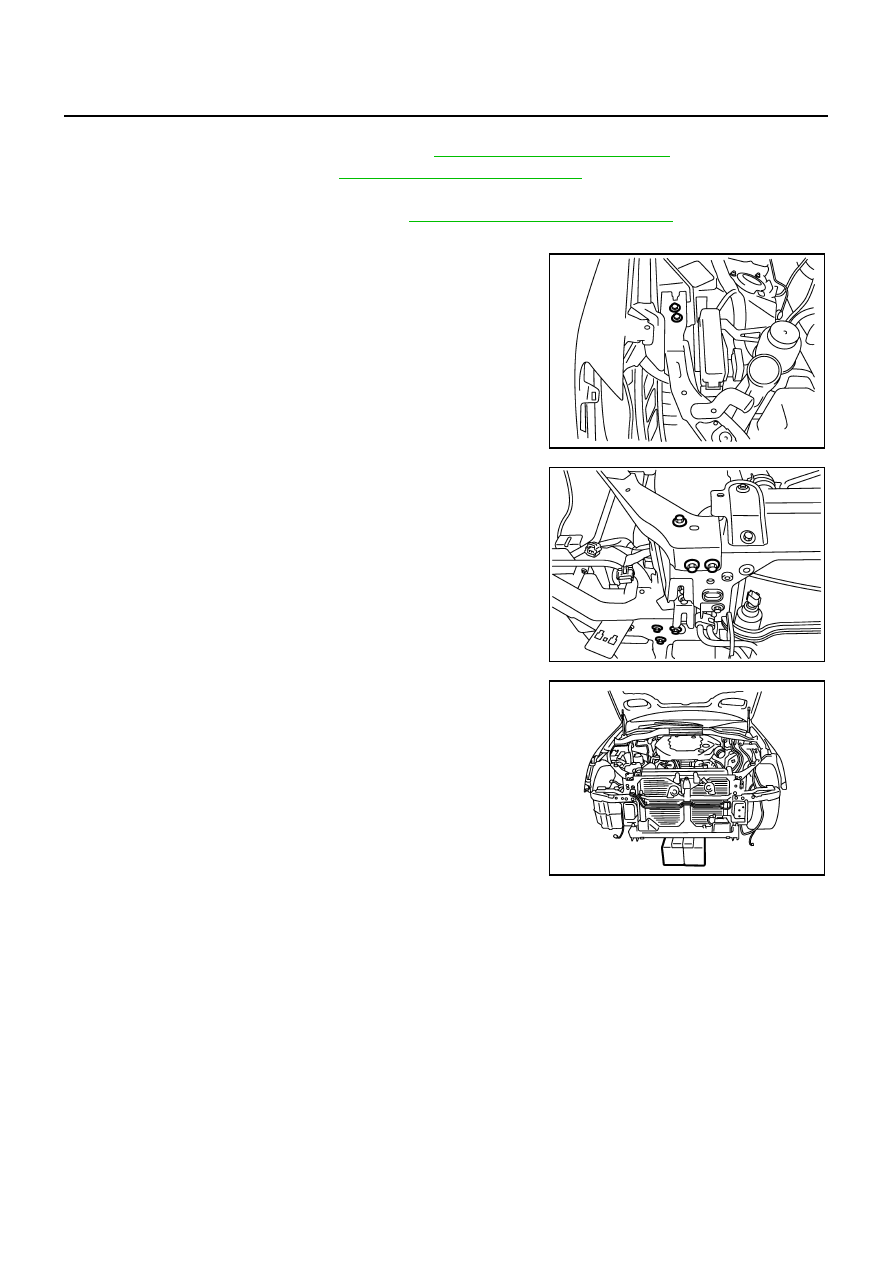

8.

Remove air guide (LH/RH).

9.

Remove power steering tube assembly. Refer to

PS-44, "Removal and Installation"

 .

10. Remove horn (High/Low). Refer to

WW-55, "Removal and Installation"

 .

11. Remove mounting harness clip on radiator core support assembly, the harness is separate.
12. Remove ICC sensor integrated unit. Refer to

ACS-70, "ICC Sensor Integrated Unit"

 .

13. Remove upper radiator bracket (LH/RH) with power tool.

14. Remove radiator core support side with power tool.

15. Remove radiator core support side (LH/RH) with power tool.

16. Remove radiator core support center.

CAUTION:

Put a wooden block under the radiator assembly to prevent
the radiator assembly from falling.

INSTALLATION

Install in the reverse order of removal.

PIIB3891J

PIIB3892J

PIIB3890J

FRONT FENDER

BL-23

C

D

E

F

G

H

J

K

L

M

A

B

BL

FRONT FENDER

PFP:63100

Removal and Installation

NIS001WO

REMOVAL

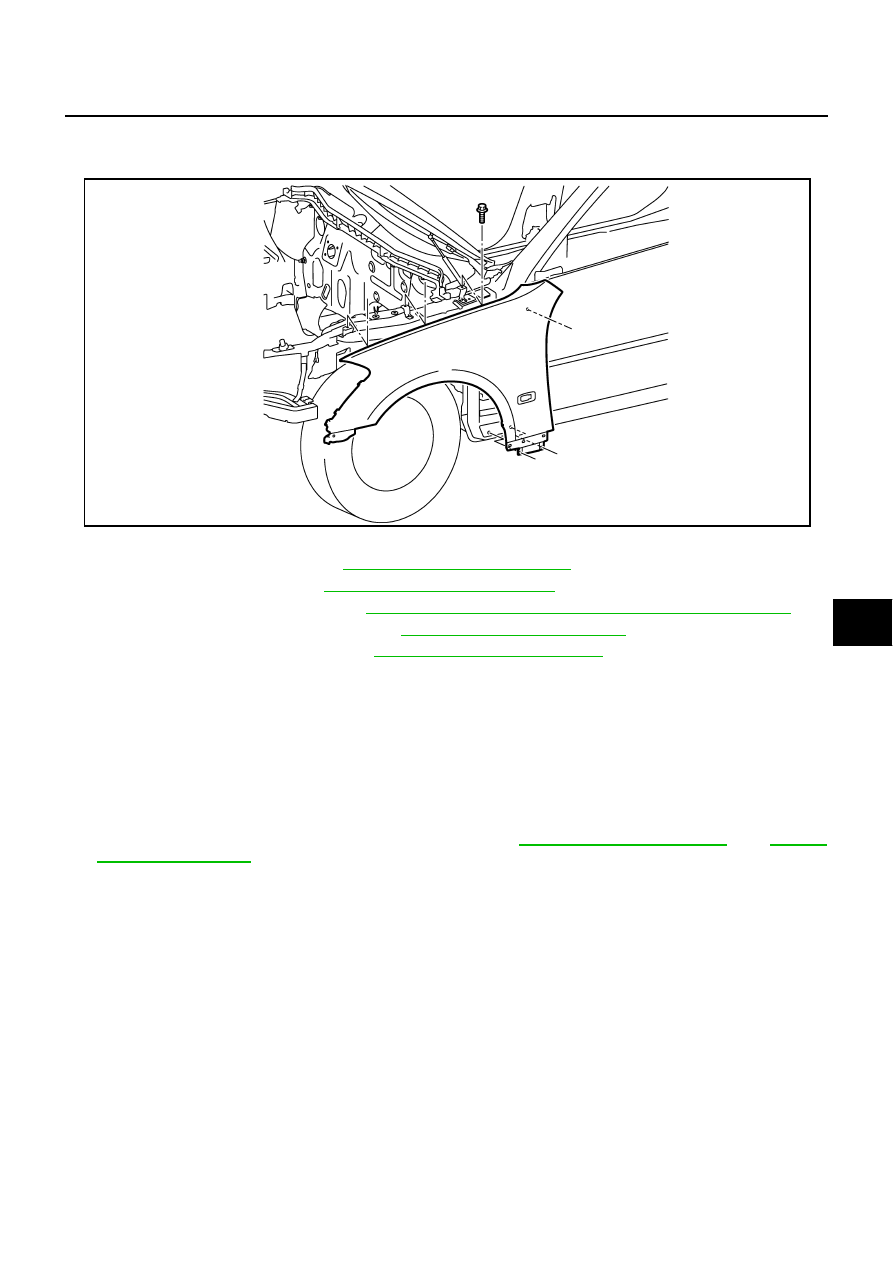

1.

Remove the front bumper. Refer to

EI-11, "Removal and Installation"

 .

2.

Remove the headlamp. Refer to

LT-40, "Removal and Installation"

 .

3.

Remove the turn signal lamp. Refer to

LT-229, "Removal and Installation of Front Turn Signal Lamp"

 .

4.

Remove the front fender protector. Refer to

EI-20, "FENDER PROTECTOR"

 .

5.

Remove the center mud guard. Refer to

EI-22, "Removal and Installation"

 .

6.

Remove the mounting bolt and remove the front fender.

CAUTION:

While removing use a shop cloth to protect body from damaging.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

●

After installing, apply touch-up paint (the body color) onto the head of the front fender mounting
bolts.

●

After installing, check front fender adjustment. Refer to

BL-15, "Fitting Adjustment"

  and

BL-188,

"Fitting Adjustment"

 .

PIIB3893J

BL-24

POWER DOOR LOCK SYSTEM

POWER DOOR LOCK SYSTEM

PFP:24814

Component Parts and Harness Connector Location

NIS001WP

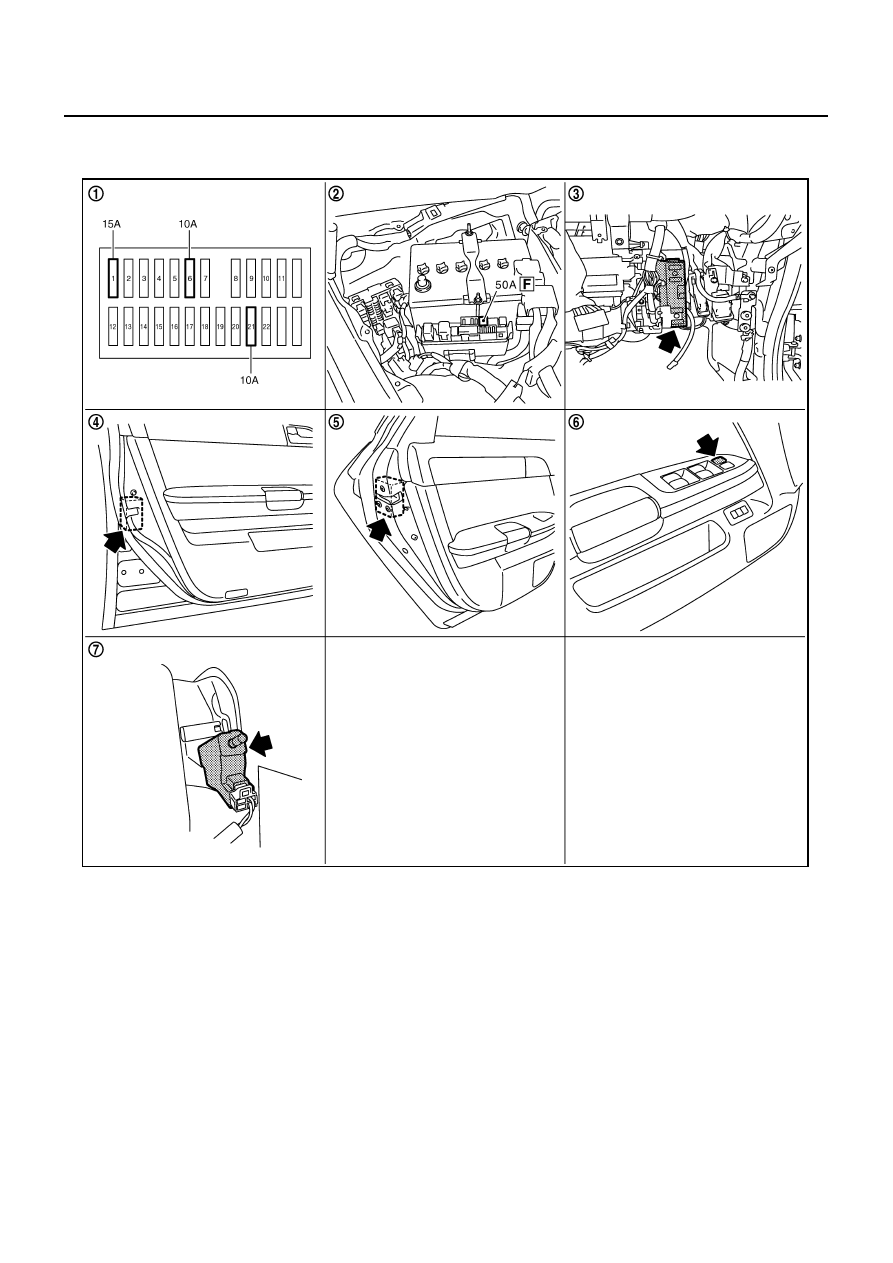

1.

Fuse block (J / B) fuse layout

2.

Fuse and fusible link box

3.

BCM  M1, M2, M3 (View with instru-
ment lower panel RH removed)

4.

Front door lock actuator (Driver side)
D14

5.

Rear door lock actuator LH D59

6.

Power window main switch (door
lock and unlock switch) D10, D11

7.

Fuel lid lock actuator B477

PIIB5859E
