DIAGNOSIS SYSTEM

AV-237

[WITH MOBILE ENTERTAINMENT SYSTEM]

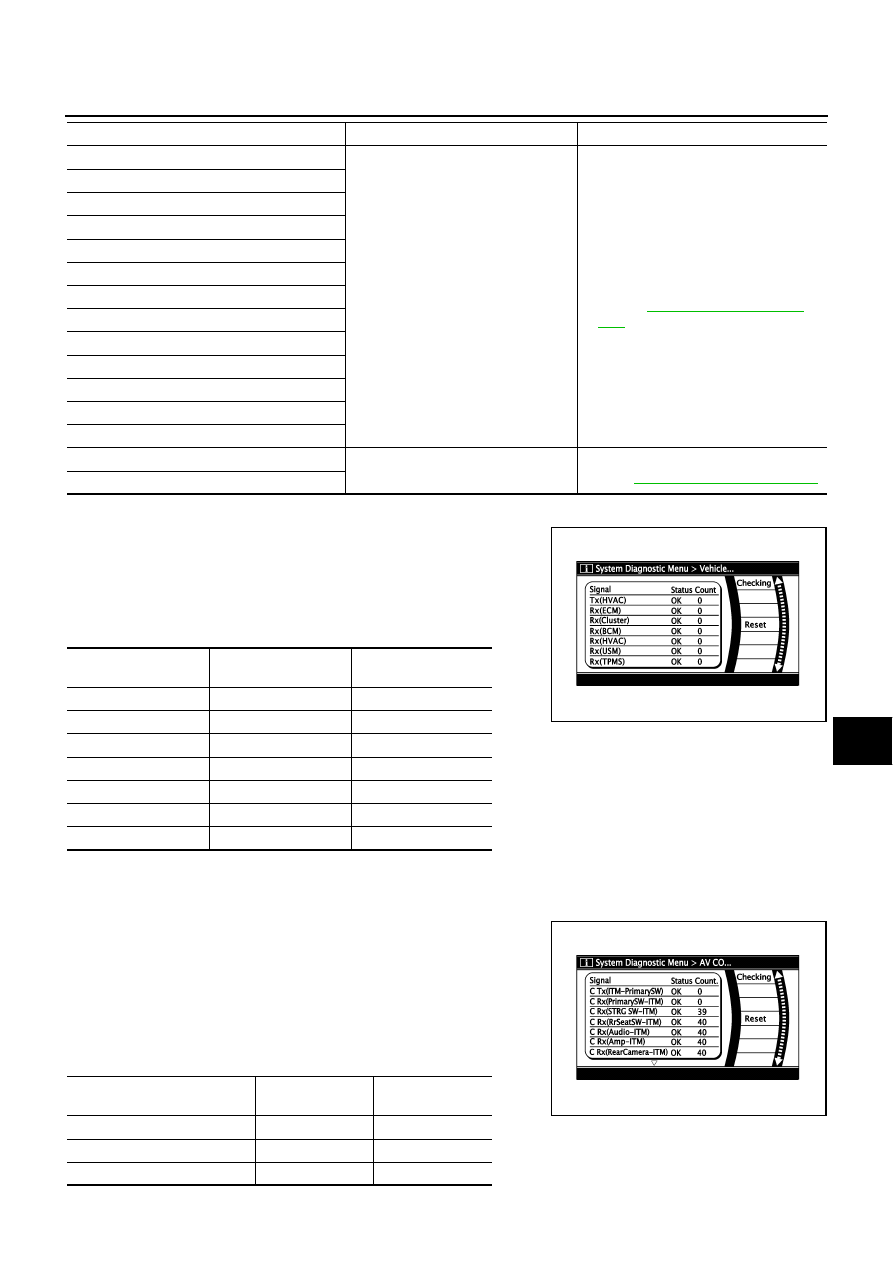

VEHICLE CAN DIAGNOSIS

●

CAN communication status and error counter is displayed.

●

Error counter displays 0 if any malfunction is not detected in the
past. If the malfunction is detected, it displays 40. When turning
the ignition switch ON, if it is normal, it displays 39. The lower
limit of the counter is 1.

●

If it is reset, the error counter is deleted.

NOTE:
??? indicates “UNKWN”.

AV COMM DIAGNOSIS

●

Displays the communication condition between AV (NAVI) con-
trol unit (master unit) and each unit and between audio unit
(sub-master unit) and each unit.

●

If it is reset, the error counter is deleted.

DVD-ROM Communication Error

●

Malfunction is detected on DVD-
ROM drive pickup lens in NAVI con-
trol unit

●

There is dirt and damage on the map
disc

●

Map disc

●

NAVI control unit
Refer to

AV-282, "AV (NAVI) Control

Unit"

DVD-ROM Read Error

DVD-ROM Disc Error

DVD-ROM Mechanism not Detected

DVD-ROM Mechanism Error

DVD-ROM Focus Error

DVD-ROM TOC Error

DVD-ROM Seek Error

DVD-ROM Error Correction Error

DVD-ROM Data Transfer Error

DVD-ROM Data Error

DVD-ROM Time-out

DVD-ROM Loading / Eject Error

CAN Controller Memory Error

AV (NAVI) control unit malfunction is
detected

Replace AV (NAVI) control unit
Refer to

AV-282, "AV (NAVI) Control Unit"

Bluetooth Module Connection Error

Error item

Description

Possible cause/Action to take

Items

Display (Current)

Error counter

(Past)

Tx (HVAC)

OK /???

0 - 40

Rx (ECM)

OK /???

0 - 40

Rx (Cluster)

OK /???

0 - 40

Rx (BCM)

OK /???

0 - 40

Rx (HVAC)

OK /???

0 - 40

Rx (USM)

OK /???

0 - 40

Rx (TPMS)

OK /???

0 - 40

SKIB3666E

Items

Status

(Current)

Counter

(Past)

C Tx (ITM-PrimarySW)

OK /???

0 - 40

C Rx (PrimarySW-ITM)

OK /???

0 - 40

C Rx (STRG SW-ITM)

OK /???

0 - 40

SKIB3667E

AV-238

[WITH MOBILE ENTERTAINMENT SYSTEM]

DIAGNOSIS SYSTEM

ITM: AV (NAVI) control unit

NOTE:
??? indicates “UNKWN”.

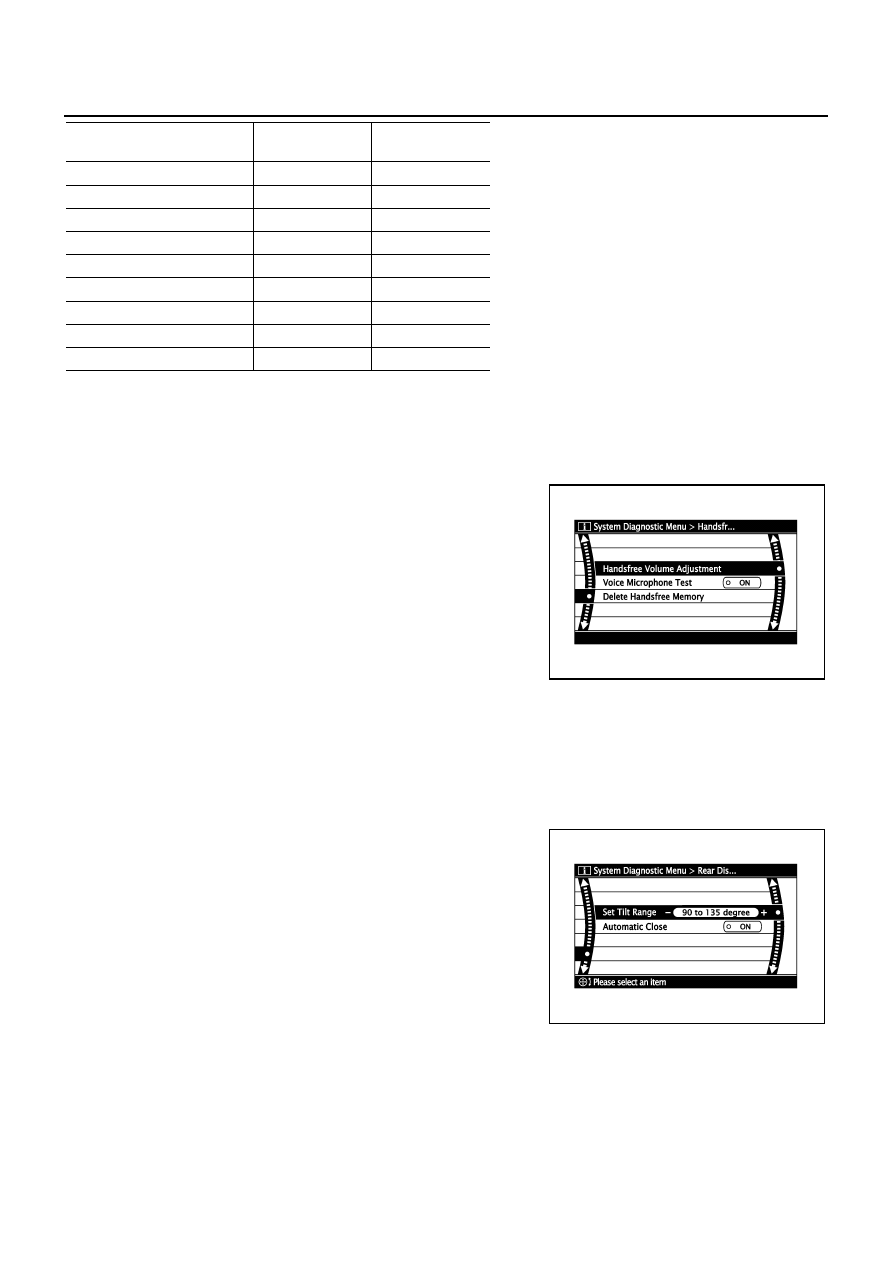

HANDSFREE PHONE
Handsfree Volume Adjustment

The received volume adjustment of hands-free phone can be
adjusted to Low, Medium, and High settings.

Voice Microphone Test

When this function is turned ON, the voice that is input to microphone is output to front speaker via TEL voice
signal line. The microphone and TEL voice signal line can be checked.

Delete Handsfree Memory

Erase the memory related to the hands-free phone.

REAR DISPLAY

●

Tilt angle (90 to 135 degrees, 105 to 135 degrees) of rear seat
display can be set.

●

The automatic retraction of rear seat display can be set.

C Rx (RrSeatSW-ITM)

OK /???

0 - 40

C Rx (Audio-ITM)

OK /???

0 - 40

C Rx (Amp-ITM)

OK /???

0 - 40

C Rx (RearCamera-ITM)

OK /???

0 - 40

C Rx (DVD-ITM)

OK /???

0 - 40

C Rx (Video DIST-ITM)

OK /???

0 - 40

C Rx (Remote Cont-ITM)

OK /???

0 - 40

C Rx (Amp-Audio)

OK /???

0 - 40

C Rx (DVD-Audio)

OK /???

0 - 40

Items

Status

(Current)

Counter

(Past)

SKIB3668E

SKIB3693E

DIAGNOSIS SYSTEM

AV-239

[WITH MOBILE ENTERTAINMENT SYSTEM]

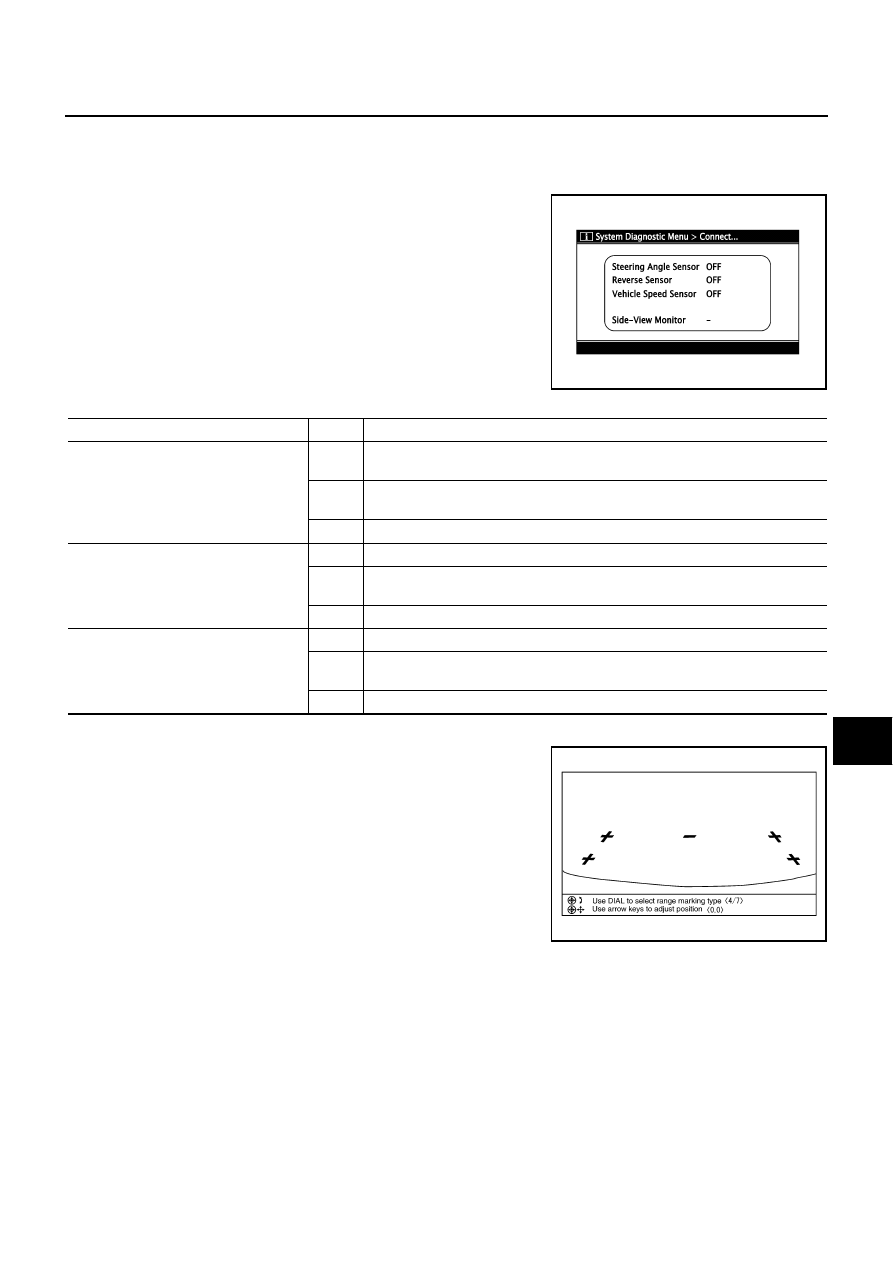

CAMERA CONT.

There are 2 functions: “Connection Confirmation”, “Adjust offset of rear view camera”.

Connection Confirmation

The input signals of steering angle sensor signal, reverse signal, and
vehicle speed signal can be checked.

Adjust Offset of Rear View Camera

If the adjustment of rear view monitor guiding line display position is
necessary when rear view camera is removed, use this mode to
adjust it.

SKIB3688E

Diagnosis item

Display

Vehicle status

Steering Angle Sensor

It turns ON when the steering is turning with the ignition switch ON (Once it turns
ON, it does not change during Connection Confirmation mode)

OFF

Turn ignition switch ACC
It turns OFF when the steering is not turning with the ignition switch ON

—

Rear view monitor connection confirmation signal malfunction

Reverse Sensor

Selector lever in R position with ignition switch ON

OFF

Turn ignition switch ACC
Selector lever in any position other than R with ignition switch ON

—

Rear view monitor connection confirmation signal malfunction

Vehicle Speed Sensor

When vehicle speed is 0 km/h or more with ignition switch ON

OFF

Turn ignition switch ACC
When vehicle speed is 0 km/h with ignition switch ON

—

Camera-connection recognition signal malfunction

SKIB3689E

AV-240

[WITH MOBILE ENTERTAINMENT SYSTEM]

DIAGNOSIS SYSTEM

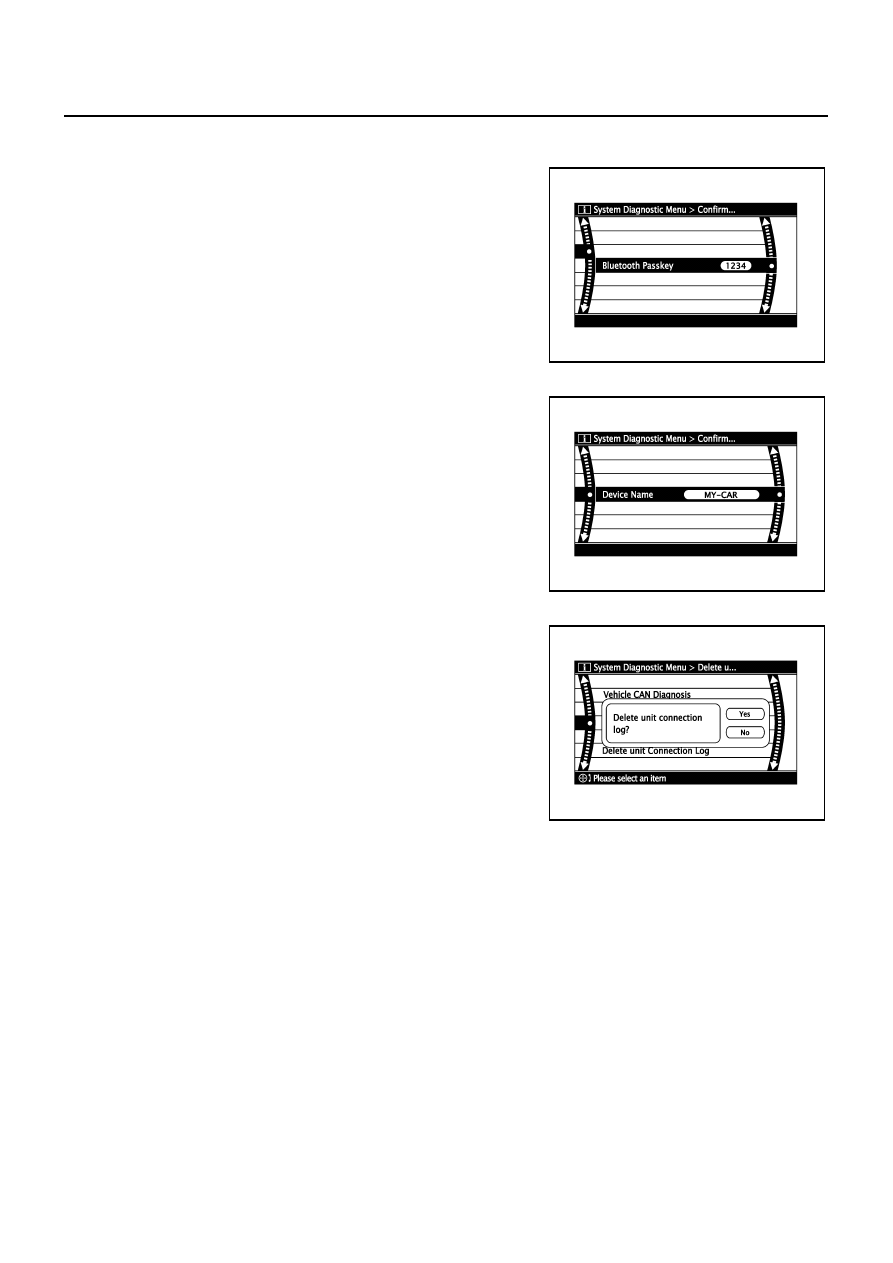

BLUETOOTH
Confirm/Change Passkey

●

The passkey of Bluetooth can be confirmed and changed.

●

The passkey can be changed by four digits within 0 to 9.

Confirm/Change Device Name

●

The device name of Bluetooth can be confirmed and changed.

●

The device name can be changed by sixteen digits within A to Z
(small characters can be used) and - (hyphen).

DELETE UNIT CONNECTION LOG

Erase the connection history of unit and error history that is recorded
in AV (NAVI) control unit (clear the connection history of the removed
unit).

SKIB3669E

SKIB3670E

SKIB3671E
